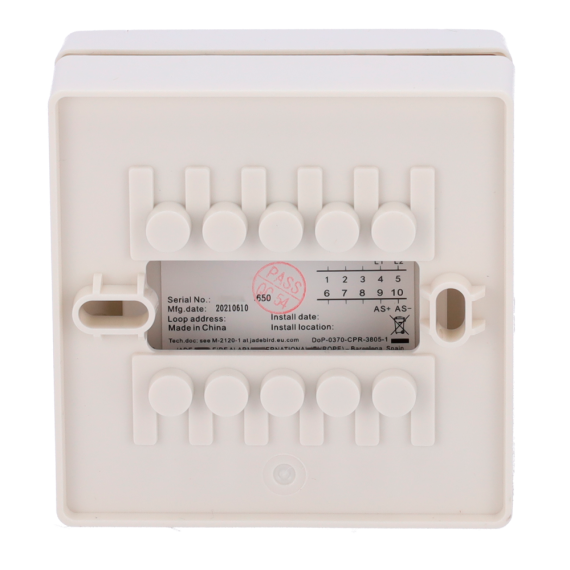

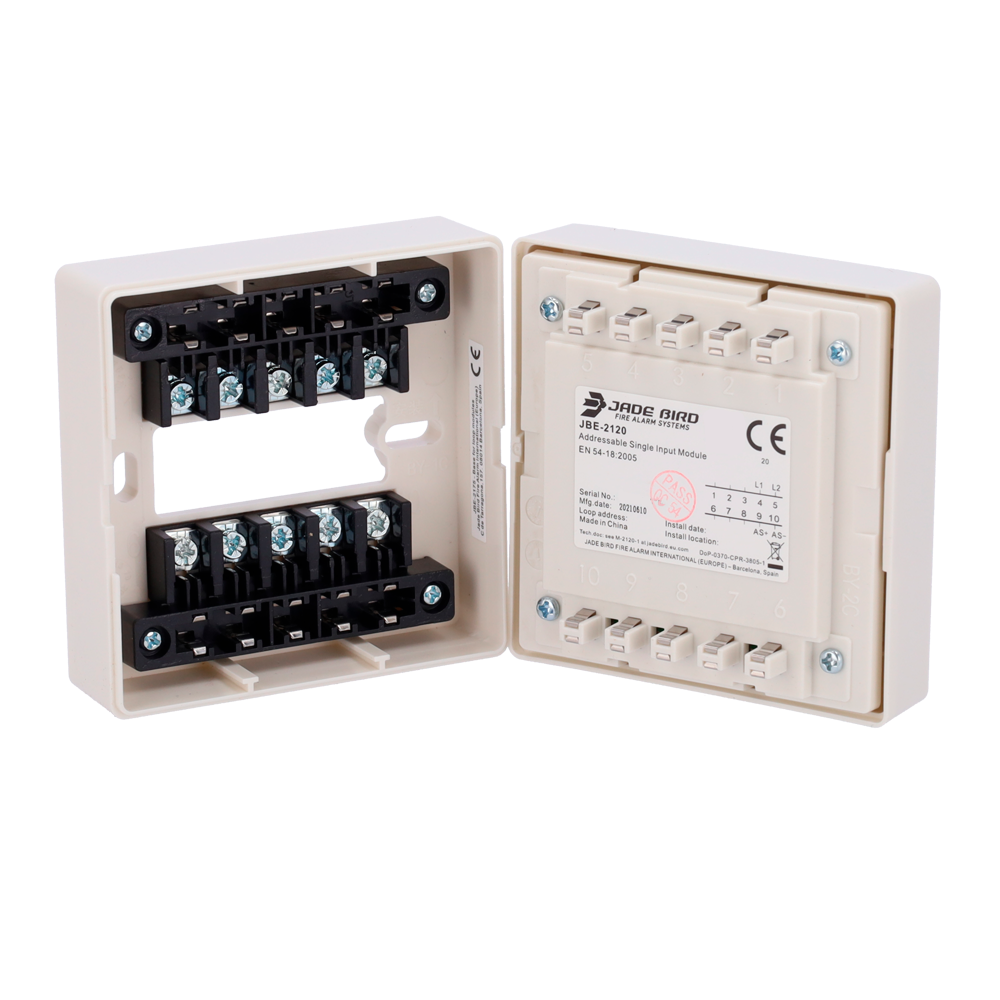

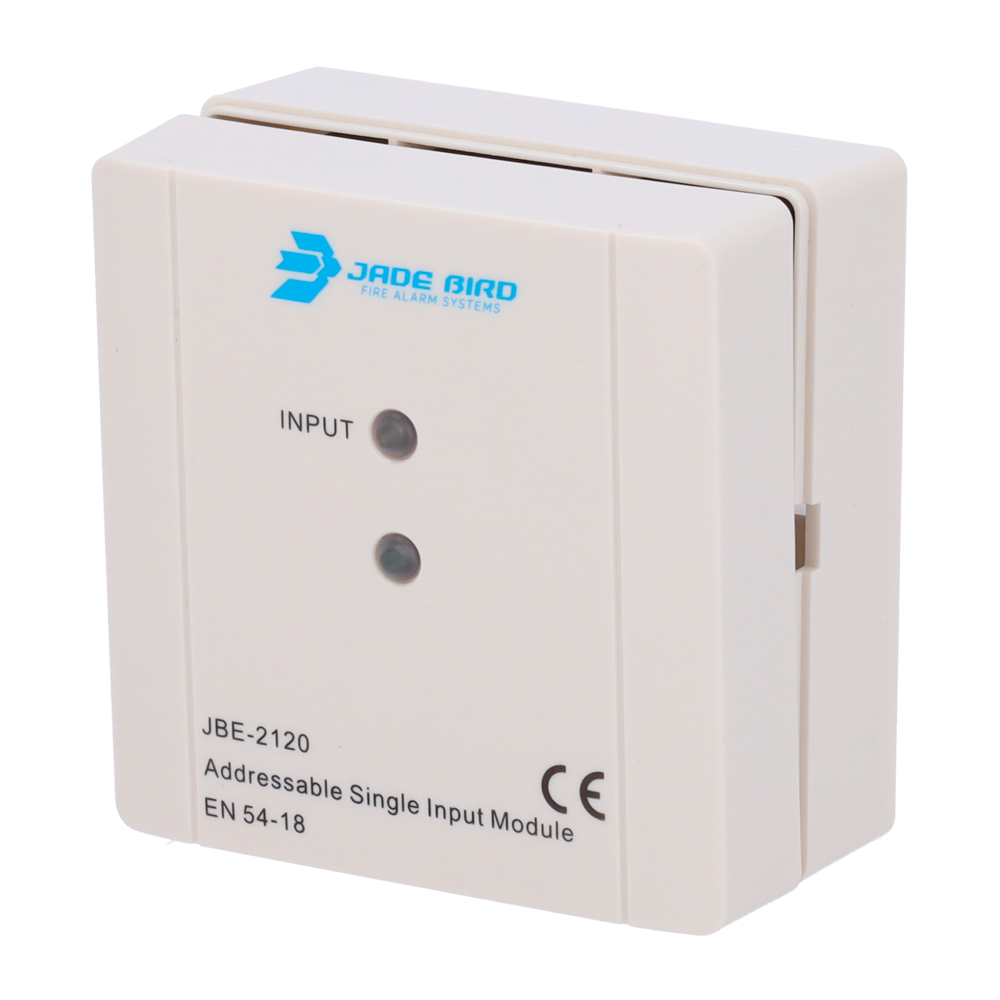

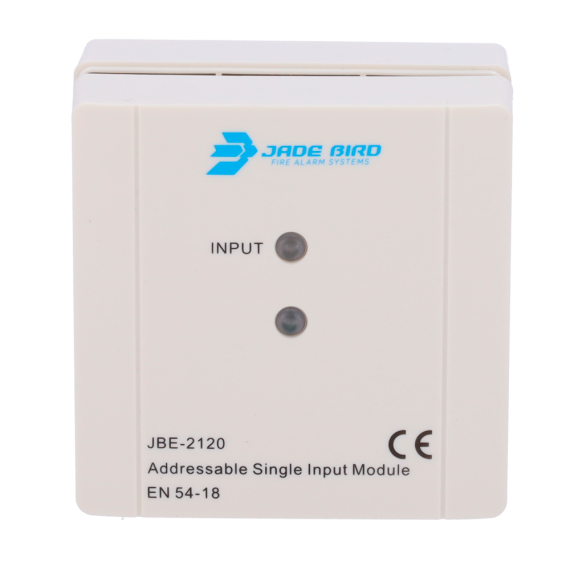

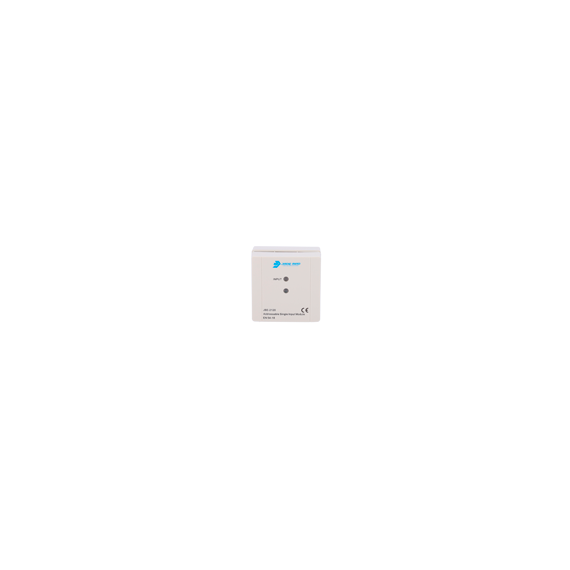

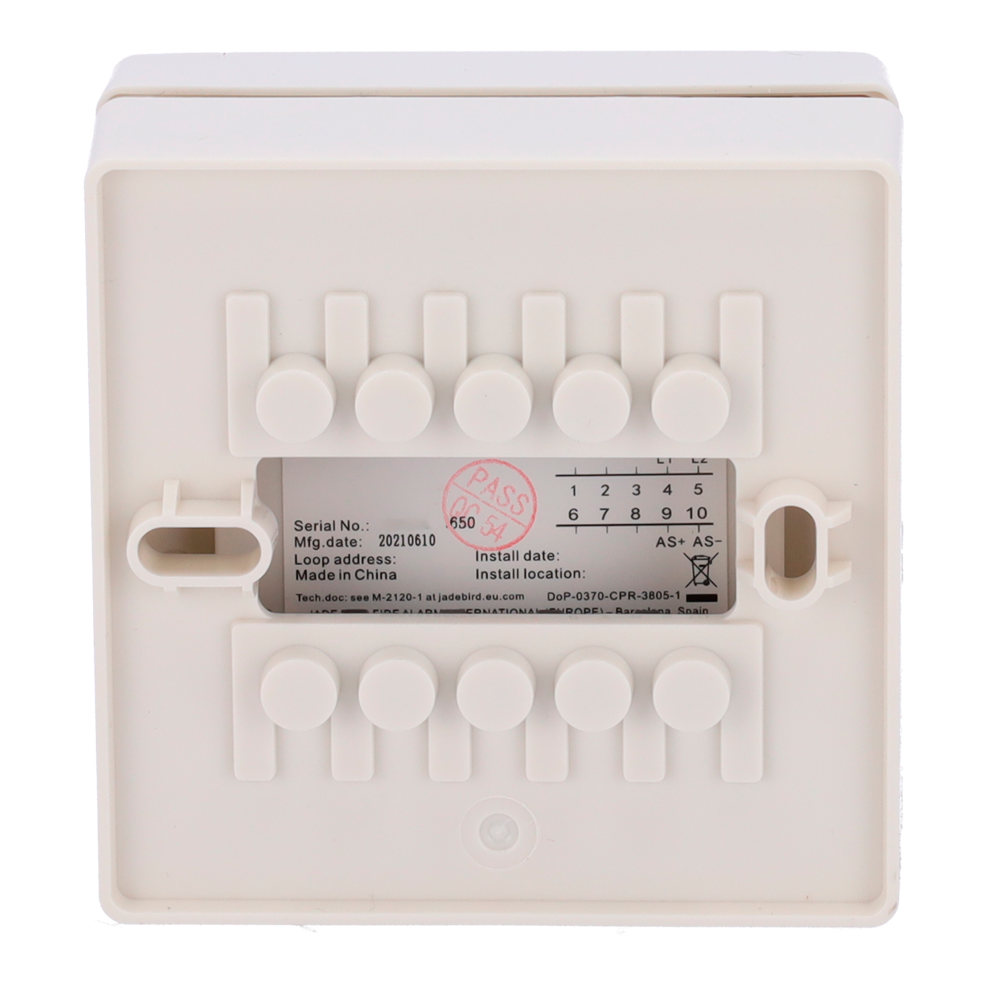

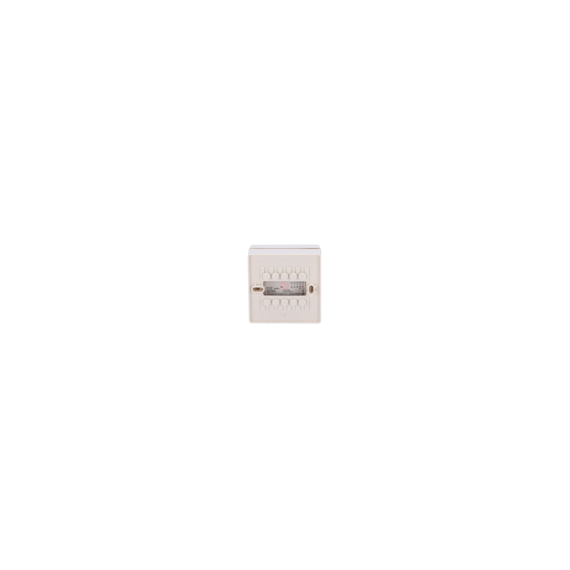

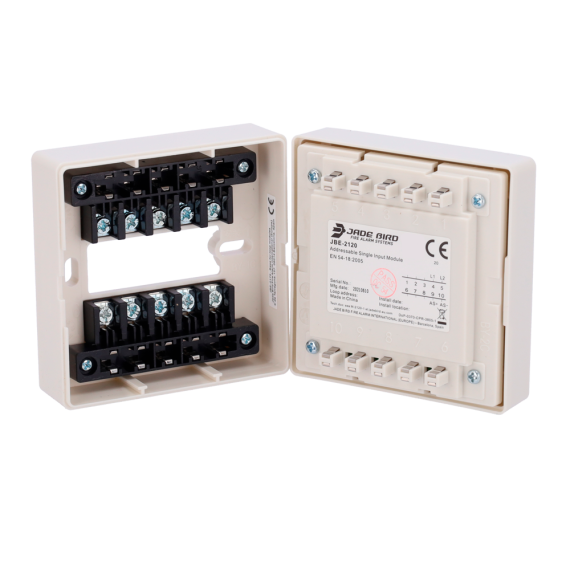

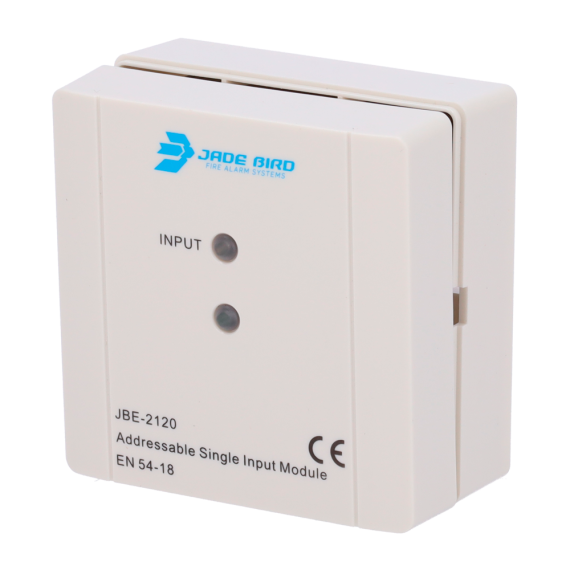

JADE BIRD JBE-2120

Jade Bird analog module - 1 Supervised input - Powered by loop - Conductor cable up to 2.5mm2 - REOL of 10 kΩ (supplied) - Certified EN 54-18
Les merShow less
kr 433.09
Referanse:
JBE-2120
Merke:

Last ned produktark

Relaterte produkter
Beskrivelse
  • Jade Bird - Modulo de 1 entrada supervisada
  • Loop powered
  • Without isolator

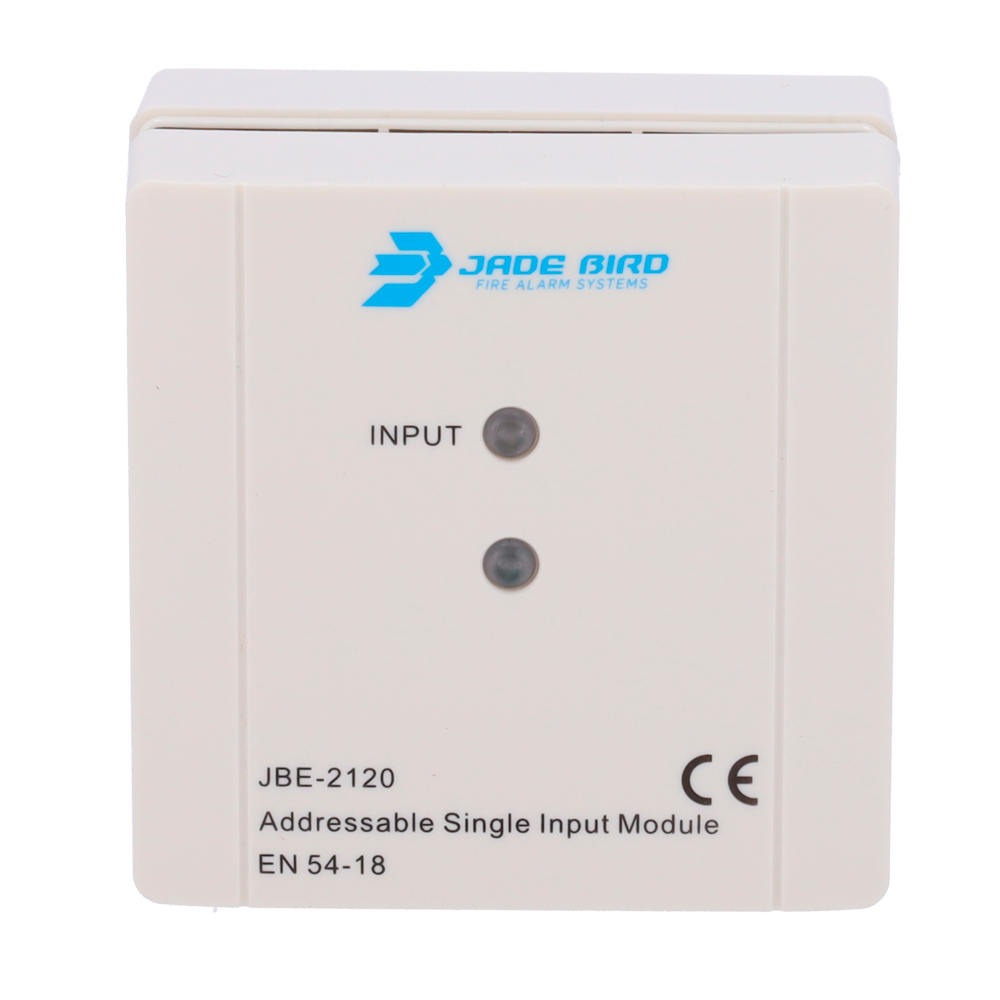

  • Front LED indicator
  • Address programmable by means of the JBE-AT1 tool
  • Certified EN 54-18

    BrandJade Bird
    TypeAnalog module 1 supervised input
    Operating voltage DC 16 - 30 V
    Connection JBE communication bus 2-hilos, without polarity
    WiredTwisted pair without braid 0.5 - 2.5 mm2
    Consumption in idle mode ≤0.25 mA @24 V
    Active consumption≤1 mA @24 V
    EOL resistance10 kΩ
    Temp. of work0℃ ~ +40℃
    Temp. storage -20℃ ~ +60℃
    Environment≤ 95% HR (40±2℃) (no condensation or icing)
    AddressAddressing tool JBE-AT1
    Address range1-200
    Led indicator RedRest: "Input" blinks with loop polling
    Malfunction: "Input" off
    Activation: "Input" fixed on
    Dimensions85×85x41 mm (length x width x height)
    Weight0.1 kg (including base)
    IP Rating IP40
    CertifiedEN 54-18:2005
    EN 54-18:2005/AC:2007
Les merShow less
