JADE BIRD JBE-2145

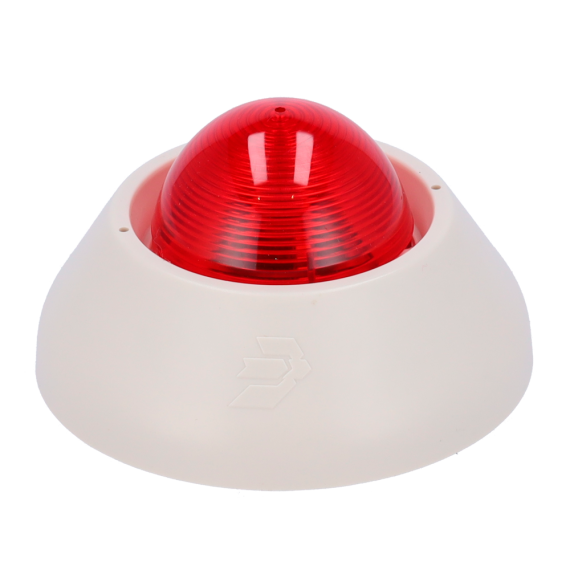

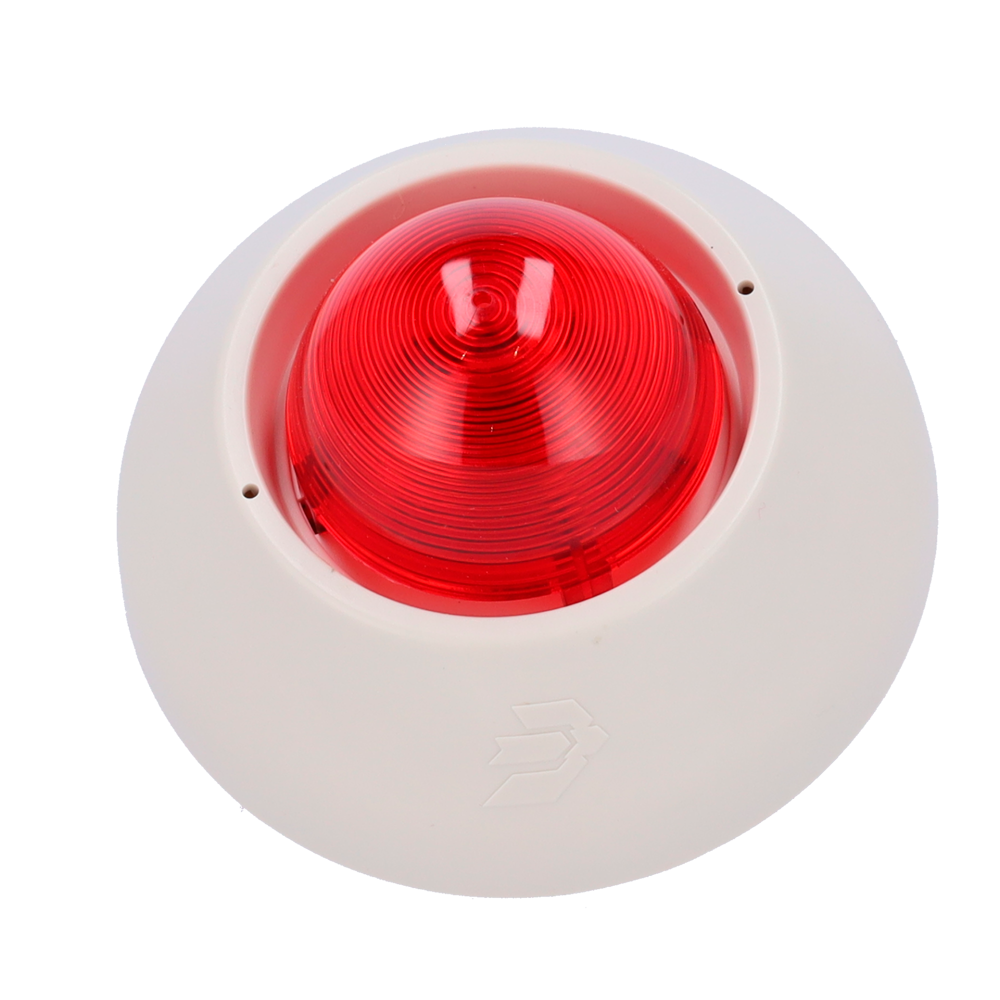

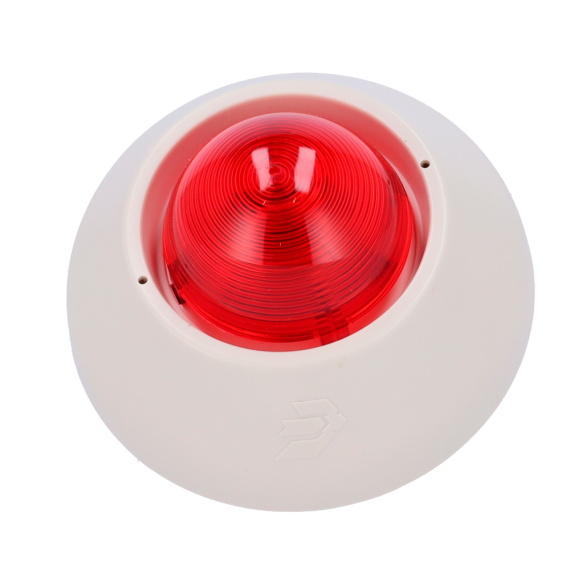

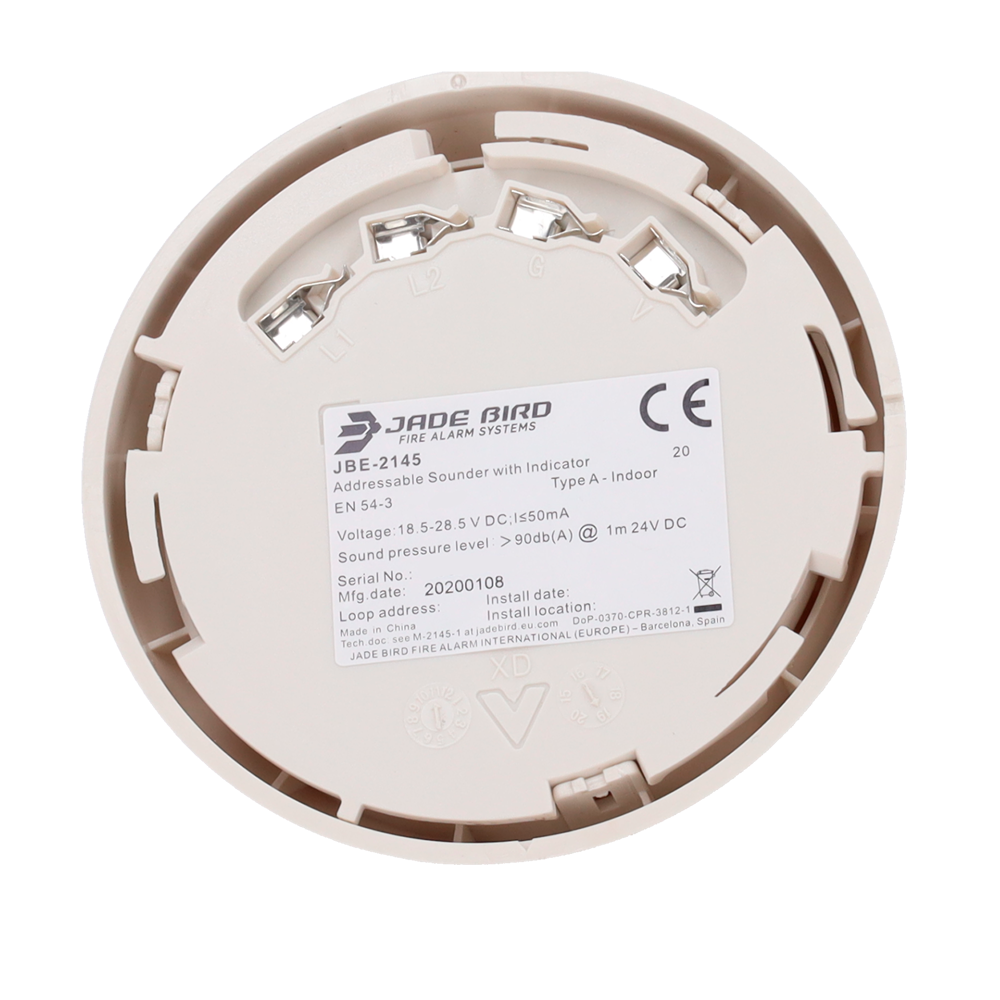

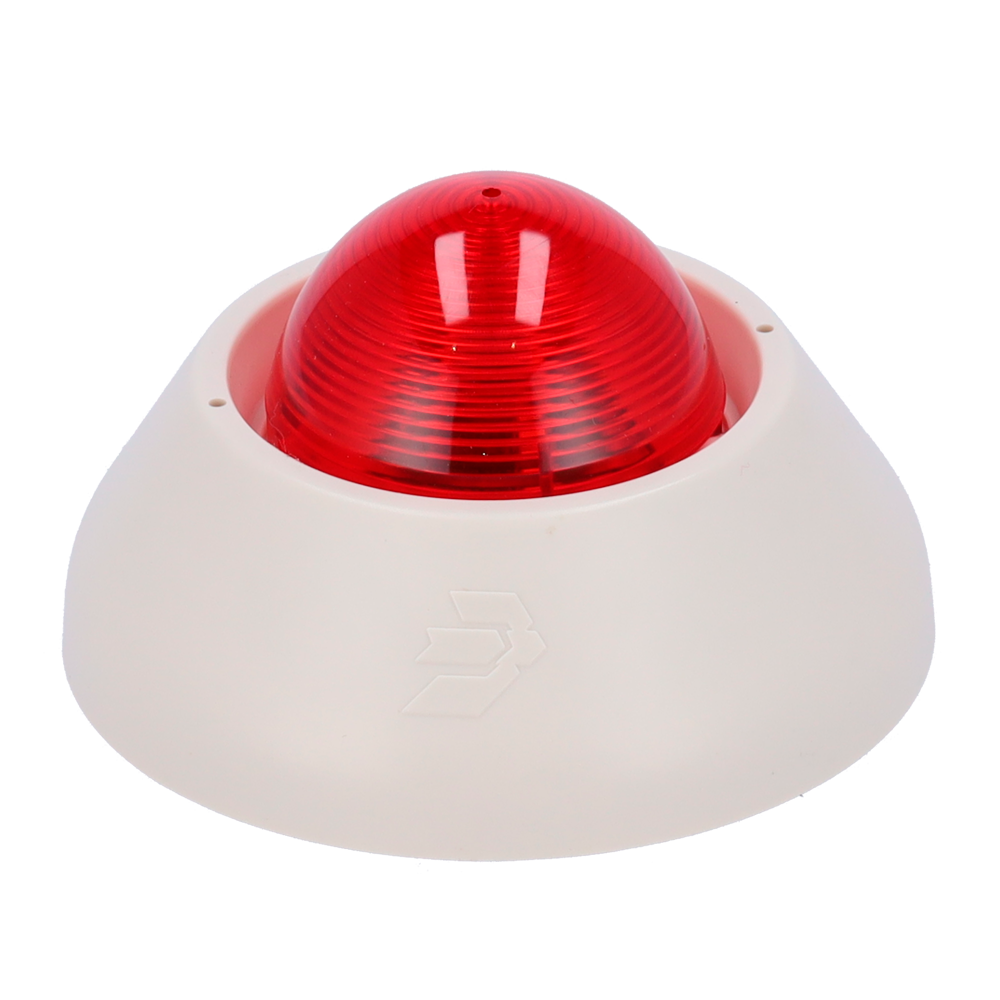

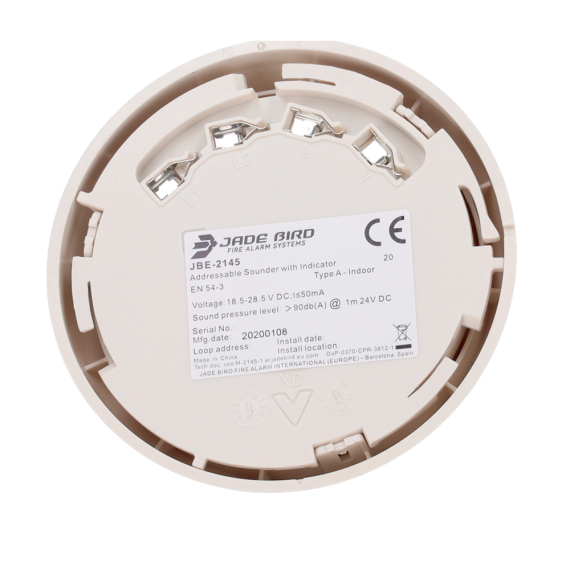

Jade Bird analog siren - High power output 100 dB(A) @ 1m - Requires auxiliary power supply of 24 VDC - Base not included - Indoor installation - Certified EN 54-3
Les merShow less
kr 788.89
Referanse:
JBE-2145
Merke:
![JADE BIRD]()
Relaterte produkter
- Jade Bird - Sirena analógica con indicador visual
- High power output 100 dB(A) @ 1m
- Without isolator
- Address programmable by means of the JBE-AT1 tool
- Requires auxiliary power supply of 24 VDC
- Indoor installation
- Base not included
- Compatible with BE-2165 base
- Certified EN 54-3
Brand Jade Bird Type High power siren Operating voltage DC 16 - 30 V Connection JBE communication bus 2-hilos, without polarity
Power supply 24V DC to 2-hilos (required)Wired Twisted pair without mesh 0.5 - 2.5 mm² JBE bus consumption Bus consumption 24V DC ≤ 0.25 mA @24 V
≤ 50 mA @24 V; ≤ 1.2 W @24 V (active)Sound pressure level 100 dBA @1 m; 1-2 kHz Swept Tone (0.25 Hz) Working temperature -10℃ ~ +55℃ Storage temperature -20 to +60ºC Environment ≤ 95% RH (without condensation or ice formation) Address Addressing tool JBE-AT1 Address range 1-200 Dimensions (ØxH) Ø100 × 67 mm Weight 0.1 kg (including base) Protection Grade IP31 Compatible base JBE-2165 Certified EN 54-3:2001
EN 54-3:2001/A1:2002
EN 54-3:2001/A2:2006
