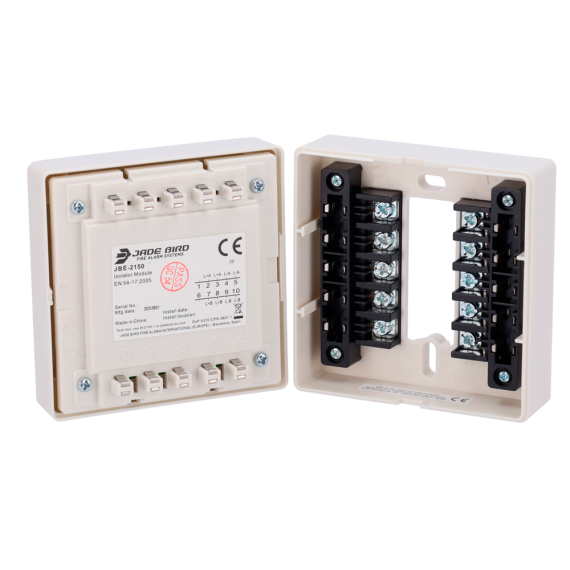

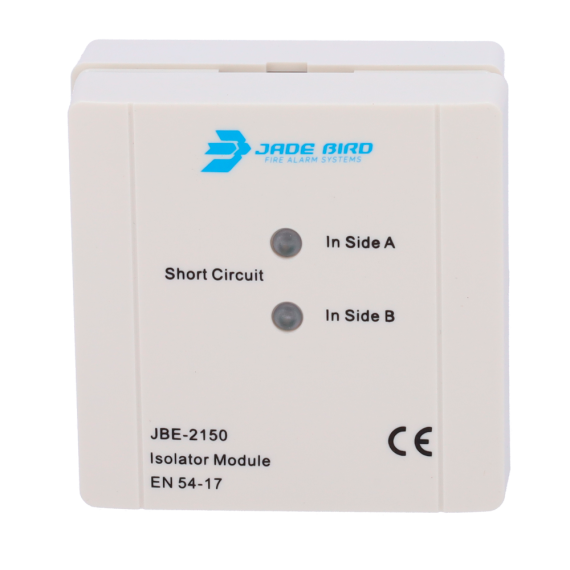

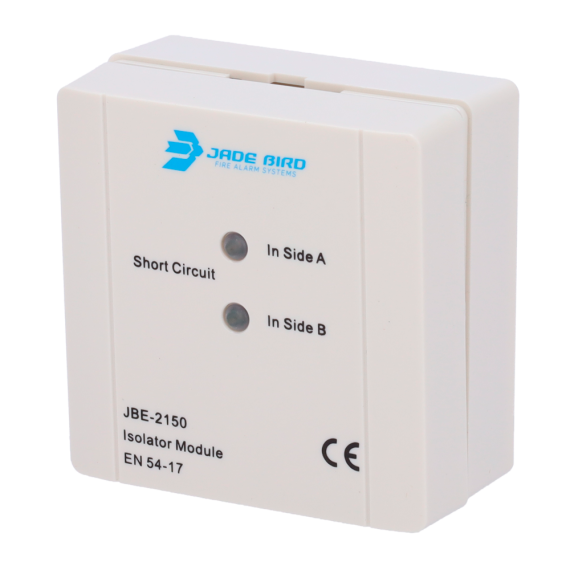

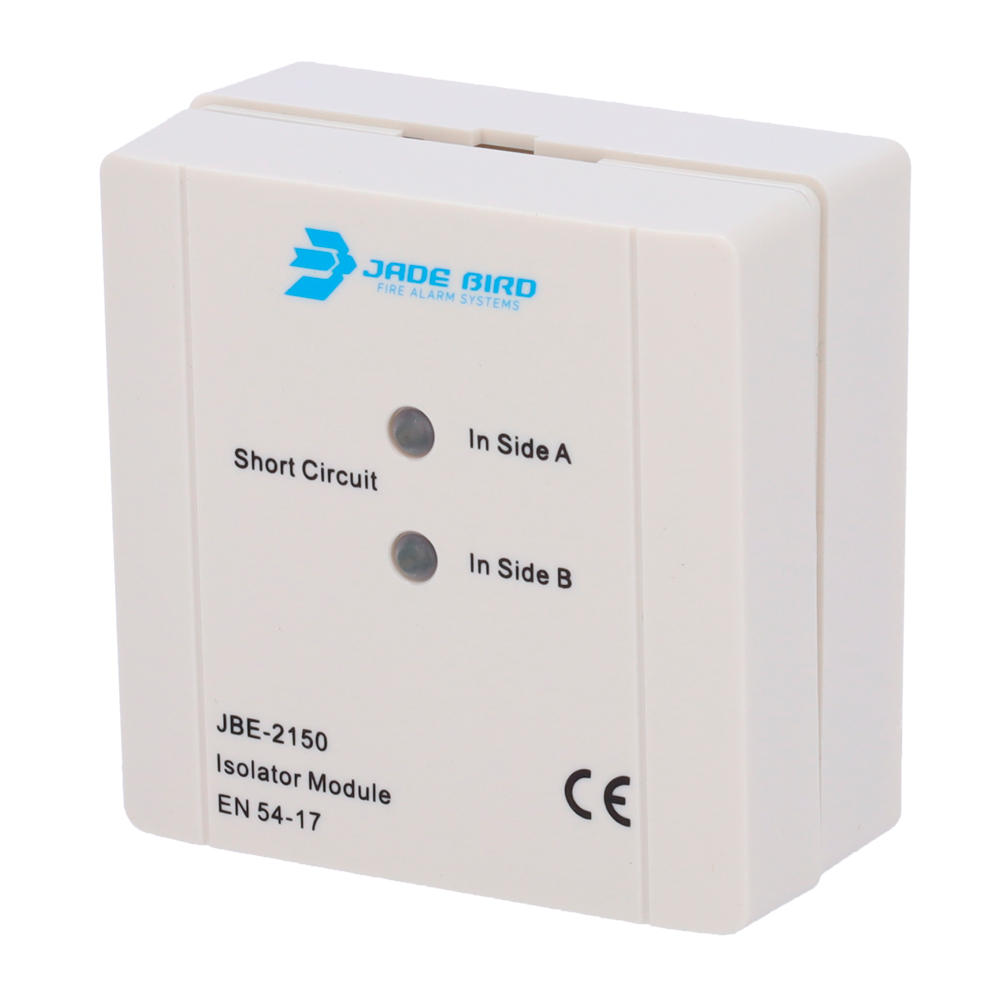

Jade Bird analog module - Short-circuit insulator - Powered by loop - Conductor cable up to 2.5mm2 - Max 32 devices per segment - Certified EN 54-17
Les merShow less
kr 334.95
Referanse:
JBE-2150
Merke:
JADE BIRD

Last ned produktark

Beskrivelse
  • Jade Bird - Módulo aislador
  • Provides circuit protection against short circuits or power failures
  • Loop powered
  • Front LED indicator
  • Address programmable by means of the JBE-AT1 tool
  • Certified EN 54-17

    BrandJade Bird
    TypeIsolator
    Operating voltage DC 20 - 30 V

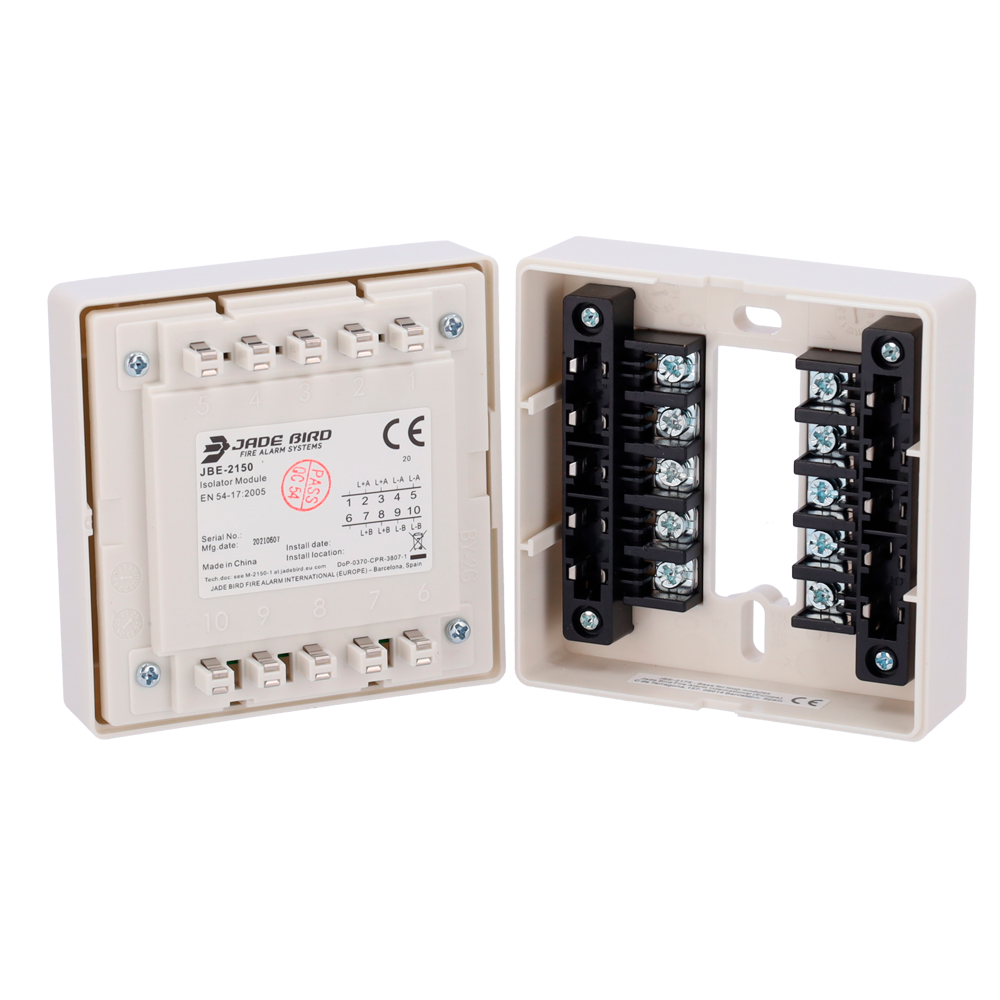

    Connection JBE communication bus 2-hilos, without polarity
    WiredTwisted pair without braid 0.5 - 2.5 mm2
    Consumption in idle mode so ≤ 0.25mA @27VDC
    Active consumption≤ 15mA @27VDC
    Maximum number of devices between insulators32
    Temp. of work0℃ ~ +40℃
    Temp. storage -20℃ ~ +60℃
    Environment≤ 95% HR (40±2℃) (no condensation or icing)

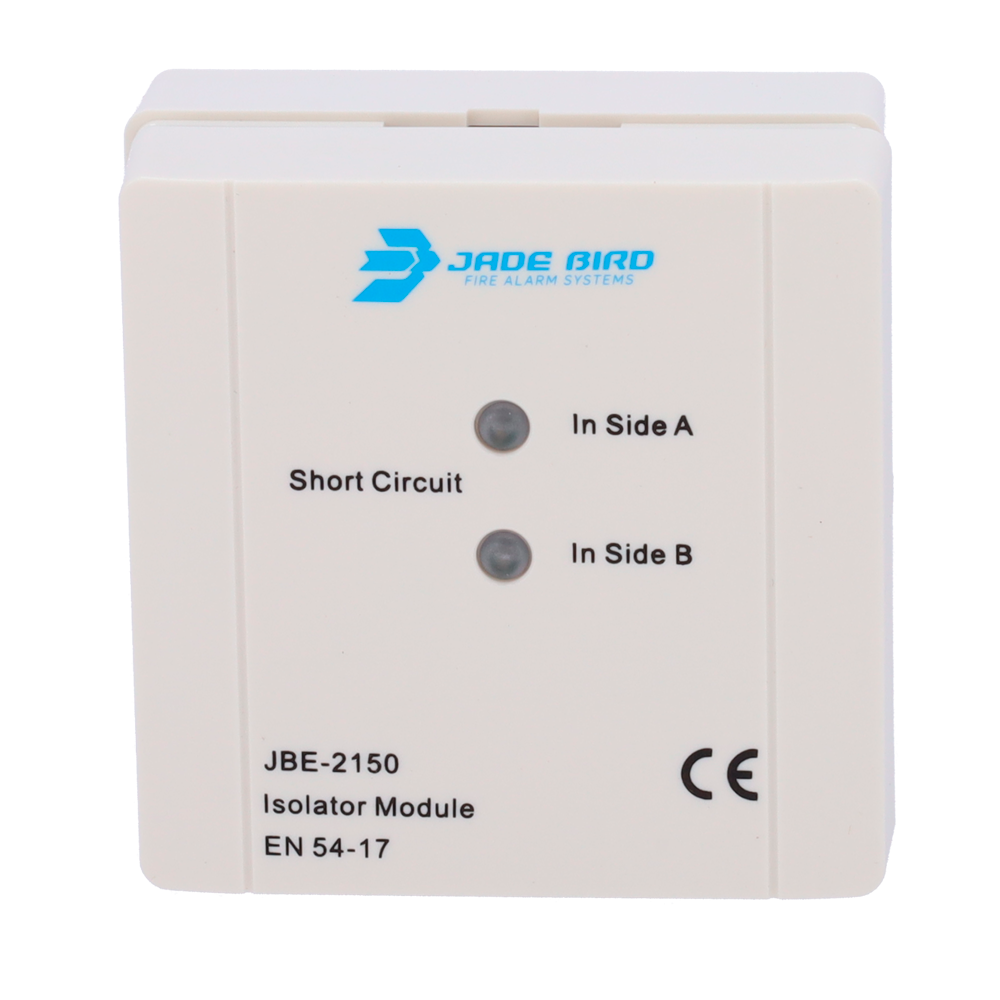

    Led indicator Orange (FAULT) Rest: Both LEDs off
    A-side short circuit: Top LED on
    Short circuit B side: Lower LED on
    Dimensions85×85x41 mm (length x width x height)
    Weight0.1 kg (including base)
    IP Rating IP40
    Remote indicatorLED with or without series resistor (Rs <4 kOhm)
    CertificadoEN 54-17:2005
    EN 54-17:2005/AC:2007
Les merShow less
Produktdetaljer
JBE-2150
