JADE BIRD JBE-2200

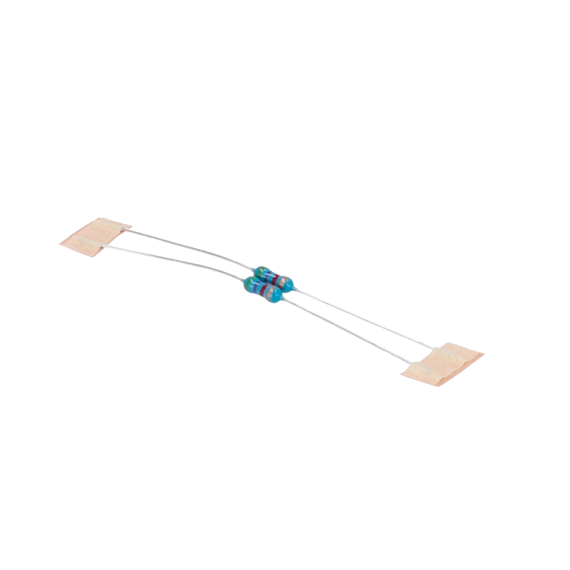

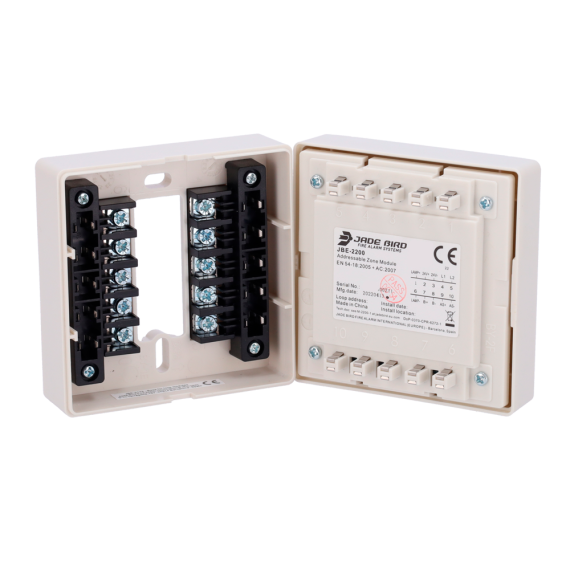

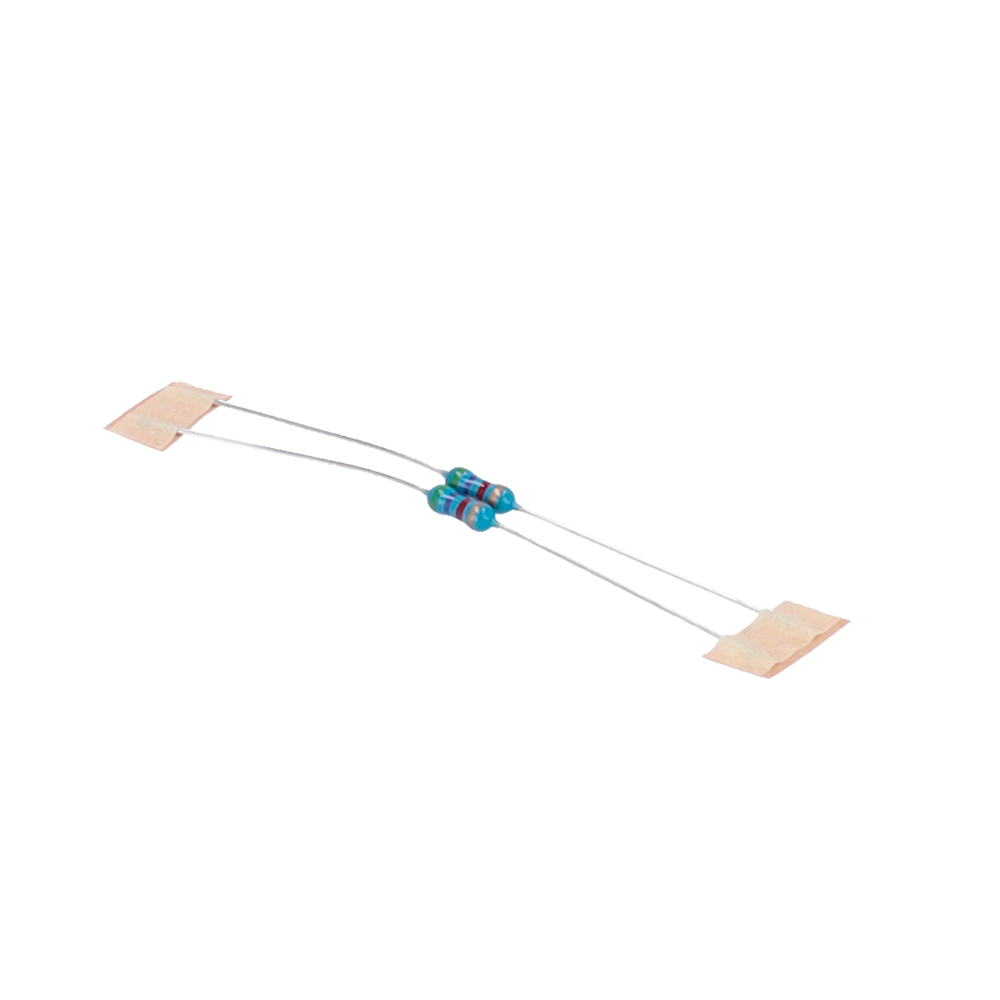

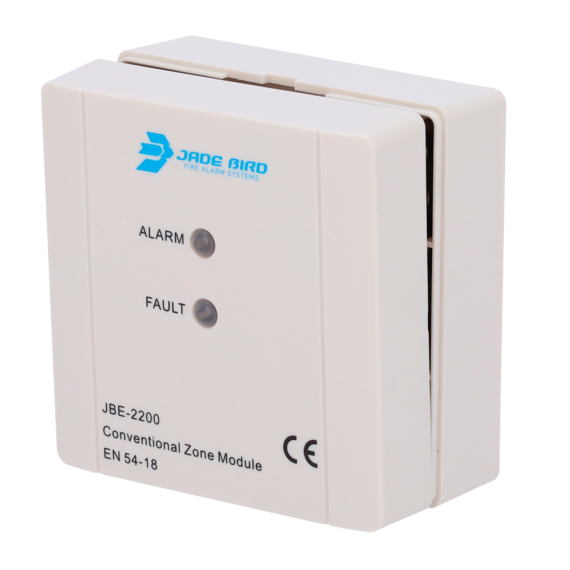

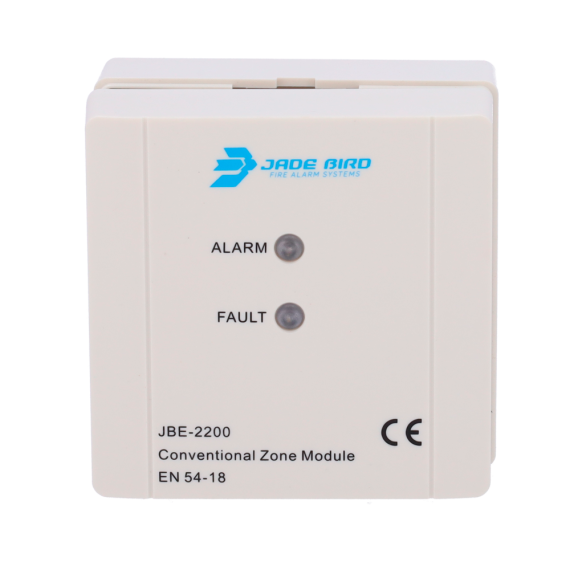

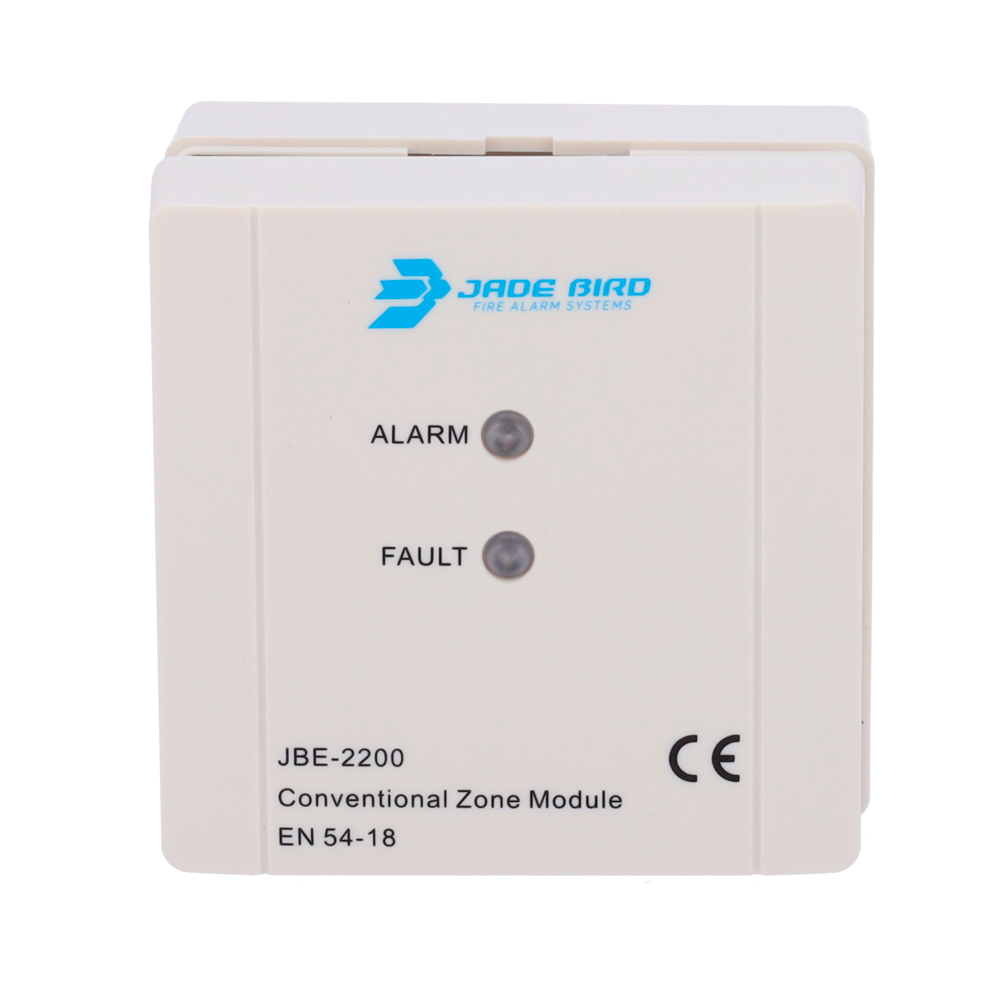

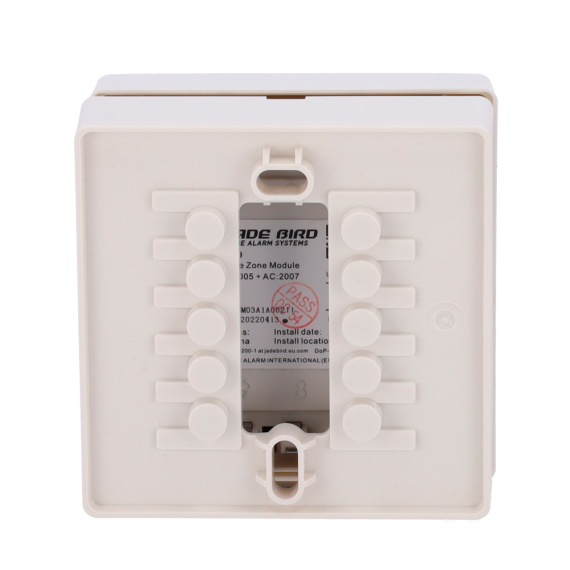

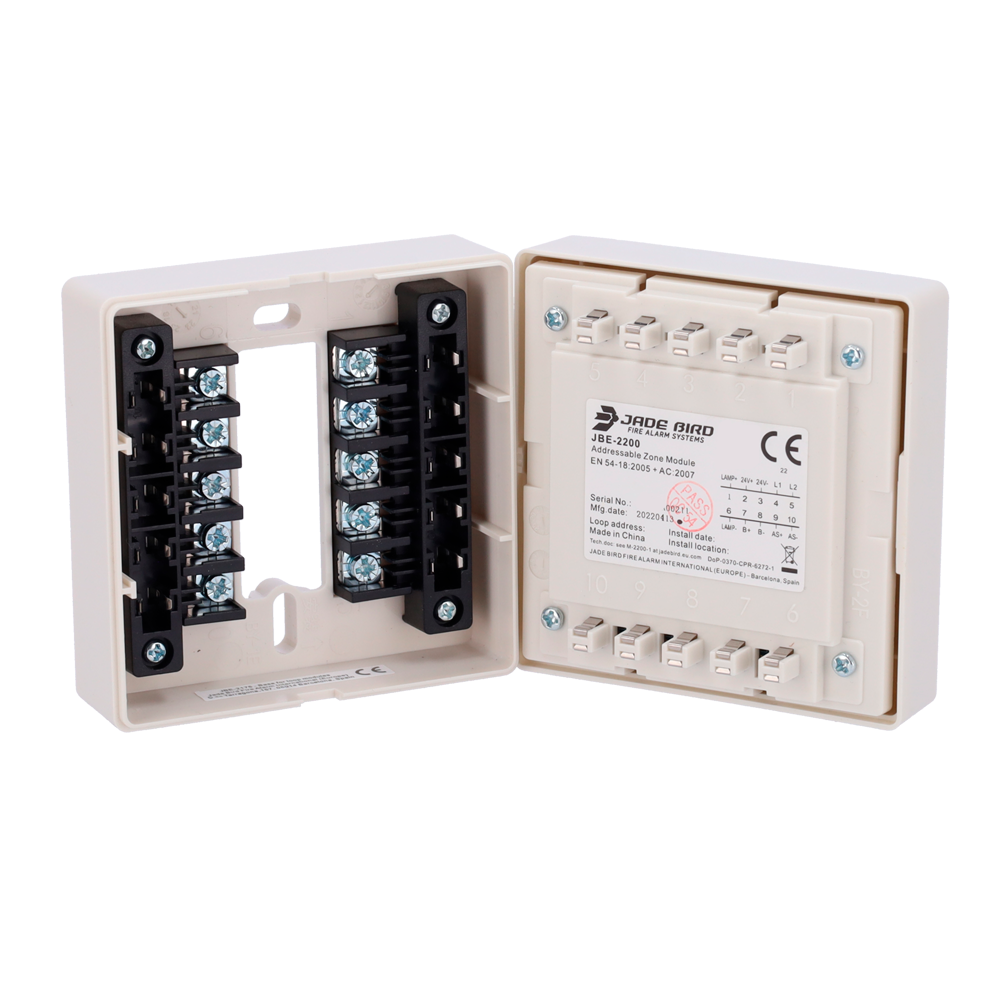

Jade Bird analog module - Conventional input module - Loop or external power supply - Conductor cable up to 2.5mm2 - REOL of 4k7 Ω (supplied) - Certified EN 54-18
Les merShow less
kr 1,005.14
Referanse:
JBE-2200
Merke:
![JADE BIRD]()
Relaterte produkter
- Jade Bird

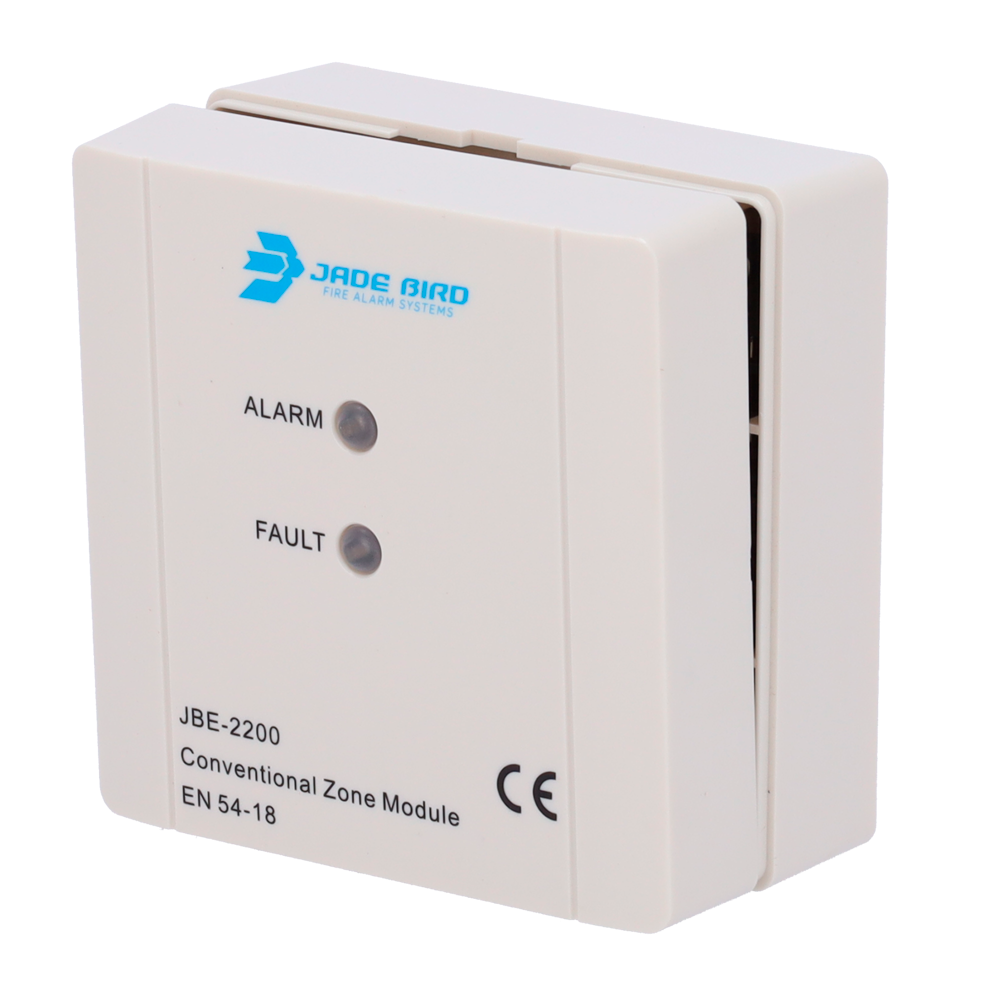

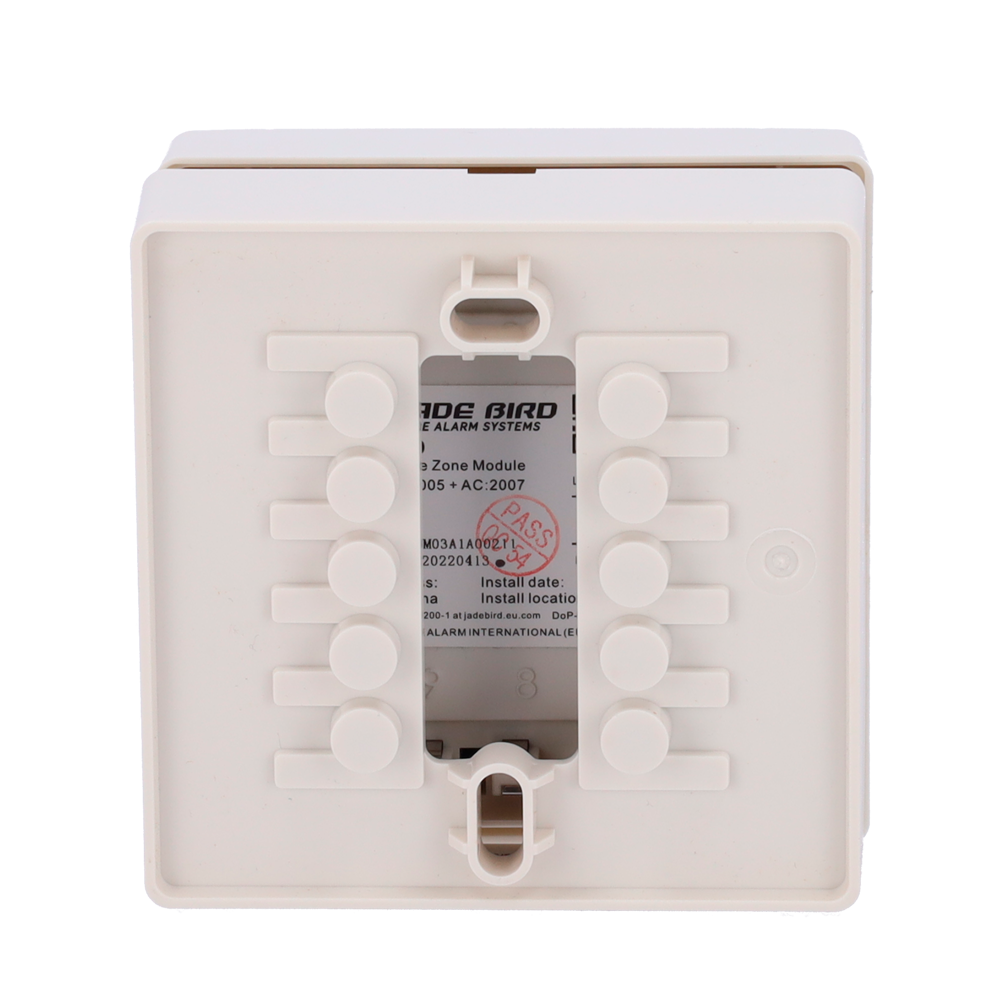

- Conventional analog zone module
- Loop powered or external (configurable)
- Without isolator
- External power supply monitoring
- Front LED indicator
- Address programmable by means of the JBE-AT1 tool
- Certified EN 54-18
Brand Jade Bird Type Conventional zone module Operating voltage DC 19 - 30 V Connection JBE communication bus 2-hilos, without polarity
Power supply 24V DC to 2-hilos, no polarityWired Twisted pair without braid 0.5 - 2.5 mm2 Power consumption from the Loop ≤9 mA @24 V (Loop Consumption - Rest)
≤46 mA @24 V (Loop Consumption - Active )Power consumption with 24VDC ≤2 mA @24 V (Loop Consumption)
≤8 mA @24 V (Consumption of 24 V DC - Rest)
≤42 mA @24 V (Consumption of 24 V DC - Active)REOL zone 4.7 kΩ REOL external PSU 4.7 kΩ Temp. of work -10℃ ~ +55℃ Temp. storage -20℃ ~ +60℃ Environment ≤ 95% HR (40±2℃) (no condensation or icing) Address Addressing tool JBE-AT1 Address range 1-200 Led indicator Red (ALARM) Rest: Flashing with loop polling
Alarm: Steady on when activatedLed indicator Orange (FAULT) Open: Fixed ignition
Low Voltage: Blinks 1 once per second
Short circuit: Blinks 2 times per second
Overconsumption: Continuous flickering
Reset: Flashes during reset (3 seconds)Dimensions 85×85x41 mm (length x width x height) Weight 0.1 kg (including base) IP Rating IP40 Remote indicator LED with or without series resistor (Rs <4 kOhm) Certificado EN 54-18:2005
EN 54-18:2005/AC:2007
