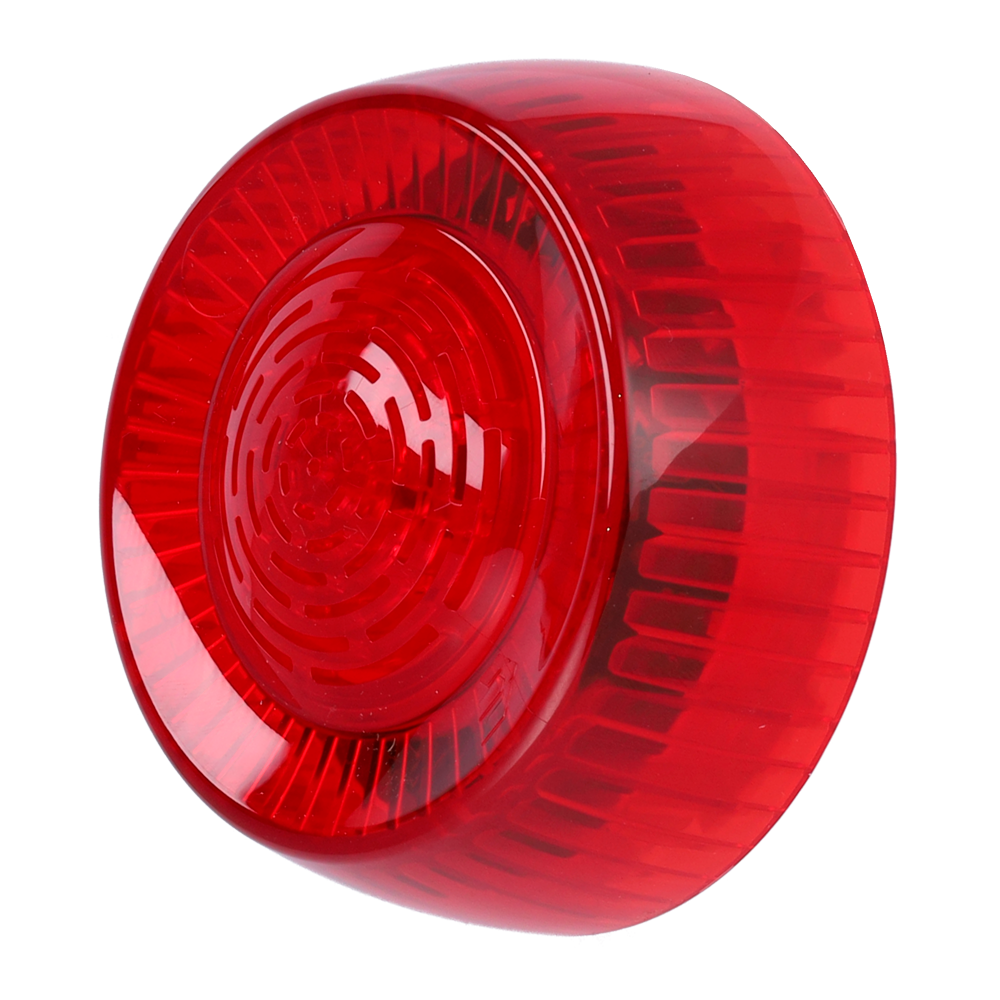

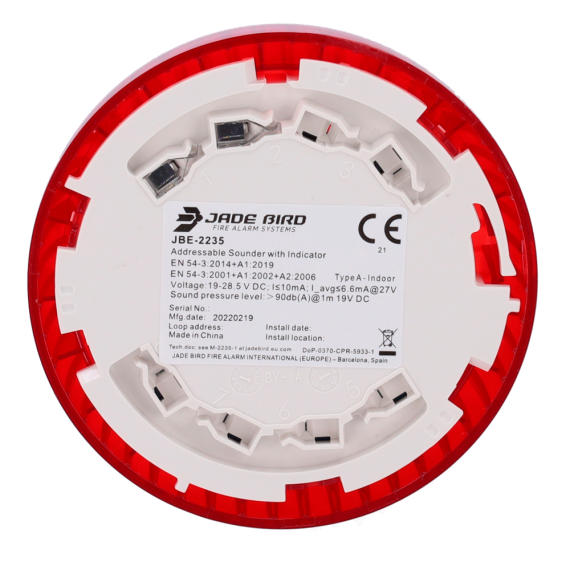

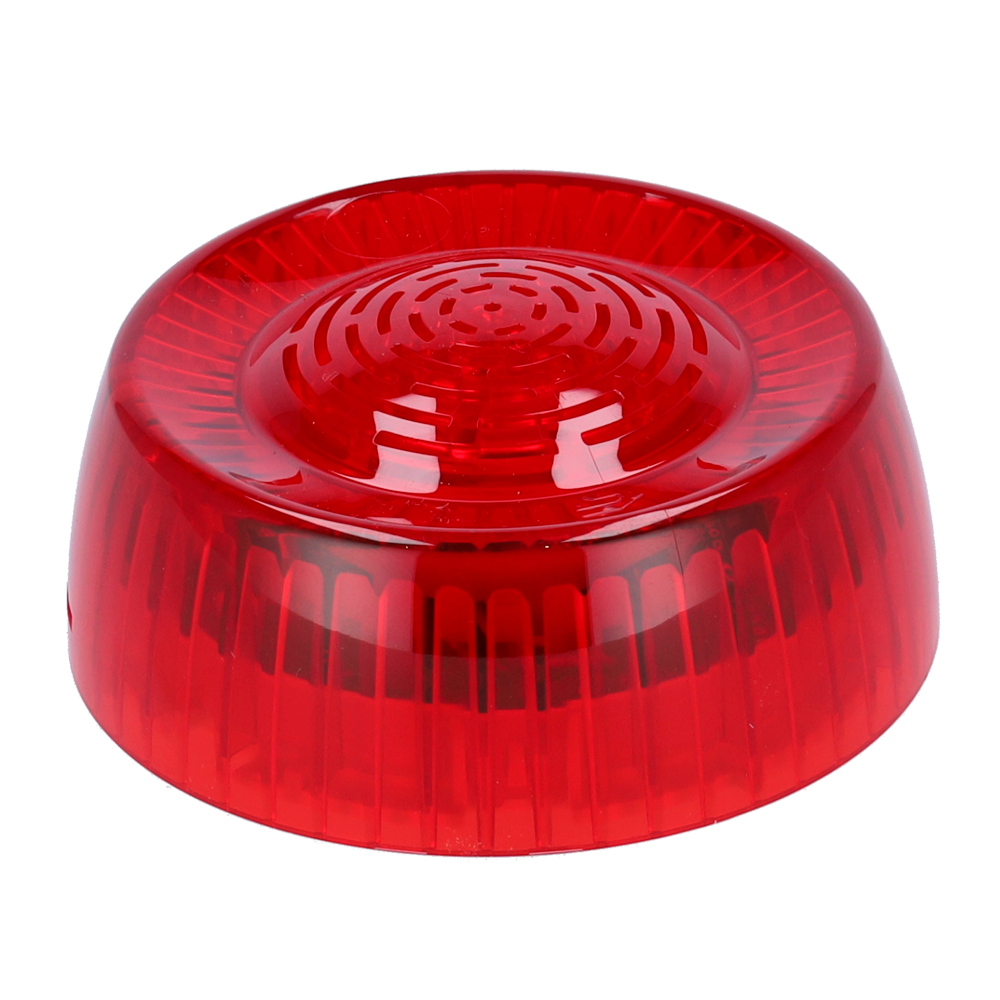

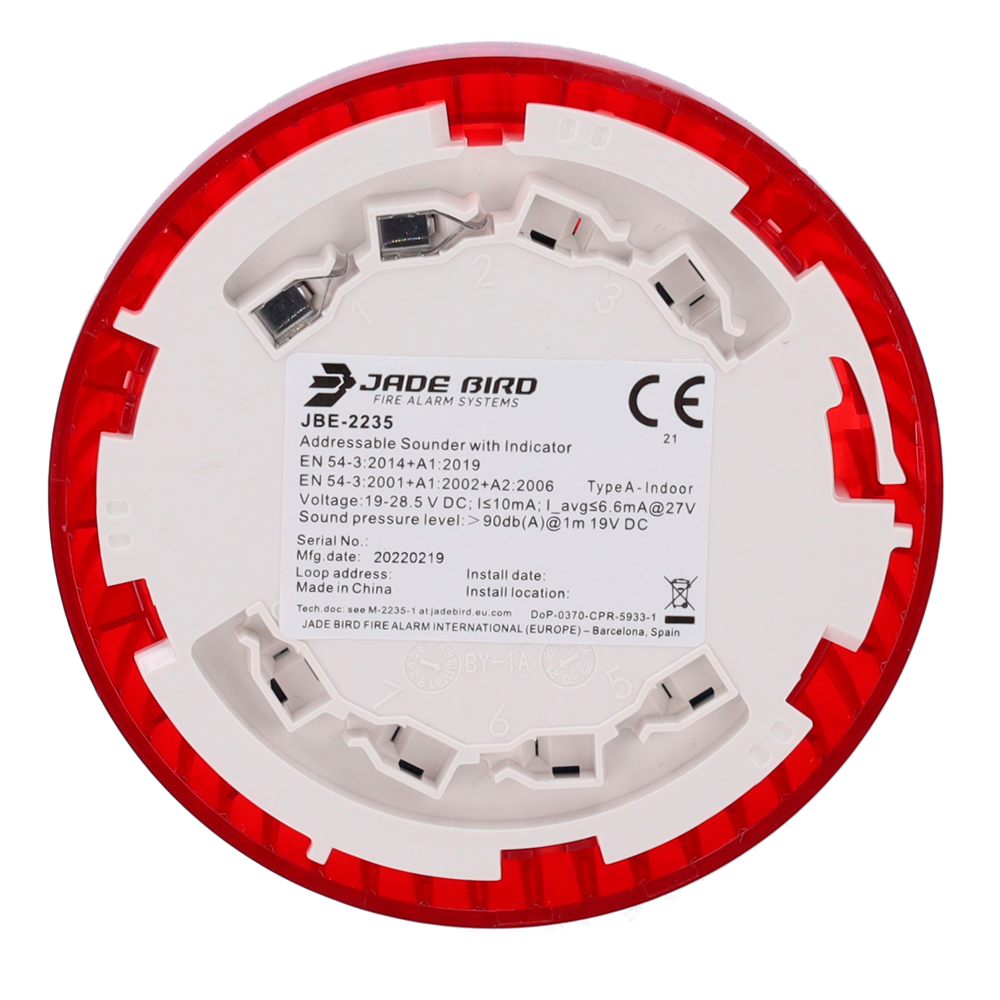

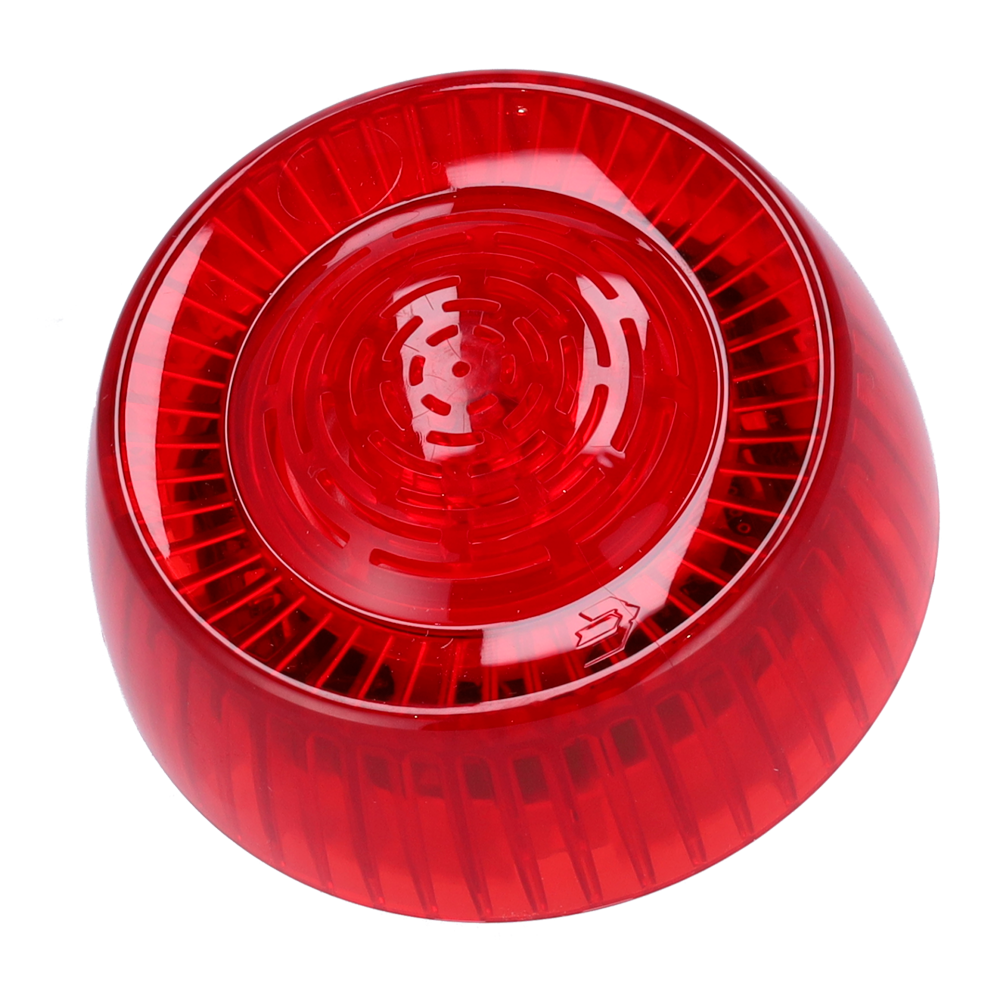

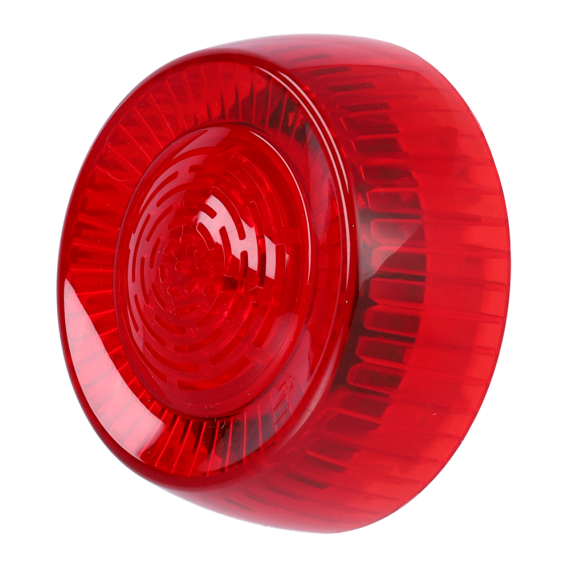

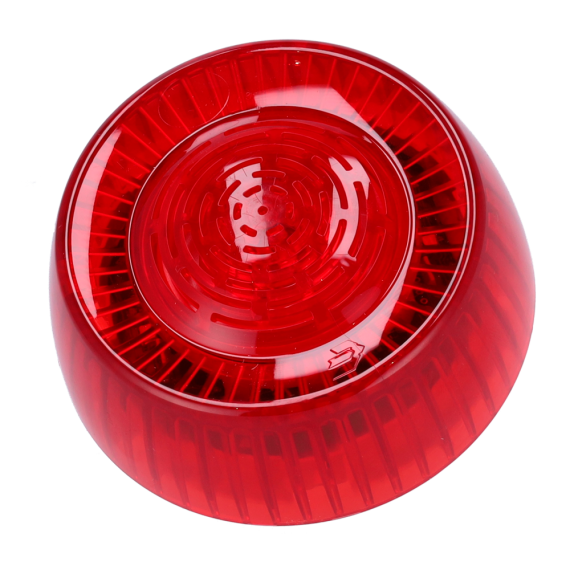

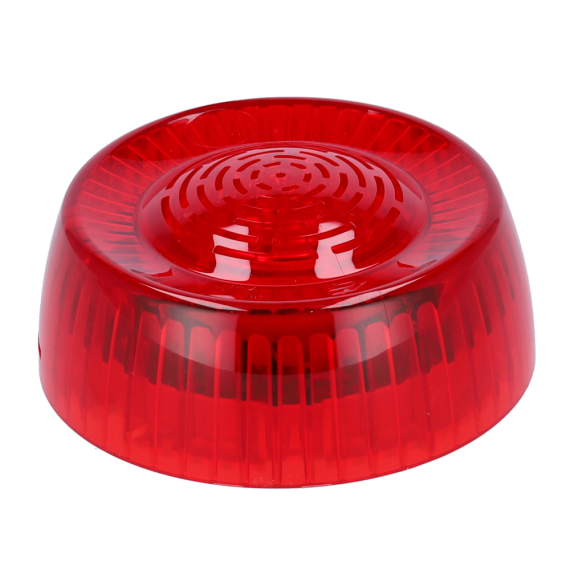

JADE BIRD JBE-2235

Jade Bird analog siren - High power output 91 dB(A) @ 1m - Power supply through the loop - Base not included - Indoor installation - Certified EN 54-3
Les merShow less
kr 1,125.87
Referanse:
JBE-2235
Merke:

Last ned produktark

Relaterte produkter
Beskrivelse
  • Jade Bird - Sirena analógica con indicador visual
  • High power output 91 dB(A) @ 1m
  • Without isolator
  • Address programmable by means of the JBE-AT1 tool
  • Power supply through the loop
  • Indoor installation
  • Base not included
  • Compatible with base BE-2160 and BE-2165
  • Certified EN 54-3

    BrandJade Bird
    TypeAnalog siren
    Operating voltageDC 19-28,5V
    ConnectionJBE communication bus 2- wires, no polarity
    WiredTwisted pair without mesh 0.5 - 2.5 mm²
    JBE bus consumptionI_max <=10 mA @27V
    I_average<=6.6 mA @27V; <= 0.18 W @27V
    Nivel de presión acústica91 dBA @1 m; 2.2-3.8kHz Tono barrido (0.5 Hz)
    Temperatura de trabajo-10 a +55ºC
    Temperatura de almacenaje-20 a +60ºC
    Entorno≤ 95% RH (sin condensación ni formación de hielo)
    DireccionamientoHerramienta de direccionamiento JBE-AT1
    Rango de dirección1-200
    Dimensiones (ØxAl) 100 mm × 52 mm
    Peso0.1 kg (incluida la base)
    Grado de ProtecciónIP31
    Bases compatibles / AccesoriosJBE-2160, JBE-2165
    CertificadoEN 54-3
Les merShow less
Produktdetaljer
JBE-2235
Sist vist
JADE BIRD
Referanse: JBE-2235
kr 1,125.87
Jade Bird analog siren - High power output 91 dB(A) @ 1m - Power supply through the loop - Base not included - Indoor installation - Certified EN 54-3
