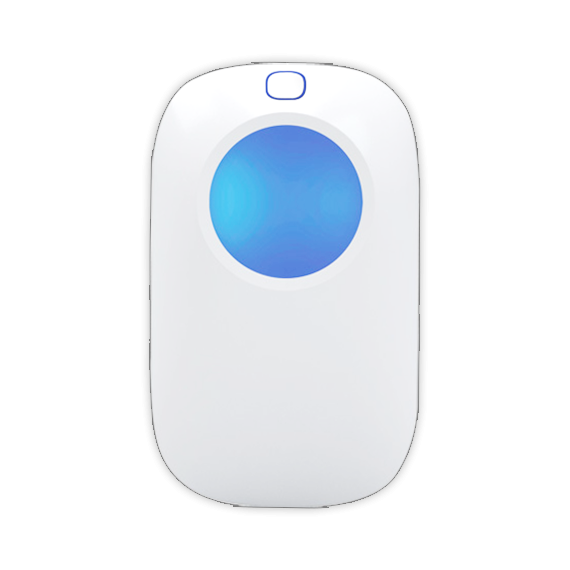

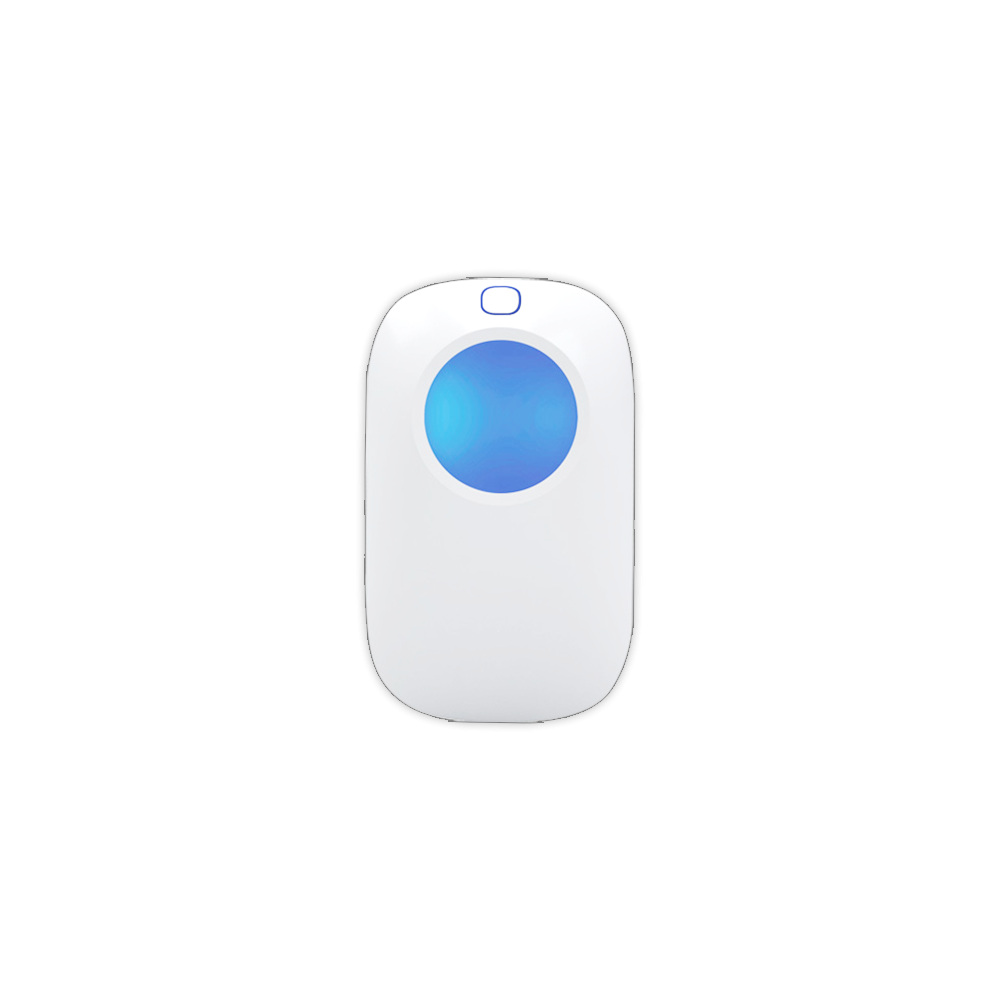

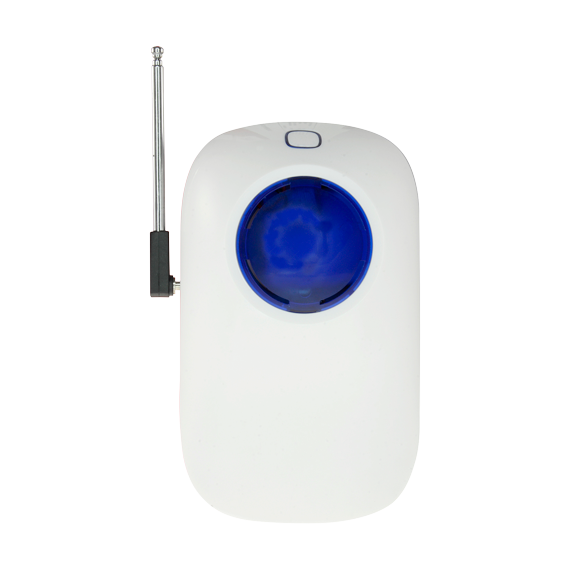

CHUANGO RT-101

A repeater re-transmits the wireless signal. With MCU technology, the repeater decodes the signal in the air and strengthens the transmitting power, thereby extending the operating range between devices.

Failures when receiving the signal in the panel of wireless accessories often happen due to the long distances at which these devices are located. This wireless signal repeater can solve this problem and extend the distance range so that the wireless signal can reach the panel.

• - Interior use, small and discreet design
• - Wireless 433 MHz connection with the panel

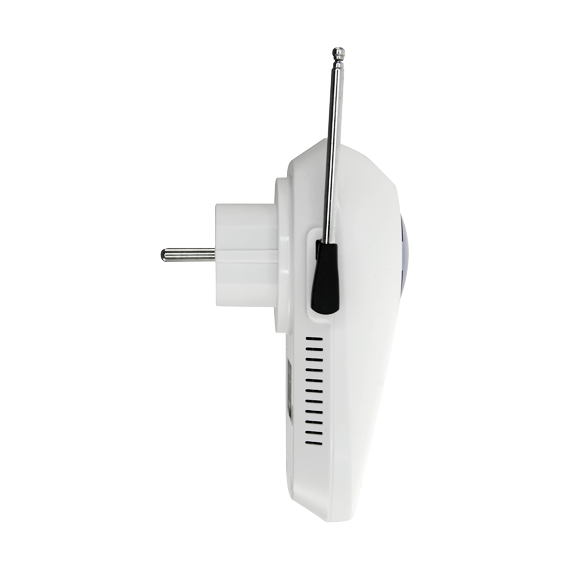

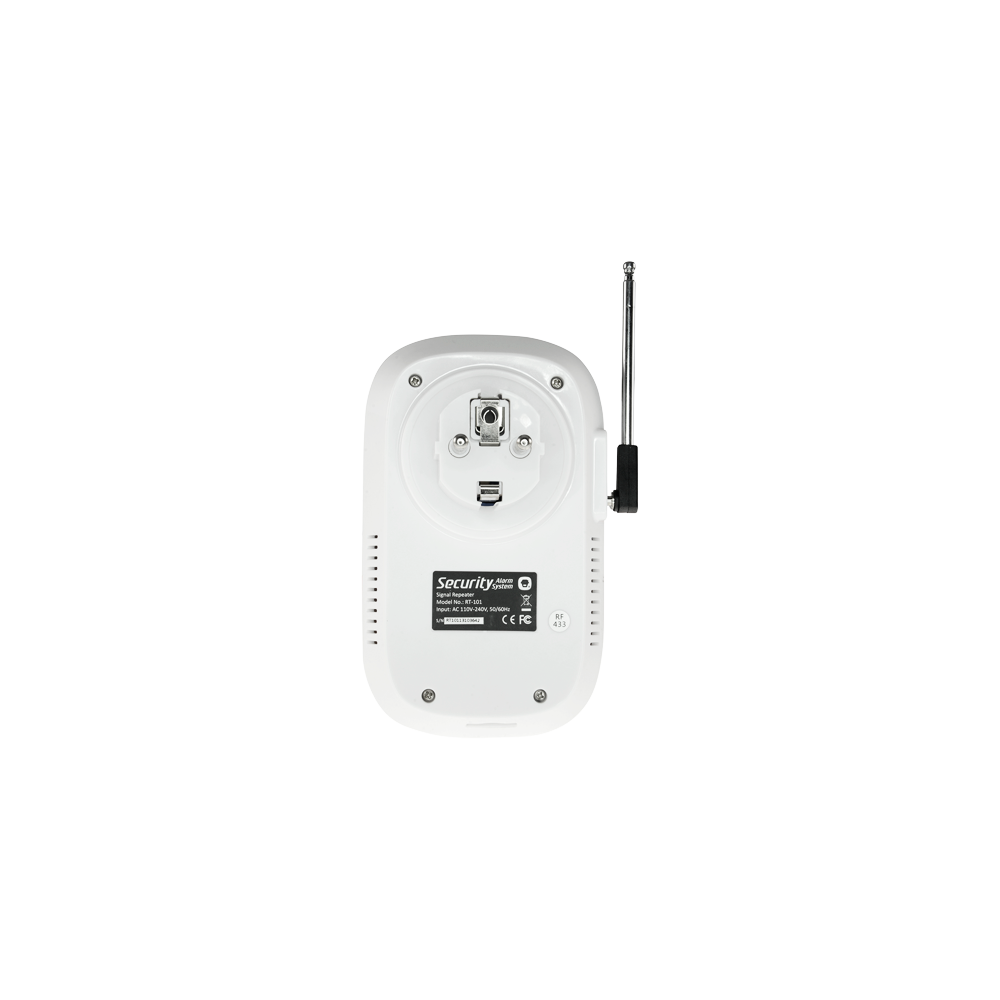

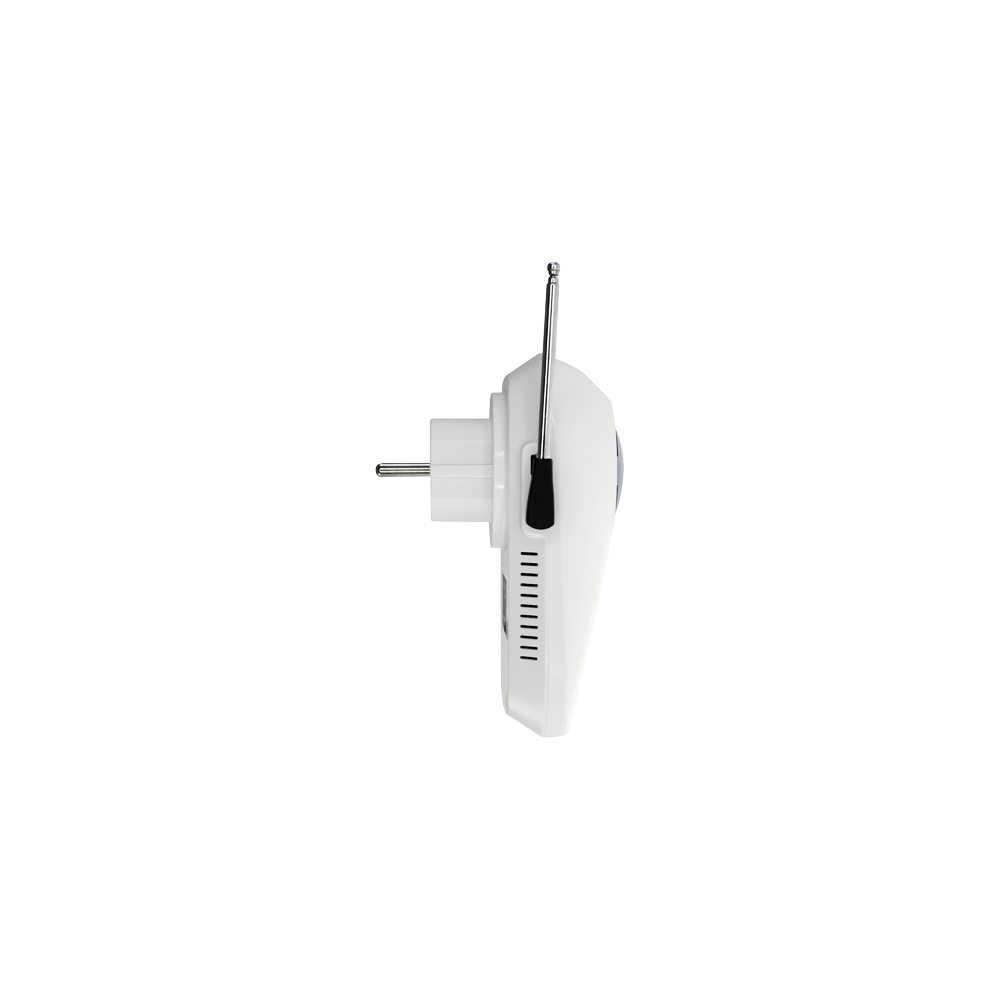

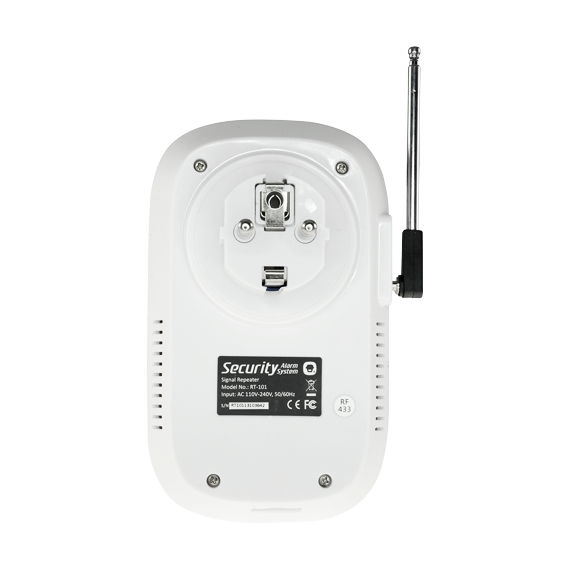

• - Direct Plug&Play connection to AC 220 V

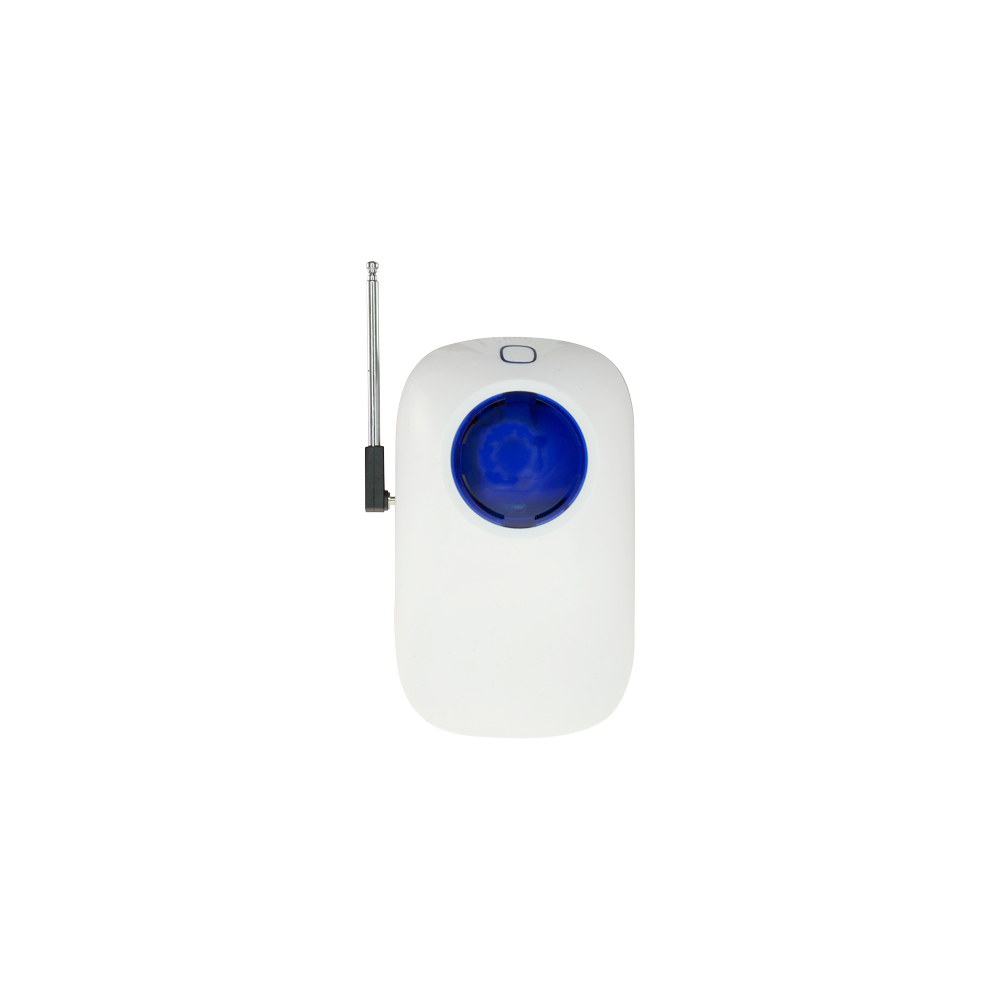

• - External antenna, to increase the range of transmission and reception
• - Transmission range 300 m, reception range 90 m
• - LED with operation indicator
• - Supports up to 40 devices
• - Compatible with panels, detectors and accessories



  Power	AC 110 V or AC 220 V
  Transmission range	300 m
  Reception range	90 m
  Frequency	433 MHz (± 75 KHz)
  Supported accessories	Up to 40
  Backup Battery	3.7V 600mAh Lithium battery
  Housing material	ABS plastic
  Temp. operation	-10º C ~ 55º C
  Relative humidity	≤ 80% (without condensation)
  Dimensions	140 (H) x 86 (W) x 87 (D) mm
  Weight	154 g
