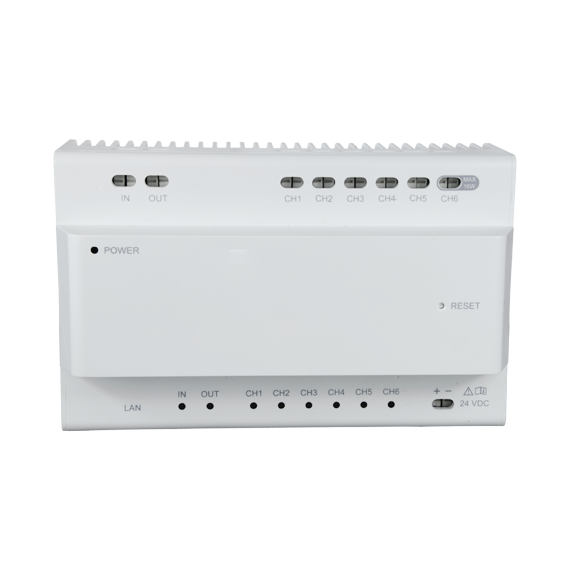

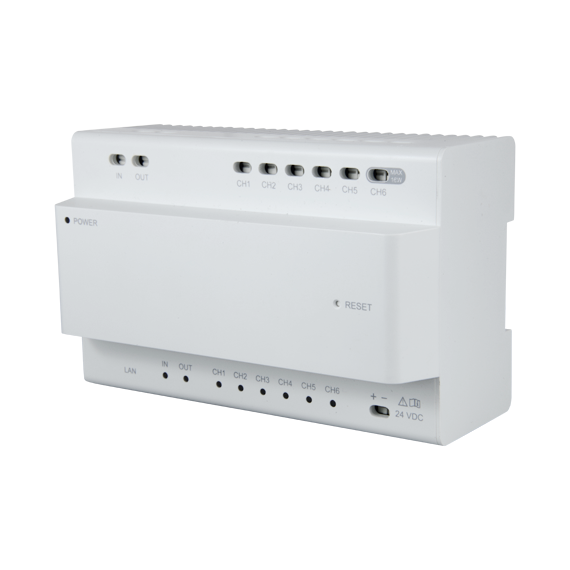

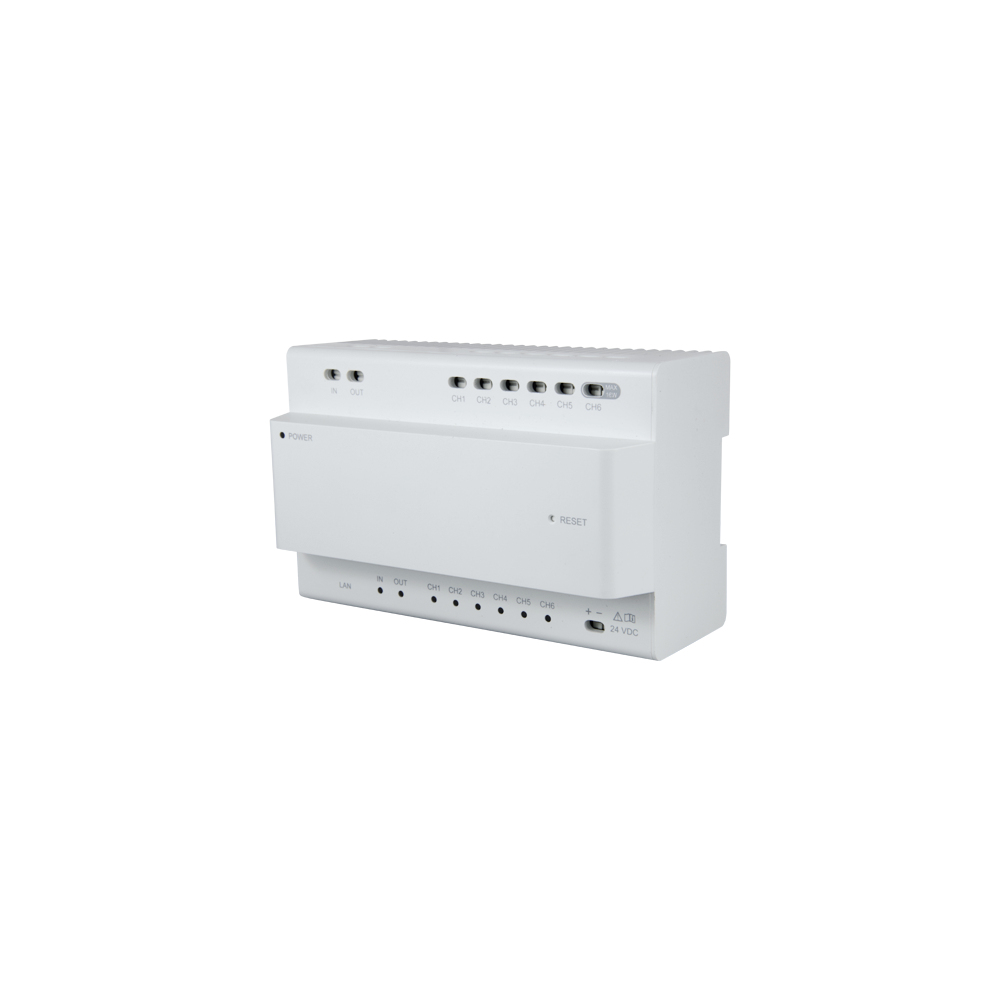

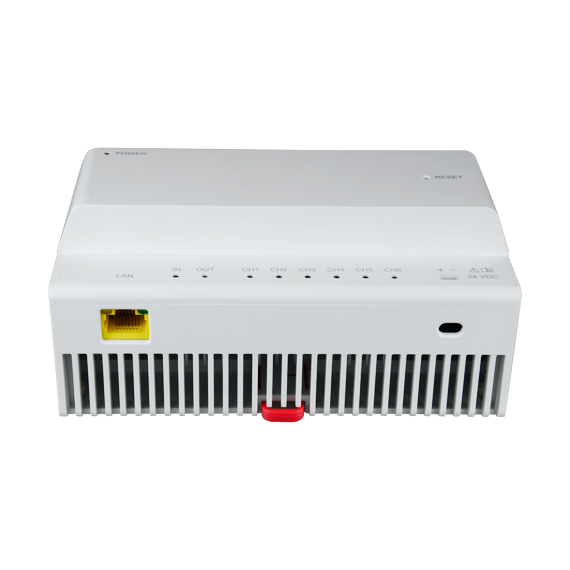

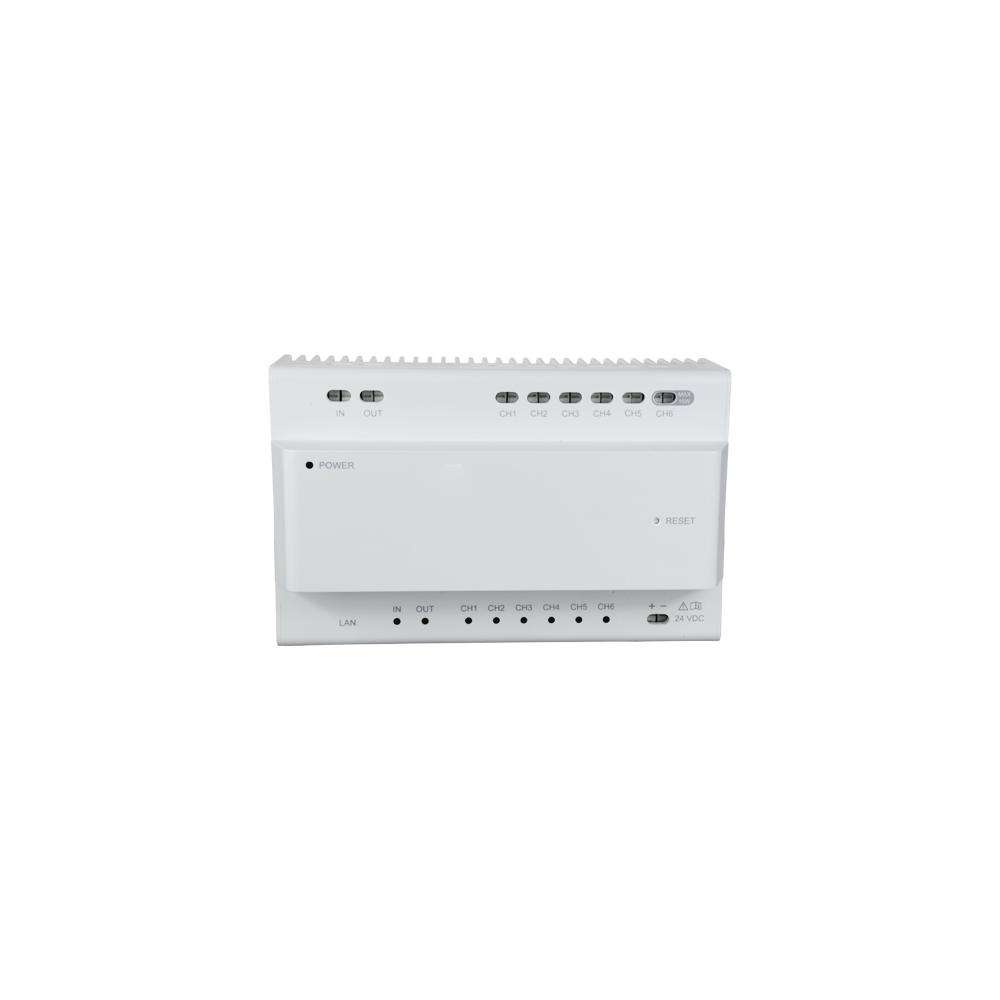

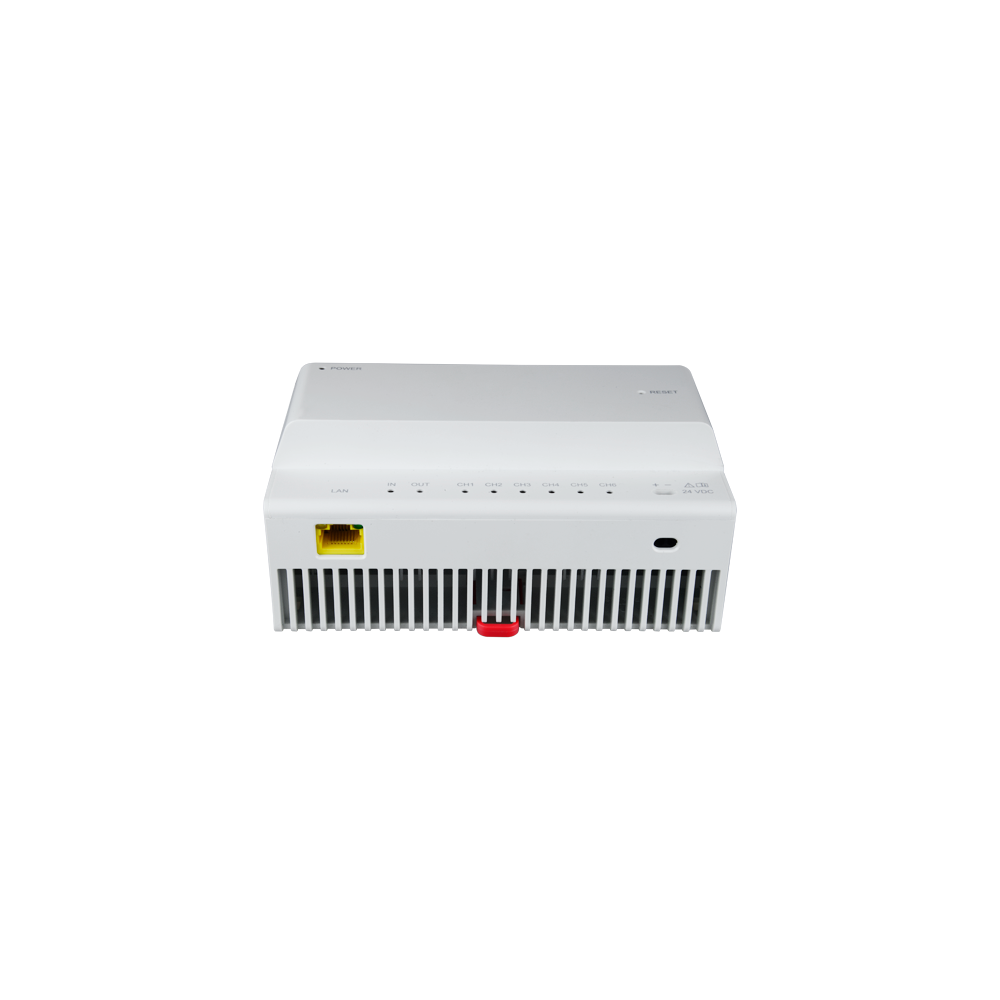

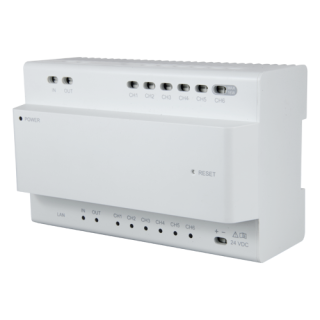

SAFIRE SF-VIMOD-HUB-M2

Converter for buildings - 2 wires to IP - 6 groups of 2 wires - TCP/IP with RJ45 - For powering 2 wire devices - Cascading of hubs
Les merShow less
kr 2,084.40
Referanse:
SF-VIMOD-HUB-M2
Merke:

Last ned produktark

Beskrivelse
  • Safire - second generation
  • Converts 2 wire to IP
  • 5 channels of 2 wires
  • 1 channel of 2 wires with 16W
  • TCP/IP connection RJ45
  • Status indicators
  • 2 channels for hubs in cascade
  • Accessory for panel and monitor
  • Surface or DIN rail mounting
  • Powers 2 wire devices


Brand Safire
Operation mode Power, Video & Audio all via the 2 wire technology
Outputs 6 channels of 2 wires including 1 channel of 2 wires (16W max power)
Cascade 2 channels for cascade connection of SF-VIMOD-HUB-M2 or SF-VIMOD-HUB-2
Communication 2-hilos Technology (Up to 6 devices)
Network interface Ethernet 10/100 BaseT
Power DC 24 V / 2,5 A max.
Temp. operation -10º C ~ +55º C
Weight 500 g
Les merShow less
