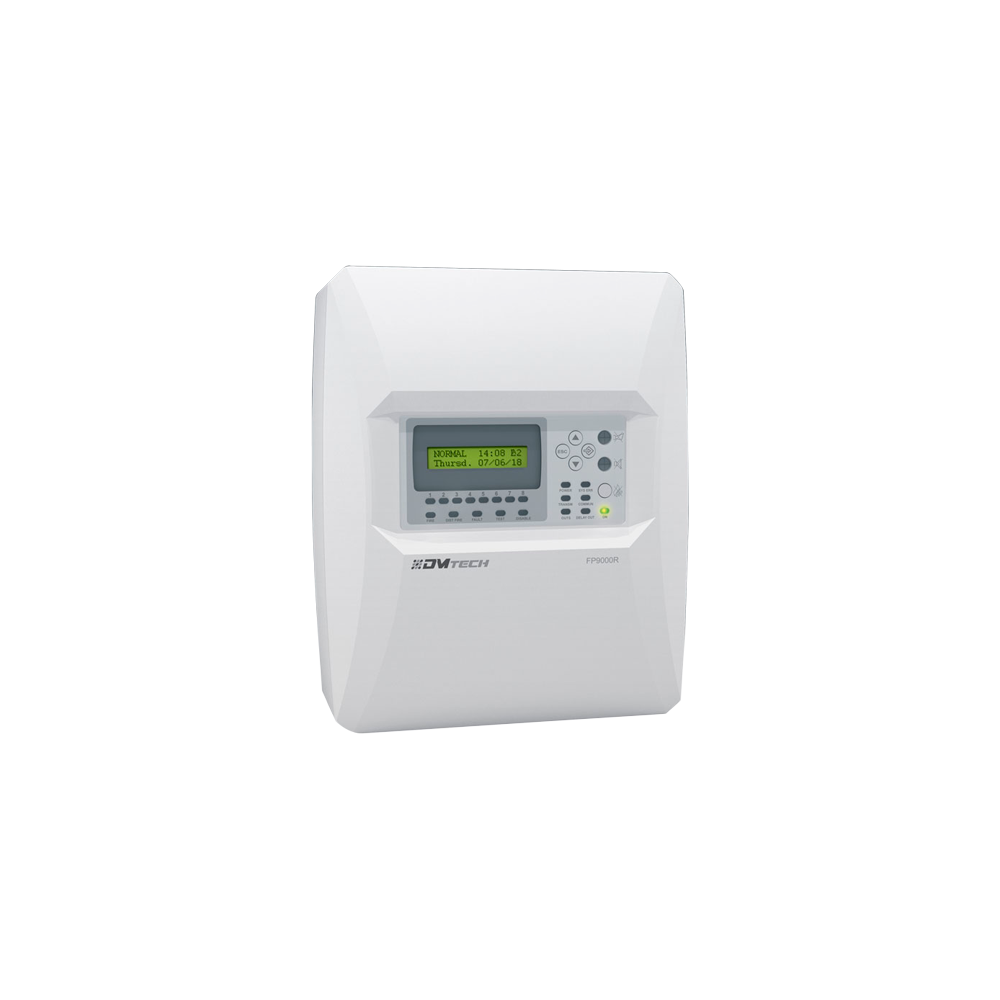

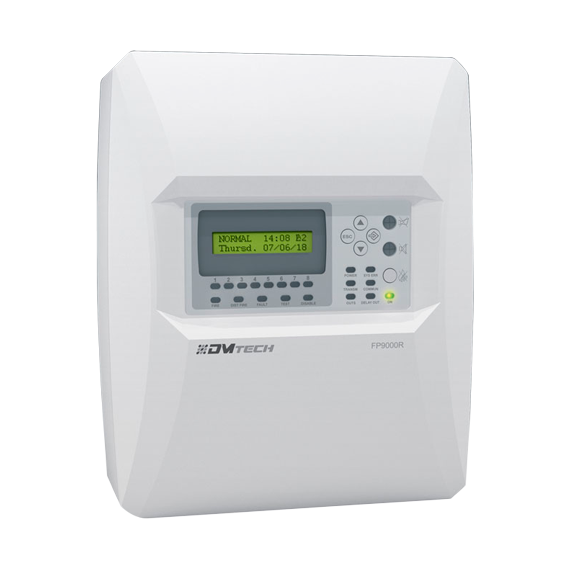

DMTECH DMT-FP9000R
DMTECH DMT-FP9000R
DMTECH DMT-FP9000R

DMTECH DMT-FP9000R

DMTECH DMT-FP9000P
DMTECH DMT-M9000-485
DMTECH Control Repeater - 2 Siren output - 2 alarm and fault outputs and 2 configurable relay outputs - Allows up to 8 stations to be connected - Necessary module DMT-M9000-485 - LCD screen and advanced programming menu
Les merShow less
kr 3,329.25
Referanse:
DMT-FP9000R
Merke:
DMTECH

Last ned produktark

Beskrivelse
  • DMTECH
  • Remote control terminal
  • Built-in keypad with mute, view, enable/disable, test buttons, resound, system reset
  • Allows to see all the information of the installation
  • Up to 8 stations connected
  • Necessary module DMT-M9000-485
  • 230V AC operating voltage
  • Capacity for 2 12V batteries


Primary power supply Switching source 187-252V AC 50-60 Hz 65W max.
Backup power supply 2 batteries 12VDC (up to 7.2 Ah). Ensures minimum 72 hours duration.
Available languages English, French, Spanish, Turkish, Romanian and Russian.
Siren outputs 2 siren outputs 24VDC. Independent and monitored open collector outputs
Relay outputs 4 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max.
End of line resistance Areas fully monitored by end-of-line resistance (4.7K)
Auxiliary Output Voltage 24VDC. Protected by resettable electronic fuse 1.85A
Protection Index IP30
Temperature -5ºC~+45ºC
Material and colour ABS, colour: White
Dimensions 310 x 240 x 80 mm
Weight 1,3Kg
Recommended cable Fire cable with a minimum section of 1.0mm (18AWG).
Les merShow less
Produktdetaljer
DMT-FP9000R
Sist vist
DMTECH DMT-FP9000R DMTECH DMT-FP9000R
Vis mer

DMTECH
Referanse: DMT-FP9000R
kr 3,329.25
DMTECH Control Repeater - 2 Siren output - 2 alarm and fault outputs and 2 configurable relay outputs - Allows up to 8 stations to be connected - Necessary module DMT-M9000-485 - LCD screen and advanced programming menu
