MARCA BLANCA JB-ZA-JXD4

MARCA BLANCA JB-ZA-JXD4

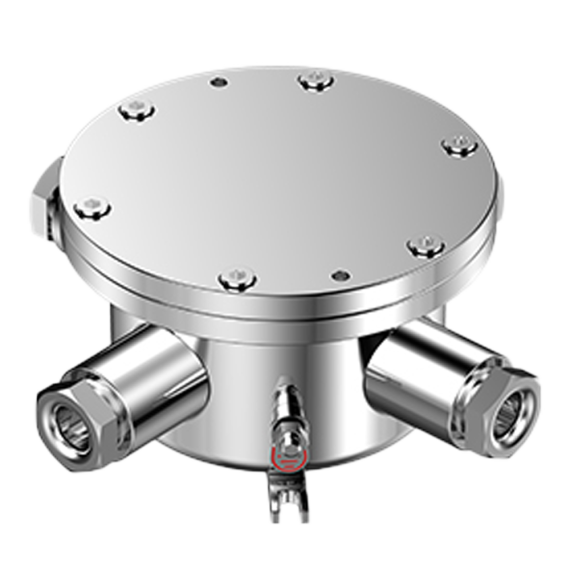

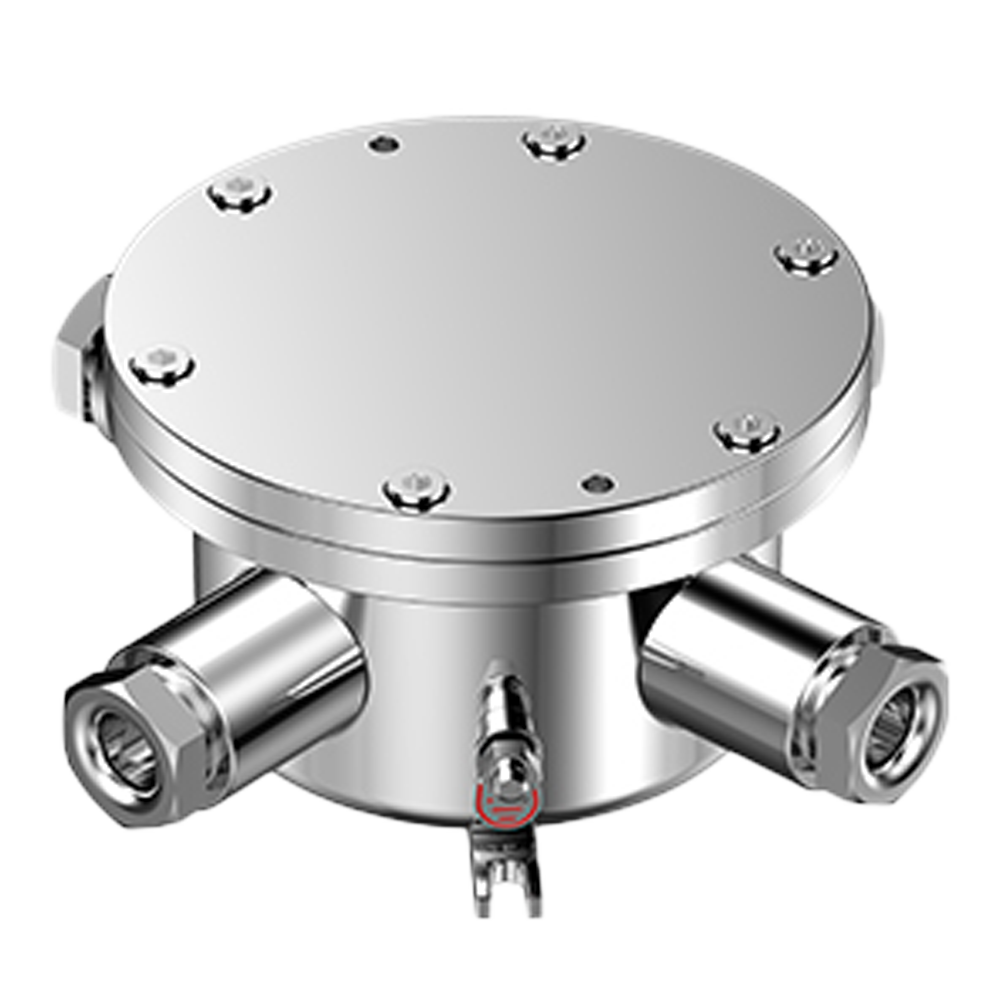

Explosion-Proof junction box - For wiring connections - Stainless steel 304 or 316L - Cable pass - Degree of protection IP68

Les merShow less

kr 8,250.75

Referanse:

JB-ZA-JXD4

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Junction box for dome cameras
Side and bottom input
Aluminium alloy
53.4 (H) x 137 (φ) mm

520 g

Certified	ExdⅡCT6 Gb/ Ex tD A21 IP68 T80℃
Material	Stainless steel 304 or 316L (Optional to choose)
Protection Grade	IP68
Tapped hole for cable	4x G3/4 or NTP3/4 (Optional to choose)
Material	Aluminium alloy
Supported power supply	AC 85V ~ 265V, <3A
Terminal de conexión	Hasta 20 puntos
Temperatura de Ambiente	-25ºC ~ 60ºC
Presión del Aire	80Kpa - 106Kpa
Humedad Relativa	<95% (sin condensación)
Dimension Exterior	187 (φ) x 84 (Al) mm
Dimensión Interior	100 (φ) x 75 (Al) mm
