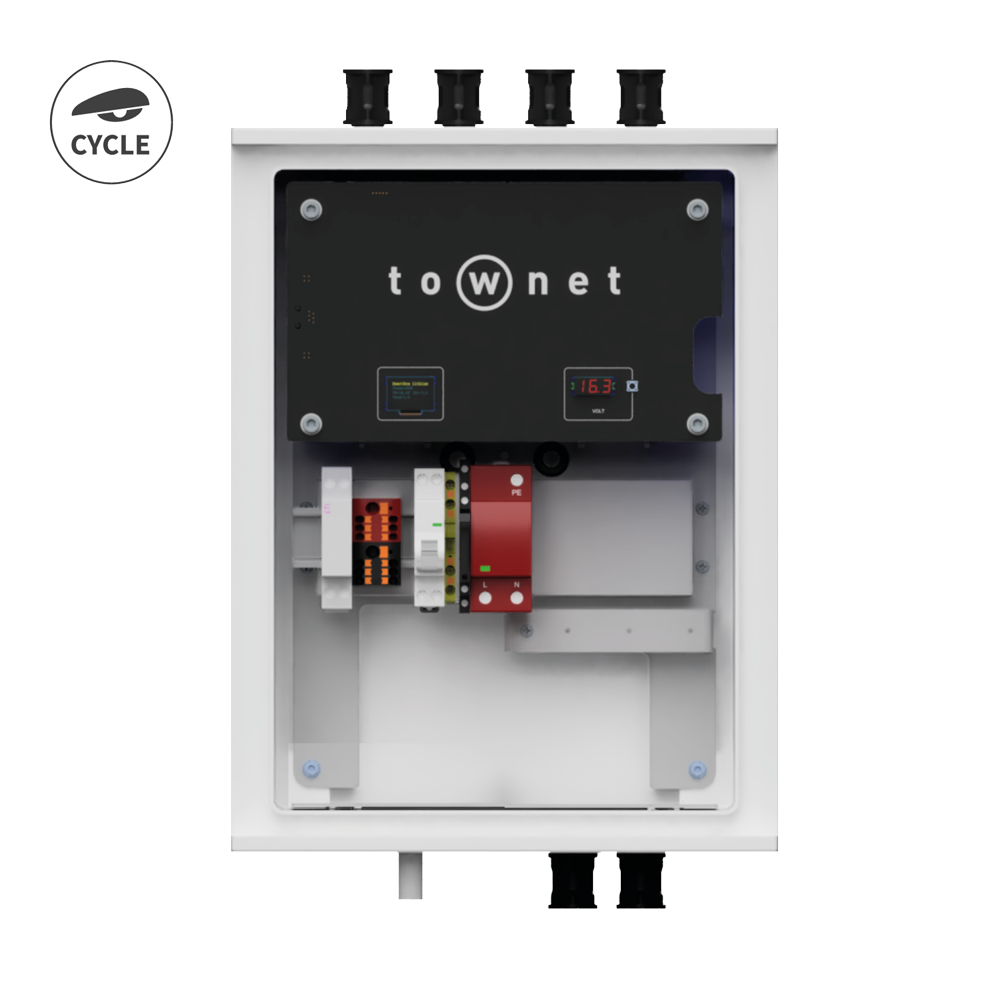

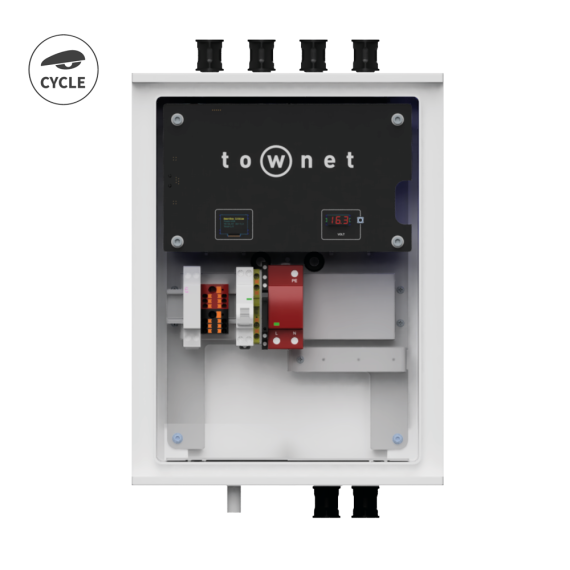

Cycle power supply - 864 Wh - Fast charge 15A/220Wh 4h - Remote supervision of systems
Les merShow less
kr 58,536.90
Referanse:
TOW-L75C
The most popular compact and lightweight version.
The load profile is optimized for LiFePO4 batteries
Fast charging from AC in only 4 hours.
It can also be used as an uninterruptible power supply for systems with AC H24
Poe Industrial Switch and DC-DC Industrial DIN Converter 9-18Vdc not included
Code | TOW-L75C |
Main power supply | AC100-240 / Lighting cycle |
Outdoor cabinet | Fiberglass IP68 (ventilation system IP54)) |
Lithium battery LiFePo4 | 864 Wh |
Battery voltage | 14V |
Full recharge | Fast Charge 15A/ 220Wh 4h |
Maximum load | - |
Charging algorithm | - |
Photovoltaic Max Power | - |
Rated Voltage Photovoltaics | - |
Panel connectors MC4 | - |
Battery cycles (DOD 80%)) | 2000 |
Connectors IP68 RJ45 | 4 |
Integrated display | Programmable + instantaneous volt control |
Magnetothermic Overvoltage Arrester | Yes |
Surge arrester | SPD tipo2 (20kA) |
Battery protection fuse | 20A extra-fast |
Door opening alarm | Yes |
Door lock | Yes |
Network presence check | Yes |
Low battery contact | Yes |
Internal temperature control | Yes |
automatic ventilation | Yes |
Dimensions (H. x An. x Pr.) | 425 x 325 x 180 |
Box Weight Kg (with Mounting Kit) | 15,5 (19,0) |
External environmental sensors | PM Integrated 1-2.5-4-10, Temperature, Humidity, Pressure |
GSM Cloud Modem M2M | Integrated with prepaid and rechargeable SIM from 500MB |
IoT remote control and alarms | Cloud-based data management software included |
Support for pole installation | Included (for diameters from 50 to 140 mm) |
Large box version 434 x 504 x 210 | L75C XL |
Street floor box version | L75C T |
