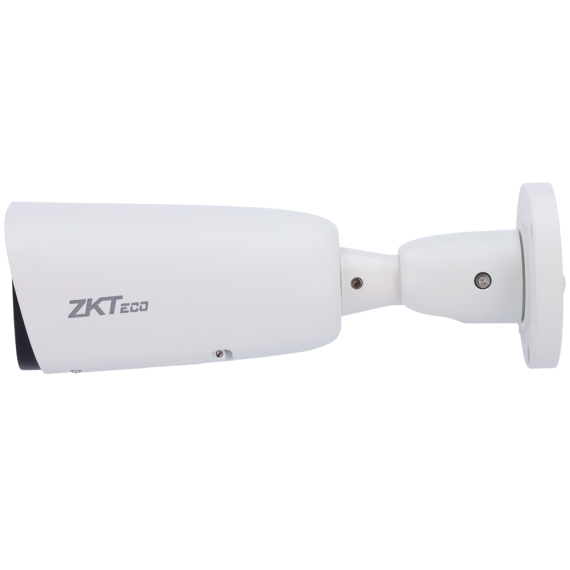

| Brand | ZKTeco |
| Model | IPC-AI-BL-852Q38A-LP |
| Image sensor | 1/2.8” Sony STAVIS CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Resolution | 1080p (1920x1080) / 1.3 Mpx (1280x960) / 720p (1280x720) / Q720p (640x360) / CIF (352x288) |
| Main Stream rate | 1080p (25 FPS) |
| Extra Stream rate | Q720p (25 FPS) |
| Compression | H.265+ / H265 / H264 |
| Bitrate | 1536 Kbps ~ 9 Mbps |
| Lens | Motorised 3.35~10.05 mm |
| FOV | H: 107° - 38° |
| Minimum illumination | 0.001 Lux @ (F1.7, AGC ON) |
| Infrared lighting | 0 Lux / IR LEDs (range 50 m) |
| Day / Night | Removable mechanical ICR filter |
| Image improvements | WDR (120 dB), HLC, 3D DNR, AWB, Privacy Masking, ROI, Mirroring, Smart IR |
| LPR function | License plate recognition up to 20 km/h Vehicle detection in entrances and exits (only suitable for 1 lane) Supports RS485 protocol for connection to ZKTeco controllers |
| Advanced features | Motion detection, ANR |
| Internal memory | MicroSD card, max 64 GB (included, required for LPR function) |
| Alarms | 2 inputs/ 1 outputs |
| Audio | 1 input / 1 output |
| Communication interface | Ethernet 10/100M BaseT | RS485 |
| Remote Access/Management | Embedded LPR software (via web browser) ZKBio CVSecurity Software ZKTeco AntarView Pro mobile application |
| Interoperability | ONVIF |
| Power | DC 12 V / 250 mA, max. 3 W | PoE (IEEE802.3at) Max. 15W |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 85 (W) x 85 (H) x 247 (D) x 76 (Ø) mm |
| Weight | 500 g |
