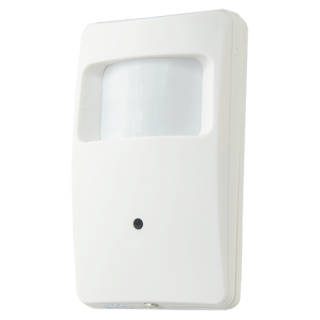

MARCA BLANCA OC-PIR-F4N1

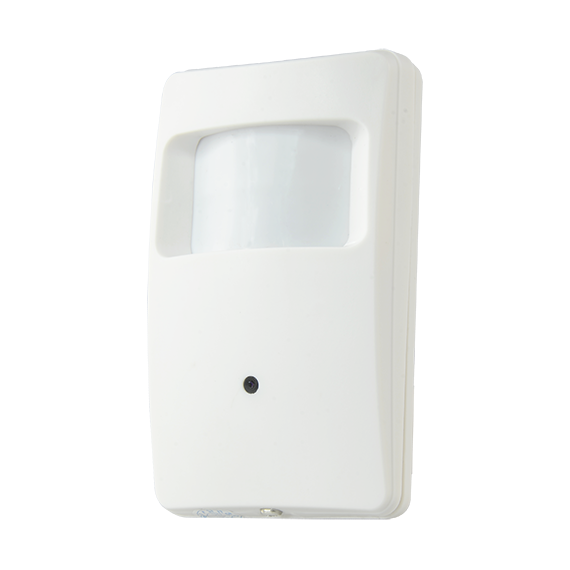

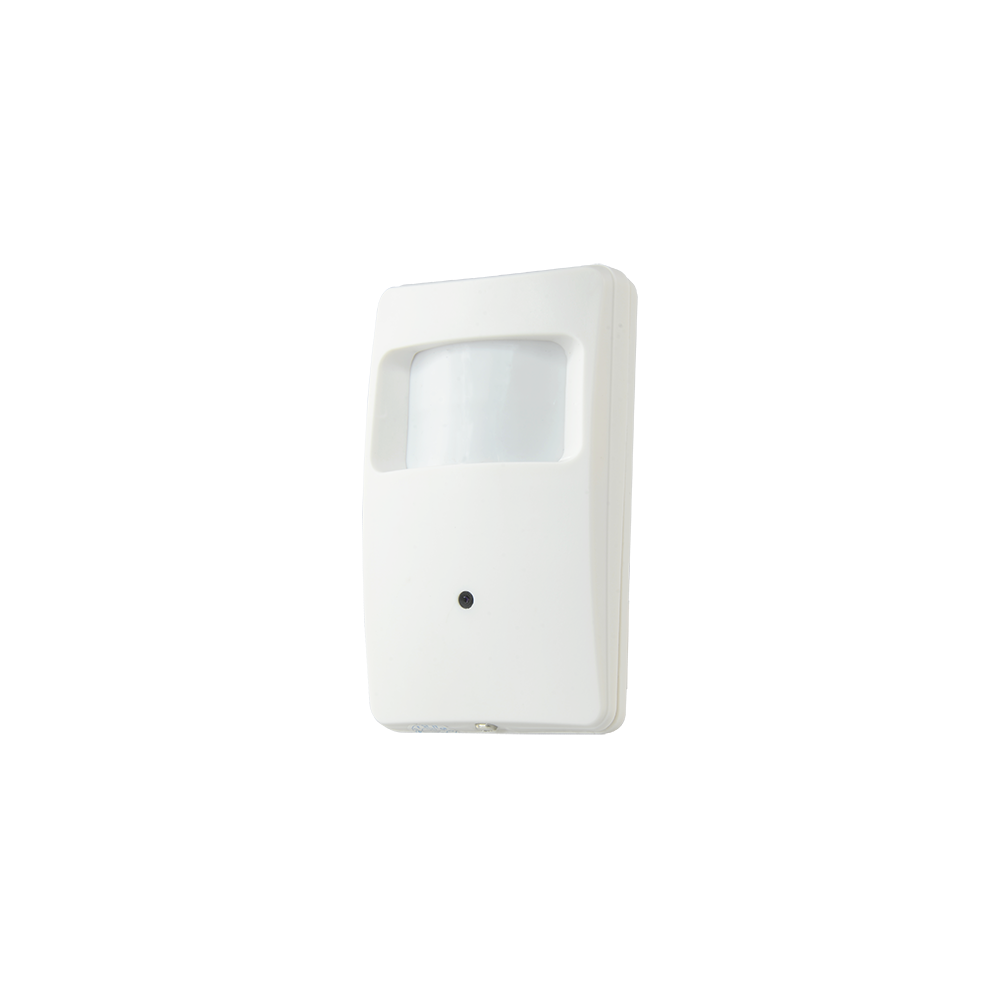

Hidden camera in simulated PIR Detector with infrared illumination. Technology 4 in 1 (HDTVI / HDCVI / AHD / CVBS) Range 1080p PRO.

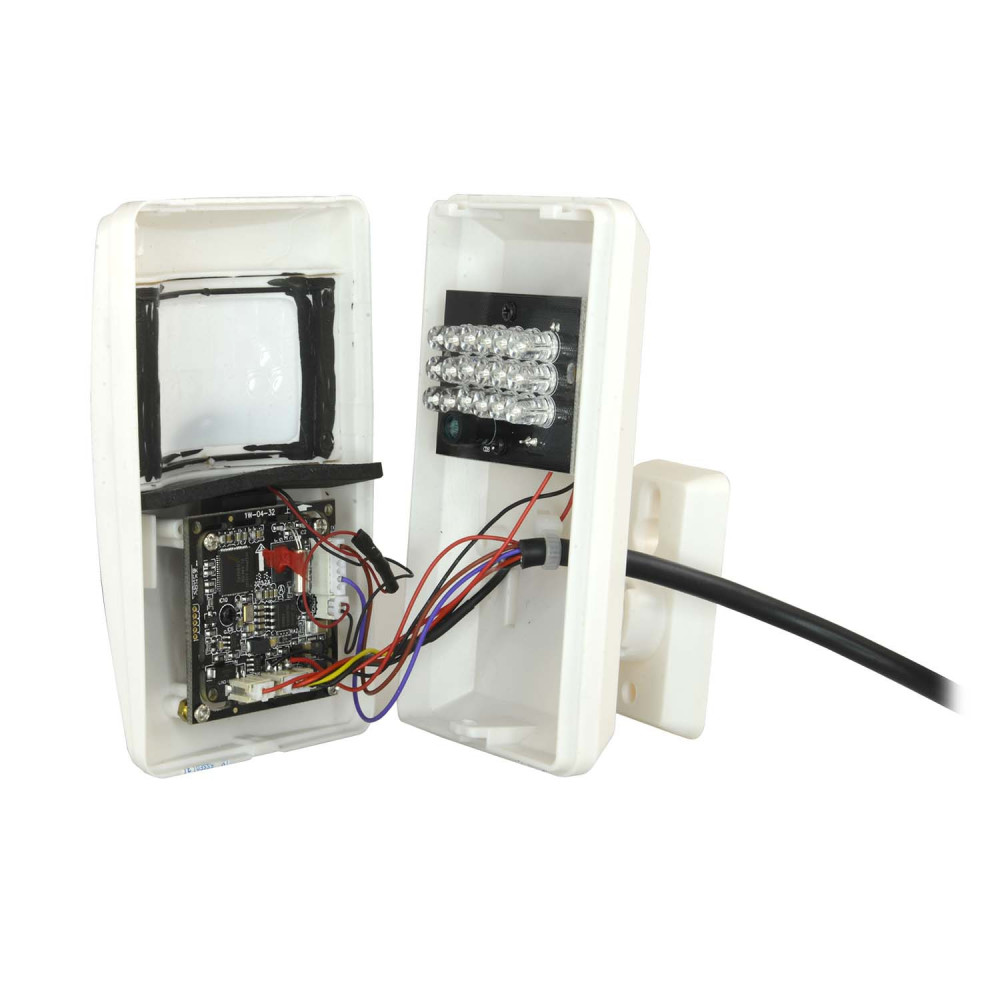

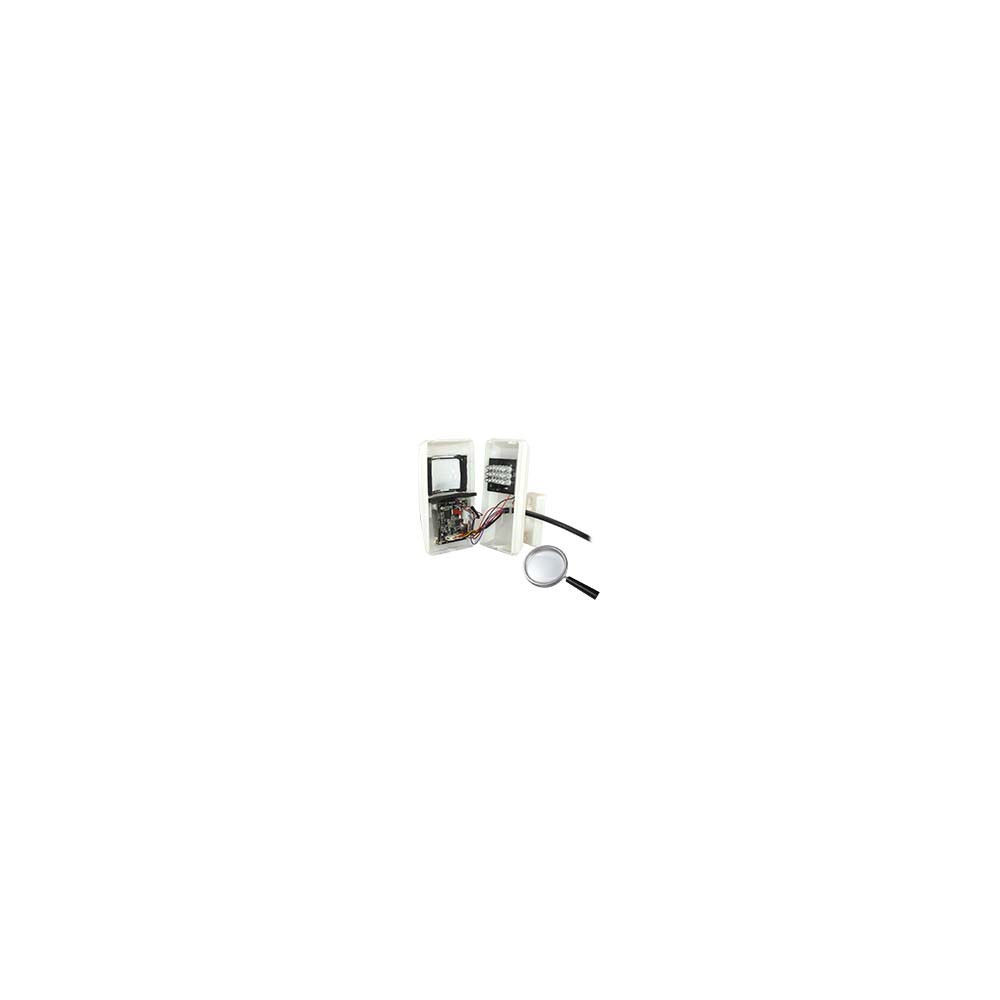

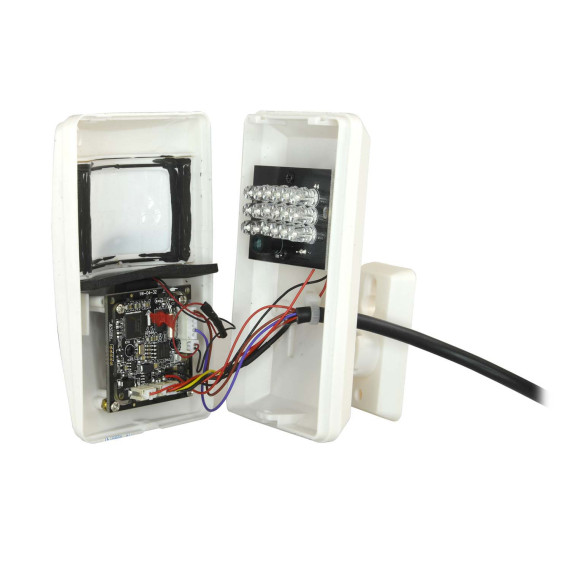

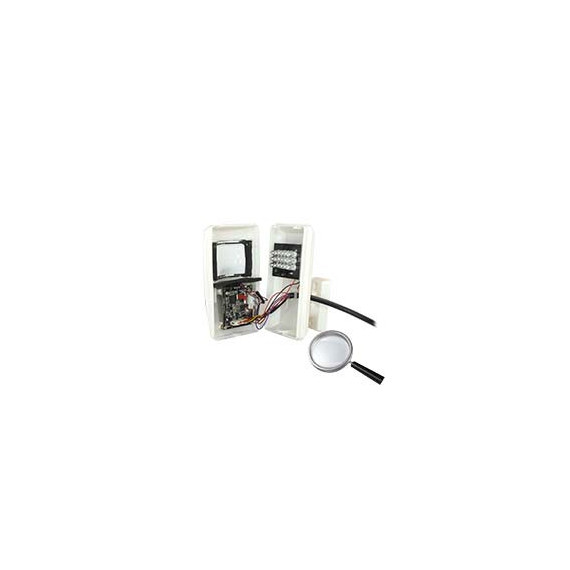

Consisting of a 1/2.9" Sony© 2.12 Megapixel Exmor sensor (model IMX322) and DSP (model V30), which offers a resolution of 1080p at 25 FPS. 3.7mm fixed Pinhole lens with a diagonal FOV of 79º. 18 infrared LEDs that are activated automatically providing a sharp image at 0 Lux (total darkness) at a maximum distance of 10 m. The IR LED's are behind the simulated PIR lens. When activated they simulate the illumination of a real PIR Detector. It has automatic IR Cut filter that permits clear, real colour, daytime images.

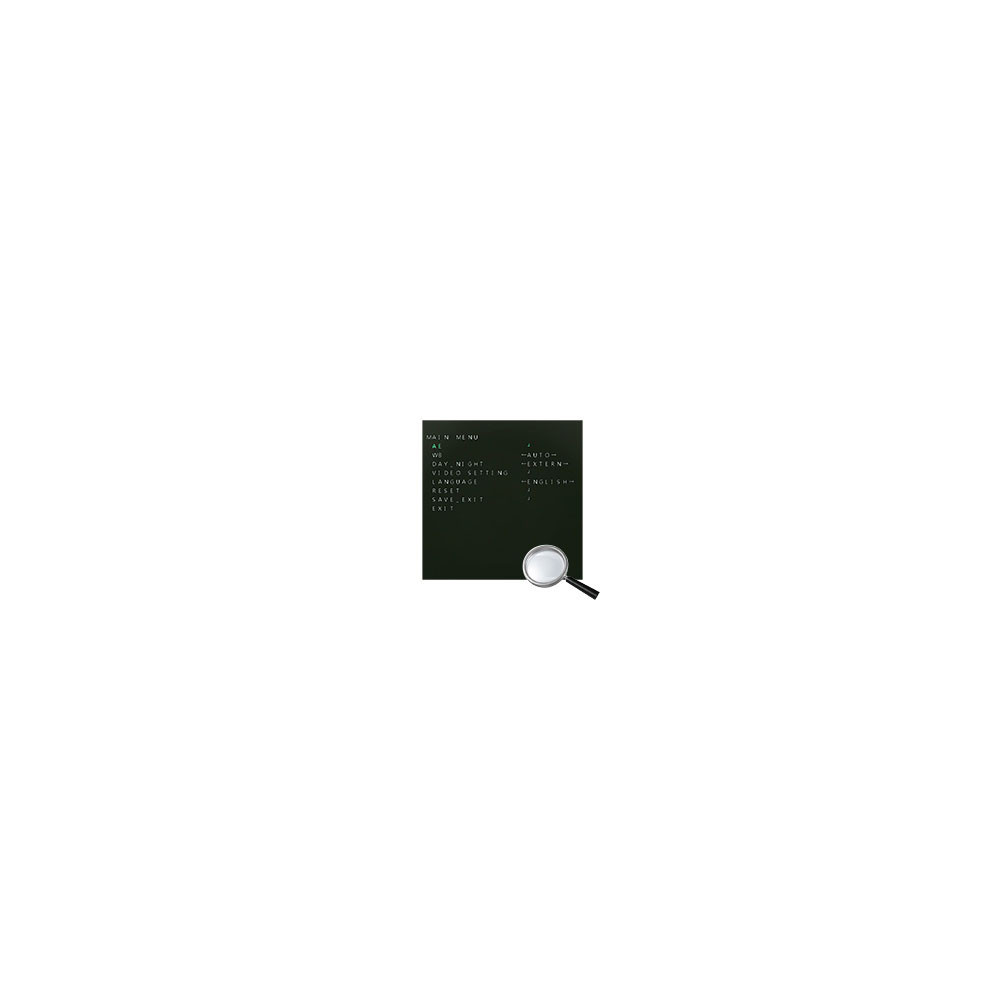

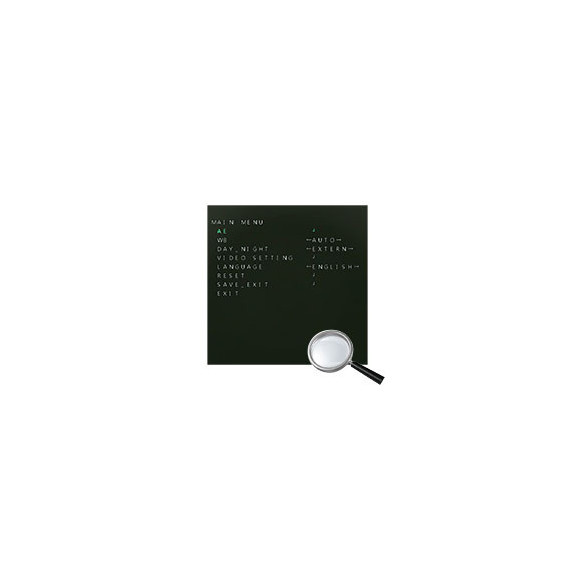

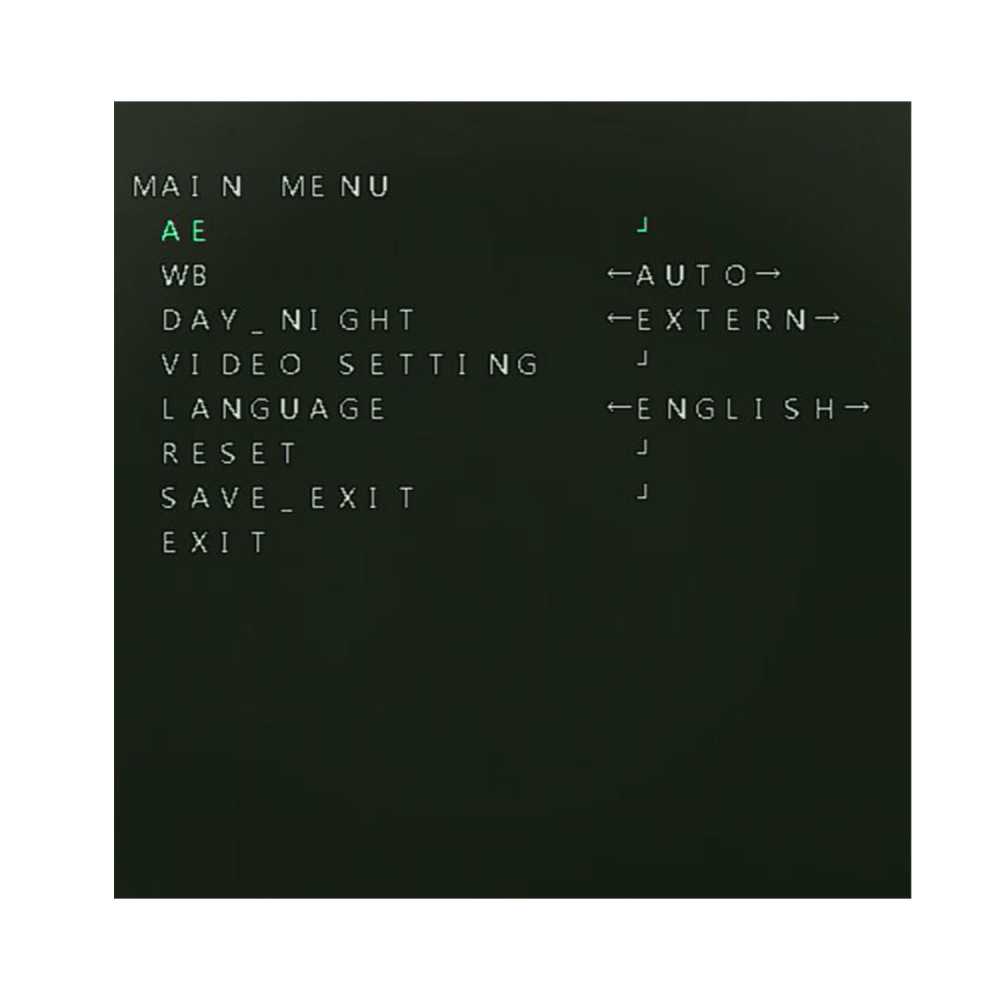

OSD Menu in HD format, remotely accessible from the recorder via the coaxial cable connection o via the integrated multi-function button, for configuring the cameras parameters:

• ATR, Adaptive Tone Reproduction which improves the gradient and the definition
• AE Shutter, automatic exposure control to optimize the input of received light
• 2D-NR, digital noise reduction system without loss of focus
• AWB, automatic white balance for true colours

  BNC video connection in high definition formats HDTVI / HDCVI / AHD / CVBS, switchable with button.

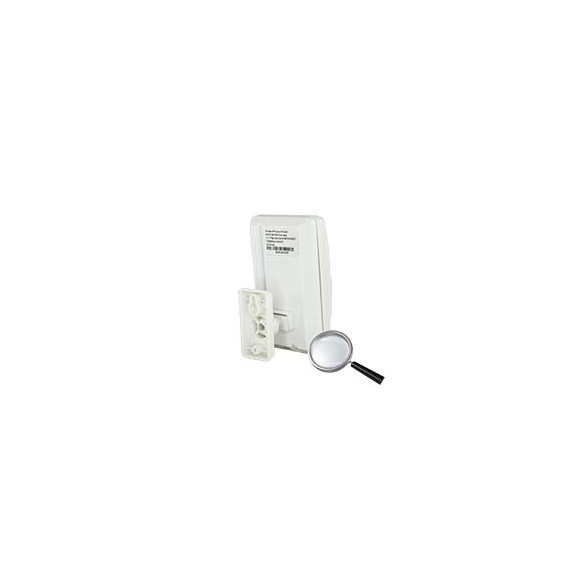

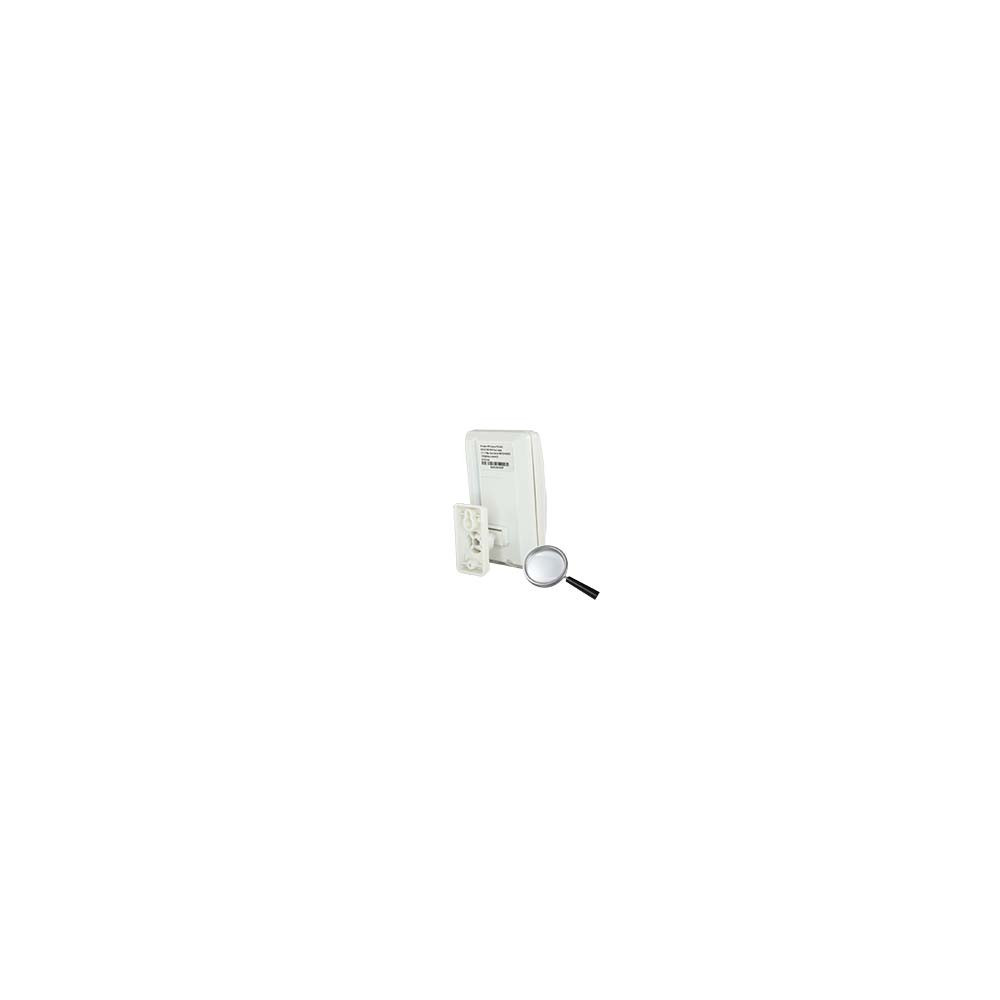

  PVC housing, for interior use. Easy wall mounting with the bracket provided.





  Range	1080p PRO
  Image sensor	1/2.9" Sony© 2.12 Megapixel Exmor (model IMX322)
  DSP	V30
  Resolution	HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL
  Video output	1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
  Minimum illumination	0 Lux / 18 LEDs IR (10 m)
  Basic functions	OSD menu (remote), Day/Night with IR-CUT (ICR), ATR
  Configurable OSD functions	DWDR, 2D-NR, AE, AWB, AGC
  Lens	3.7 mm (79º)
  Power	DC 12 V / 300 mA
  Degree of protection	Interior
  Temp. operation	-10º C ~ +50º C
  Dimensions	105 (H) x 60 (W) x 30 (D) mm
  Weight	120 g
