MARCA BLANCA YS-131NC
kr 434.25

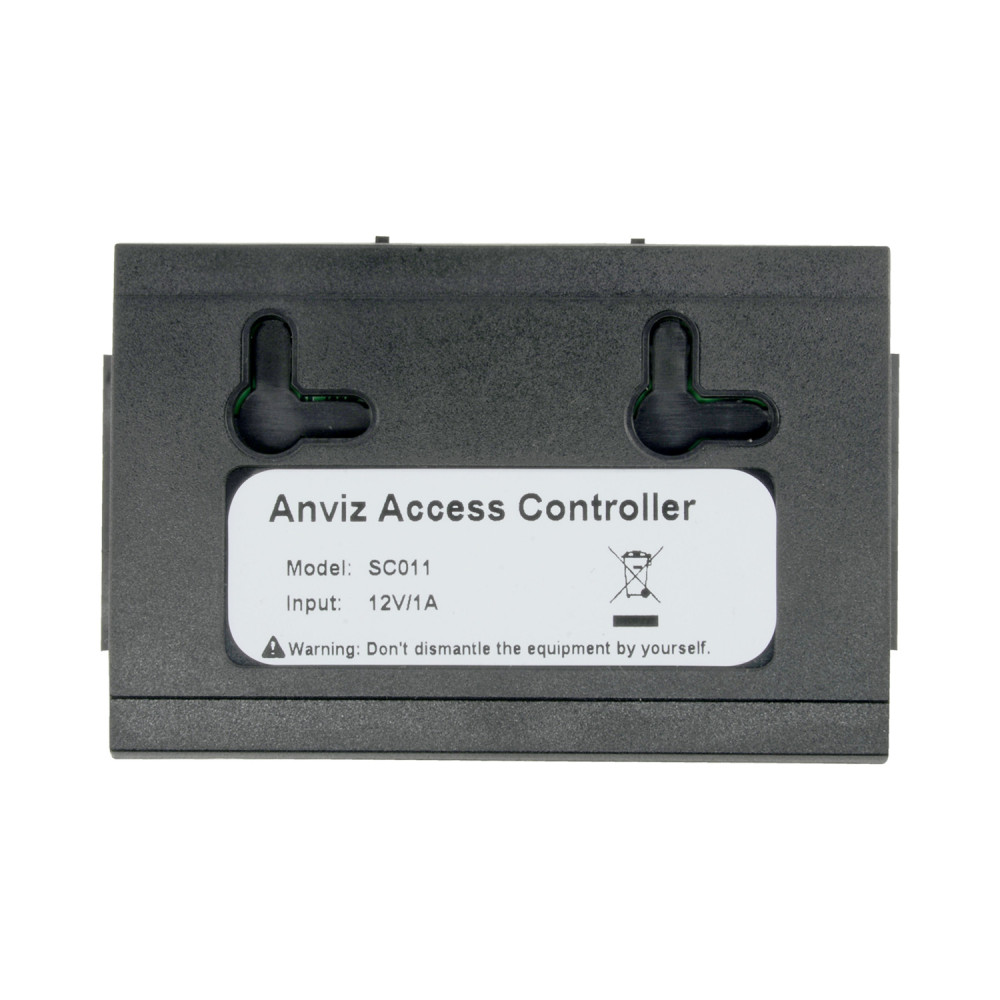

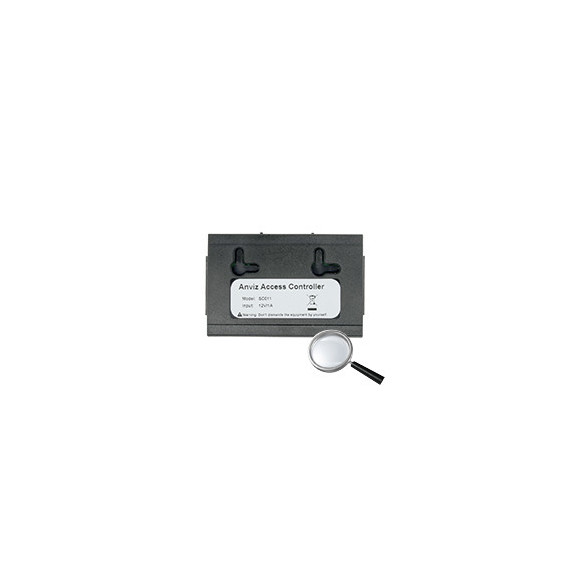

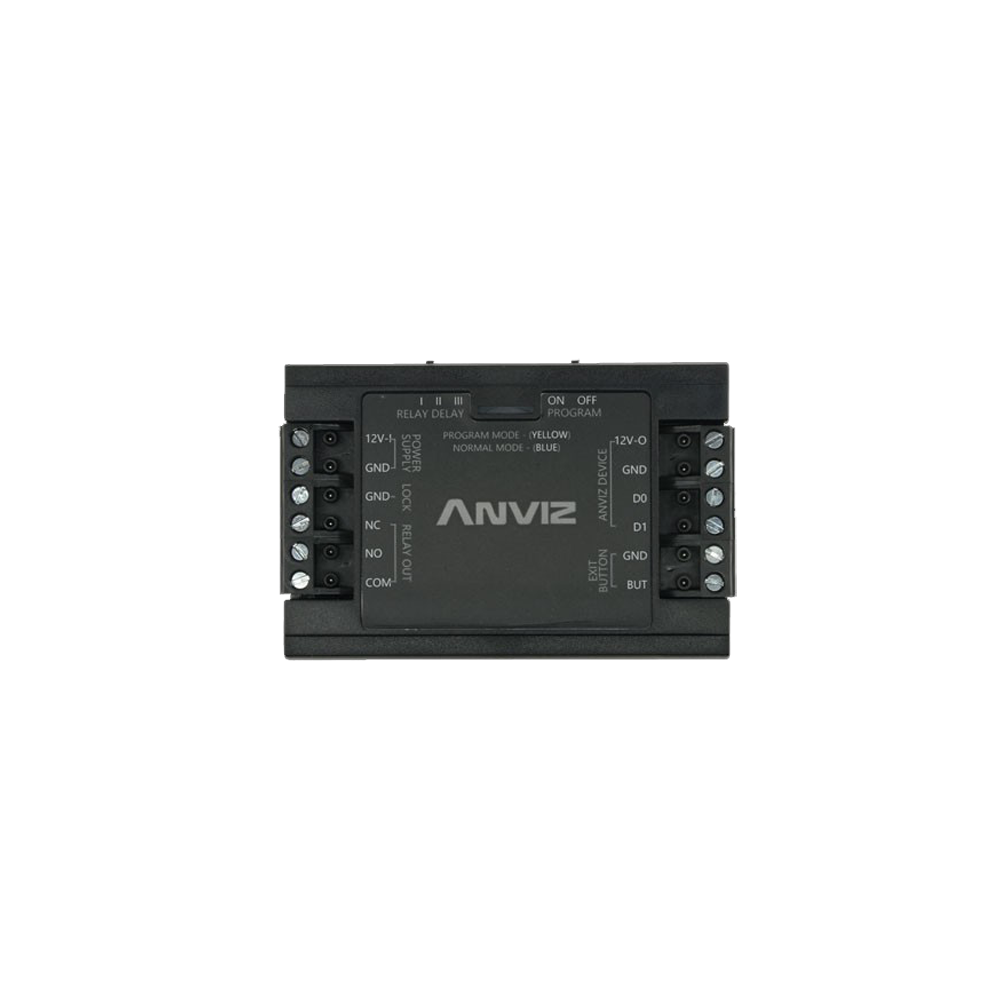

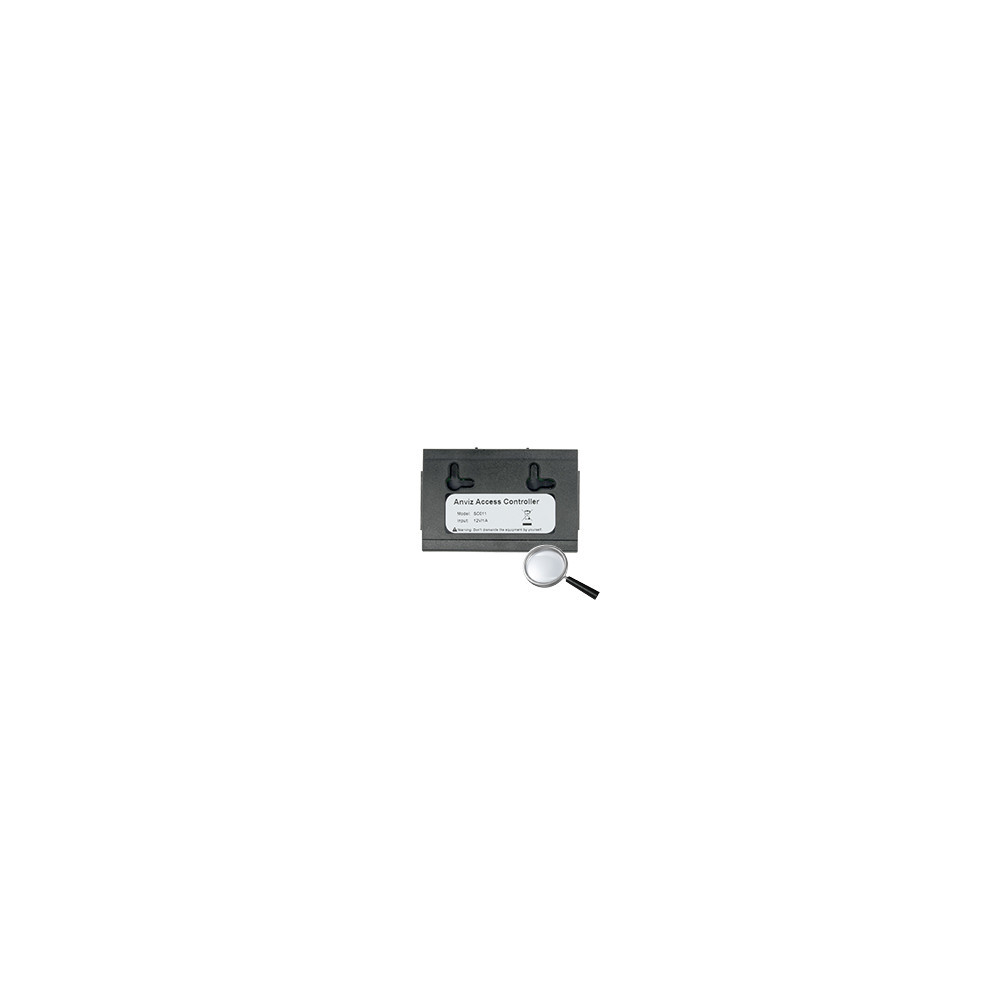

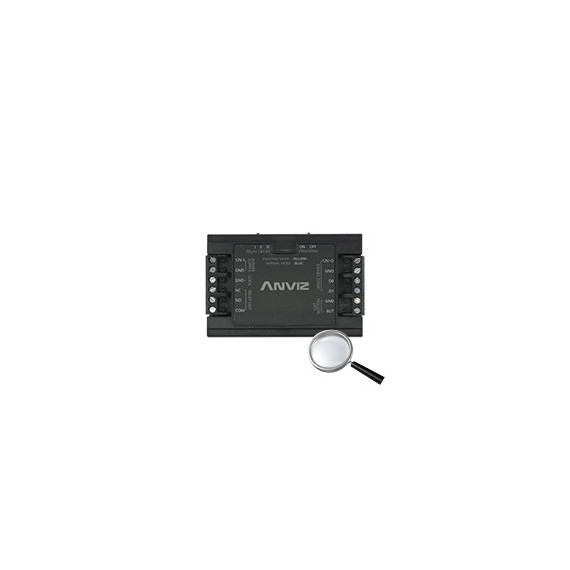

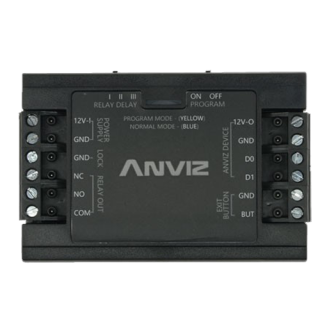

ANVIZ access controller.

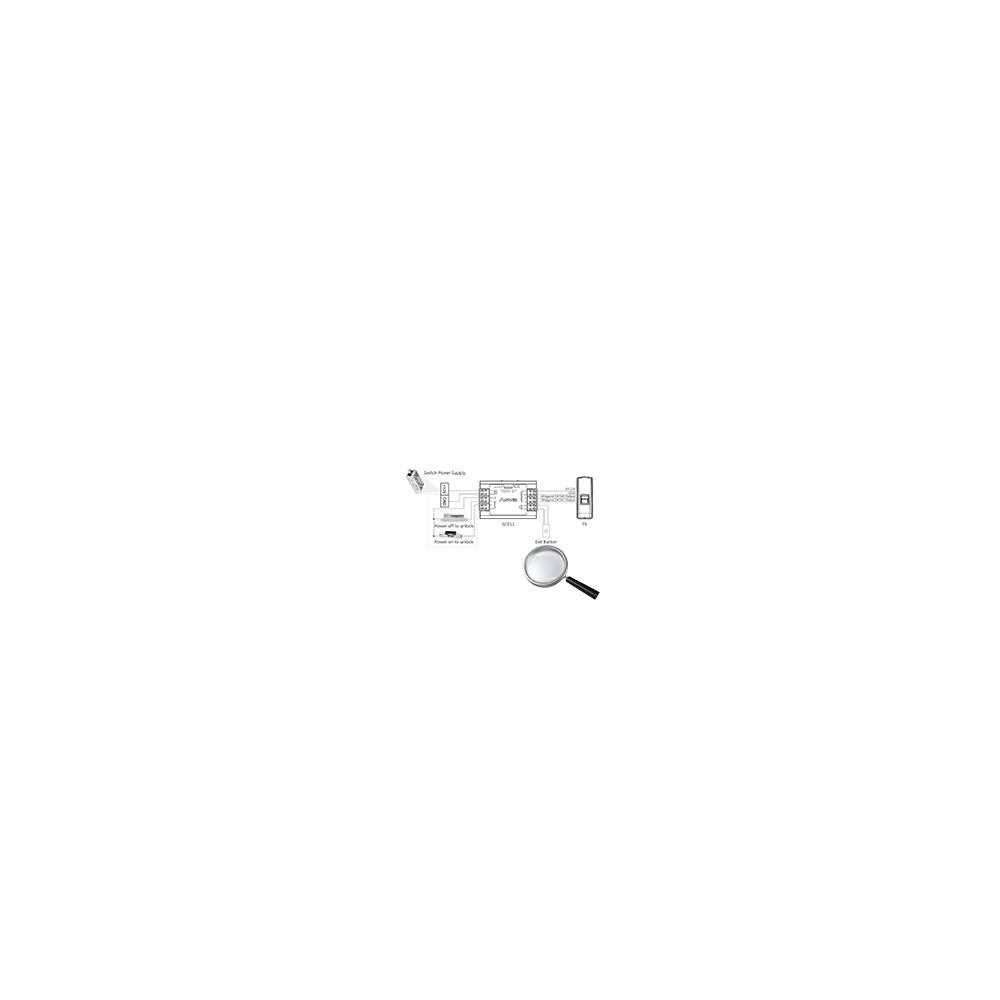

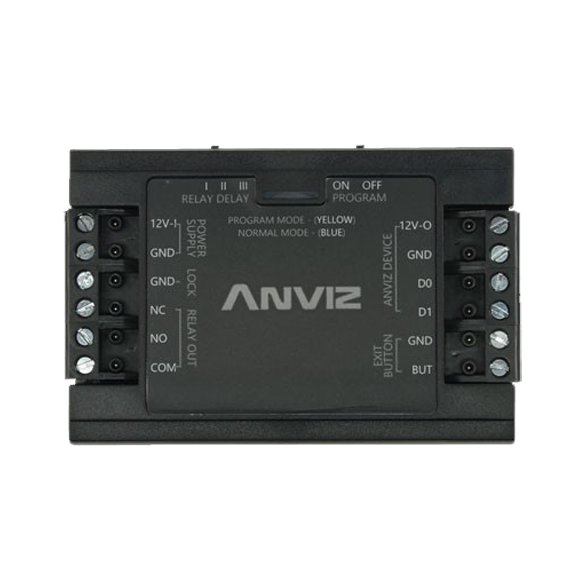

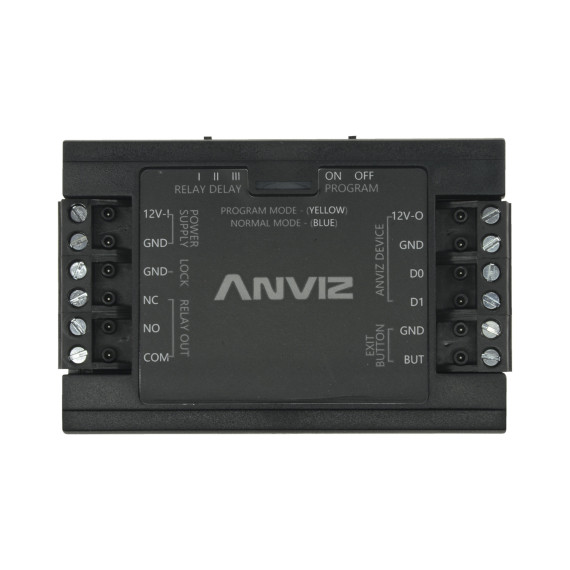

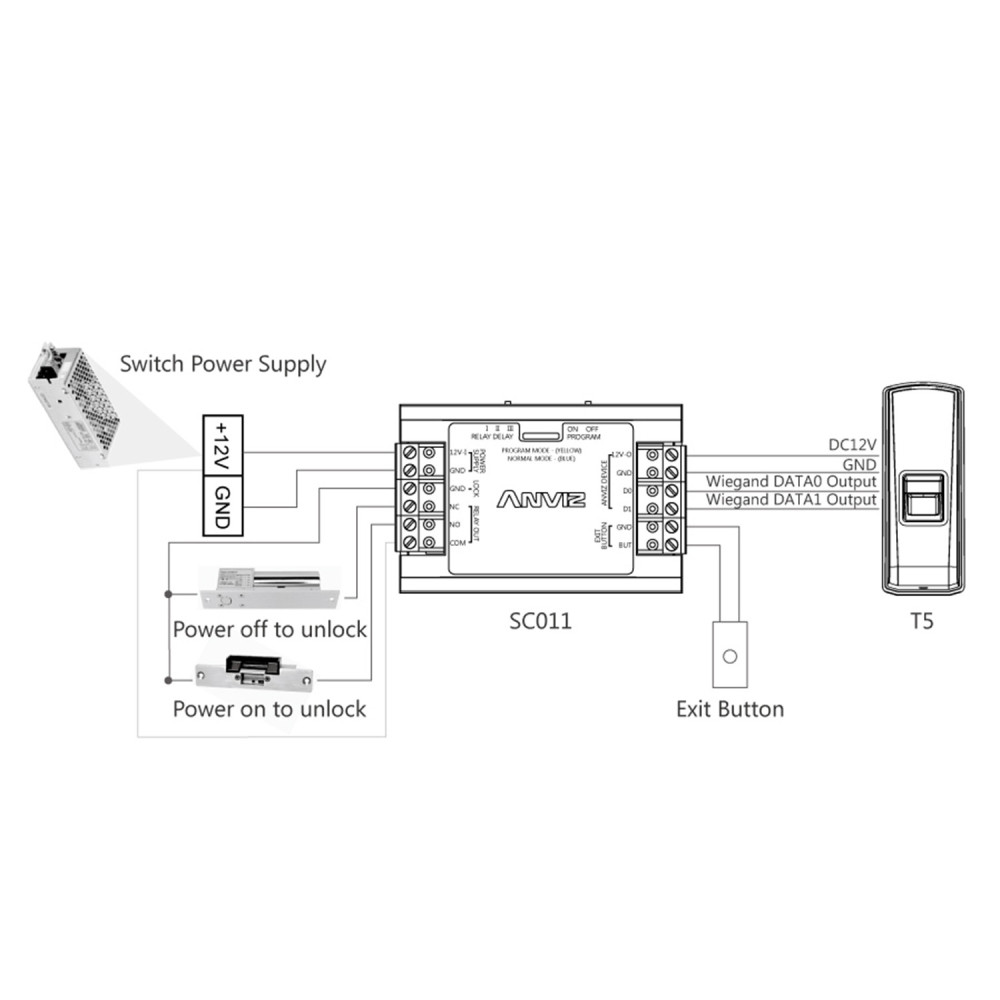

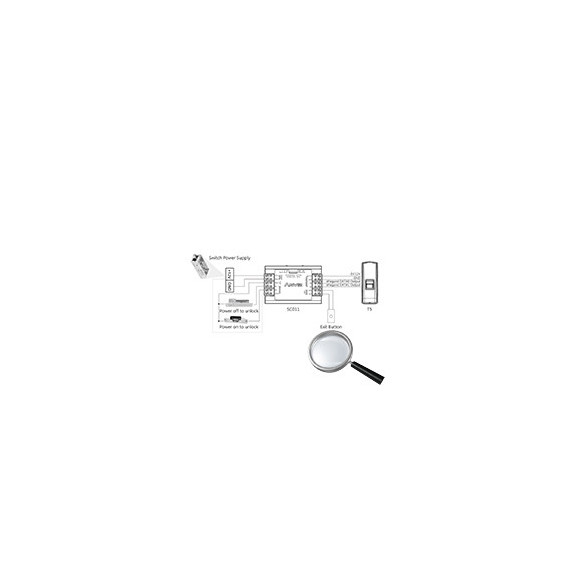

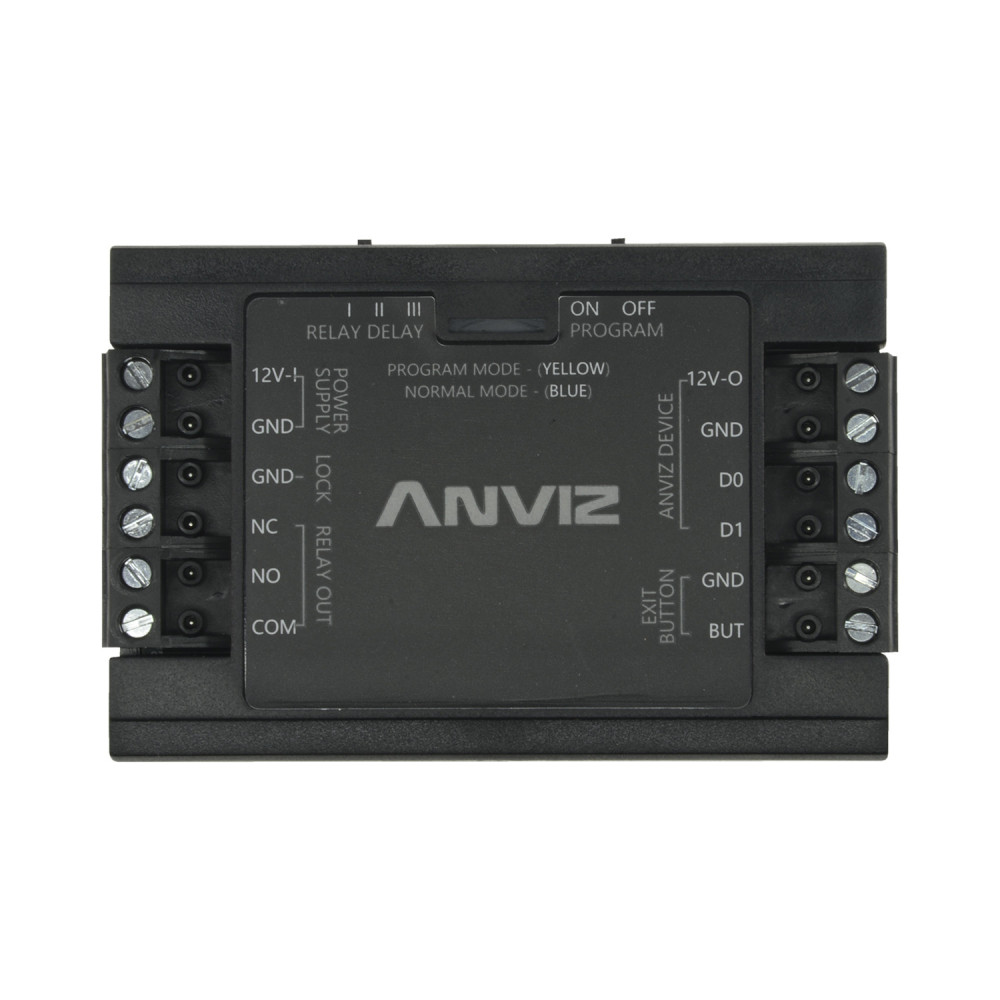

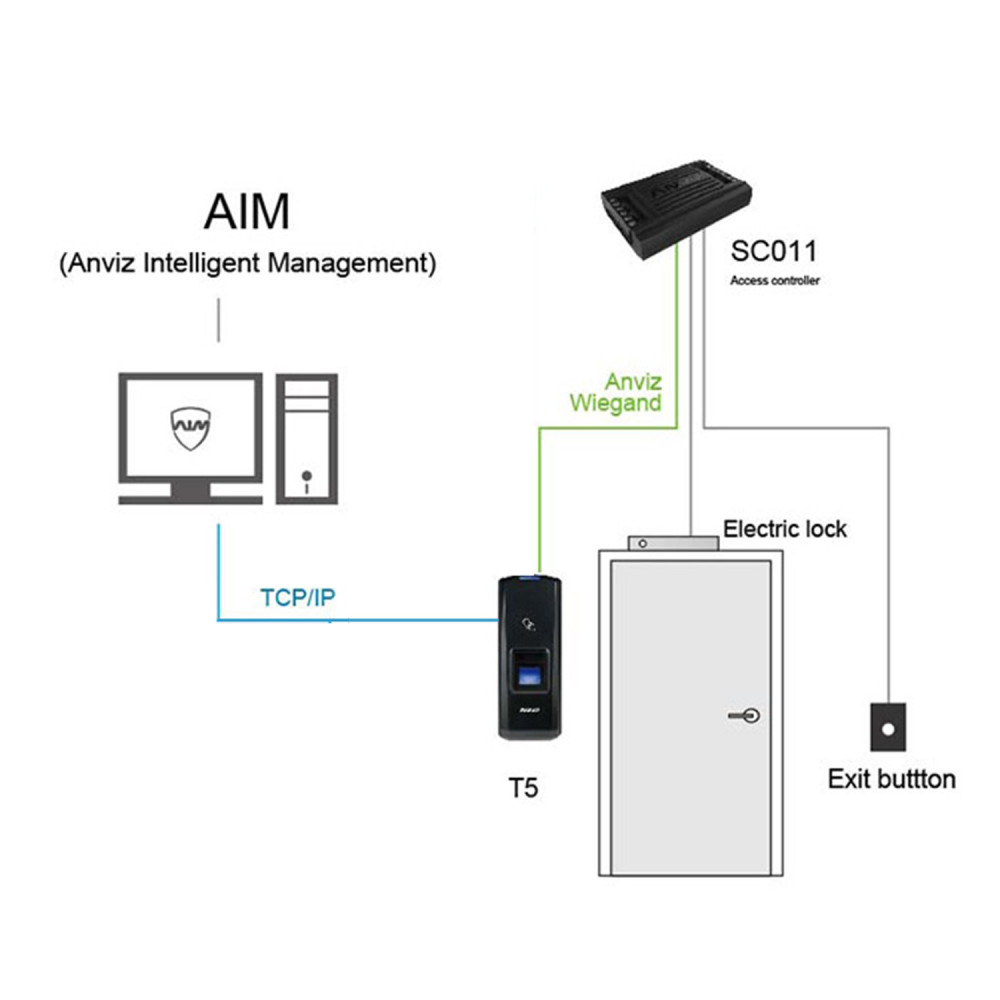

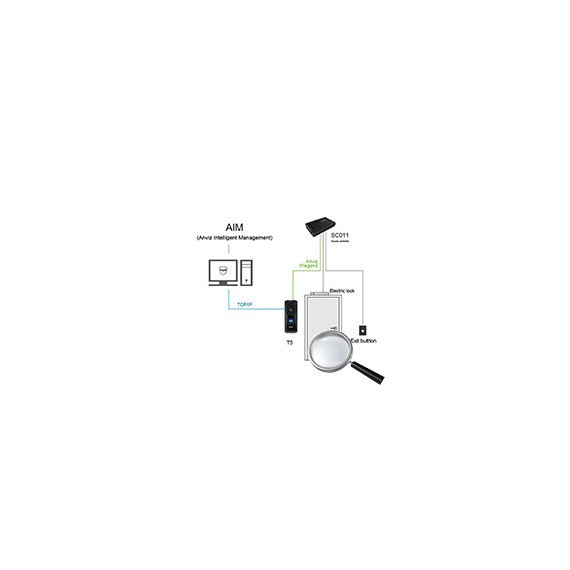

Secure and reliable independent access controller which can receive data from an ANVIZ Wiegand reader for standalone use. Input for door sensor and push button to open, relay output NO/NC for control of Maglocks & Electric strikes.
Three switchable delay settings for the relay, switch selectable program mode and a status LED.
Overload, static discharge and short-circuit protection. The controller requires 12VDC and also powers the reader.
Security | ANVIZ Wiegand |
PC communication | Not available |
Controller inputs | ANVIZ Wiegand, push-button |
Controller outputs | Relay NO/NC |
Power | DC 12 V / 120 mA |
Dimensions | 55 (D) x 70 (W) x 25 (H) mm |
Weight | 75 g |
