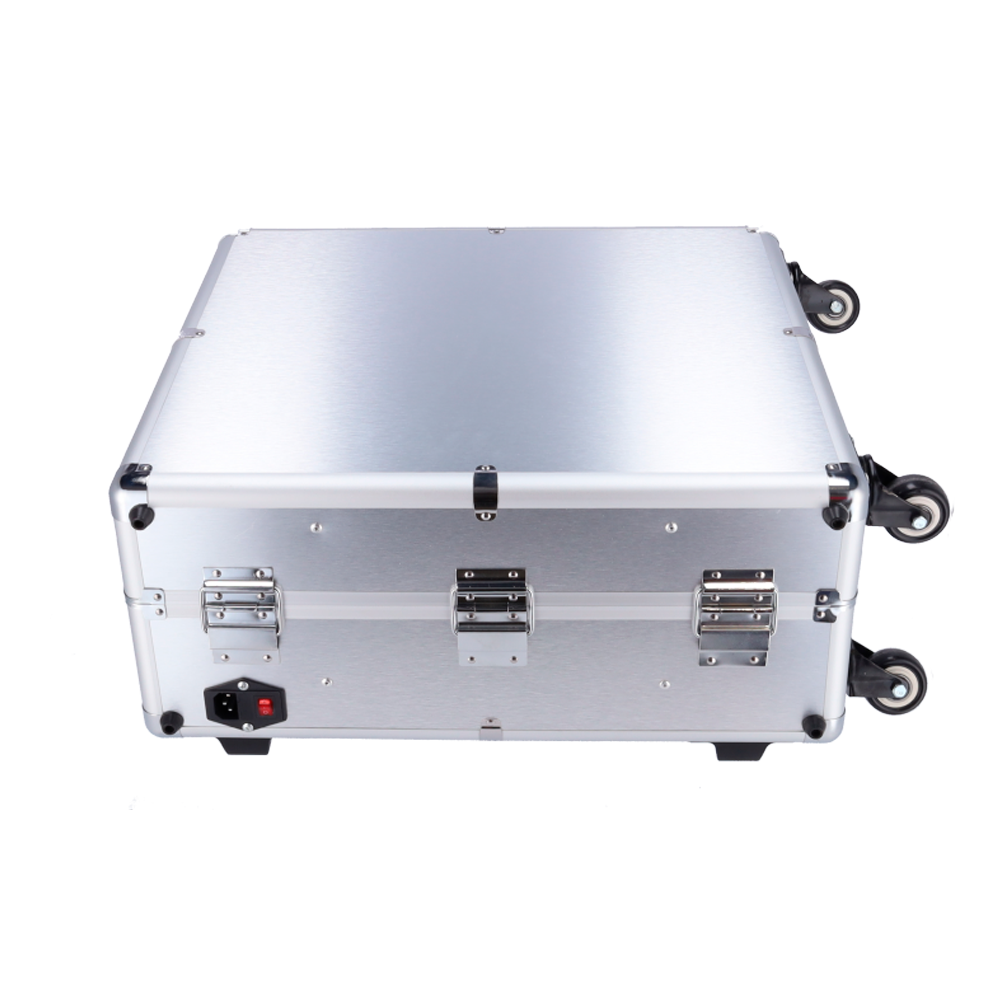

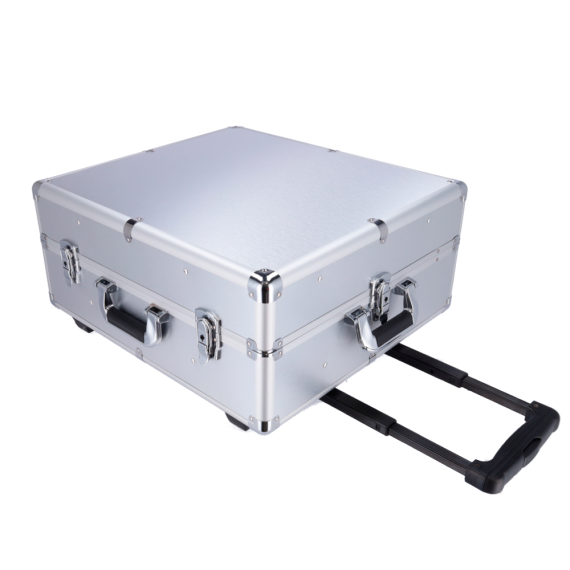

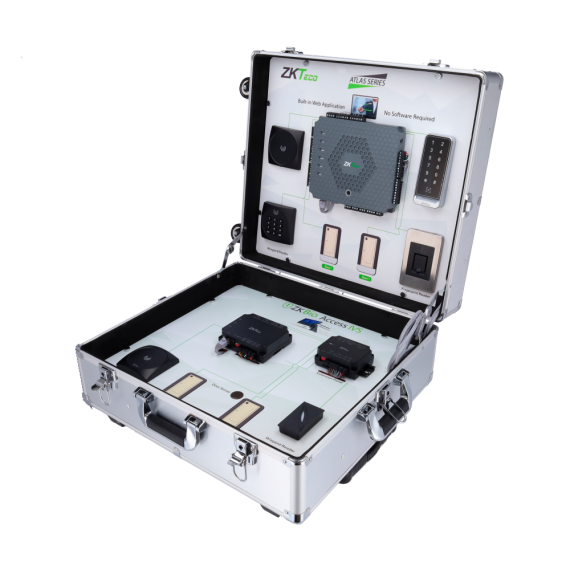

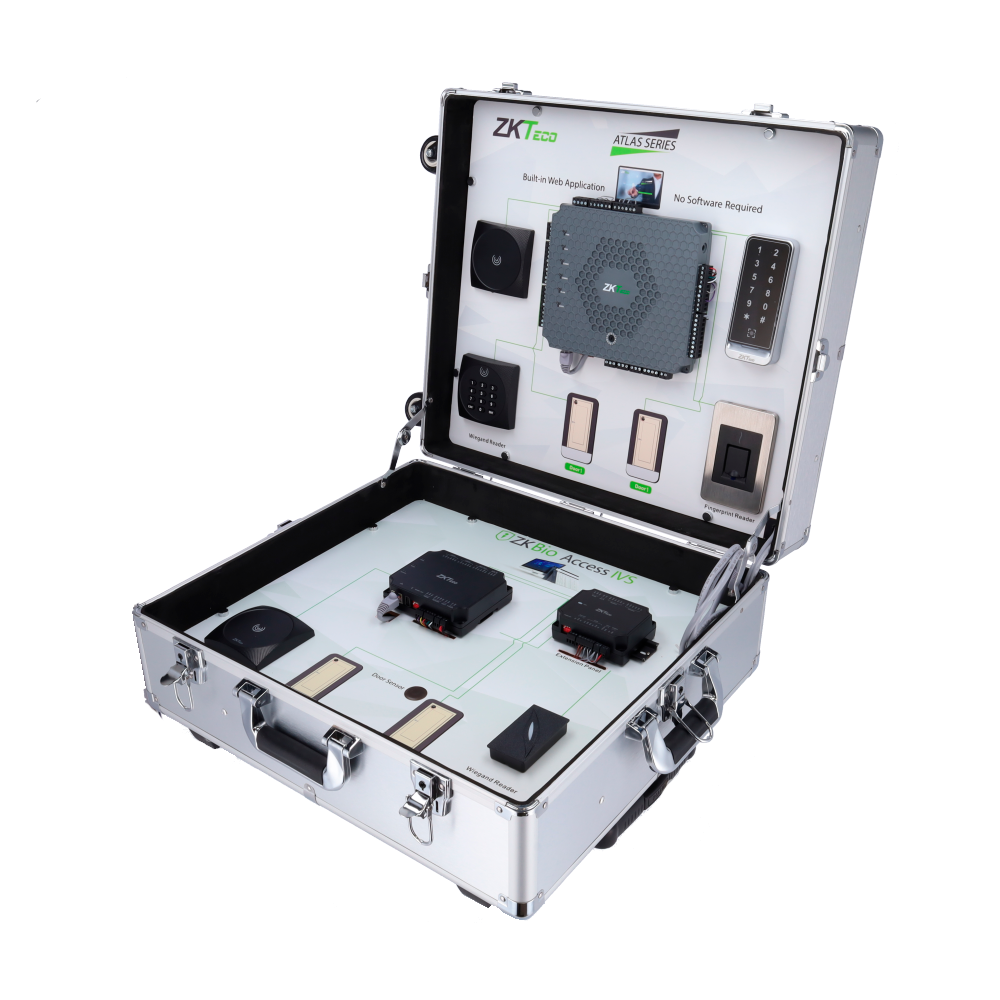

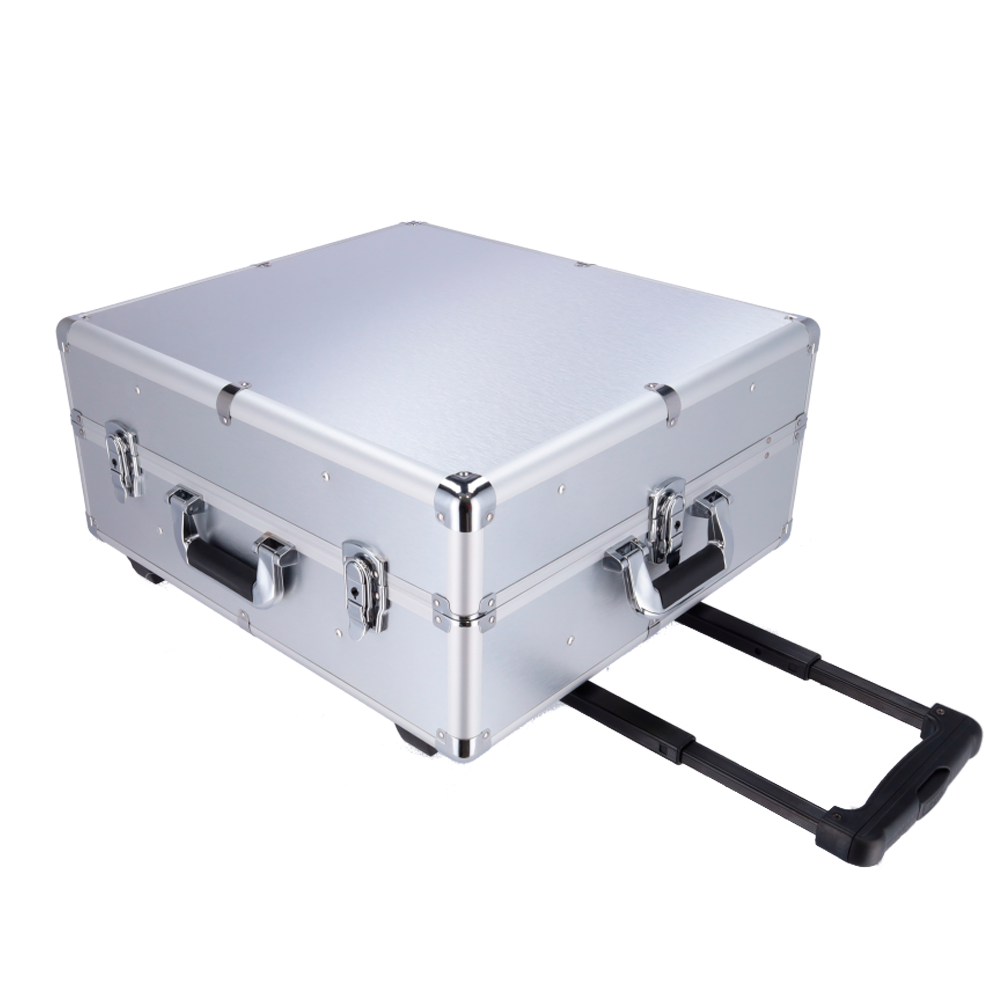

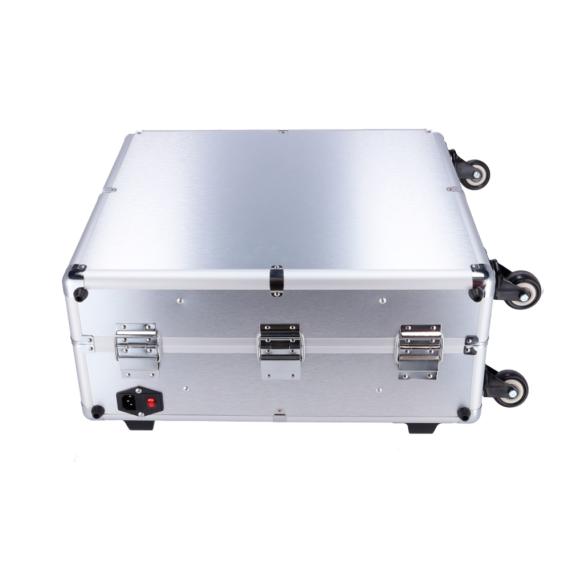

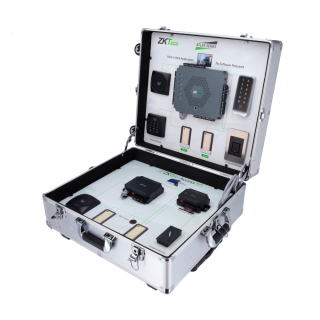

Briefcase | |
| Dimensions | 500 (H) x 450 (W) x 200 (D) mm |
| Material | Aluminium |
| Weight | 13 kg |
ZK-KR310 | |
| Brand | ZKTeco |
| Model | ACC-ER-KR310 |
| Reading distance | Up to 1 cm |
| Read time | < 300ms |
| Identification modes | RFID cards (EM 125 kHz and MF 13.56 MHz) |
| Outputs | Wiegand OUT 34 bits |
| Compatibility | ZKTeco ZK-C3, ZK-INBIO, ZK-SRB-DM10 ZK-INBIO, [%VAR%] and ATLAS Series controllers |
| Power | DC 6 ~ 14 V / 70 mA max. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 42.8 (W) x 77.5 (H) x 16.5 (D) mm |
| Weight | 50 g |
ZK-BIOACCESS-5D | |
| Brand | ZKTeco |
| Model | SOF-BIOACCESS-5 |
| Door capacity | Up to 5 doors |
| Users | 2.000 users |
| Operating system | Server: Windows 7/8/10 32Bit and 64Bit Browser access from MAC or Windows |
| Communication | TCP/IP and WiFi |
| Communication protocols | Push SDK and Pull SDK Compatible with ZK-C3, ZK-INBIO and ZK-C2-260 controllers, as well as stand-alone and AI facial recognition terminals |
| Database | PostgreSQL |
| Architecture | Server/Browser |
| Advanced features | Advanced access control and management of thermographic terminals |
| Available languages | German, Russian, Italian, Portuguese (Brazil), French, Japanese, Spanish, Arabic, Chinese, English, Polish, Romanian, Turkish |
ZK-KR613-OSDP | |
| Brand | ZKTeco |
| Model | ACC-ER-KR613-OSDP |
| Reading distance | Up to 10 cm |
| Read time | < 300ms |
| Identification modes | RFID card (EM 125 kHz, MF 13.56 MHz and MF DESFire 13.56MHz) |
| Outputs | RS485 ZKTeco OSDP |
| Compatibility | ZKTeco ZK-INBIO, ZK-C2-260 and ATLAS Series Controllers |
| Power | DC 6 ~ 14 V / 70 mA max. |
| Degree of protection | Suitable for exterior IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 86 (W) x 86 (H) x 16 (D) mm |
| Weight | 50 g |

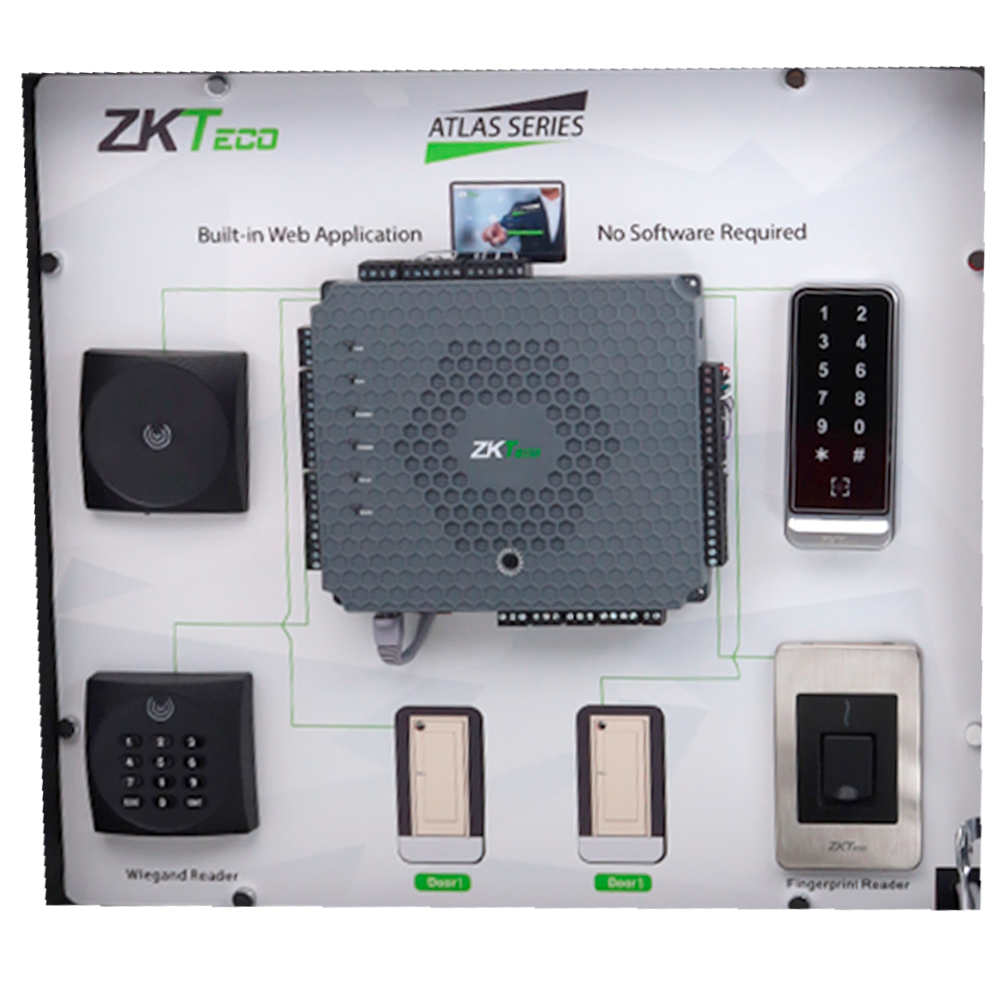

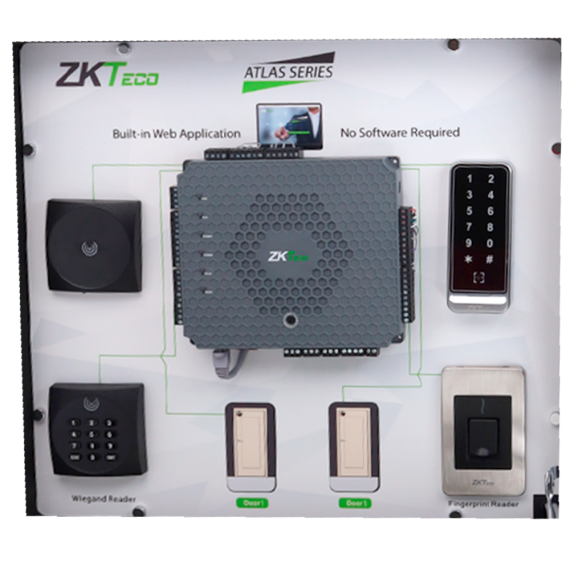

ZK-ATLAS-260 | |
| Brand | ZKTeco |
| Model | CON-ATLAS-260 |
| Capacity | Up to 5.000 users with 10 prints each or 5.000 cards |
| Records | 10.000 registers |
| Identification modes | Fingerprint, card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | TCP/IP | RS485 | OSDP | Wiegand |
| Baud rate | 9.600bps for OSDP |
| Outputs | 2 x relay output, 1 x auxiliary output |
| Inputs | 4 x Wiegand 26/34/37/50, 4 x door sensor, 4 x opening button, OSDP (up to 4 readers), 2 x auxiliary |
| Advanced features | Anti-passback, first card, multi-card and maps |
| Software | ATLAS Series embedded with browser-based access |
| Languages | English, German, Spanish, French, Italian, Portuguese, Polish, Turkish, Romanian, Norwegian, Czech |
| Secondary controllers | Connection of up to 20 secondary controllers via IP with a control of up to 84 doors |
| Compatible web browsers | Google Chrome, Mozilla Firefox, Microsoft Edge |
| Mobile App | ZK ATLAS for iOS and Android |
| Power | DC 12 V / 3 A max. | Standard PoE power supply | Non-powered locks with controller |
| Temp. operation | 0º C ~ +55 C |
| Dimensions | 197 (W) x 171 (H) x 30 (D) mm |

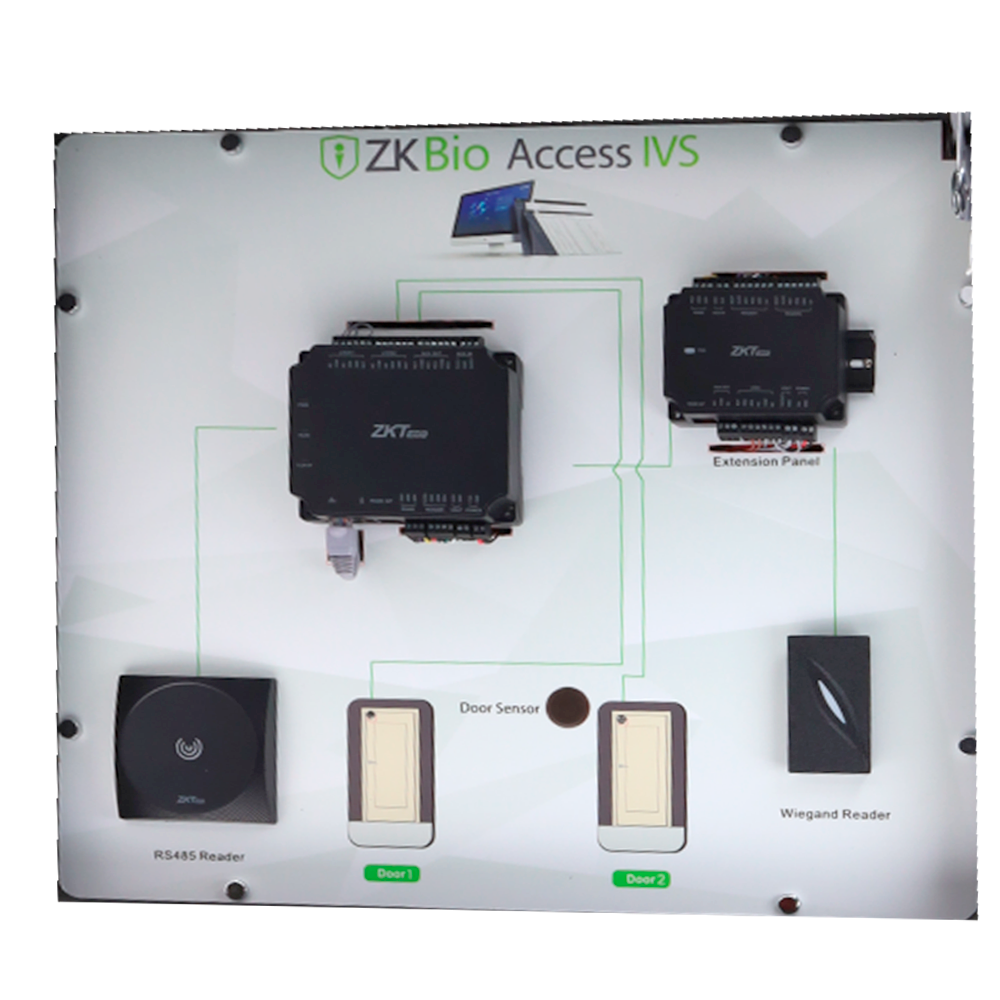

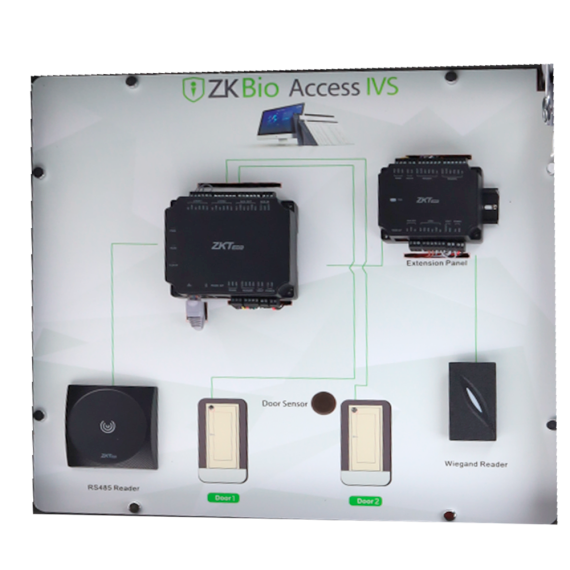

ZK-C2-260 | |
| Brand | ZKTeco |
| Model | CON-C2-260 |
| Capacity | Up to 30.000 users |
| Records | 200.000 registers |
| Identification modes | Card and/or password |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | TCP/IP | RS485 for slave connection | OSDP ZKTeco for reader connector |
| Outputs | 2 x relay output, 1 x auxiliary output, RS485 for communication with ZK-SRB-DM10 |
| Inputs | 2 x door sensor, 2 x open button, OSDP ZKTeco (up to 4 readers), 1 x auxiliary entry |
| Compatible readers | RS485 ZKTeco of cards and OSDP ZKTeco of cards |
| Secondary controllers | Connection of up to 8 secondary controllers ZK-SRB-DM10 via RS485 |
| Software | ZKBioAccess IVS / ZKBio CVSecurity |
| Power | DC 9.6 ~ 14.4 V / 3 A max. | Locks not powered with controller |
| Temp. operation | -10º C ~ +50 ºC |
| Dimensions | 117 (W) x 97 (H) x 32 (D) mm |
ZK-SRB-DM10 | |
| Brand | ZKTeco |
| Model | ACC-SRB-DM10 |
| Identification modes | Card and/or passwords |
| Proximity card | EM RFID (125 kHz) / MF (13.56 MHz) |
| Communication | RS485 | Wiegand |
| Outputs | 1 x relay output, 1 x auxiliary output, RS485 for communication with C2-260 |
| Inputs | 1 x door sensor, 1 x open button, Wiegand 26/34 (up to 2 readers), 1 x auxiliary input |
| Software | ZKBioAccess IVS with C2-260 controller |
| Secondary controllers | 8 secondary controllers ZK-SRB-DM10 for each ZK-C2-260 |
| Power | DC 12V / 3 A max. | Locks not powered with controller |
| Temp. operation | -10º C ~ +50 ºC |
| Dimensions | 91 (W) x 72 (H) x 33 (D) mm |
ZK-FR1500-EM-A | |
| Brand | ZKTeco |
| Model | FR1500-EM-A |
| Sensor | ZKSilkID Optical Sensor |
| Sensor resolution | 500DPI |
| Activation sensor | Infrared auto-activation |
| Algorithm | ZK Finger 10.0 |
| Read time | < 1 sec |
| Card reading distance | Up to 10cm |
| Read time | < 300ms |
| Identification modes | Fingerprint and/or 125 KHz EM Card |
| Outputs | RS485 OSDP |
| Compatibility | ZKTeco ATLAS x60 controllers |
| Power | DC 12 V / 140 mA max. |
| Degree of protection | Valid for exterior |
| Temp. operation | -10º C ~ +45º C |
| Dimensions | 77.3 (W) x 121 (H) x 38 (D) mm |
| Weight | 160 g |
ZK-KR614-OSDP | |
| Brand | ZKTeco |
| Model | ACC-ER-KR614-OSDP |
| Reading distance | Up to 10 cm |
| Read time | < 300ms |
| Identification modes | RFID card (EM 125 kHz, MF 13.56 MHz and MF DESFire 13.56MHz) and keypad |
| Outputs | RS485 ZKTeco OSDP |
| Compatibility | ZKTeco ZK-INBIO, ZK-C2-260 and ATLAS Series Controllers |
| Power | DC 6 ~ 14 V / 70 mA max. |
| Degree of protection | Suitable for exterior IP64 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 86 (W) x 86 (H) x 16 (D) mm |
| Weight | 50 g |
ZK-QR600-V-EM | |
| Brand | ZKTeco |
| Model | ACC-ER-QR600-V-1 |
| Identification modes | QR code and RFID card (EM 125 kHz) |
| Special functions | Support for dynamic QR codes |
| Sensor | QR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128, UPC / EAN, Codabar, Code 39 |
| Reading distance | Cards: ≤ 4 cm QR: ≤ 5 cm |
| Outputs | RS485, Wiegand 26/32/34/66 Wiegand [%VAR%] |
| Compatibility | ZKTeco ATLAS Series Controllers |
| Special functions | Configuration via DEMO software Connection to PC via USB |
| Power | DC 12 V |
| Degree of protection | Suitable for exterior IP65 |
| Material | Metallic |
| Temp. operation | -20º C ~ +60º C |
| Dimensions | 58 (W) x 138 (H) x 16 (D) mm |
