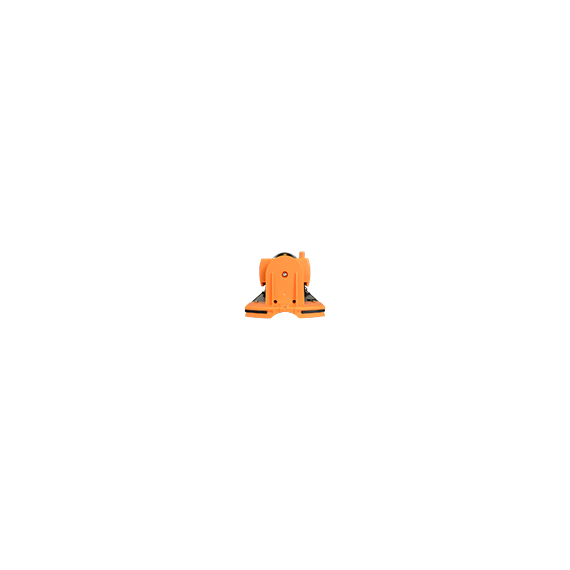

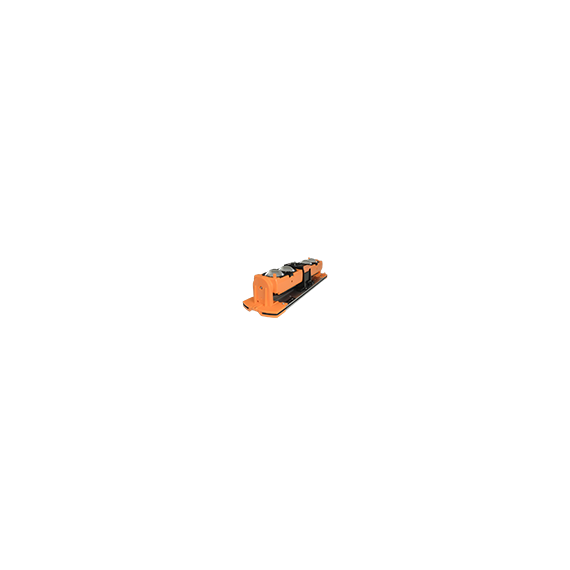

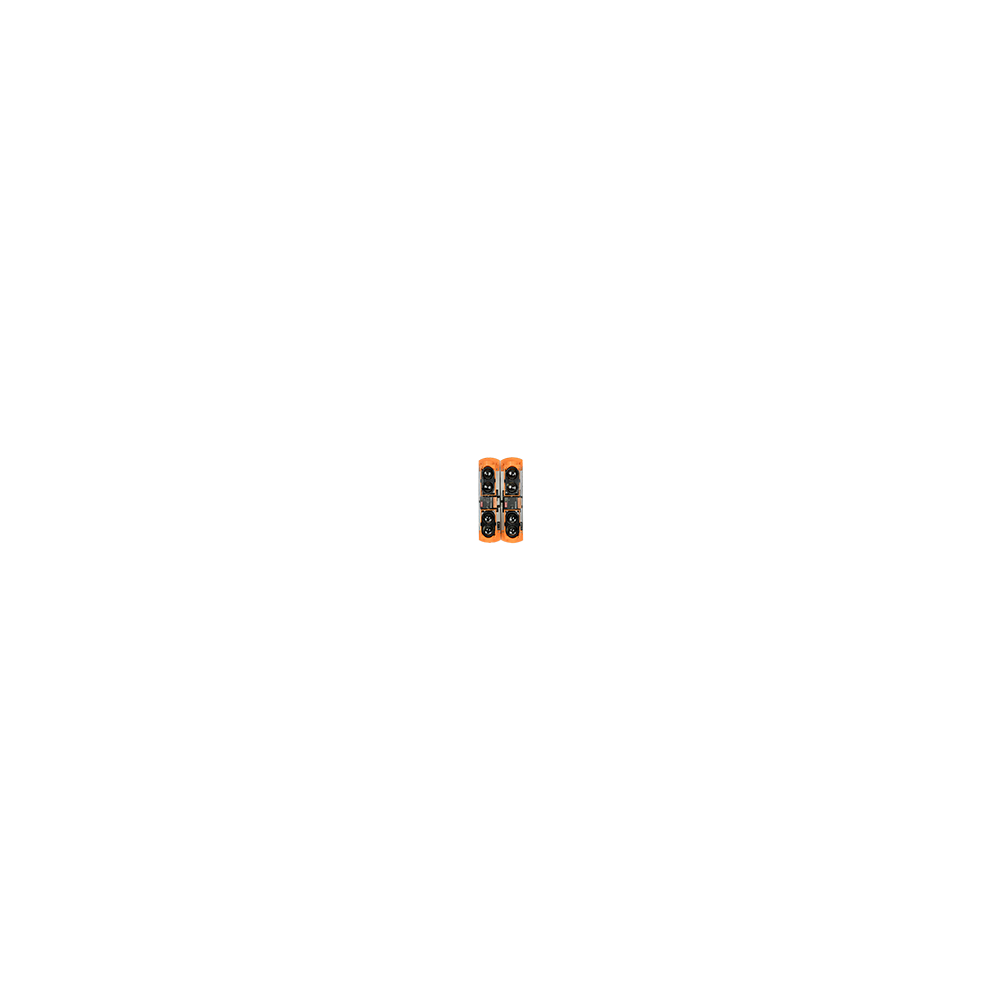

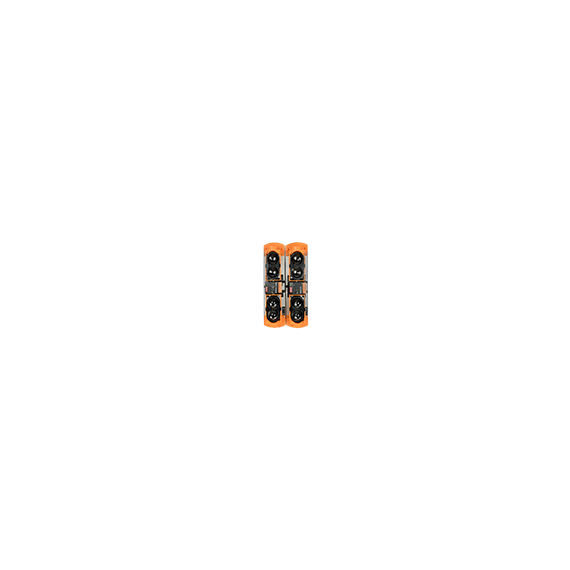

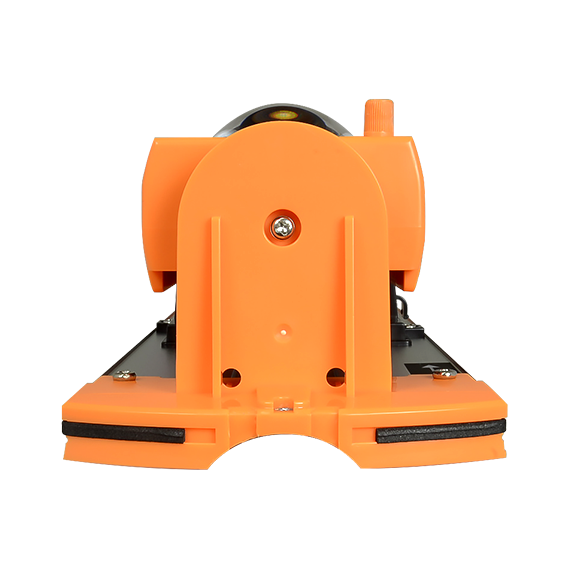

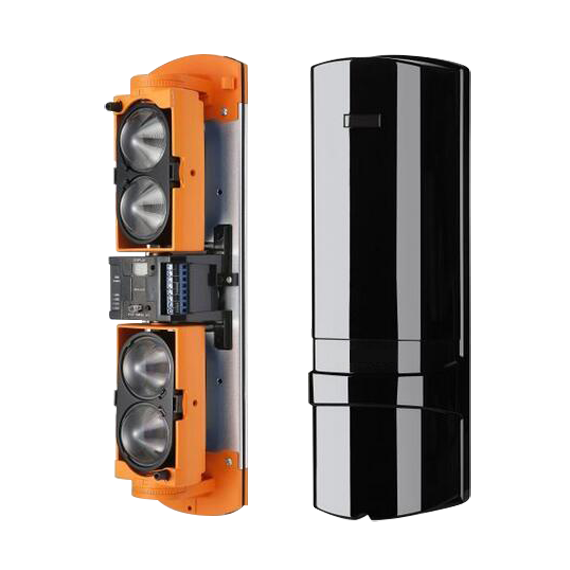

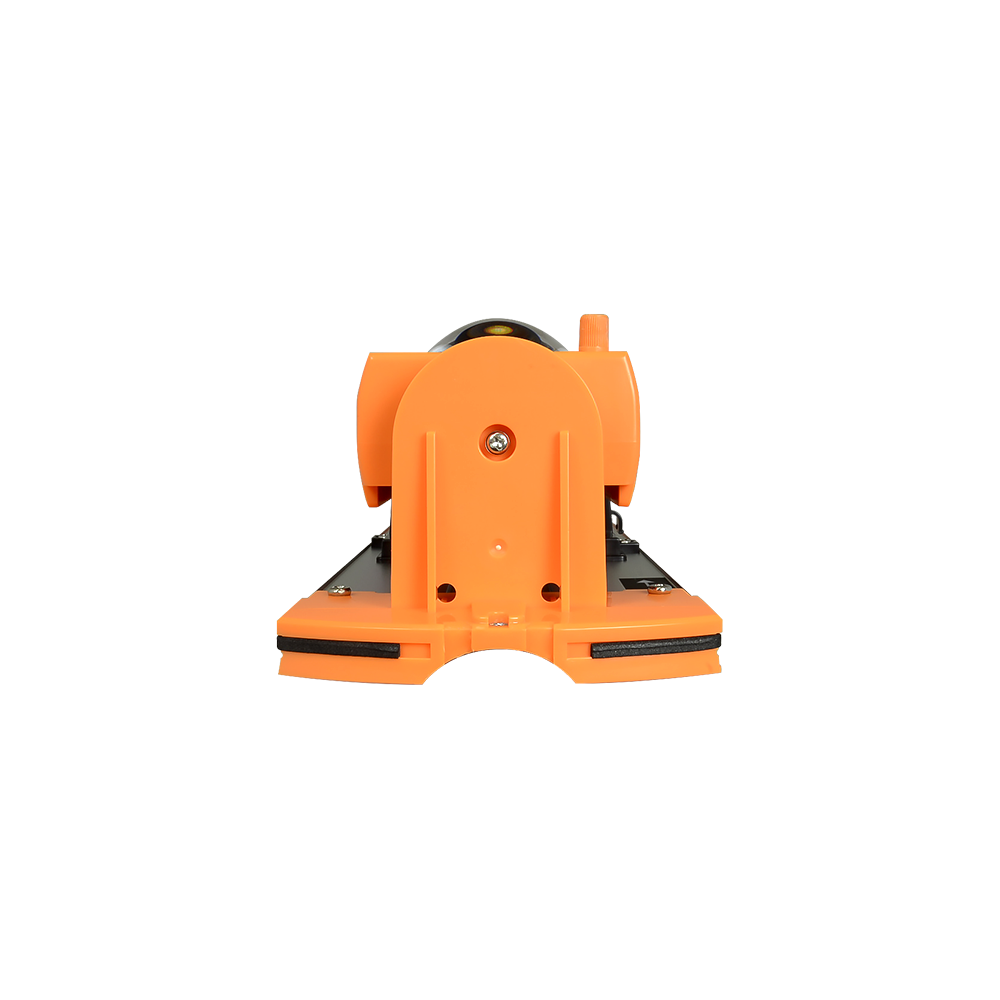

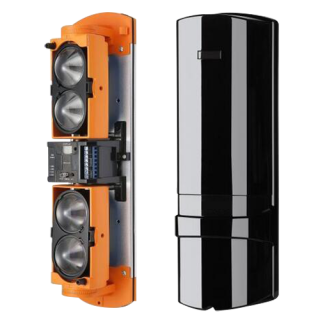

MARCA BLANCA ABH-150L

Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 150 / 450 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
Les merShow less
kr 1,881.75
Referanse:
ABH-150L
Merke:

Last ned produktark

Beskrivelse

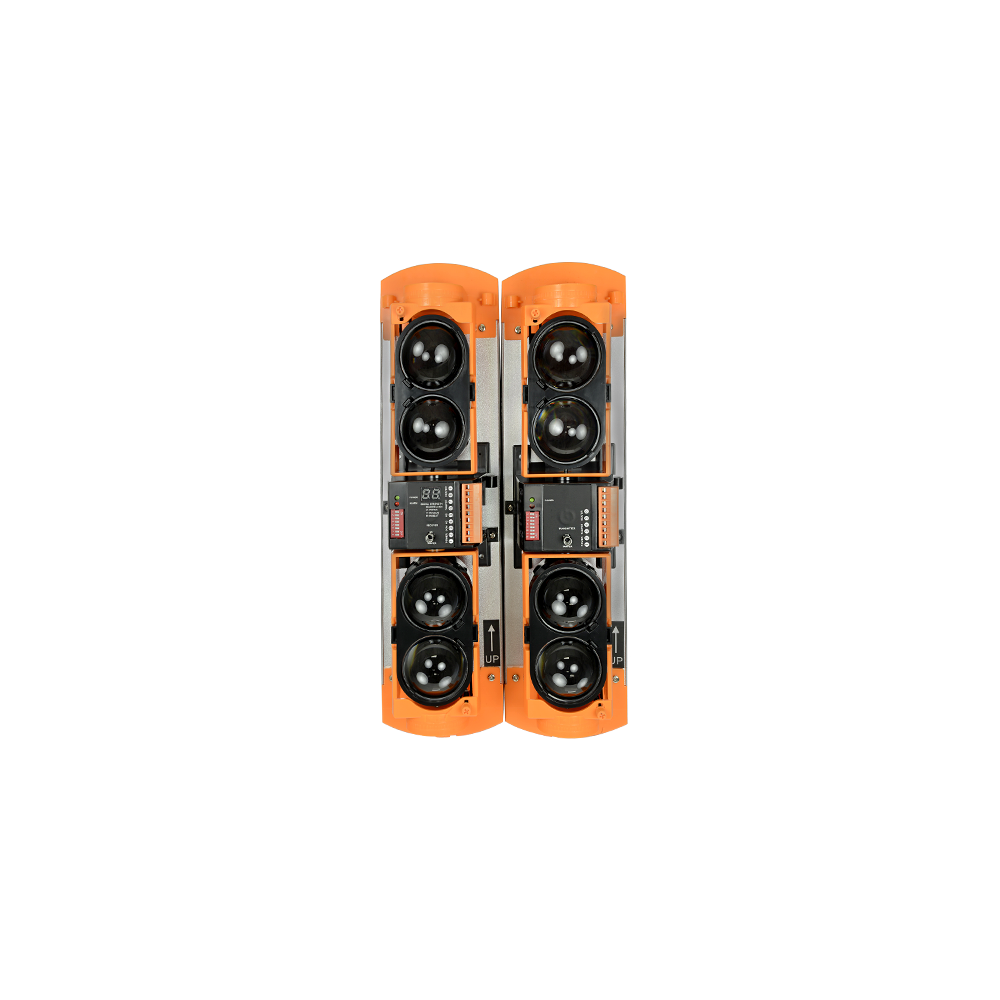

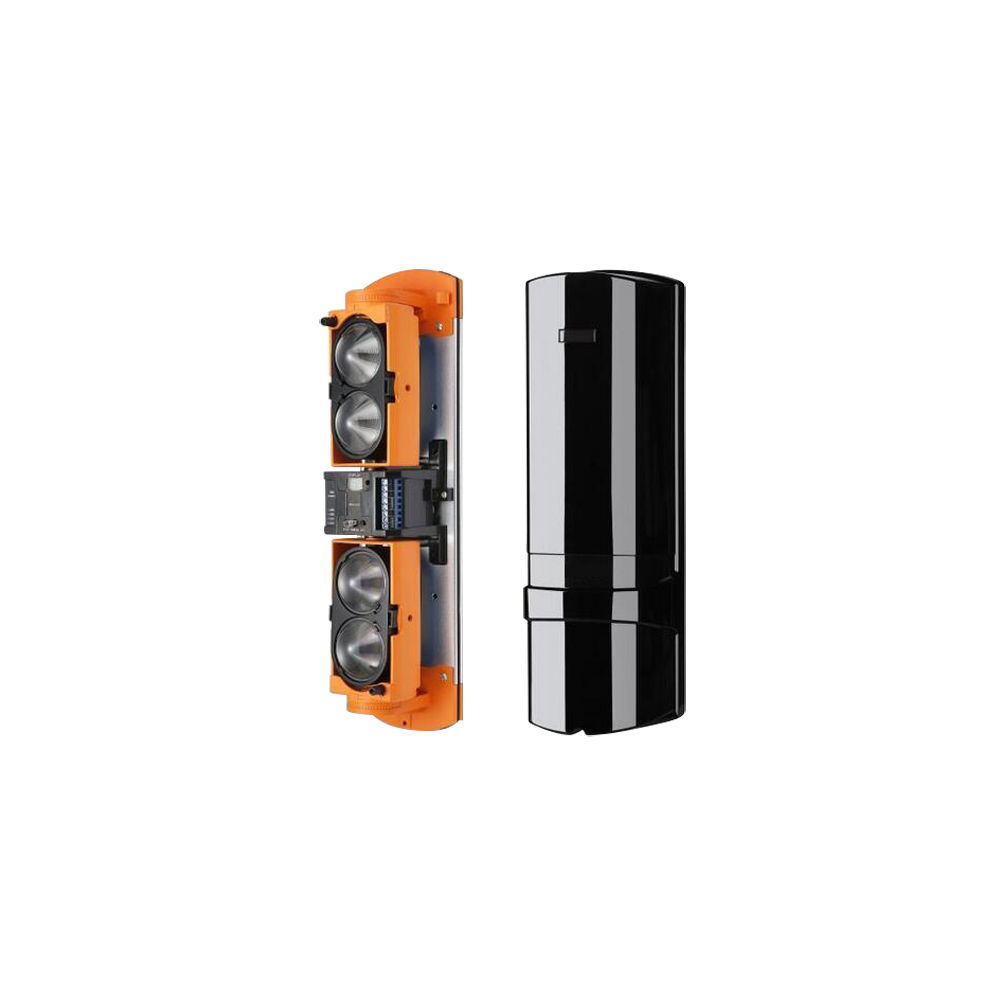

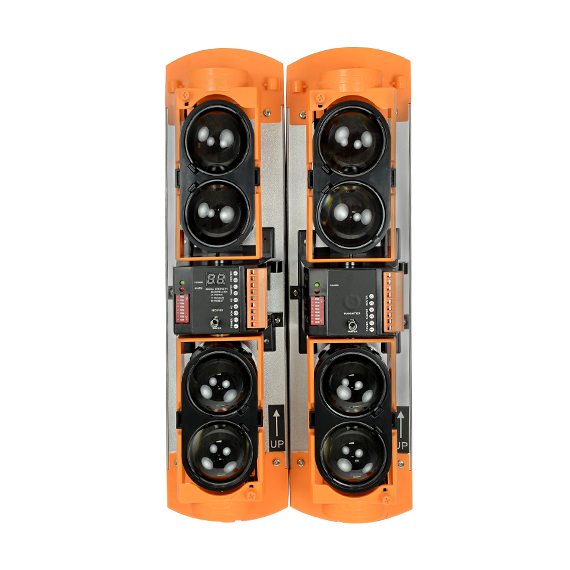

  • Quadruple infrared beam barrier for exterior
  • Wired
  • Maximum detection transmitter / receiver 450 m (interior) and 150 m (exterior)

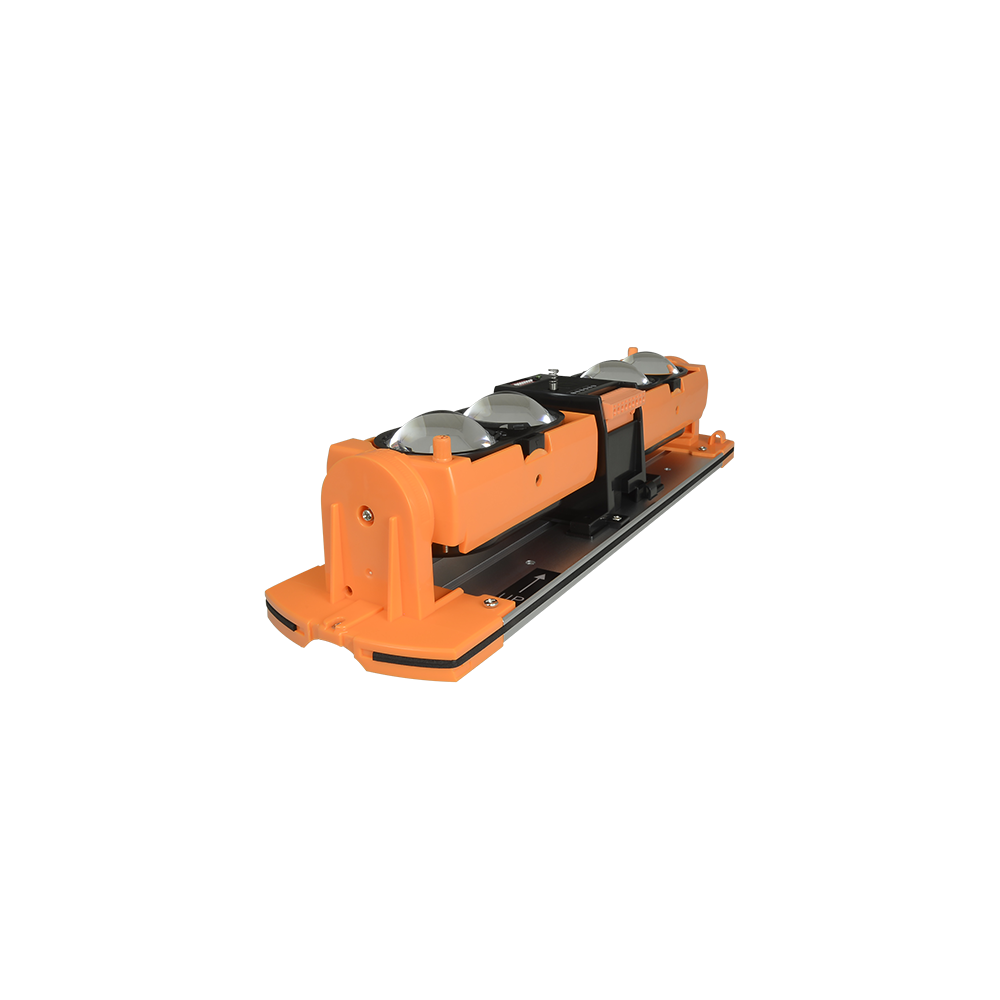

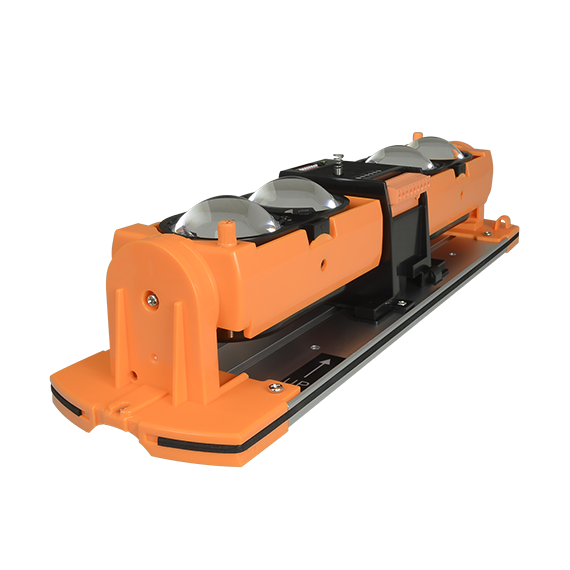

  • Quadruple adjustable lens
  • H: ±90º / V: ±10º
  • AND/OR function

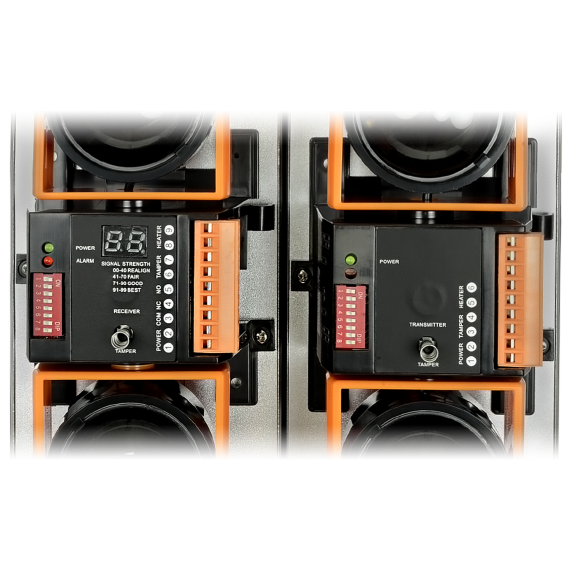

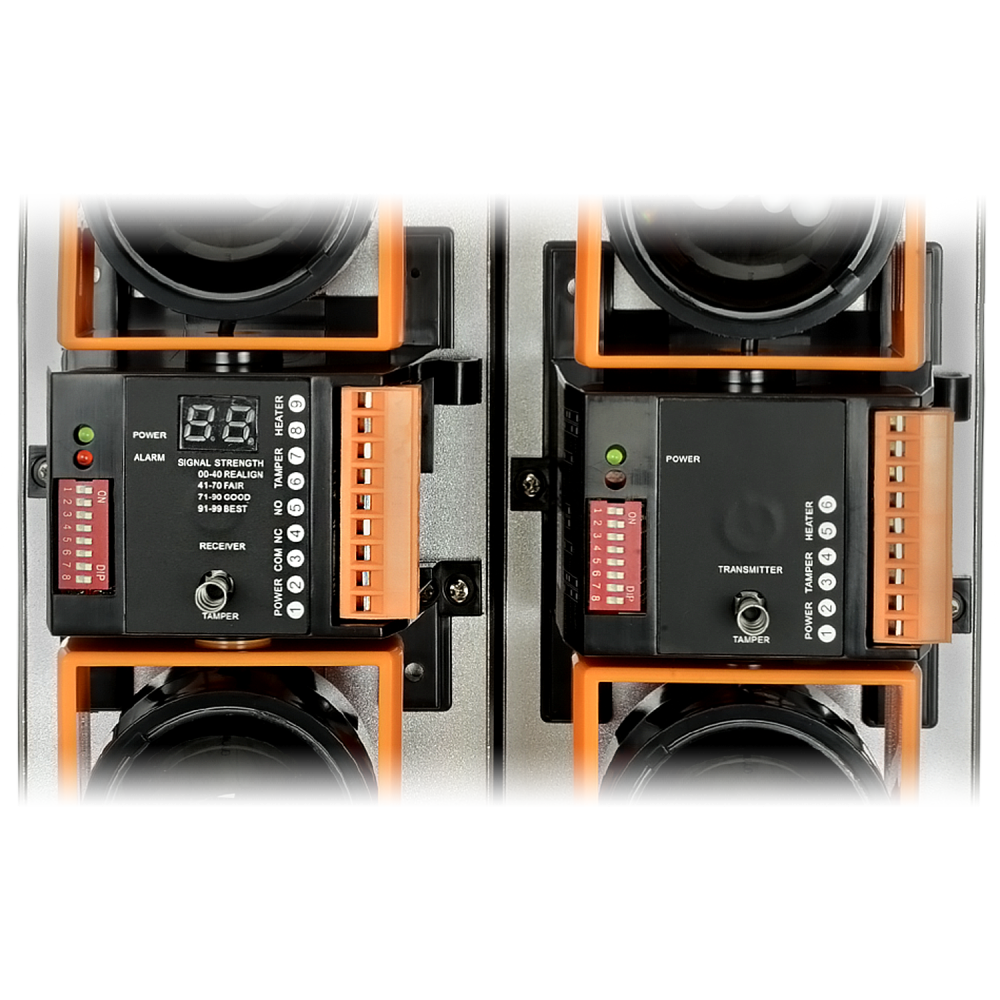

  • DIP Switch for programming
  • 4 work frequencies
  • Easy programming over LED Display
  • Power 12~24 VDC/VAC

    Detection range450m indoor / 150m outdoor
    Number of beams4
    Detection methodInterruption of the 4 beams at once or only 2 (up o down)
    Interruption time50ms, 100ms, 300ms, 700ms (available)
    Frequency channels4 different channels over DIP Switch
    Alarm outputs1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC
    Alignment angleHorizontal 180°(±90°), Vertical 20°(±10°)
    Adjustment methodOver LCD Display between 0-99
    Operating temperature-25ºC ~ +55ºC
    Degree of protectionIP65
    Power12~24 VDC/VAC, 90 mA max.
    Dimensions291 (H) x 92 (W) x 90 (D) mm
Les merShow less
