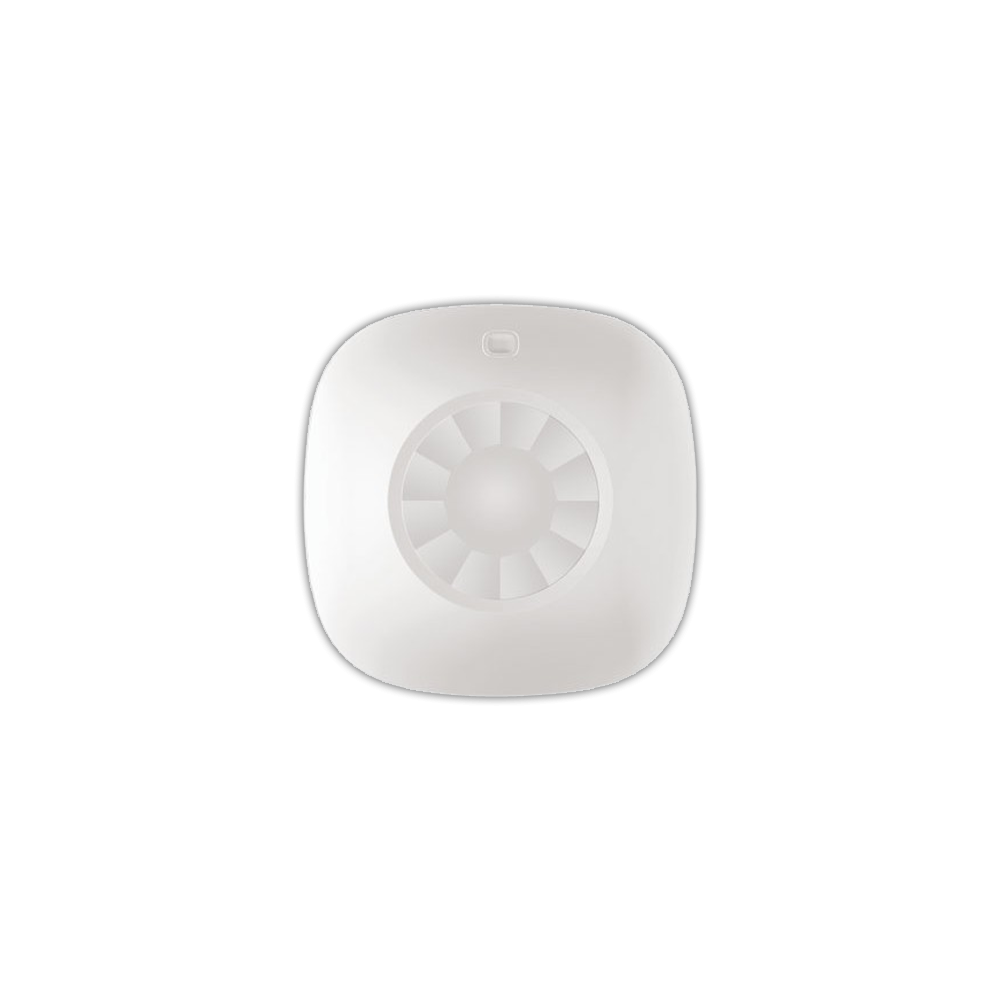

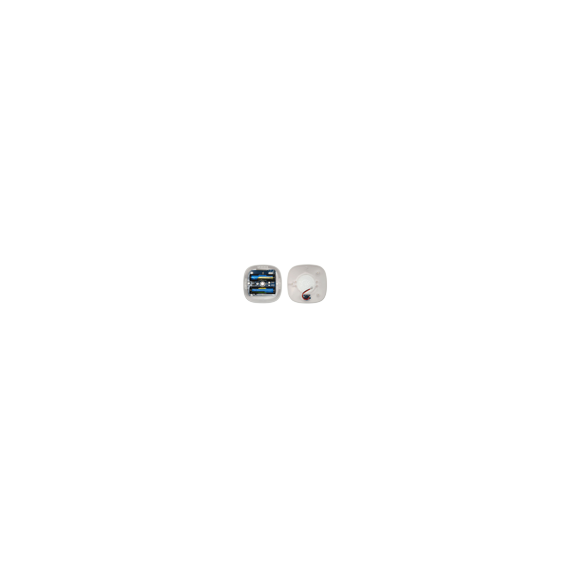

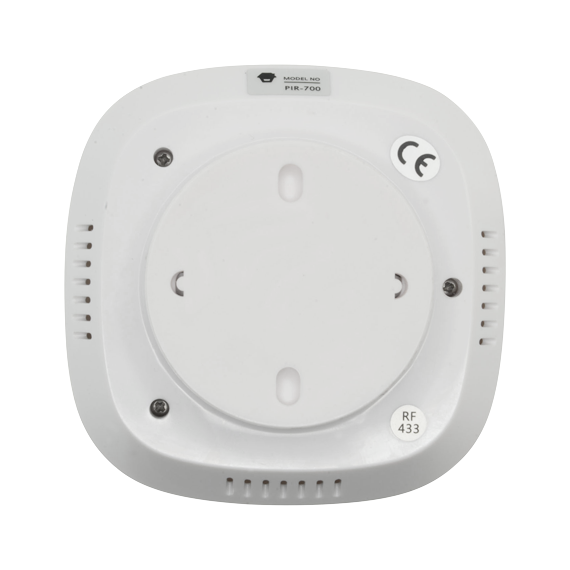

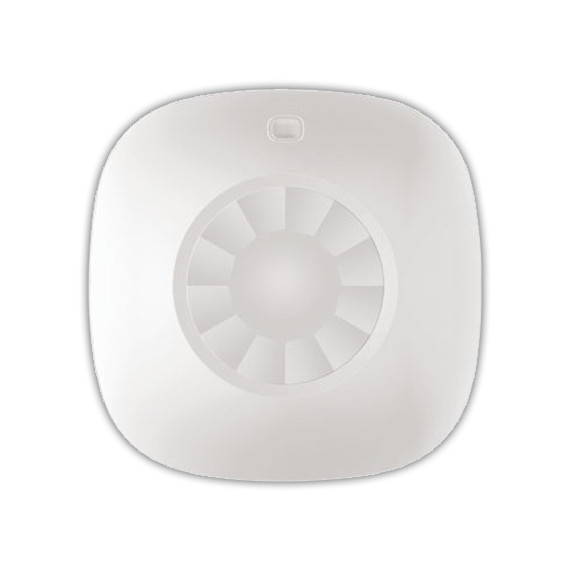

CHUANGO PIR-700

PIR motion detector for ceiling, wireless, for the alarm system. Permits to detect any intrusion to occur below the detector, sending an alert to the panel that will trigger the alarm.

Its design makes it particularly easy to install on ceilings, and the infrared beam 360º allows a complete detection without blind angle below the detector.

• - Detection Angle 360º from the detector
• - Wireless connection 433 MHz with the panel with a maximum reach of 80 m
• - Integrated self-regulating temperature system and anti-turbulence air technology
• - Recommended installation height 2.5 to 6 meters of height
• - 6 meters detection diameter (with detector at 3.6 meters of height)
• - Light warning when the battery is low (approximate battery life, 2 years)
• - Low power consumption when in sleep mode due to inactivity
• - Test button, to adjust the installation of the detector

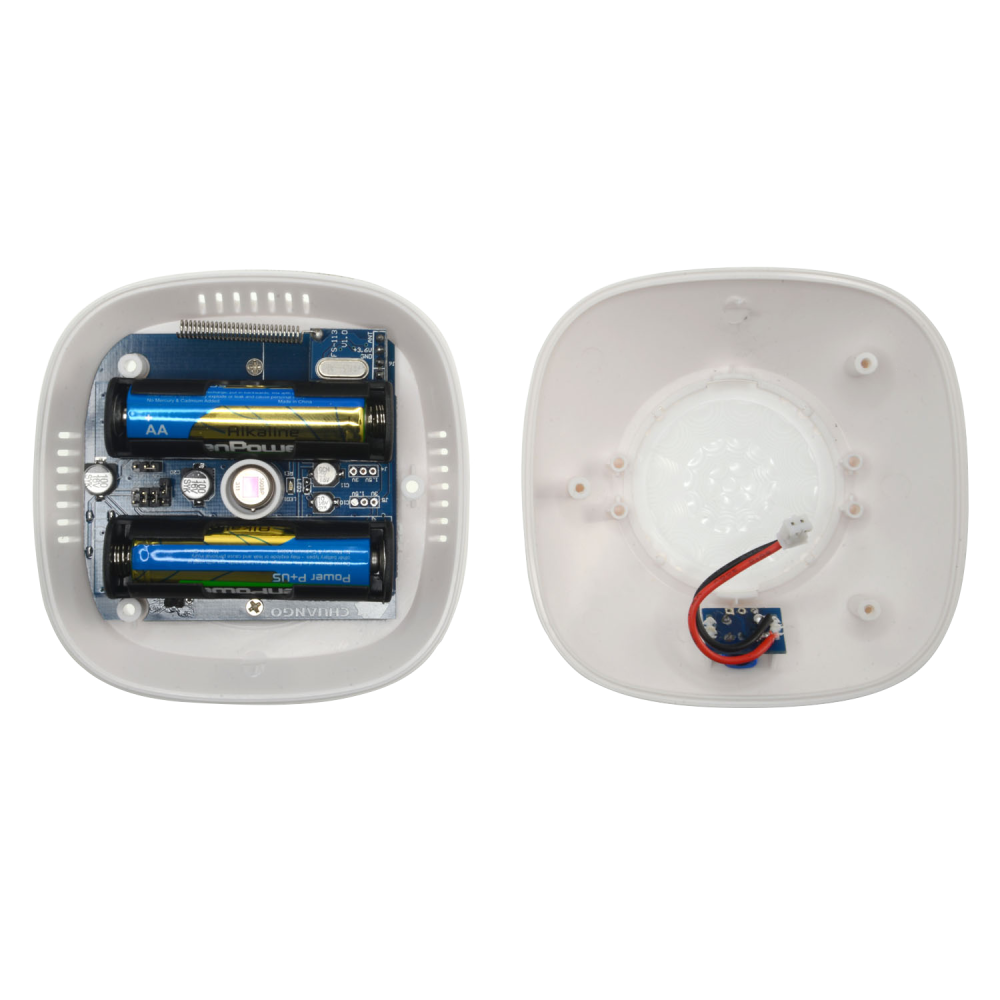

  Power	2 AA batteries of 1,5 V
  Detection range	Diameter 6 meters (at 3.6 meters high)
  Installation height	2.5 ~ 6 meters
  Transmission distance	≤ 80 m (in open space)
  Frequency	433 MHz (± 75 KHz)
  Housing material	ABS plastic
  Temp. operation	-10º C ~ 50º C
  Relative humidity	≤ 80% (without condensation)
  Dimensions	90 (H) x 90 (W) x 36,8 (D) mm

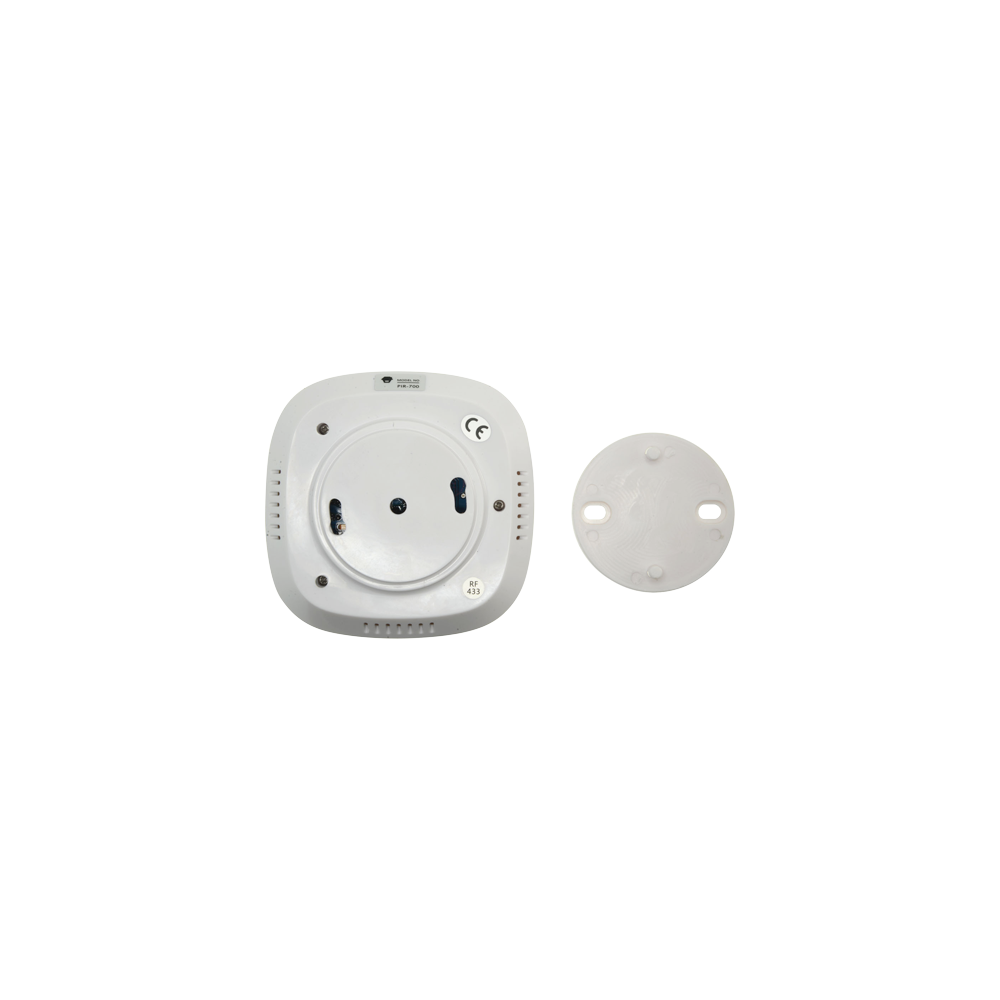

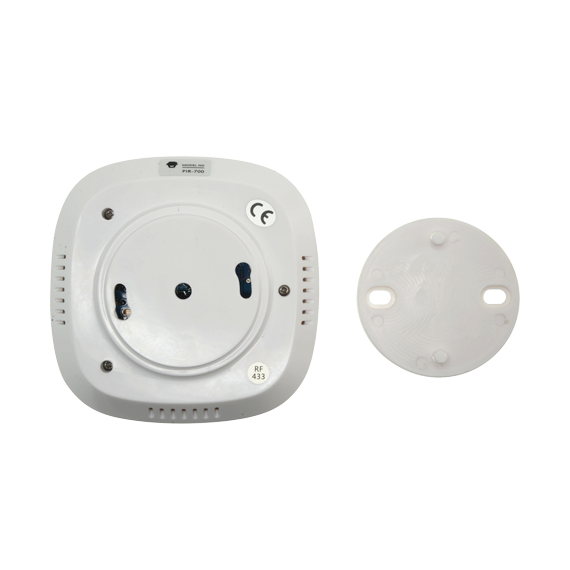

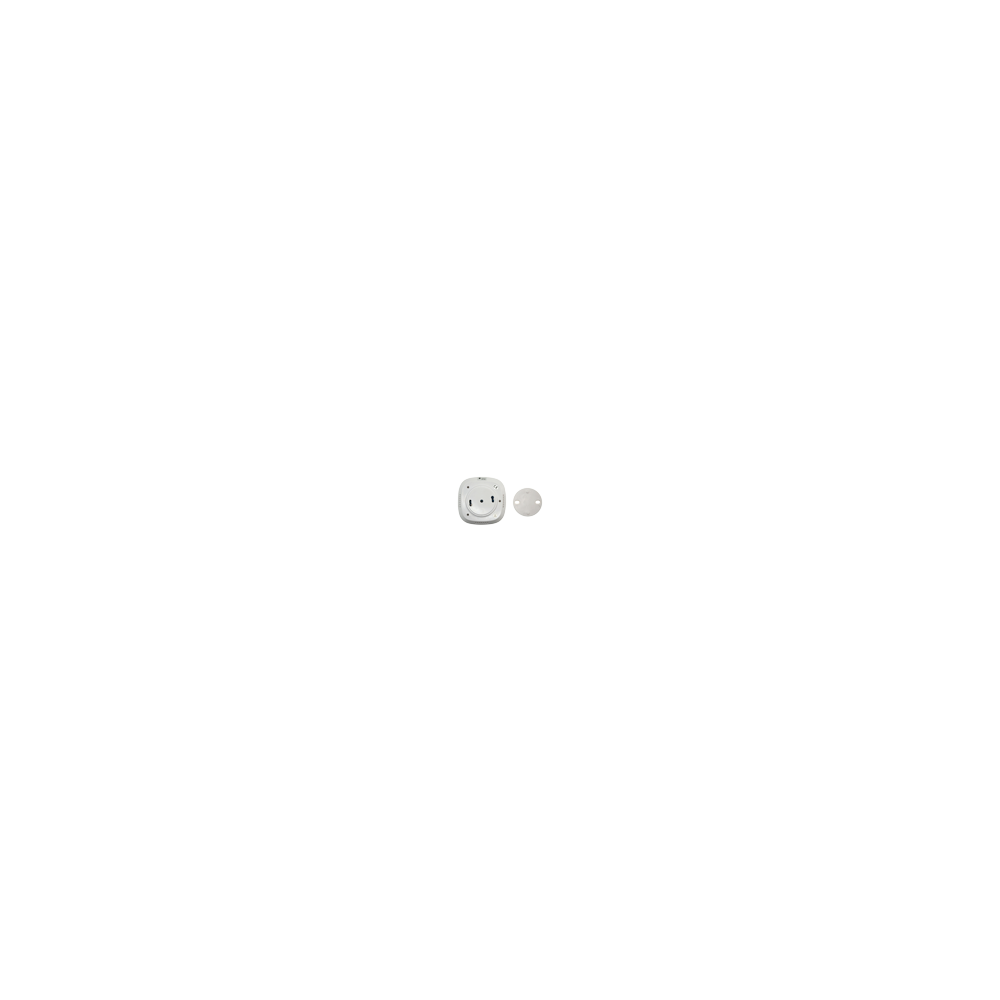

  Bracket dimensions	56 (H) x 56 (W) x 8 (D) mm
