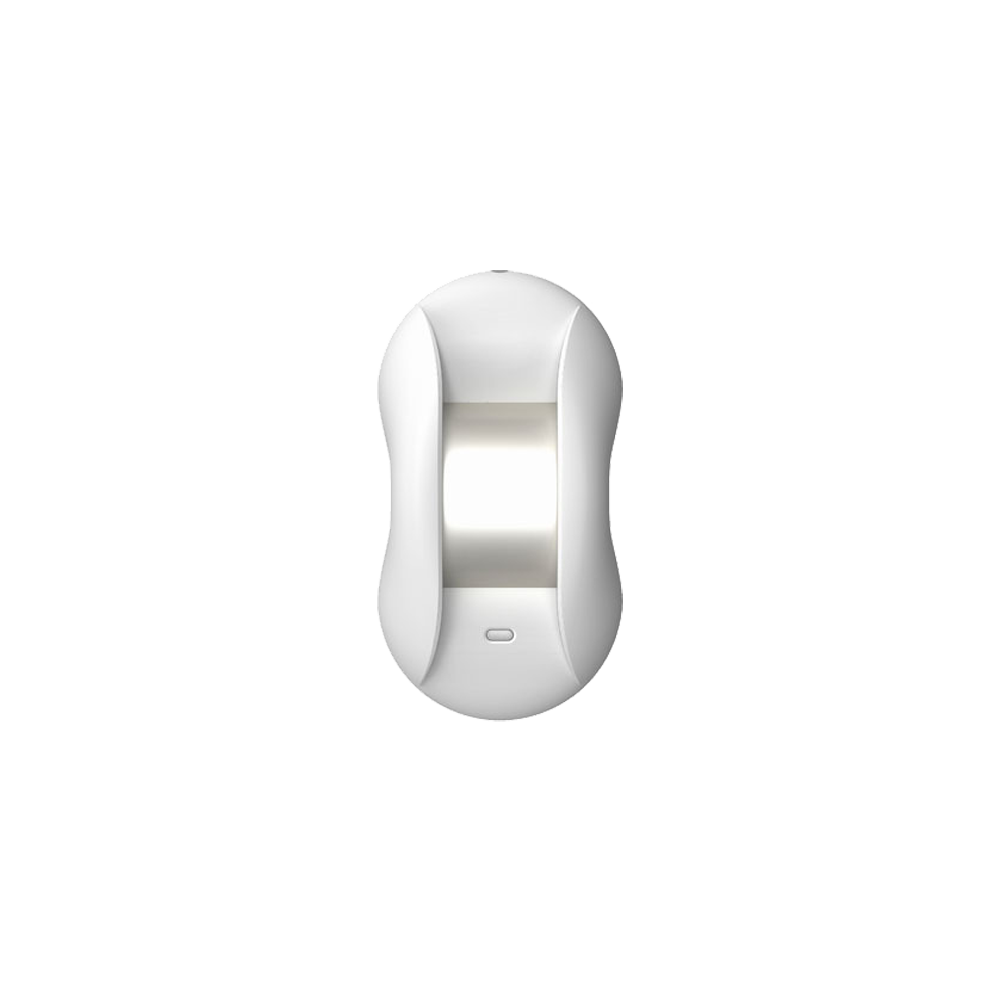

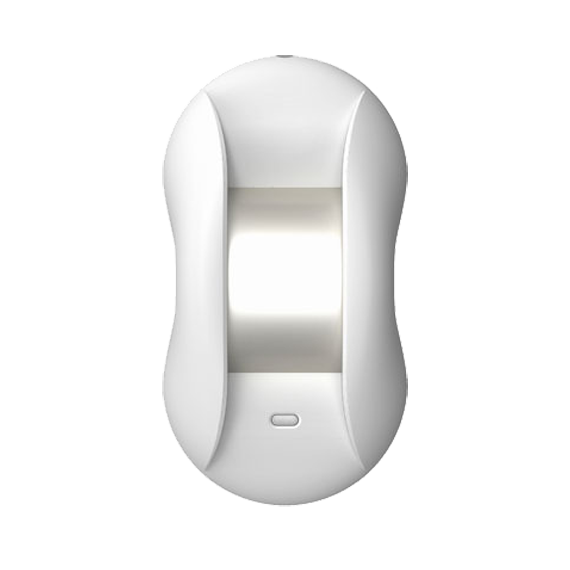

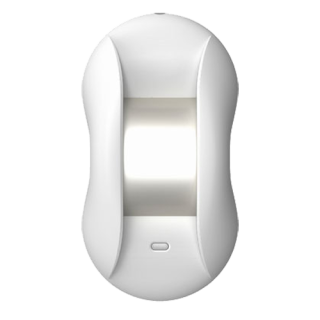

CHUANGO PIR-800

PIR motion detector curtain type, wireless, to the alarm system. Can detect any intrusion to occur in front of the detector, sending an alert to the panel that will trigger the alarm.

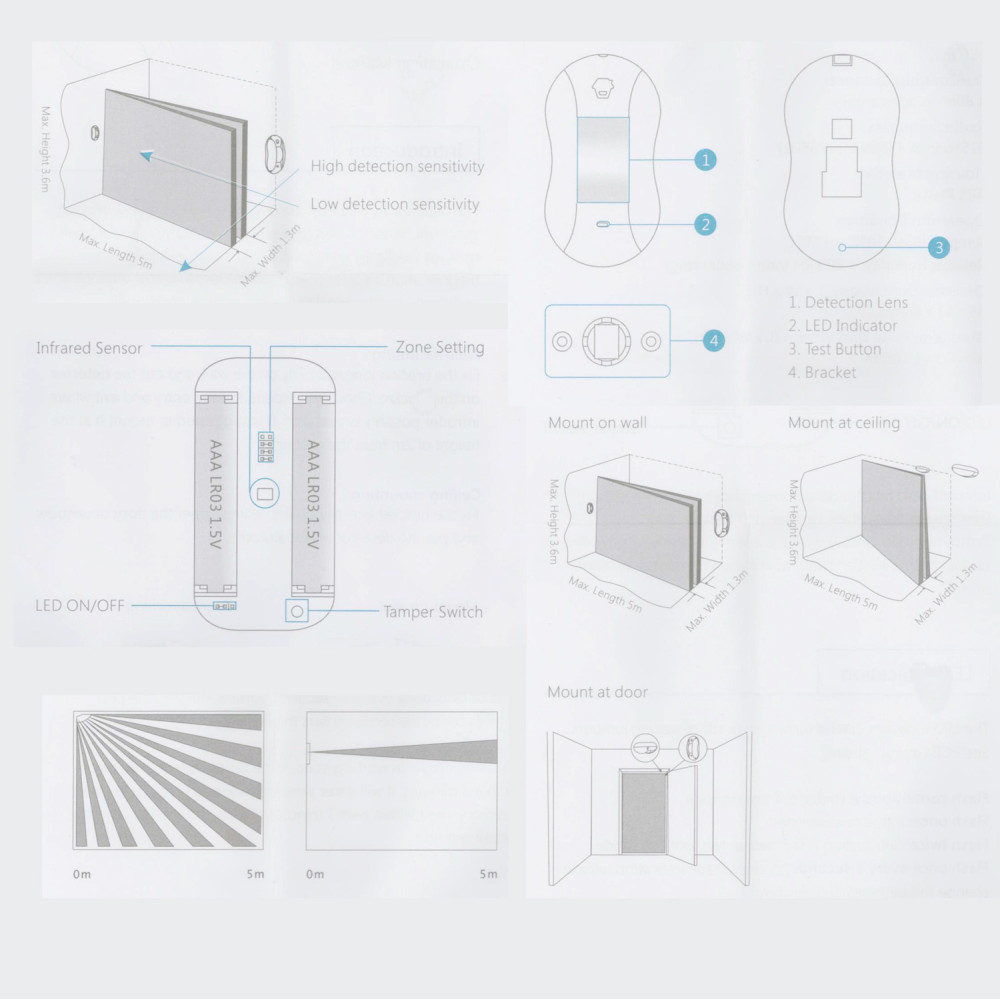

This detector has the peculiarity that it creates a "virtual curtain" in front of it, with dimensions of 5 meters long, 3.6 meters in height and angle 15º (1,3 final meters). Any object or person that passes through this virtual curtain will be detected by the PIR. It is particularly suited to very effectively cover windows, skylights, room entrances, etc..

• - Virtual curtain: 5 metres (Length) x 3.6 metres (Height) x 15º (Angle)
• - Wireless connection 433 MHz with the panel with a maximum reach of 80 m
• - Integrated self-regulating temperature system and anti-turbulence air technology

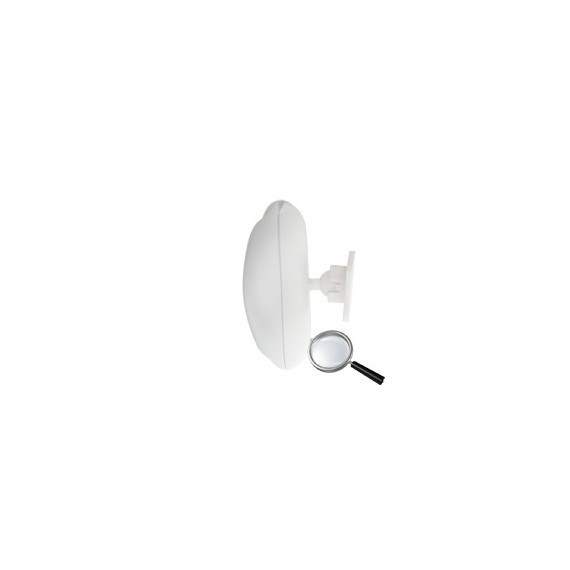

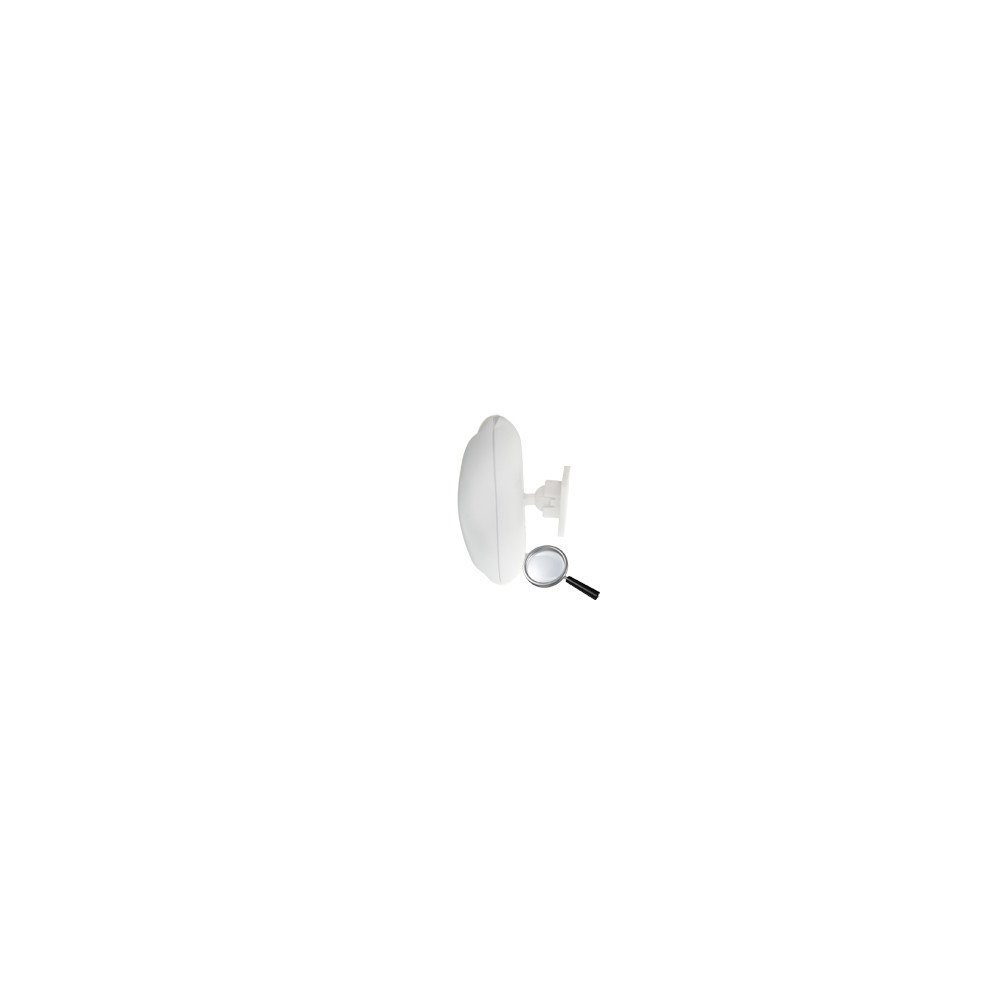

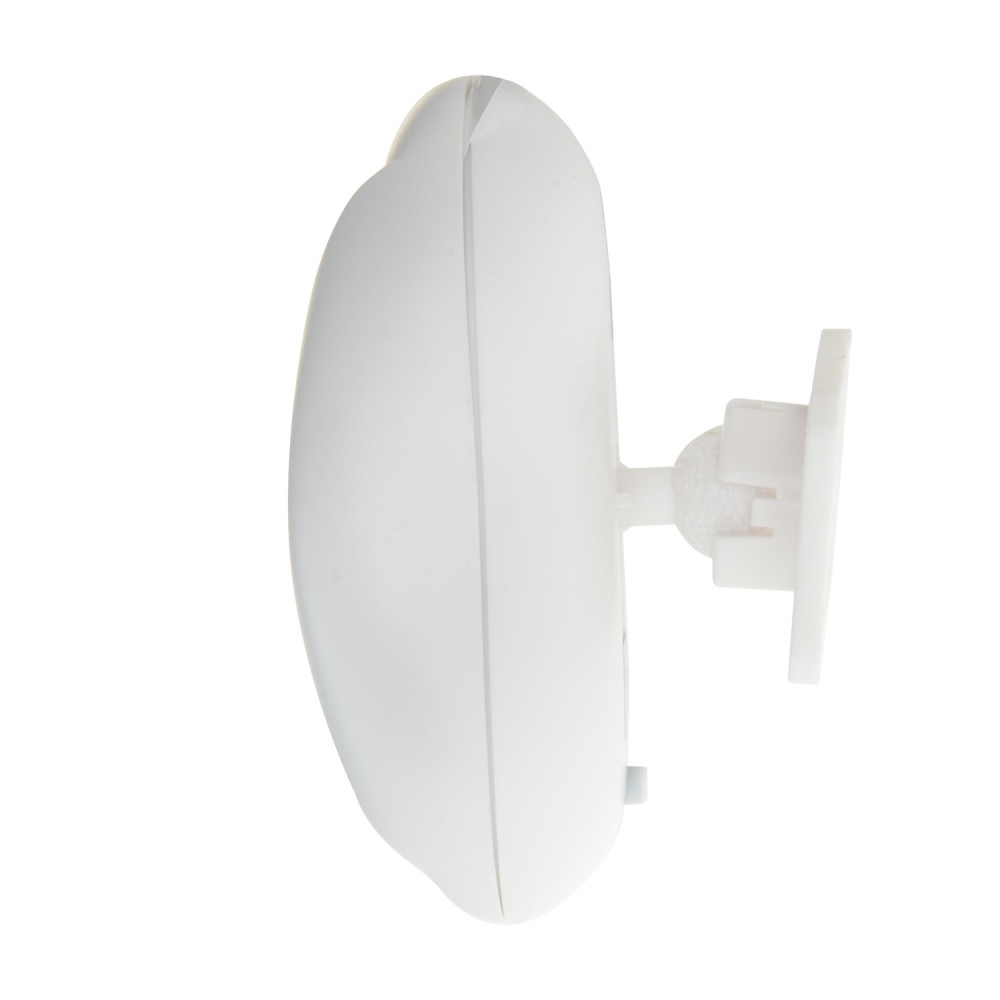

• - Possible to install on ceiling or wall, vertical or horizontal
• - Light warning when the battery is low (approximate battery life, 2 years)
• - Equipped with tamper
• - Low power consumption when in sleep mode due to inactivity
• - Test button, to adjust the installation of the detector

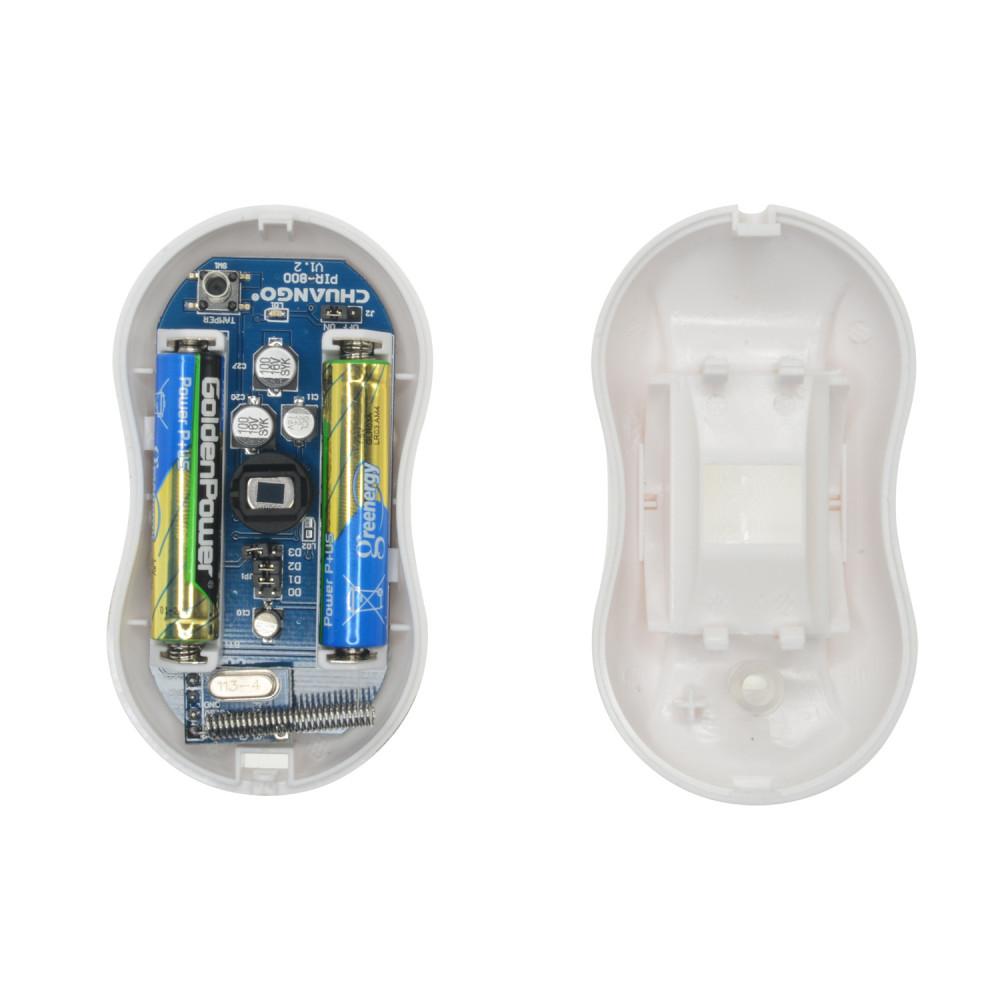

  Power	2 AAA batteries of 1,5 V
  Detection distance	5 meters
  Angle of the detection curtain	15º
  Transmission distance	≤ 80 m (in open space)
  Frequency	433 MHz (± 75 KHz)
  Housing material	ABS plastic
  Temp. operation	-10º C ~ 50º C
  Relative humidity	≤ 80% (without condensation)
  Dimensions	88 (H) x 48 (W) x 33 (D) mm

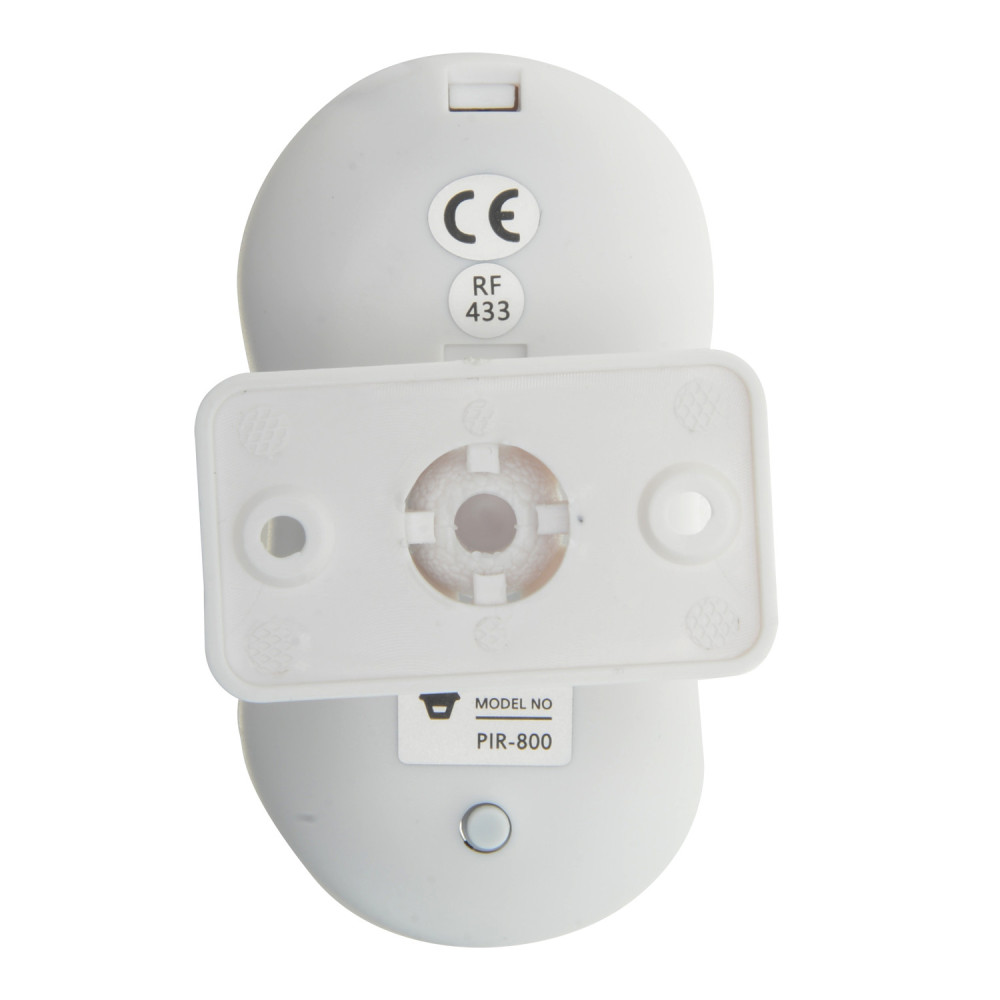

  Bracket dimensions	52 (H) x 30 (W) x 11,6 (D) mm
