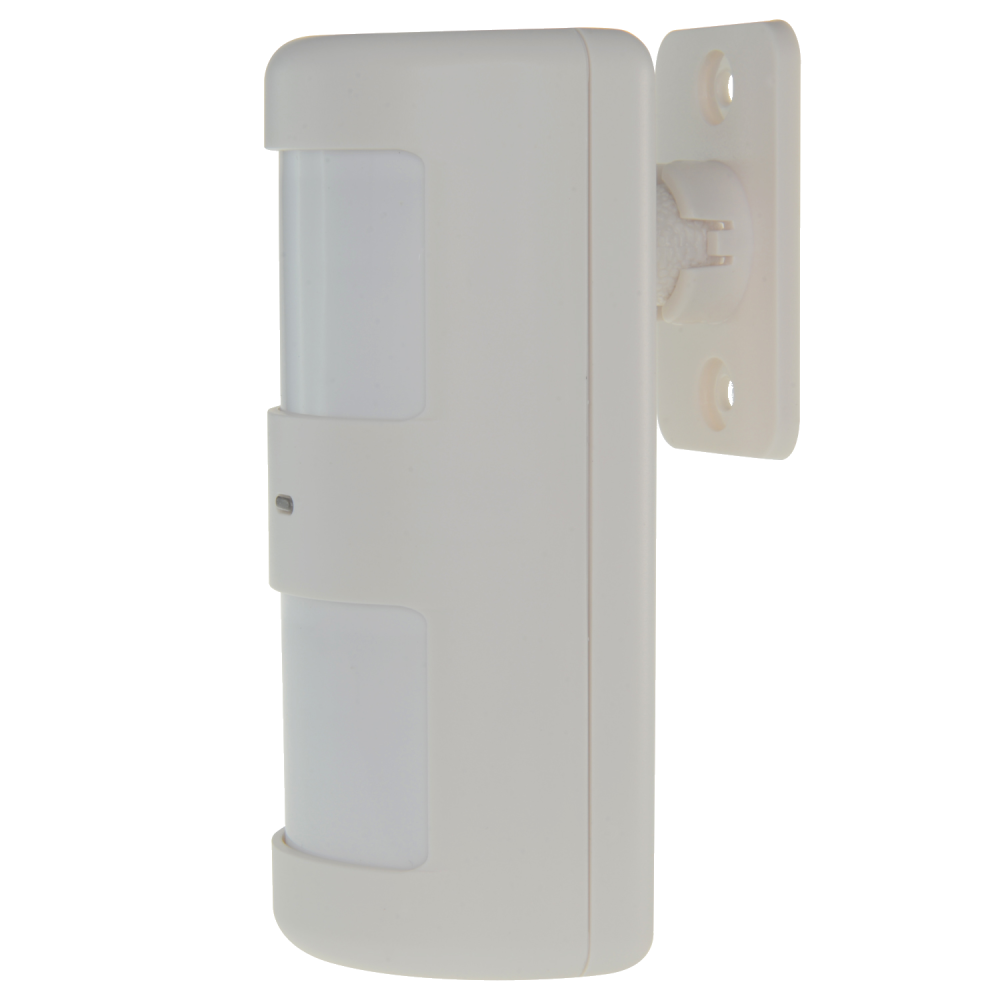

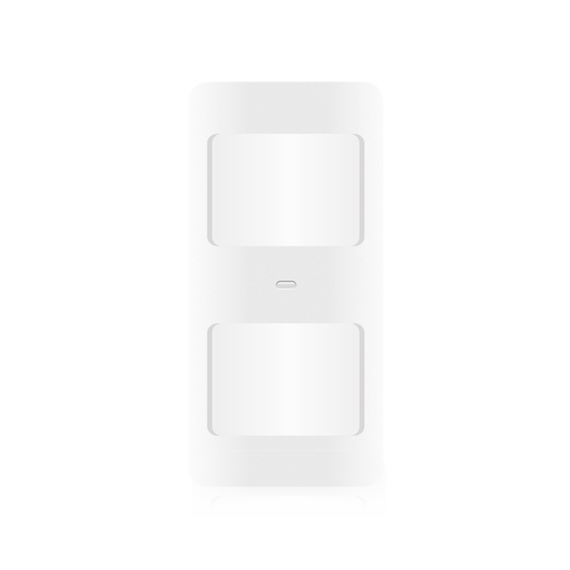

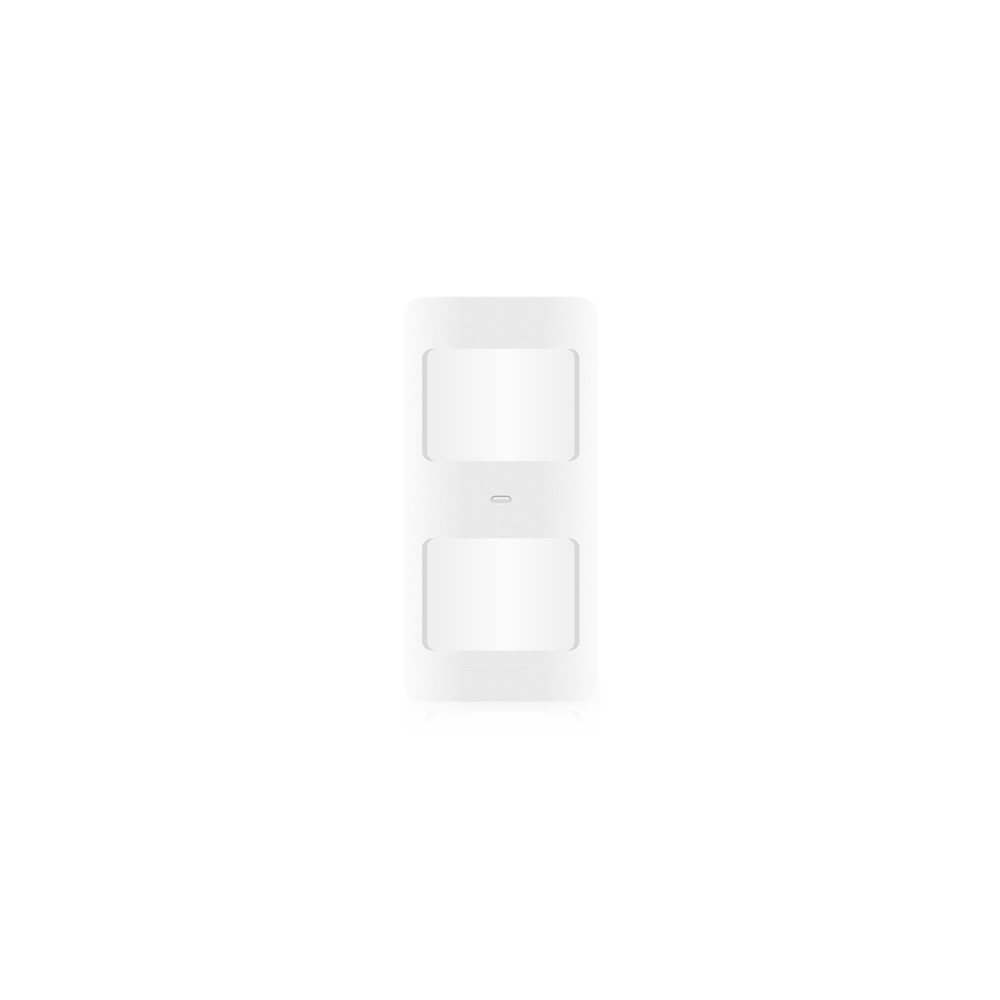

CHUANGO PIR-910

PIR Motion detector, pet-proof (<25Kg), wireless, for alarm systems. Permits to detect any intrusion to occur in front of the detector, sending an alert to the panel that will trigger the alarm.

Avoids false alarms thanks to its dual validation technology. Automatic regulation helps insulate and avoid false alarms caused by temperature changes. The double sensor together with intelligent analysis avoids false alarms caused by pets (less than 25 Kg).

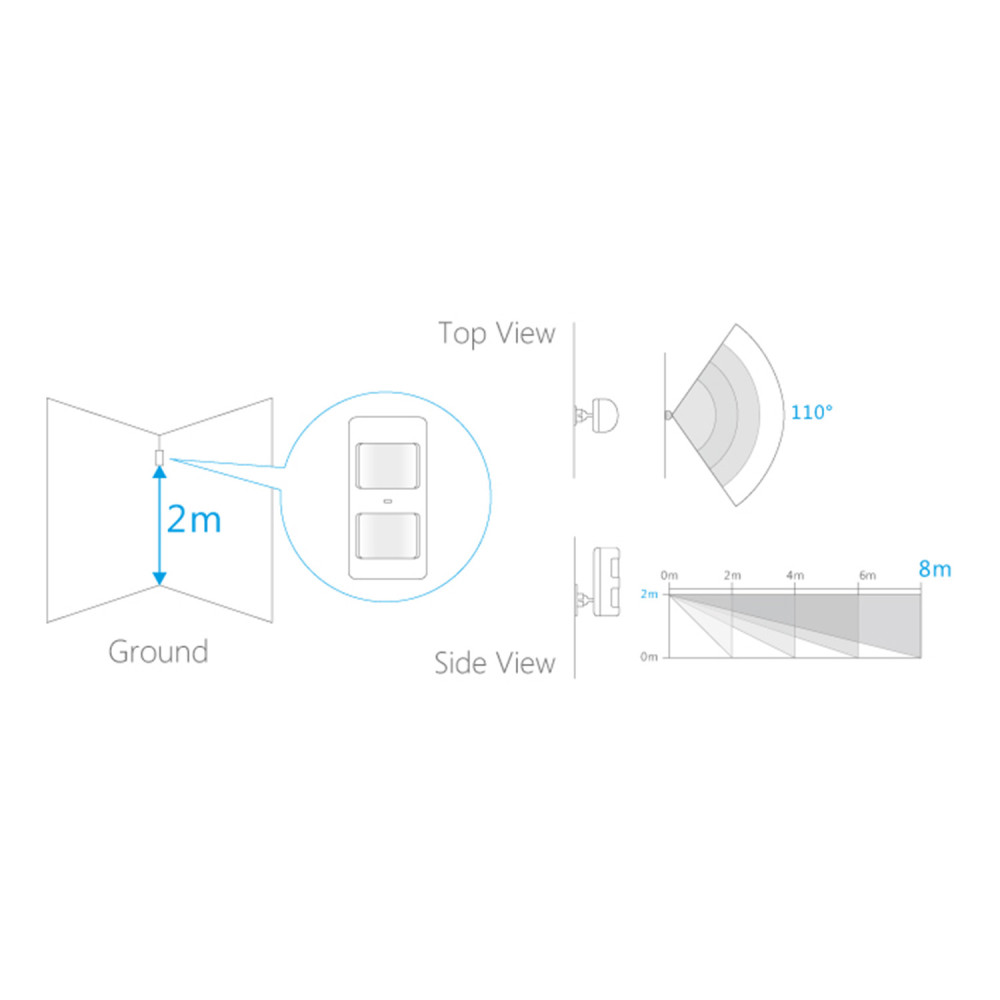

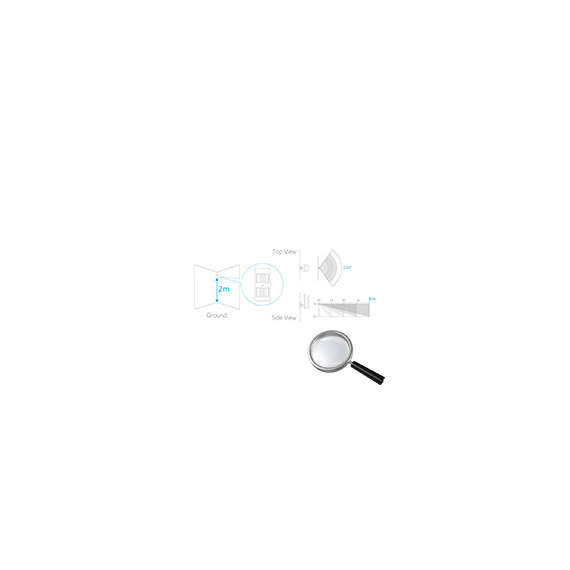

• - Detection angle of 110º horizontal and maximum distance of 8 meters
• - Wireless connection 433 MHz with the panel with a maximum reach of 80 m
• - Integrated self-regulating temperature system and anti-turbulence air technology

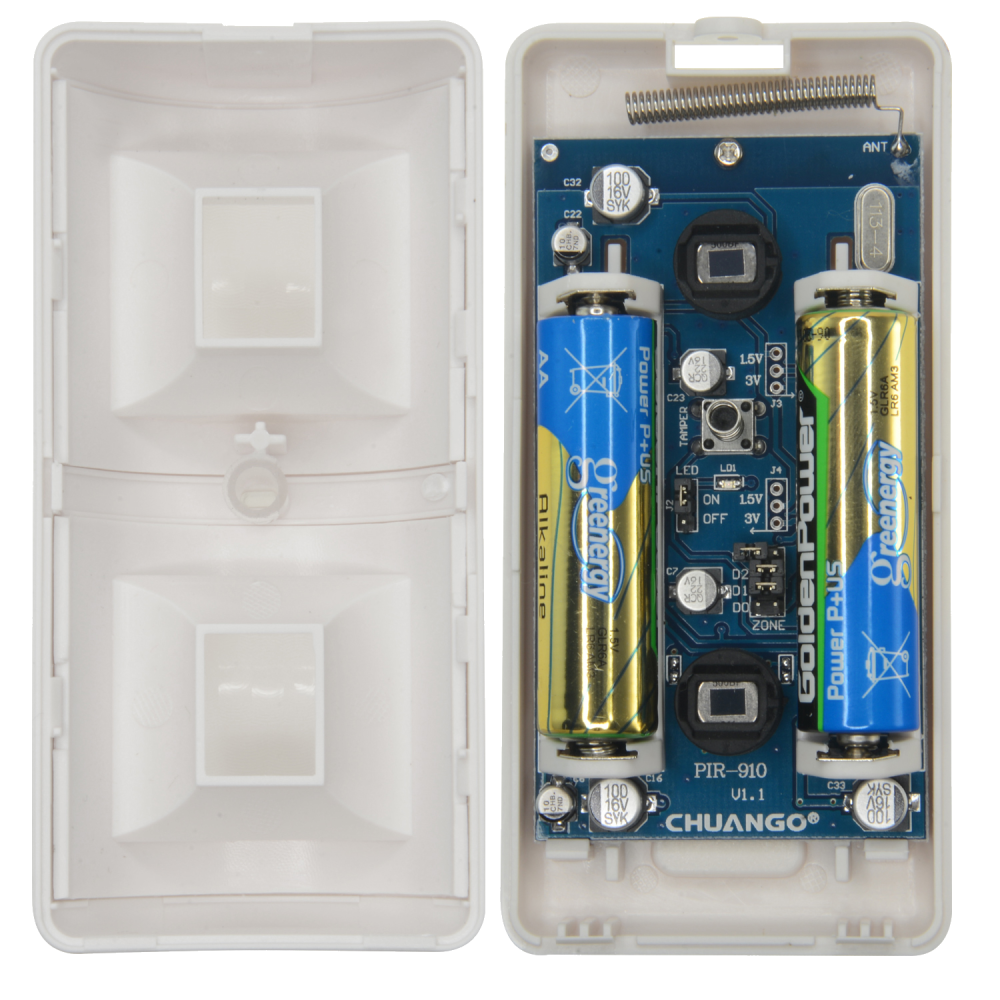

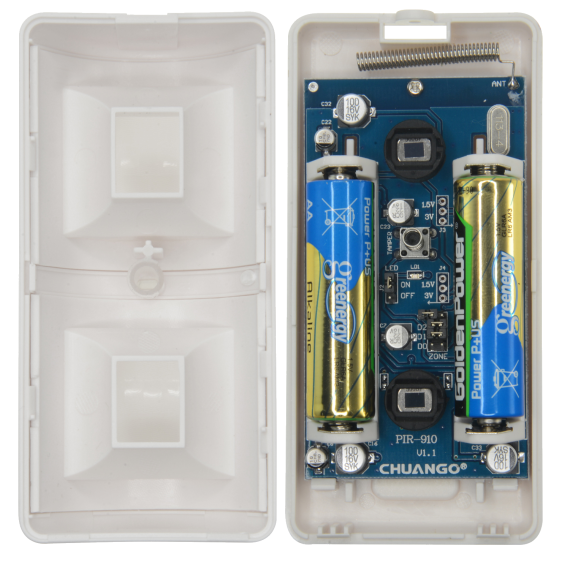

• - Double infrared sensor and intelligent analysis, prevents false alarms from pets (≤ 25 Kg)
• - Light warning when the battery is low (approximate battery life, 2 years)
• - Equipped with tamper
• - Low power consumption when in sleep mode due to inactivity
• - Test button, to adjust the installation of the detector



  Power	2 AA batteries of 1,5 V

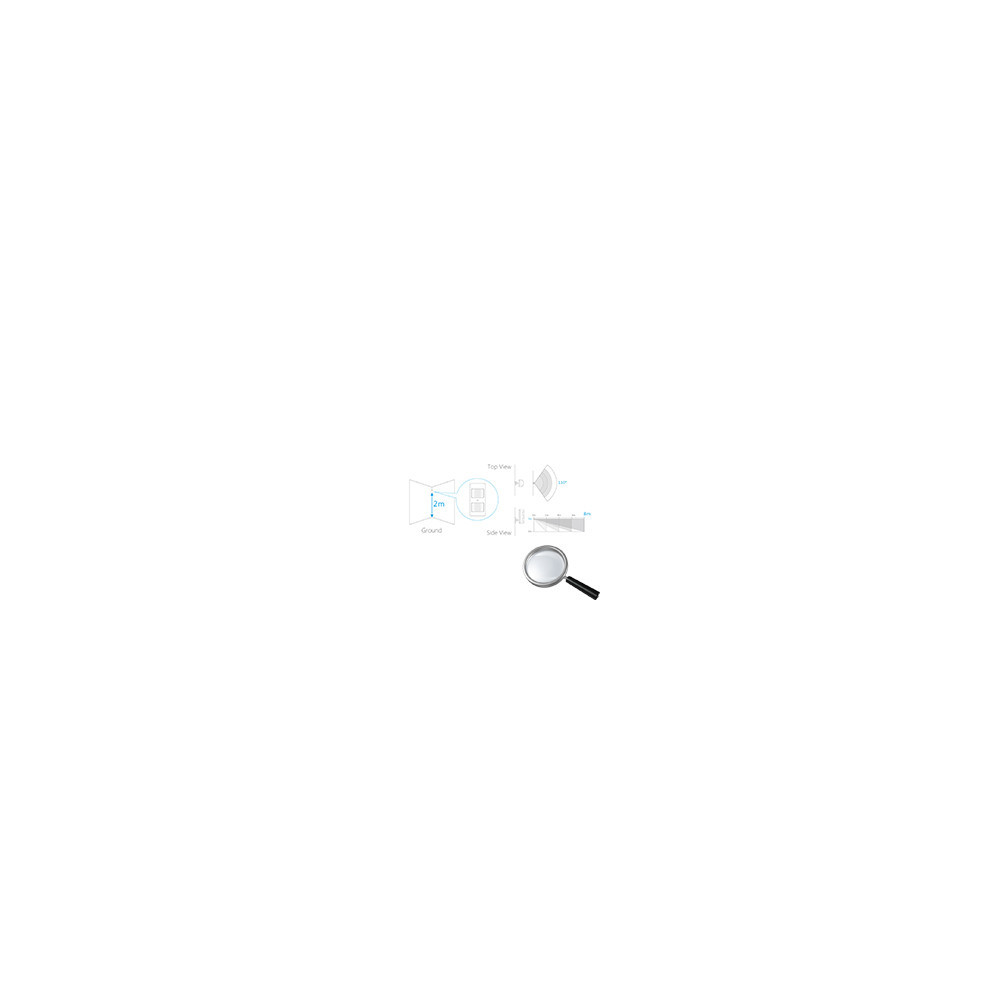

  Detection range	8 m / 110º
  Pet immunity	≤ 25 Kg
  Transmission distance	≤ 80 m (in open space)
  Frequency	433 MHz (± 75 KHz)
  Housing material	ABS plastic
  Temp. operation	-10º C ~ 55º C
  Relative humidity	≤ 80% (without condensation)
  Dimensions (without bracket)	108 (H) x 52 (W) x 36,8 (D) mm

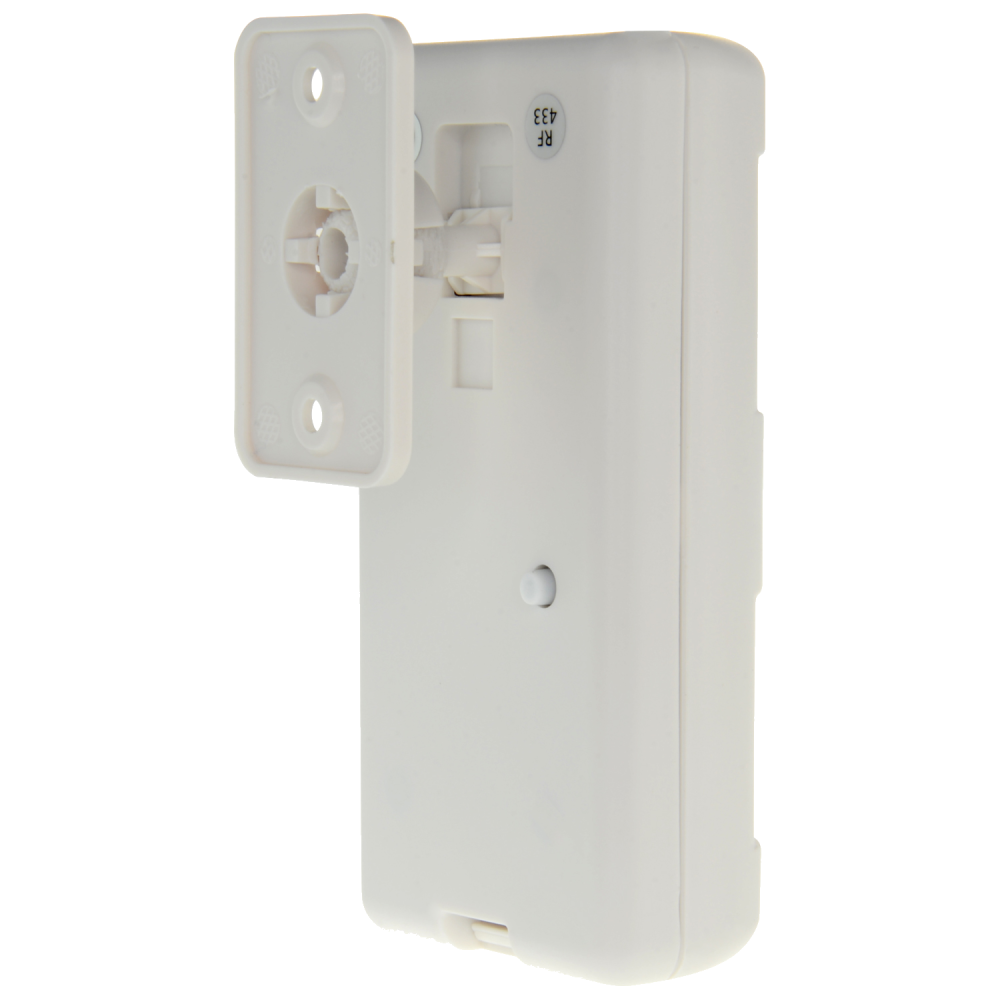

  Bracket dimensions	52 (H) x 30 (W) x 26,5 (D) mm
