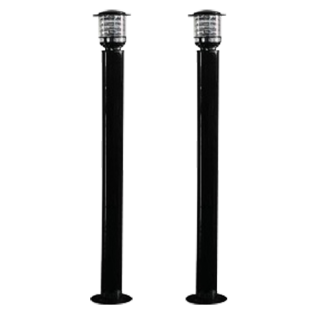

MARCA BLANCA ABL100-18510A

Infrared barrier detector - Wired | 10 beams - Max distance. The detection 100 m - Easy installation with LED and buzzer - Unique address for each tower - Relay output NC/NO | Power supply 12~18VDC
Les merShow less
kr 6,513.75
Referanse:
ABL100-18510A
Merke:

Last ned produktark

Beskrivelse

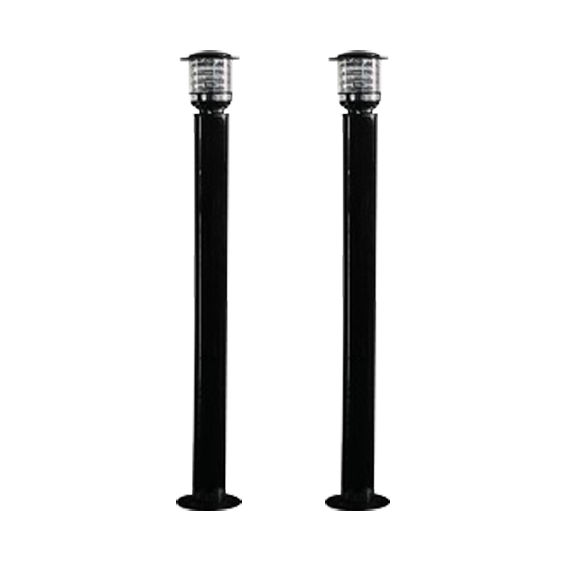

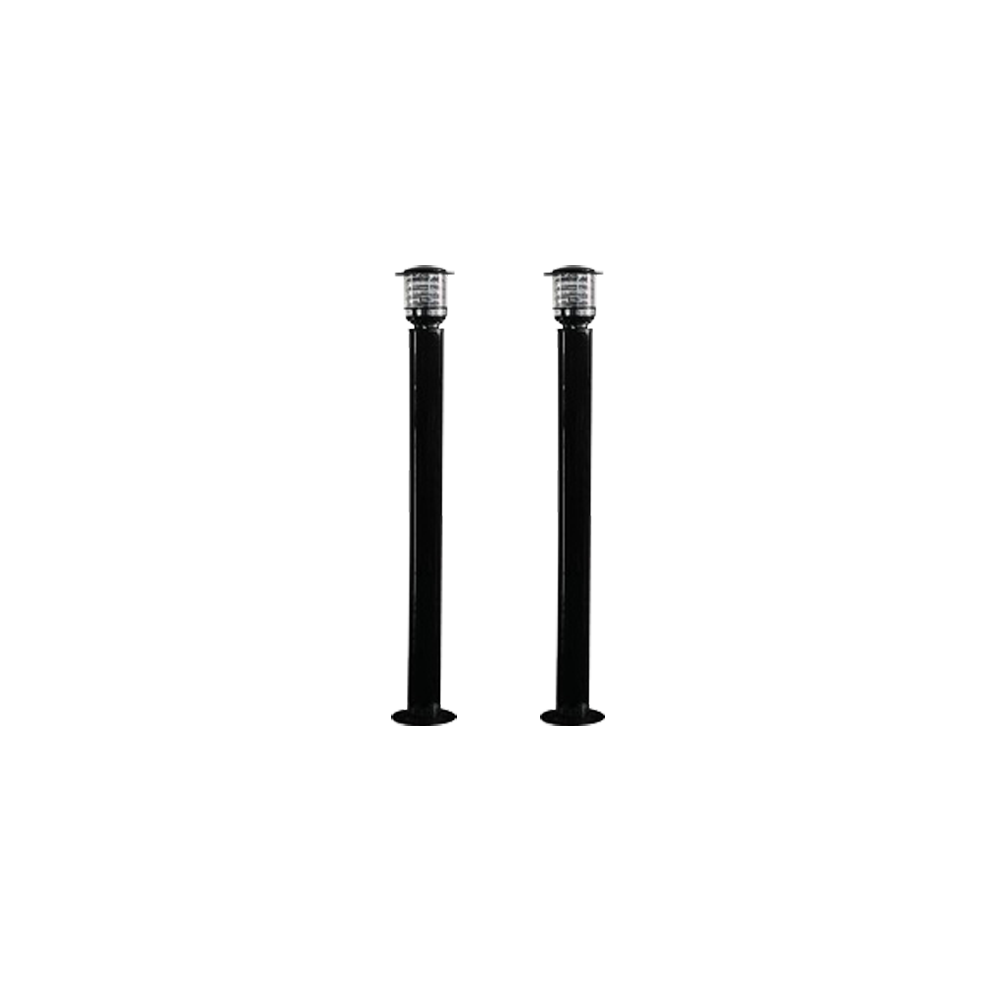

  • Kit of infrared towers (emitter/receiver) of 10 beams for outdoor
  • Wired
  • Maximum sender / receiver detection 100 m (exterior)
  • Connection of each tower: an address
  • Horizontal alignment angle 180° (± 90), vertical not adjustable
  • 2 work frequencies

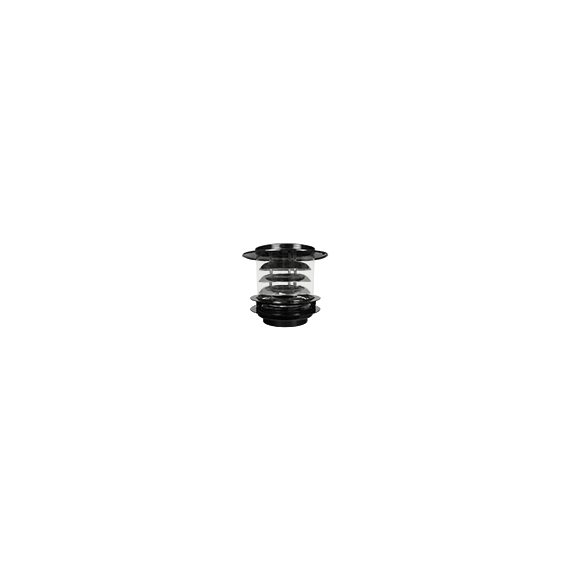

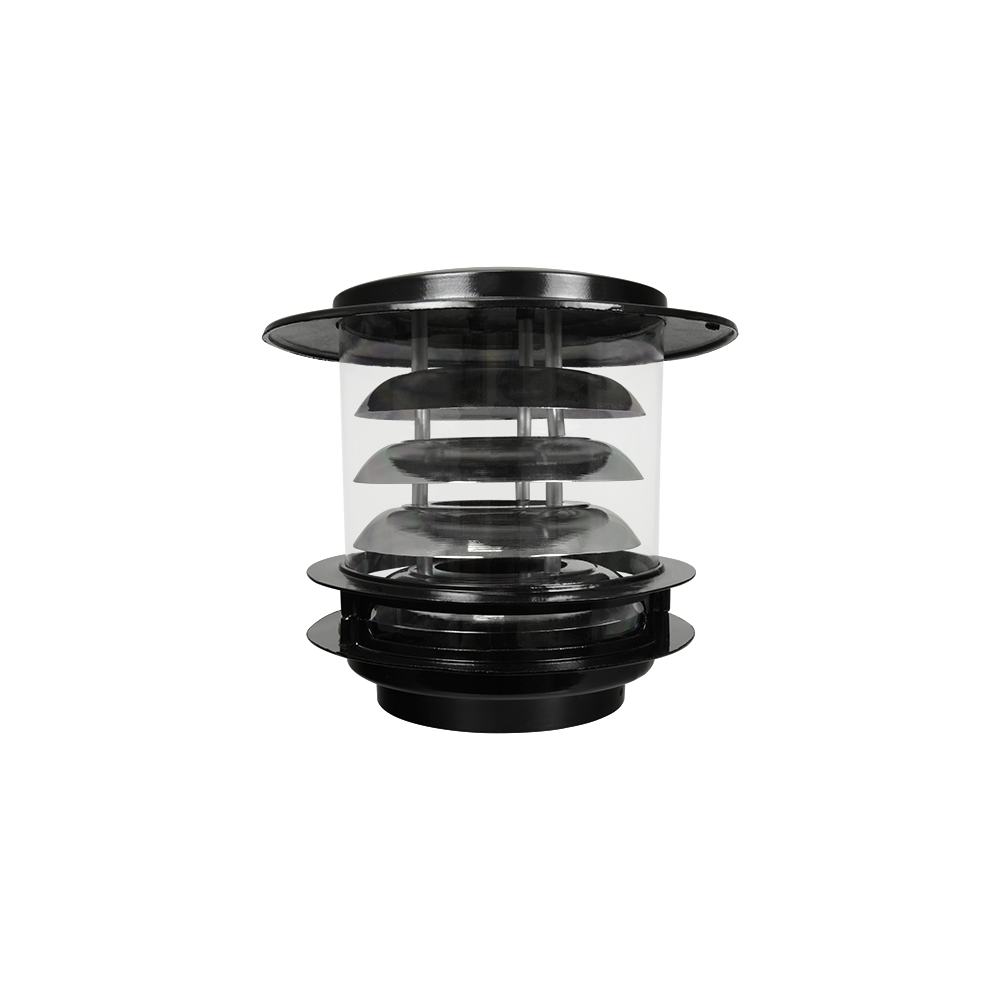

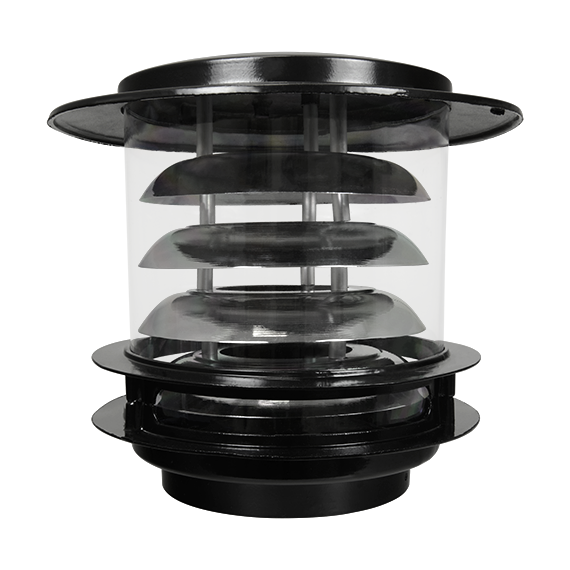

  • LED light to illuminate and camouflage as garden lights
  • Power supply 12~18 VDC
  • Highly resistant PVC tube

    Detection range100 m exterior
    Number of beams10
    Detection methodInterruption of 2 continuous beams at a time
    CommunicationOne address per tower: sender or receiver
    SensitivityAdjustable between L, M, H
    Frequency channels2 different channels over DIP Switch
    Alarm outputs1 relay NO/NC (max. 30VDC/VAC, 0.5A)
    Alignment angleHorizontal 180°(±90°)
    Adjustment methodOver LED and buzzer
    Operating temperature-25ºC ~ +55ºC
    Degree of protectionIP65
    Power12~18 VDC, 90 mA max.
    Dimensions185 cm height
Les merShow less
