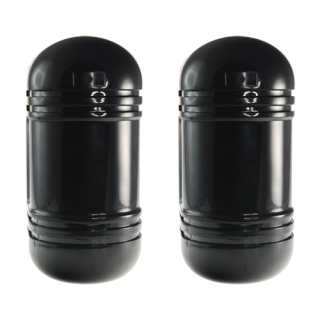

CHUANGO ABT-60

Infrared barrier detector - Wireless | Internal antenna - Max distance. detection 60 / 180 m - Wireless range 80 m - Tamper | Relay output - Power supply DC12V
Les merShow less
kr 1,056.68
Referanse:
ABT-60
Merke:

Last ned produktark

Beskrivelse

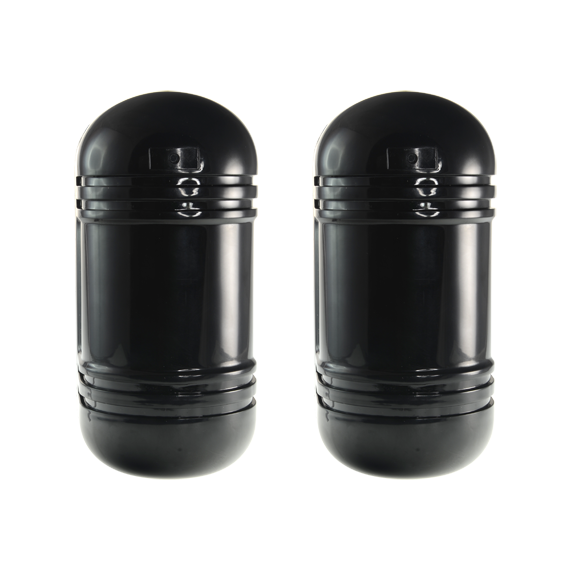

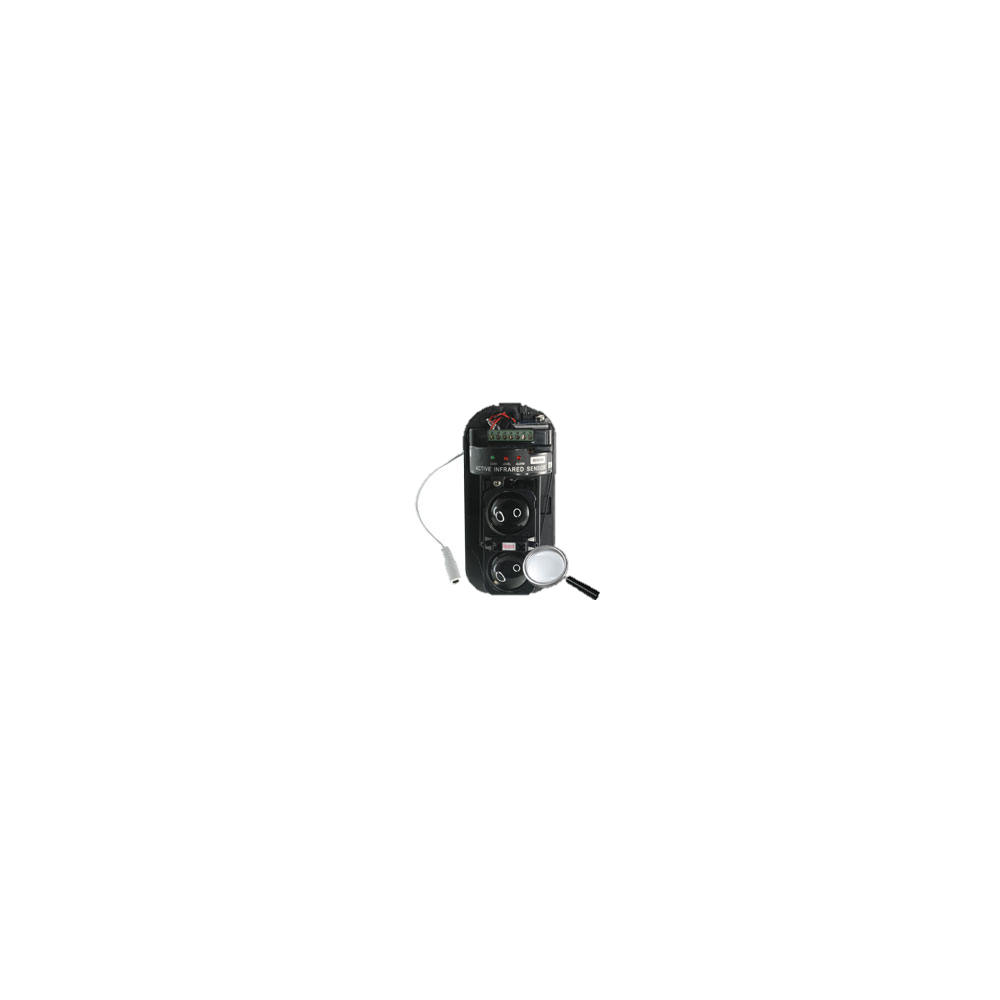

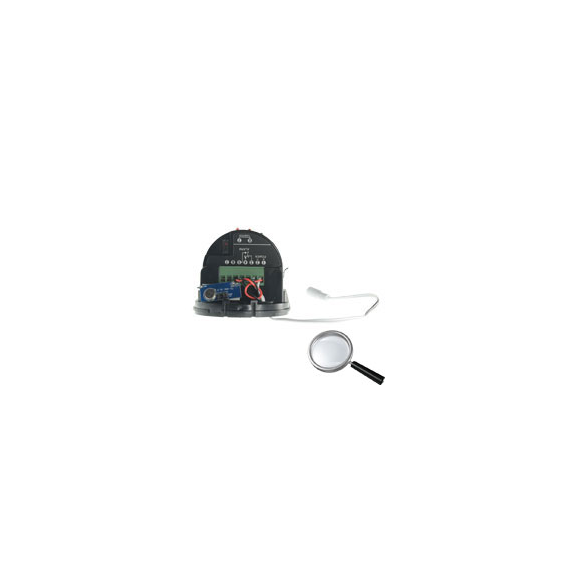

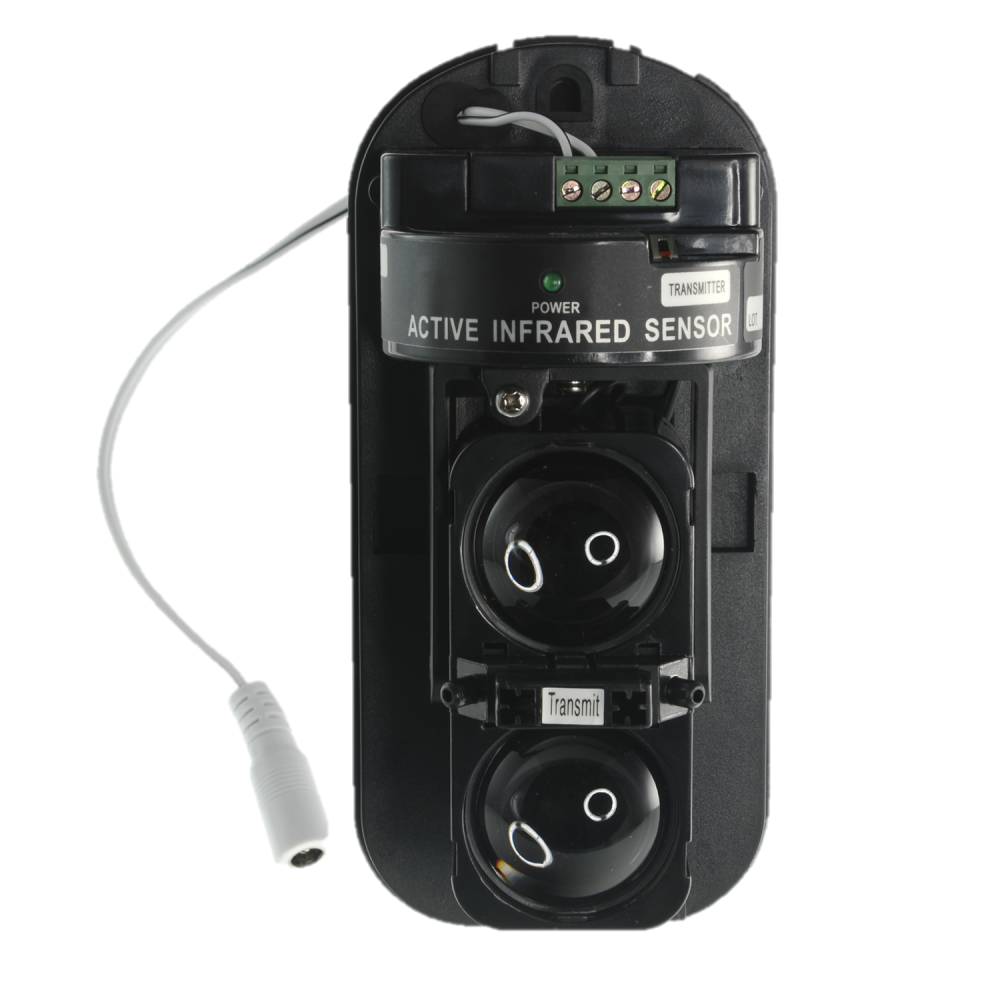

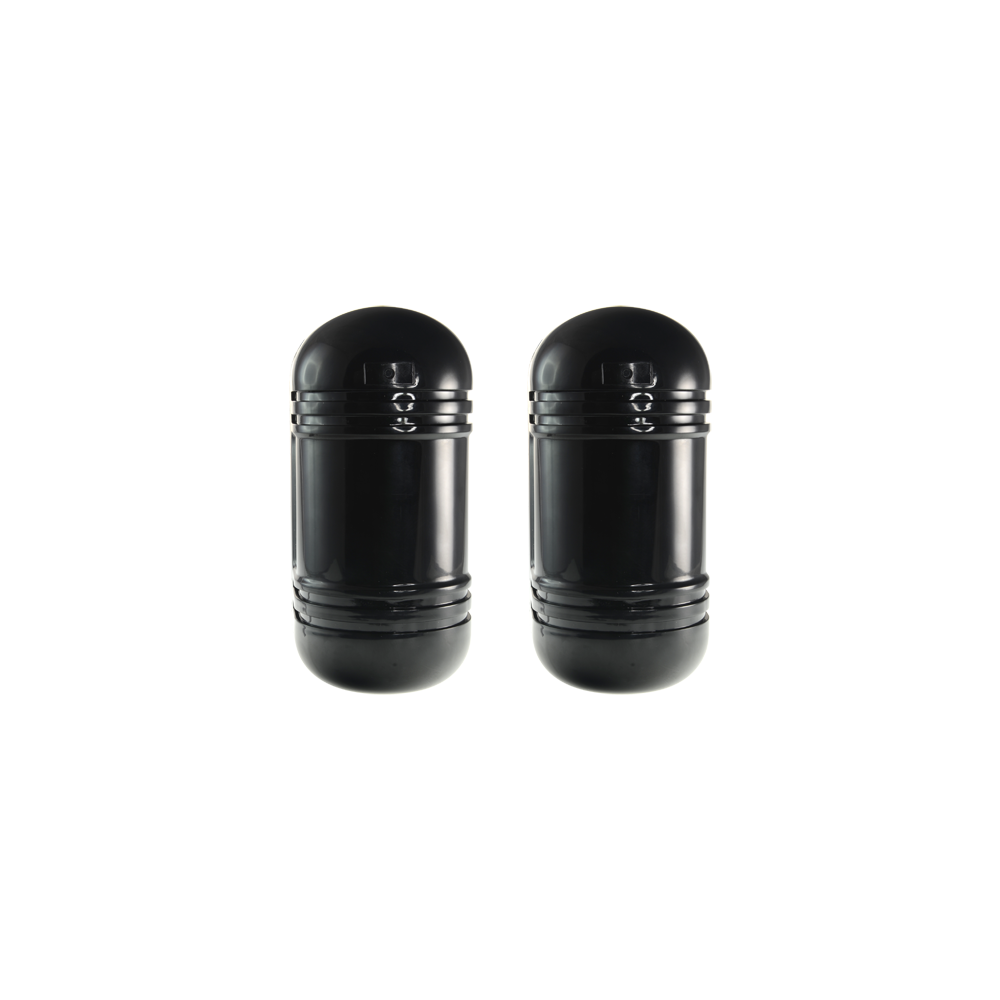

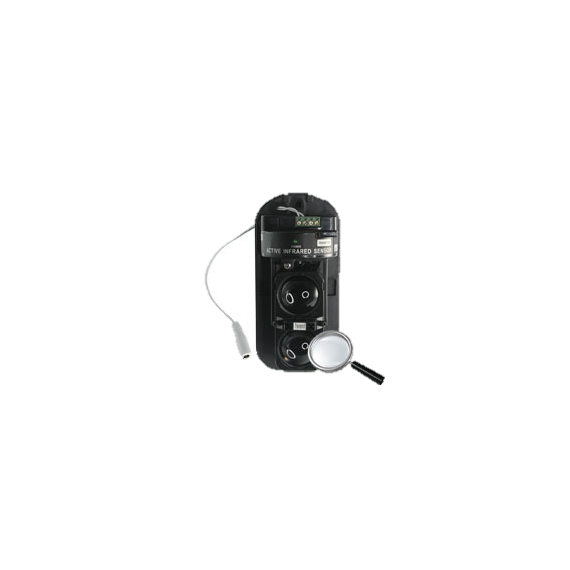

Wireless double beam infrared detector, barrier-type transmitter / receiver. It can detect any intrusion that occurs between the barrier, sending an alert to the panel that will trigger the alarm.

It is the ideal solution for protecting access perimeters, entrances, windows, etc. If the alarm system is activated and any object or person crosses the line between the two detectors, the alarm will immediately trigger.

  • Maximum distance of the external infrared beam 60 m / interior 180 m
  • Max. amplitude. beam propagation in the receiver 1.5 m
  • Regulation of response time and level of the infrared beam

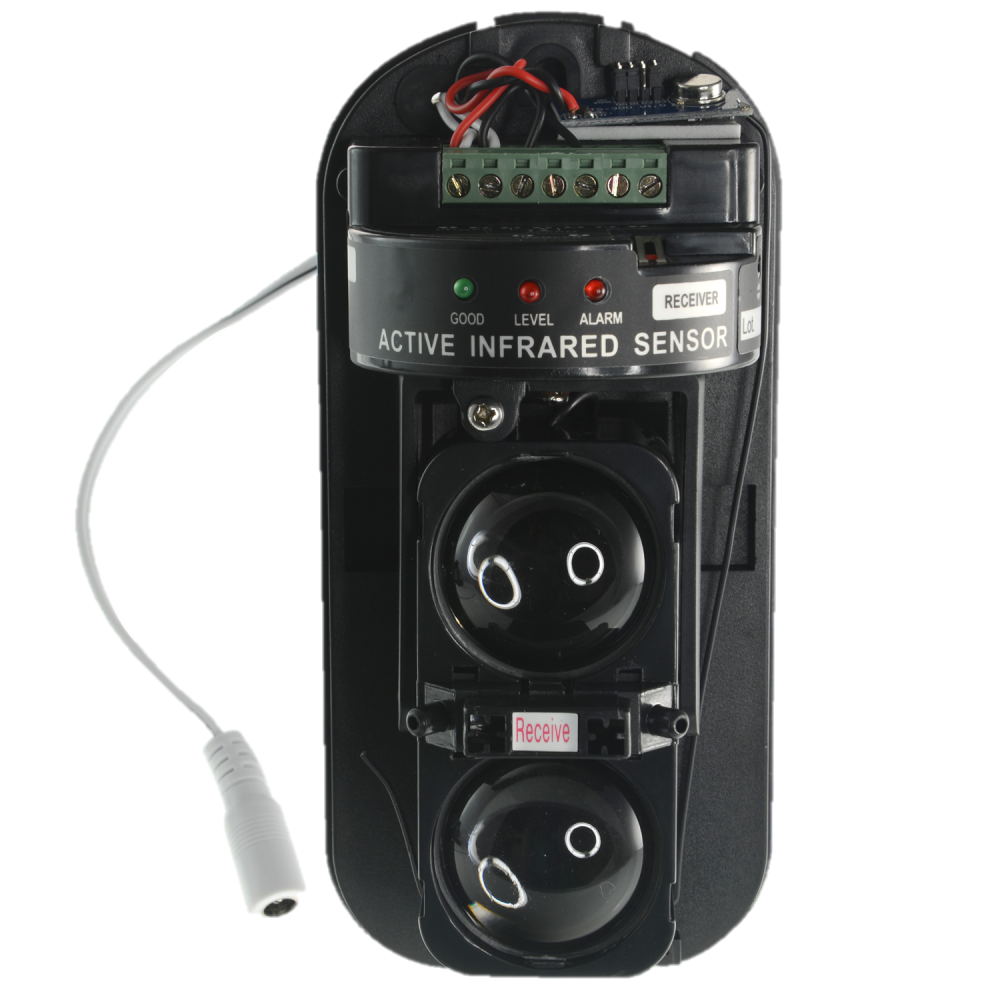

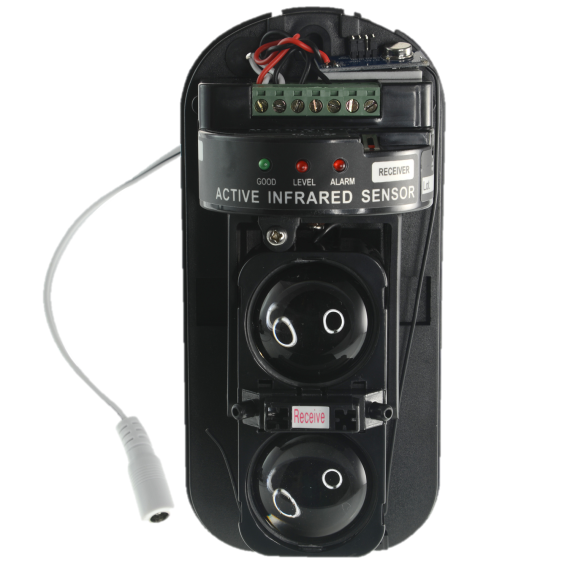

  • LED indicators of level and alarm
  • Wireless connection 433 MHz with the panel, with maximum range of 80 m

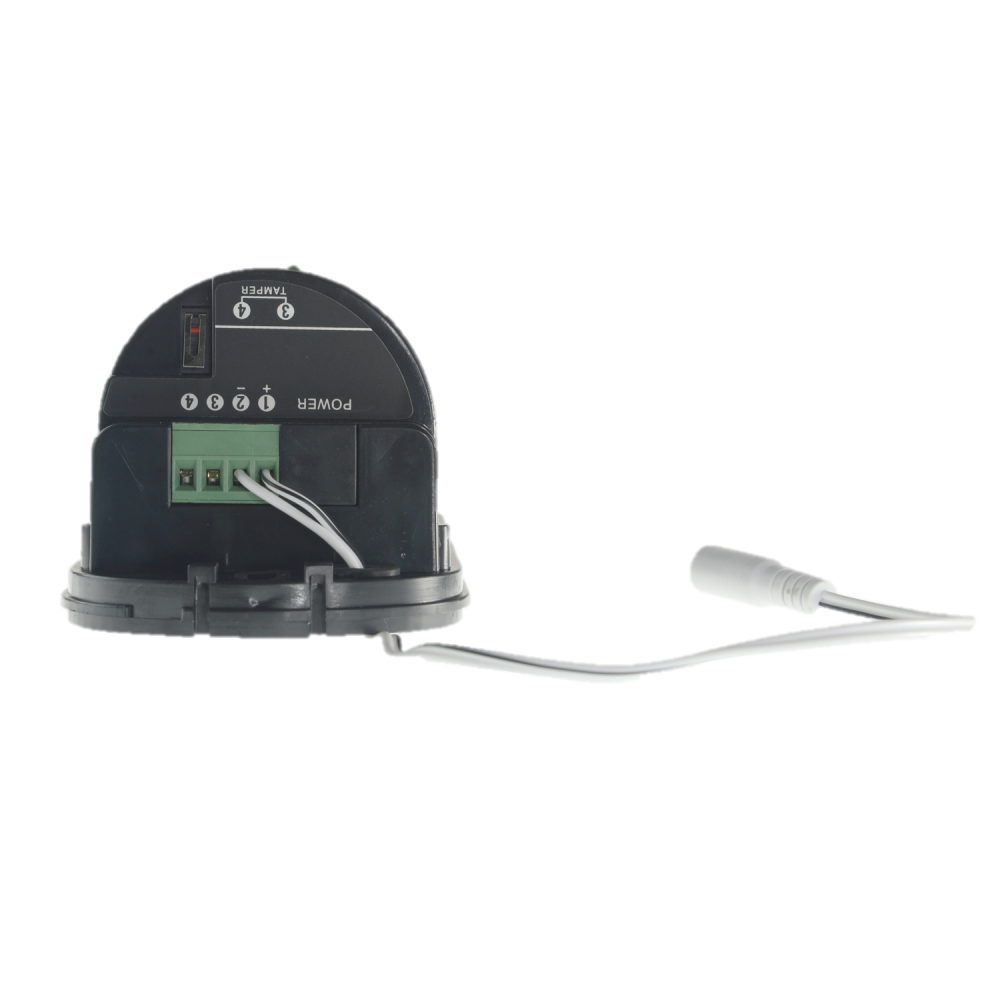

  • Tamper anti-opening to the housing (PC) in the transmitter and receiver
  • Additional tamper input in the transmitter and receiver

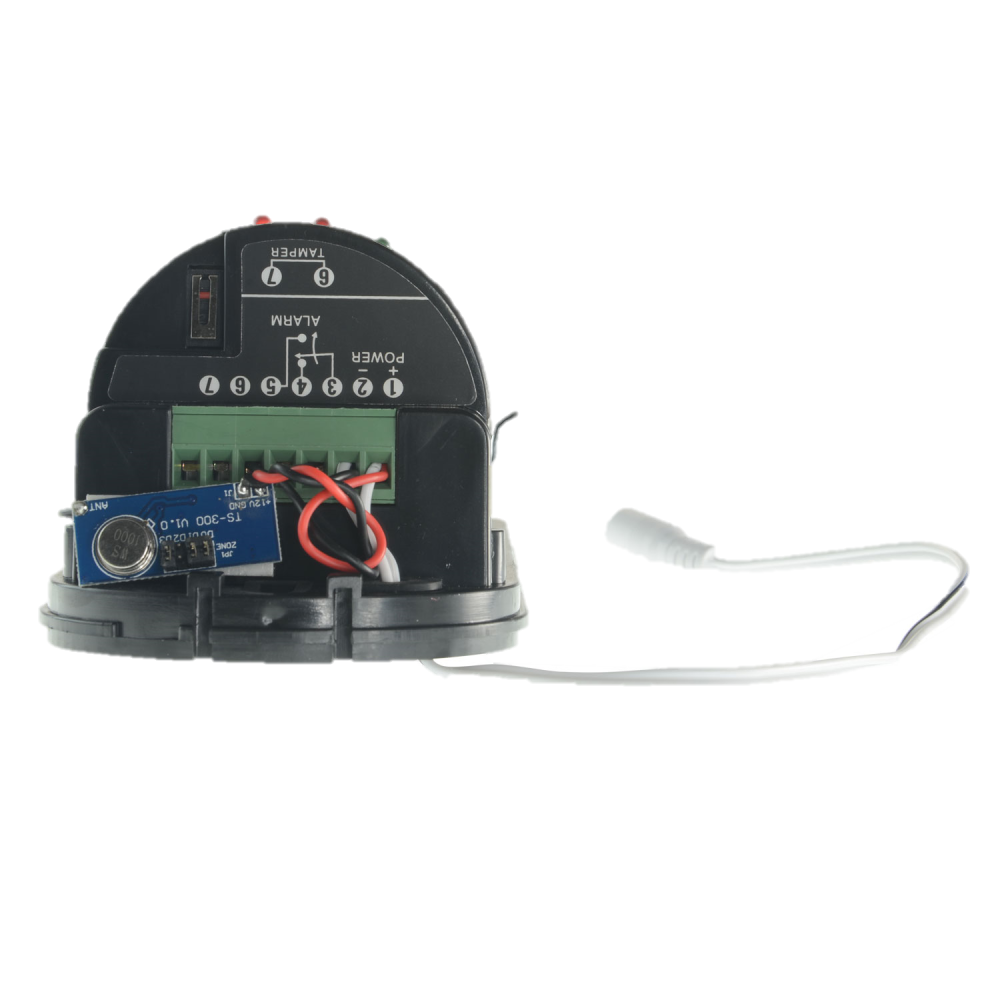

  • Relay output in receiver

Easy installation on wall or mast, both indoors and outdoors. Horizontal and vertical positioning of Fresnel lenses with optical device for fine adjustment. Power DC 12 V.



Protection distance ≤ 60/180 m (exterior / interior in open space)
Beam width 1.5 m in the receiver placed at 60 m
Beam interruption time Adjustable 50~700 ms
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz
Power DC 12 V 500 mA
Housing material ABS plastic
ENVIRONMENT Valid for exterior
Temp. operation -25º C ~ 55º C
Relative humidity ≤ 95% (without condensation)
Dimensions / Weight 170 (H) x 81 (W) x 75 (D) mm / 2 x 300 g
Les merShow less
Produktdetaljer
ABT-60
Sist vist
CHUANGO
Referanse: ABT-60
kr 1,056.68
Infrared barrier detector - Wireless | Internal antenna - Max distance. detection 60 / 180 m - Wireless range 80 m - Tamper | Relay output - Power supply DC12V
16 andre produkter i samme kategori:
GJD
Referanse: GJD110
kr 2,779.20
GJD Outdoor PIR Detector - PIR Motion detector - Adjustable detection range 10/20/30 m - High quality material - Power supply 9~15 VDC - Outdoor use
INGEN MERKE
Referanse: MC-RMMC
kr 173.70

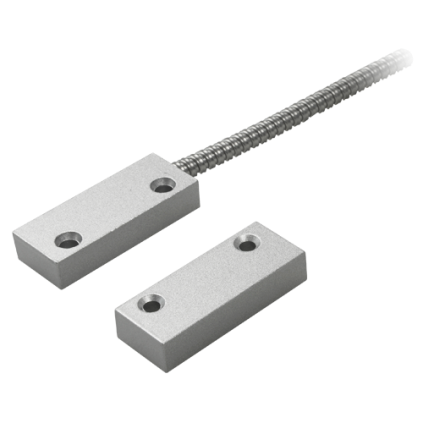

Magnetic contact - Suitable for metal installation - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
