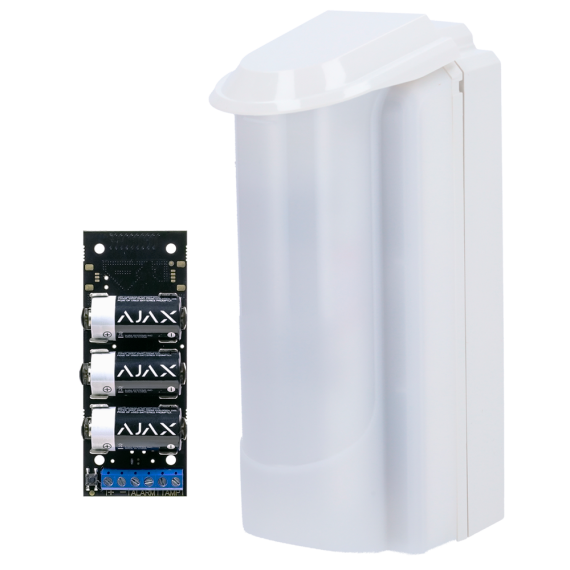

DUEVI DV-MONOLITH-DT-K

Duevi low power consumption outdoor detector - Compatible with Ajax Transmitter (included) - Dual PIR and microwave (24 GHz) - Detection 15 m / Antimasking / Immune to pets - Power supplied by Transmitter - Outdoor use IP54 / Antivandalic IK10
Les merShow less
kr 4,081.95
Referanse:
DV-MONOLITH-DT-K
Merke:

Last ned produktark

Relaterte produkter
Beskrivelse
  • Duevi
  • Outdoor detector with low consumption

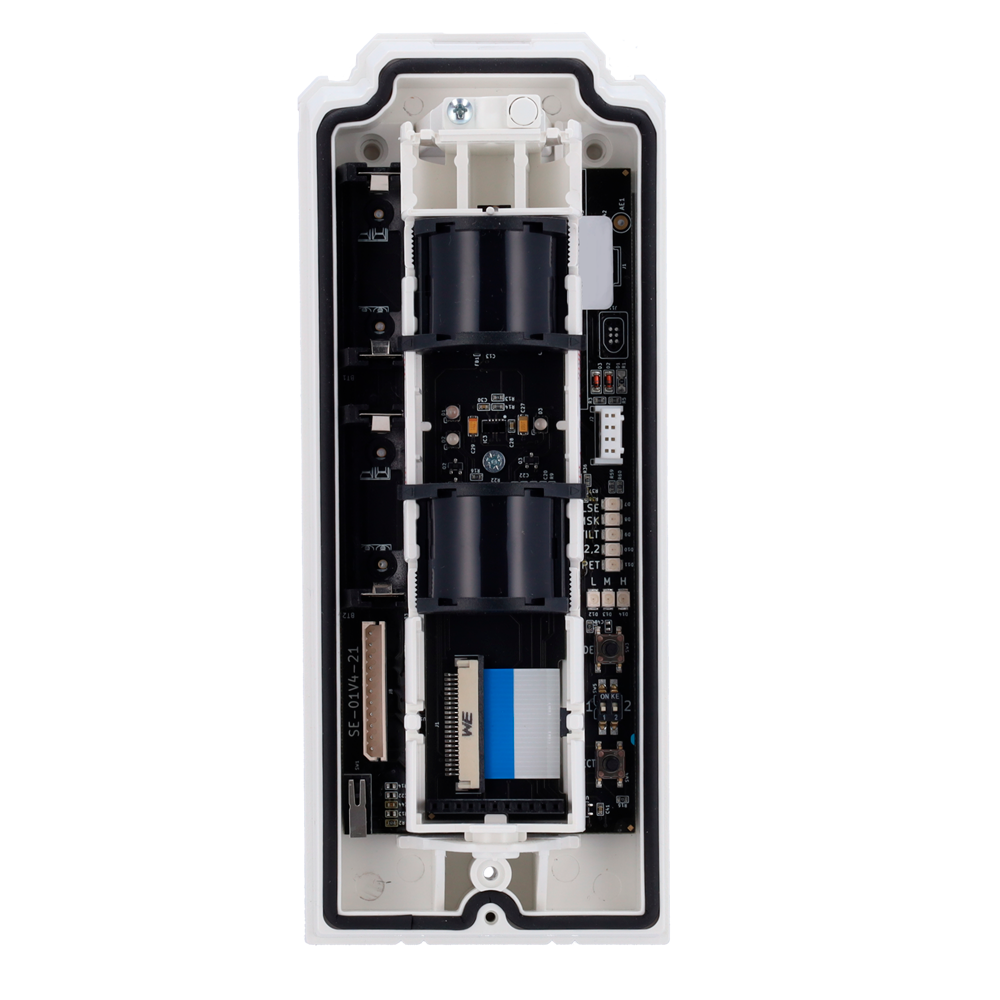

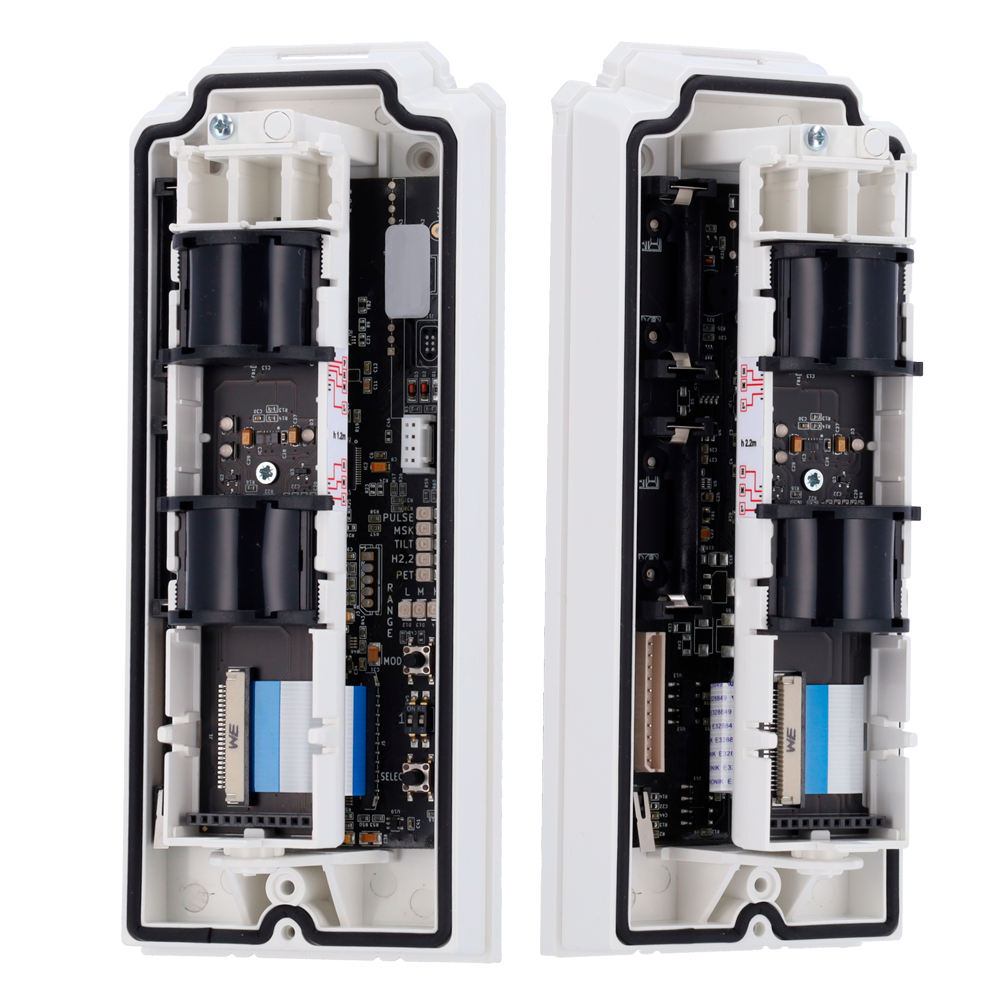

  • Dual PIR and microwave sensor
  • Anti-masking technology
  • Detection: Range 15 m / 90º
  • Motion detection indicator
  • Tamper-resistant opening

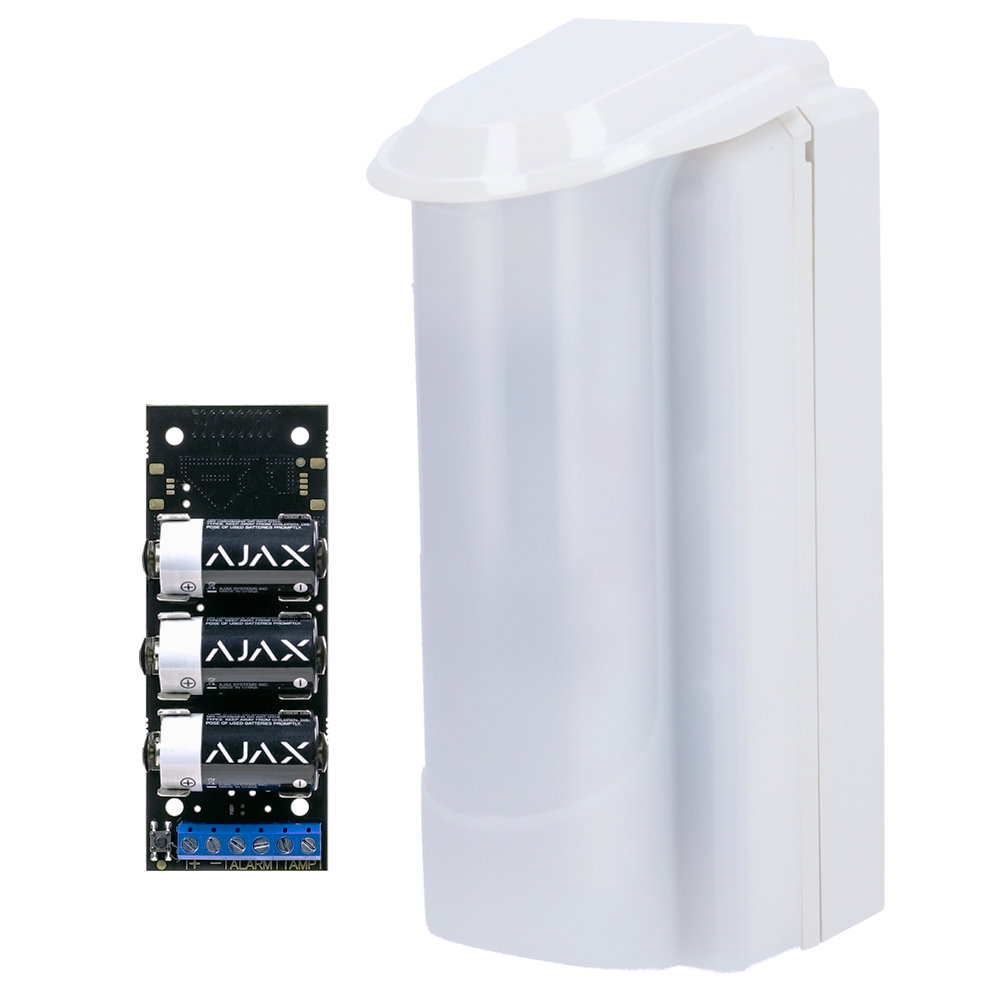

  • Includes Ajax transmitter for wireless communication with Ajax panels
  • Power supplied by Ajax transmitter
  • Outdoor use
  • Degree of protection IP54, vandal resistant IK10

    BrandDuevi
    ModelMonolith DT K
    TechnologyDouble technology: Microwaves (24 GHz) and double volumetric PIR
    PIR lensBoth lenses horizontally adaptable up to 55º
    Detection rangeConfigurable: 3 m to 15 m (in 6 levels) / 90º
    Frequency868 MHz Jeweller (Ajax transmitter included)

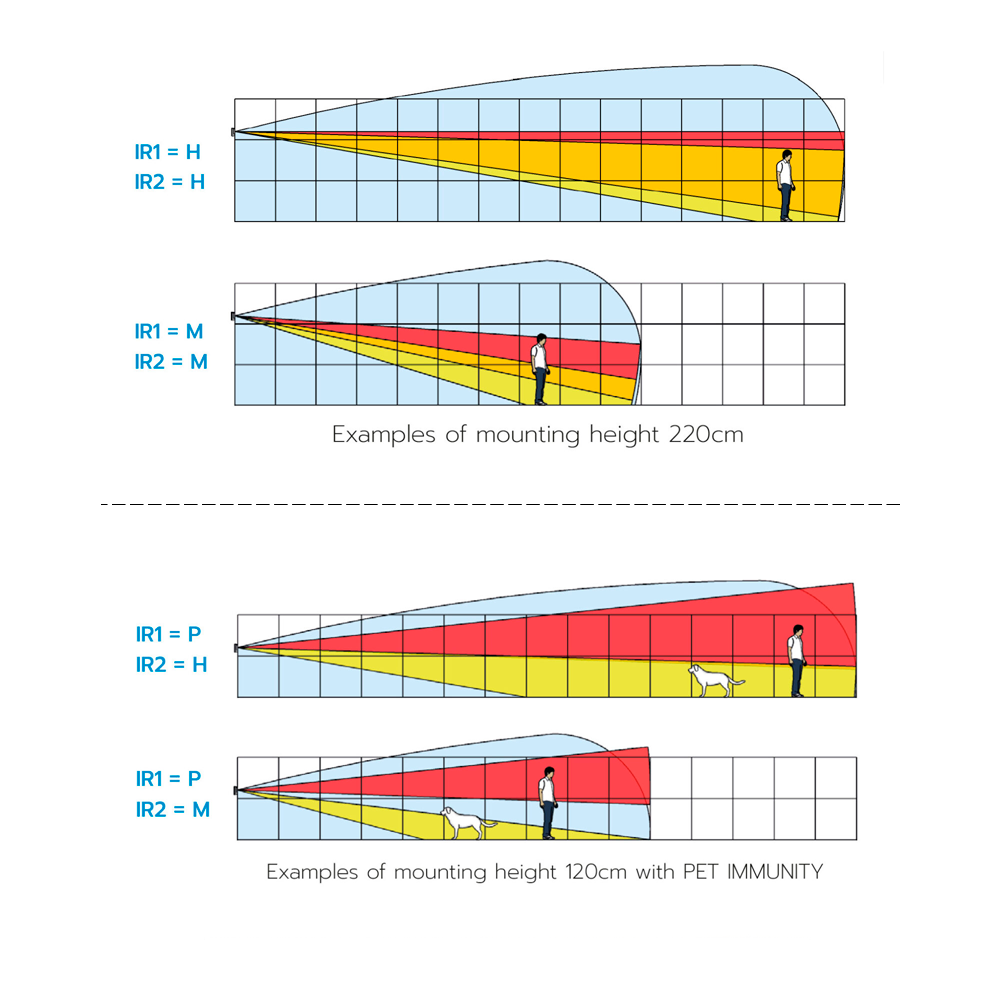

    Pet immunityAvailable (installation height 1.2 ~ 1.3 m)
    Installation heightFrom 1.2 m to 2.2 m
    MaskingAvailable: from 0ºC, always on (through App) or disabled
    SensitivityAdjustable (3 levels)
    Tamper-resistant openingAvailable
    Anti-sabotage tamperAvailable (motion accelerometer)

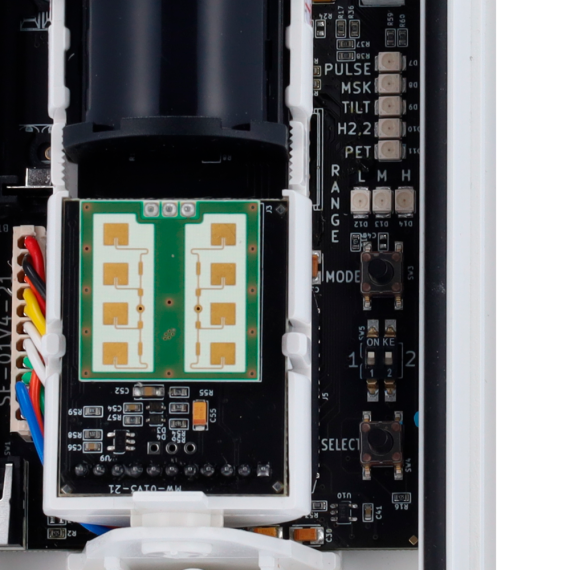

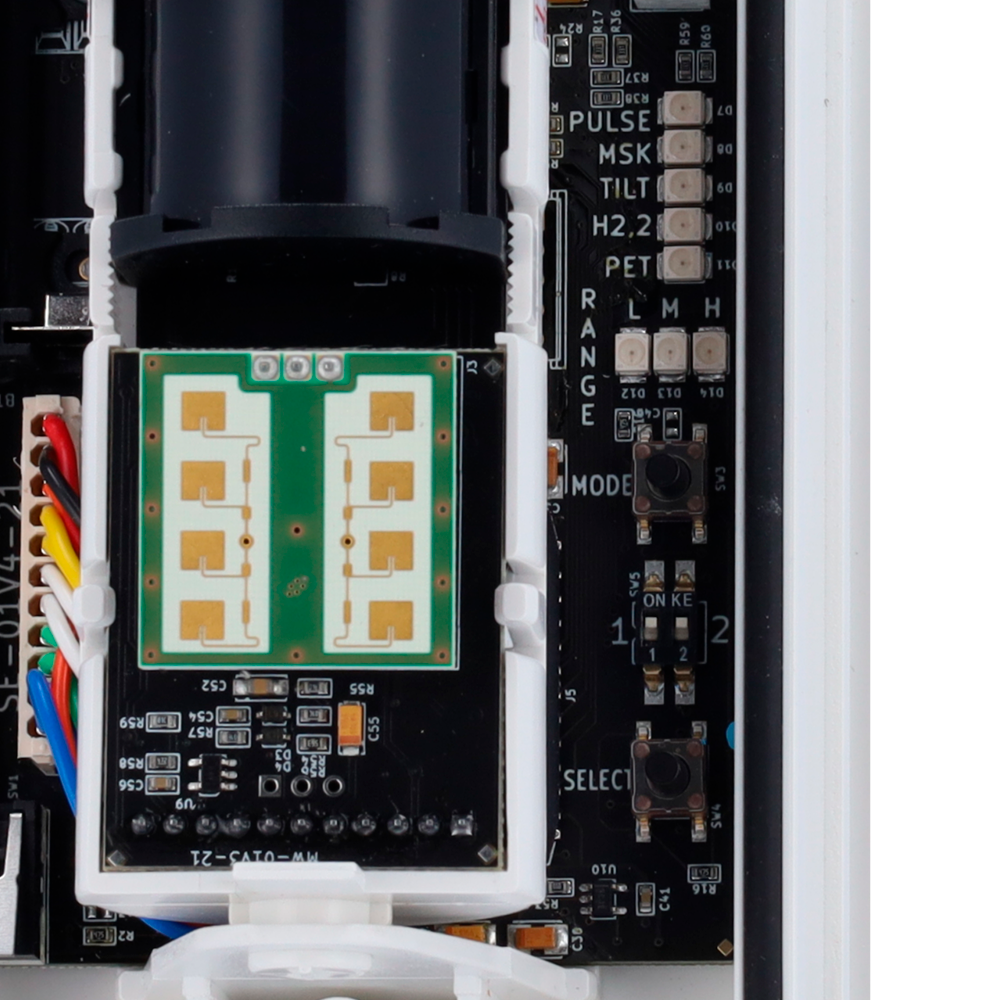

    LEDs indicationAlarm (blue) and Walk test (red): Upper IR / green: Lower IR / blue: microwave and alarm acknowledgement)
    DIP Switch configuration1- Walk-test (On/Off)
    2- Alarm unification in one output (On/Off)
    Configuration in detector (LEDs and buttons)Sensitivity / Anti-masking / Anti-sabotage tamper / Mounting height / Pet immunity / Detection range (more info page). 9 manual in download section)
    Additional configuration in AppAntimasking (from 0ºC, always on or disabled) / Antimasking sensitivity / Sleep time (On/Off/Up to 60 s)
    Configuration by AppDV-BTLINK module required and download View Sensor App (Android)
    Wired outputsAlarm and Fault (tamper and antimasking)
    Low battery warningSignal sent by Ajax transmitter
    PowerSupplied by Ajax Transmitter (do not insert additional batteries)
    ConsumptionMinimal consumption (Rest: 11 uA / Maximum: 5 mA)
    Temp. operation-40 ºC ~ +70 ºC
    Degree of protectionIP54, Antivandalic IK10
    Dimensions201 (H) x 79 (W) x 106 (D) mm (transmitter spacing)
