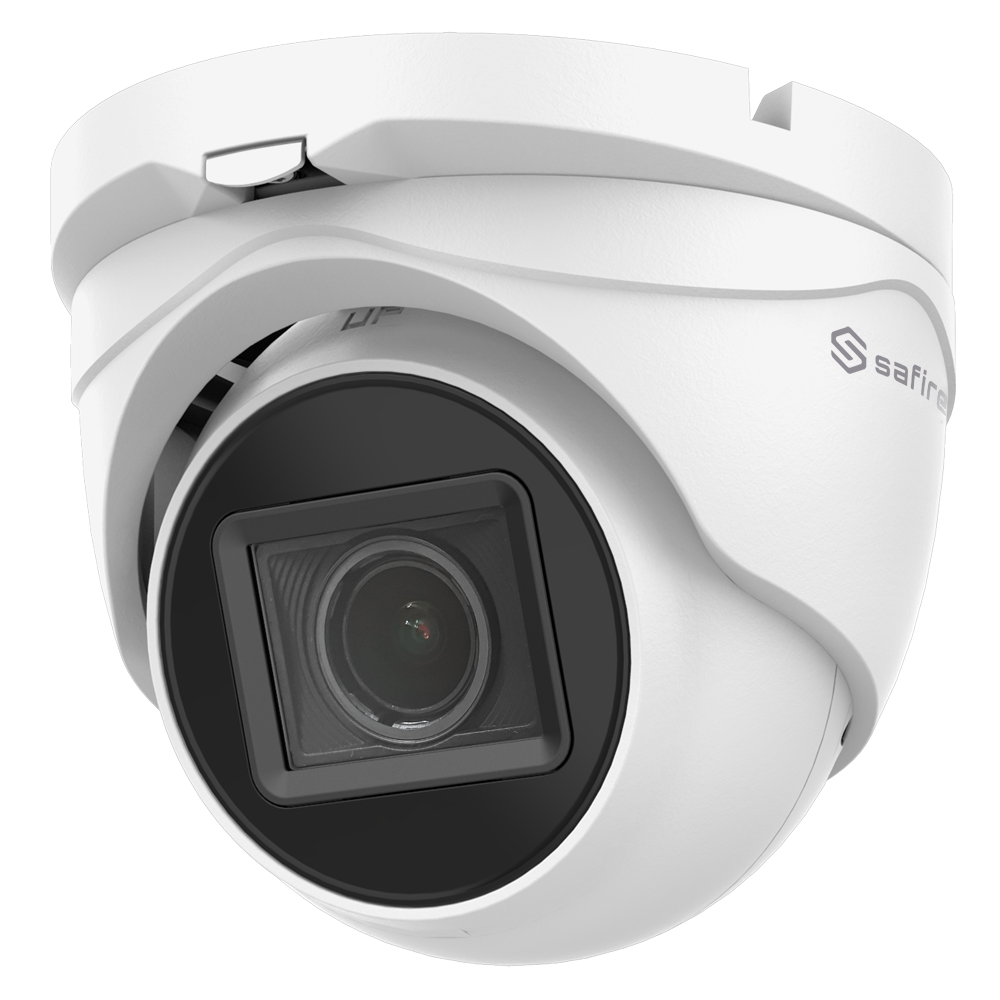

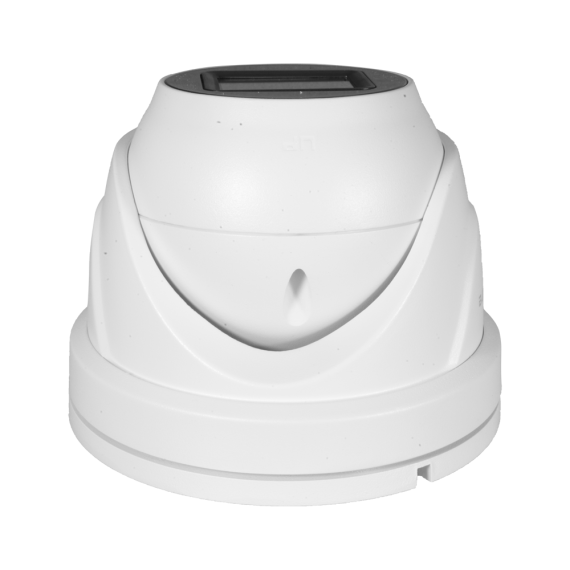

| Brand | Safire |
| Range | ECO |
| Image sensor | High Performance CMOS |
| Maximum resolution | 5 MP (2650x1944) to 20 fps |
| Resolution | TVI: 5 MP (20 fps) / 4 MP (25~30 fps) / 1080p (25~30 fps) AHD: 5 Mpx (20 fps) / 4 MP (25~30 fps) CVI: 4 Mpx (25~30 fps) CVBS: PAL / NTCS |

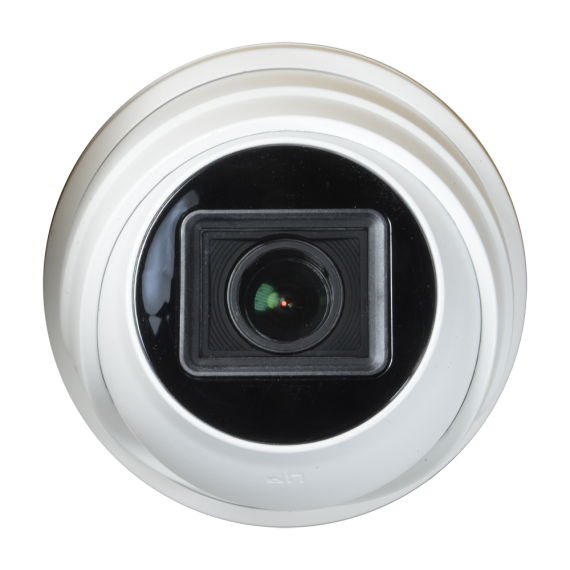

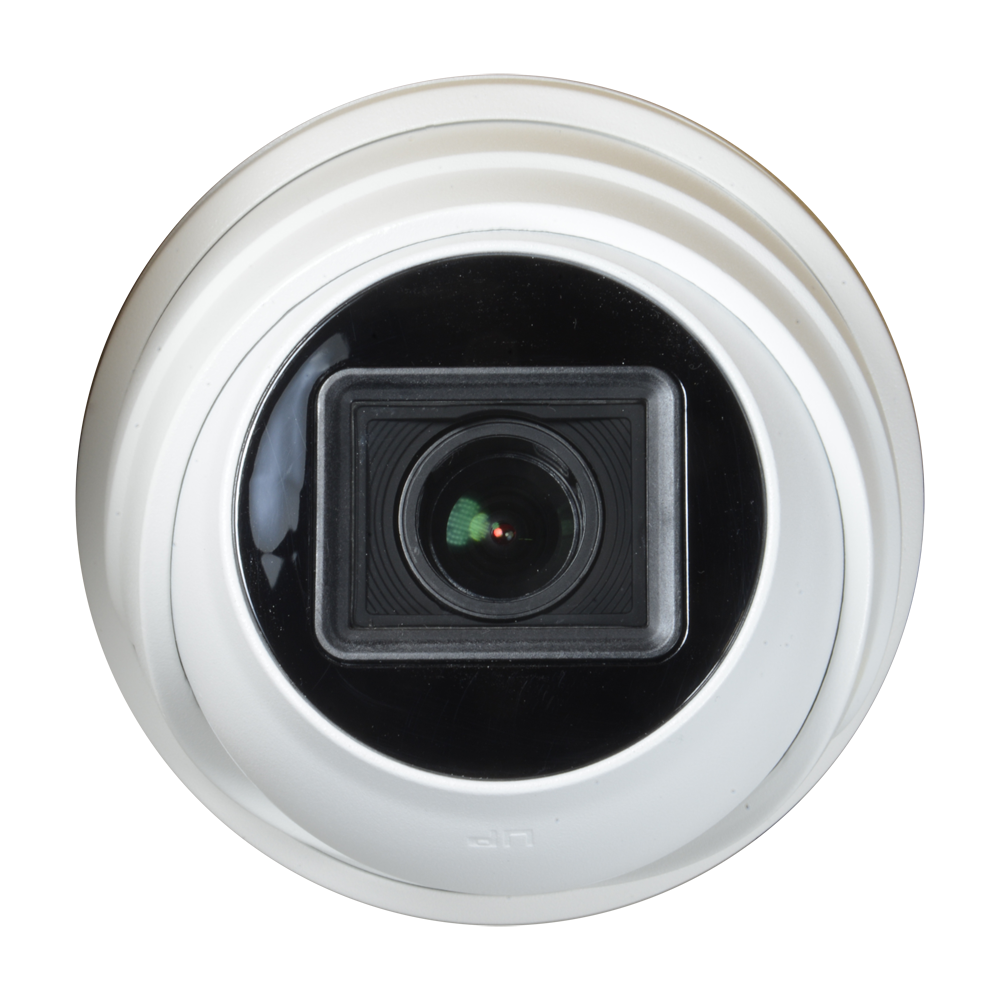

| Lens | Motorised 2.7~13.5 mm |
| Viewing Angle (FOV) | 95º - 26º (H), 72º - 20º (V), 126º - 33º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / Smart IR Matrix LEDs (range 40 m) |
| Day / Night | Auto / Color / BW (black and white) |

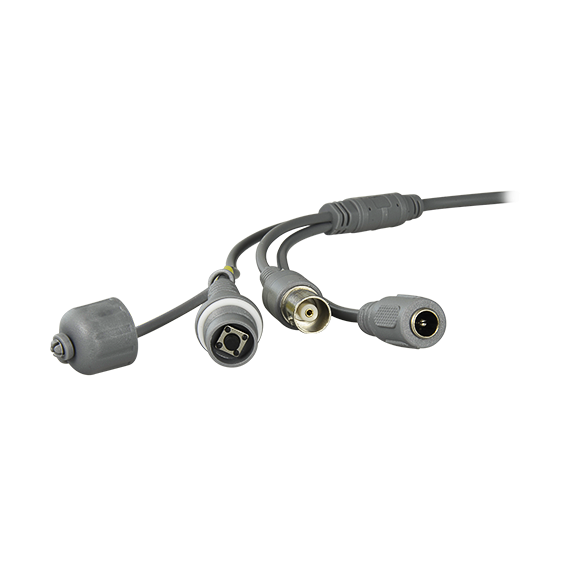

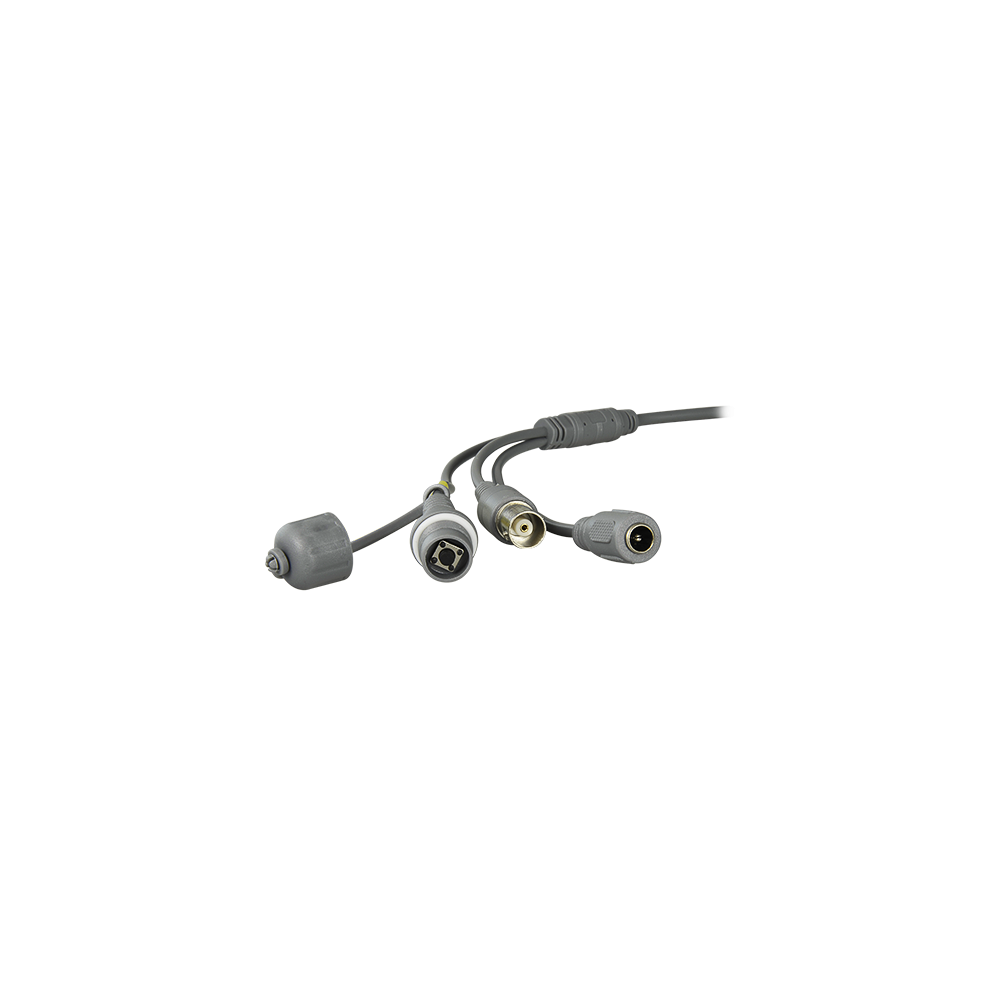

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, AGC, ATW, AWB, BLC, HLC, Smart IR |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 520 mA, 6.2 W max. |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metallic |
| Dimensions | 110.2 (D) x 123.9 (W) x 134.3 (H) mm |

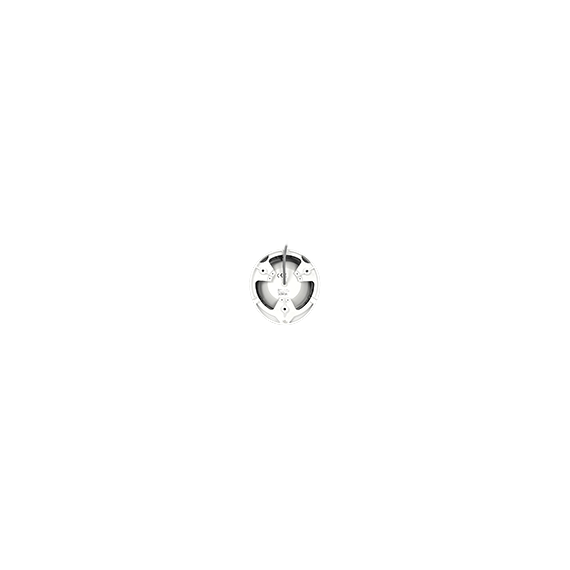

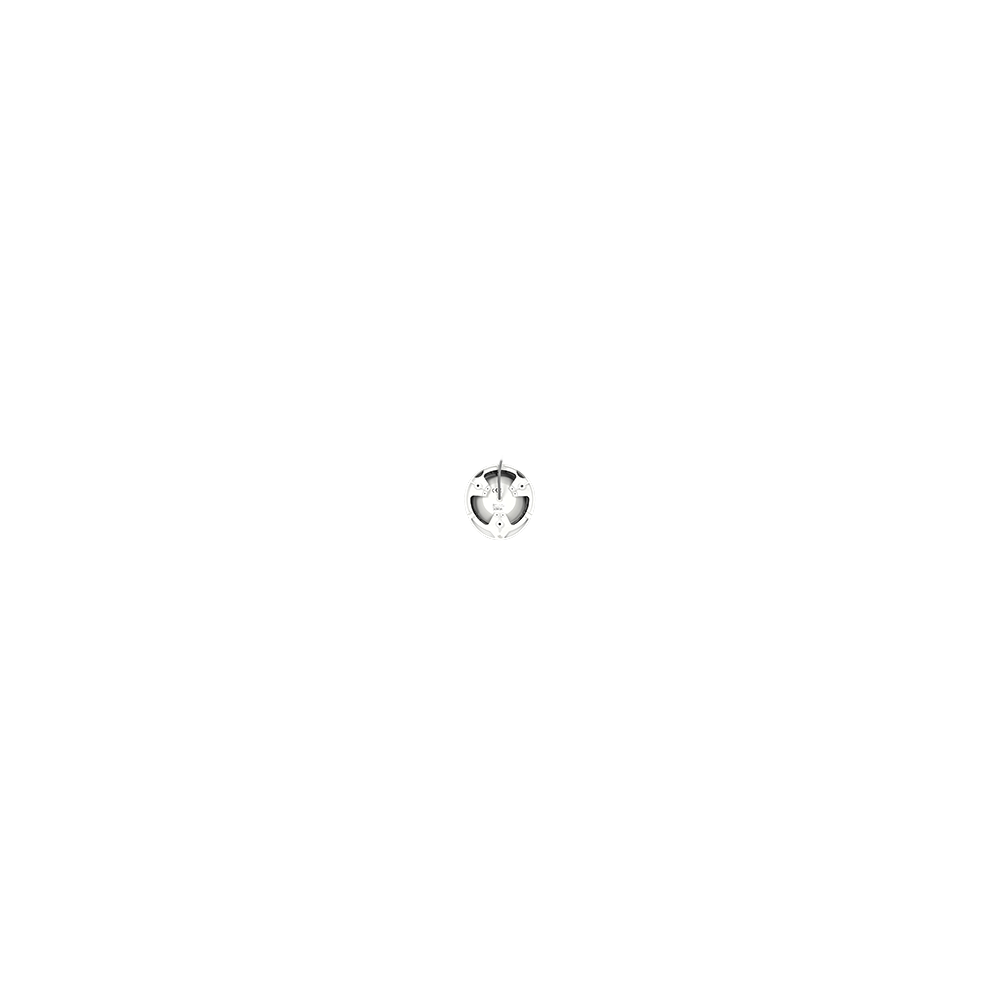

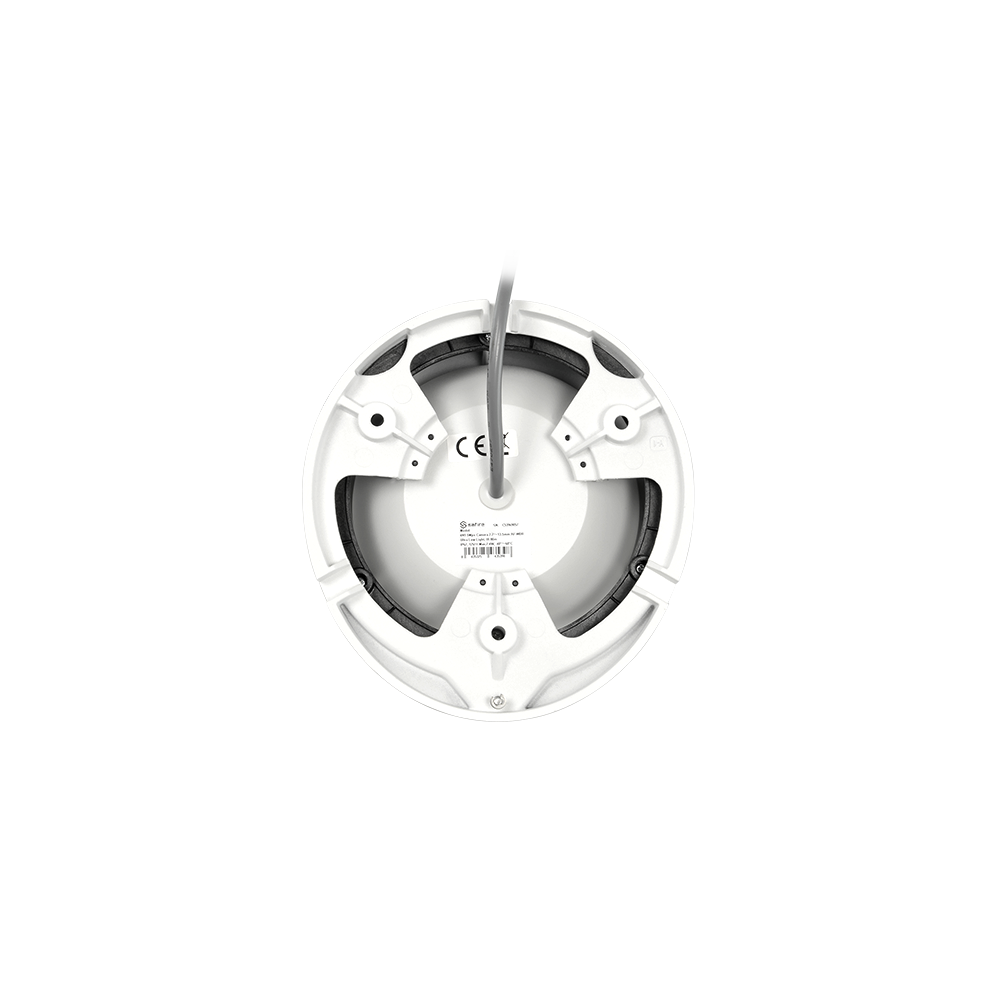

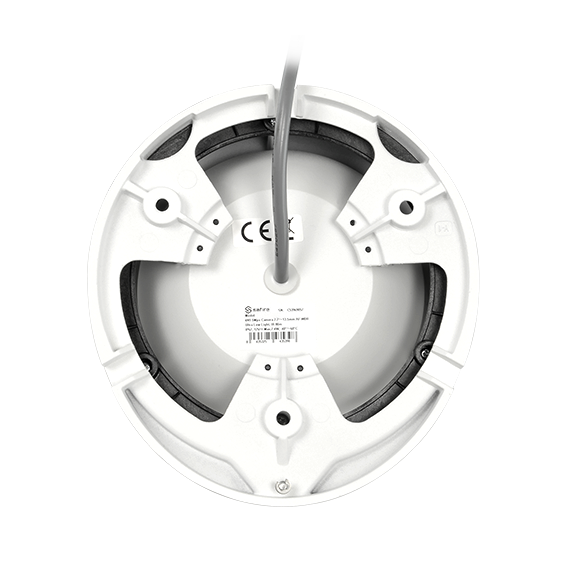

| Base diameter | Ø base 123.86 mm / Ø between bolts 90 mm / 3 bolts |
| Weight | 555 g |
