Brand | Safire | Range | ECO |
Image sensor | 1/3" 3K High Performance CMOS (5Mpx 16:9) |
Maximum resolution | 3K (2880x1620) to 20 fps |
Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |

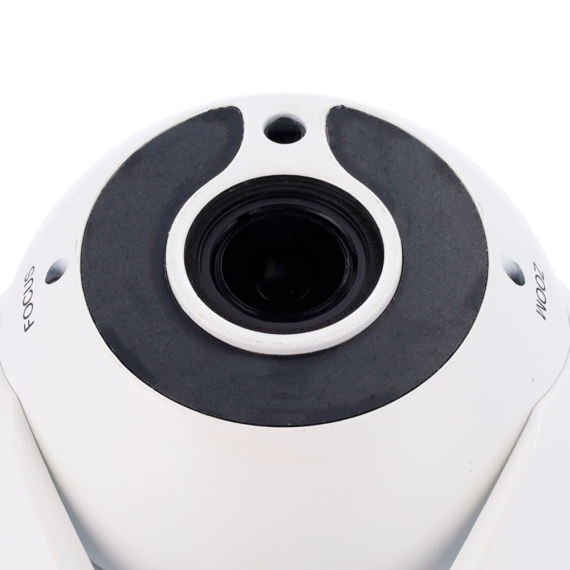

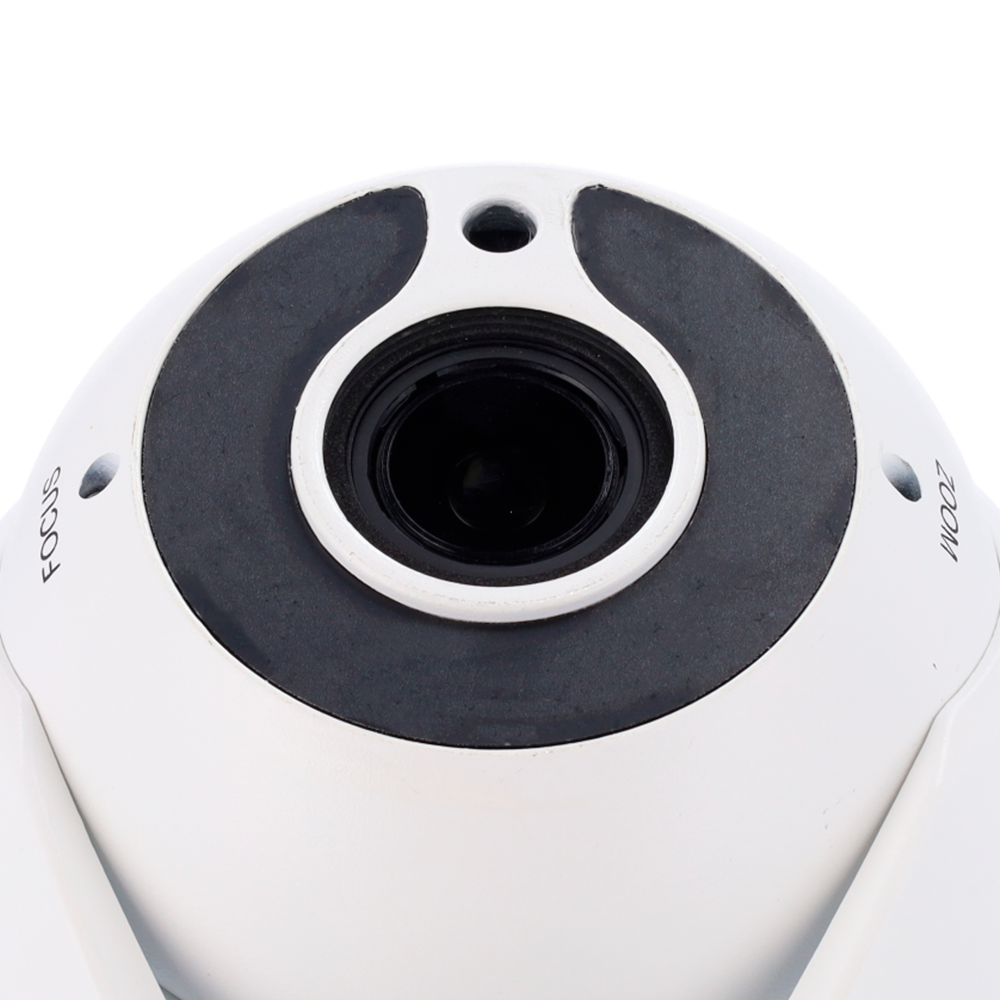

Lens | 2.7~13.5mm varifocal |
Viewing Angle (FOV) | 113º - 31º (H), 58º - 18º (V), 138º - 36º (D) |
Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
Infrared lighting | 0 Lux / SMD IR LEDs (range 30 m) |
Day / Night | Auto / Color / BW (black and white) |

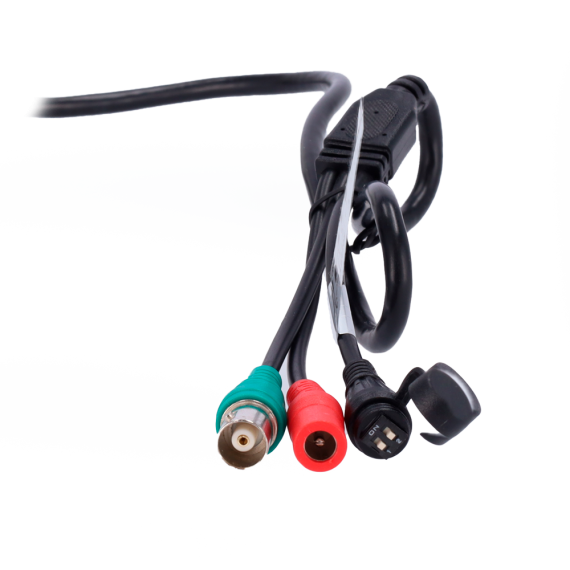

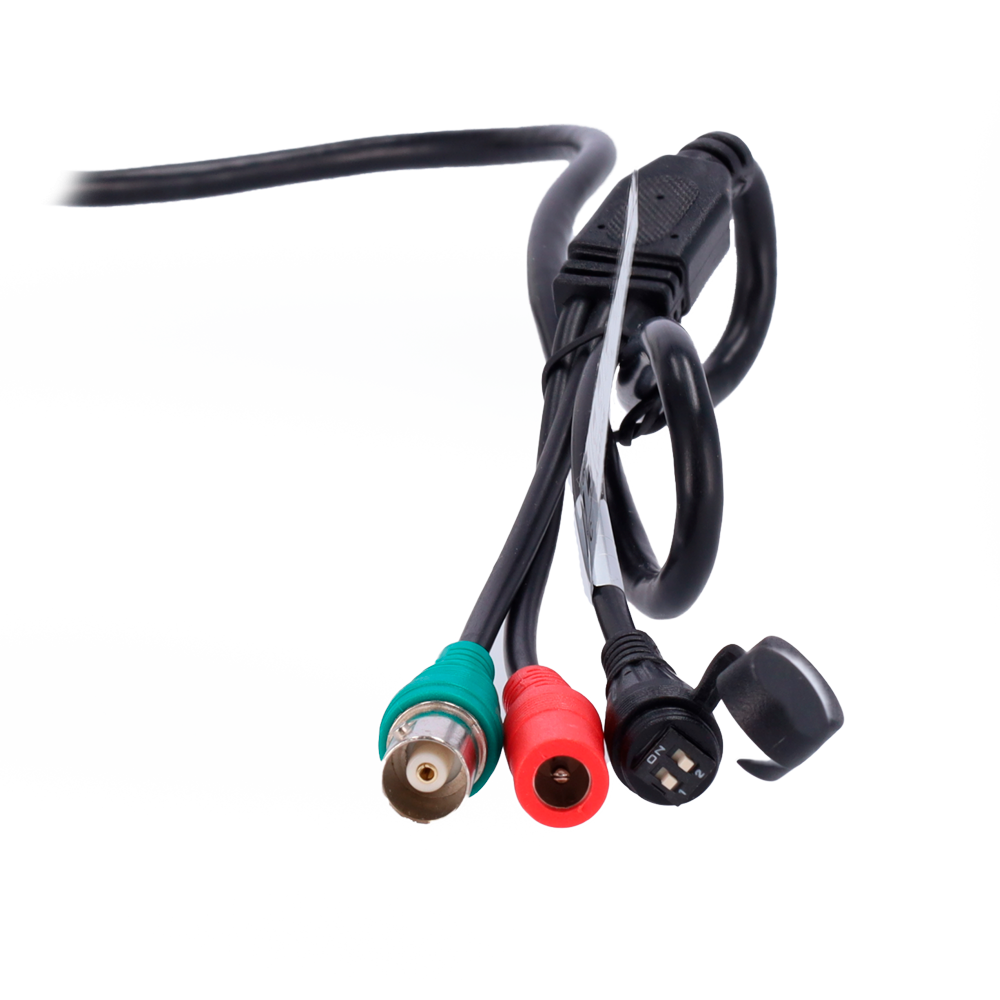

Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
Video output switching | Via Switch |
Basic functions | OSD menu (remote) |
Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
Alarm | No |
Audio | No |
Power | DC 12 V / 300 mA, 3 W max. |
Degree of protection | Weatherproof IP65 |
Temp. operation | -30º C ~ +60º C |
Material | Metallic |
Dimensions | 95 (D) x 133 (W) x 145 (H) mm |

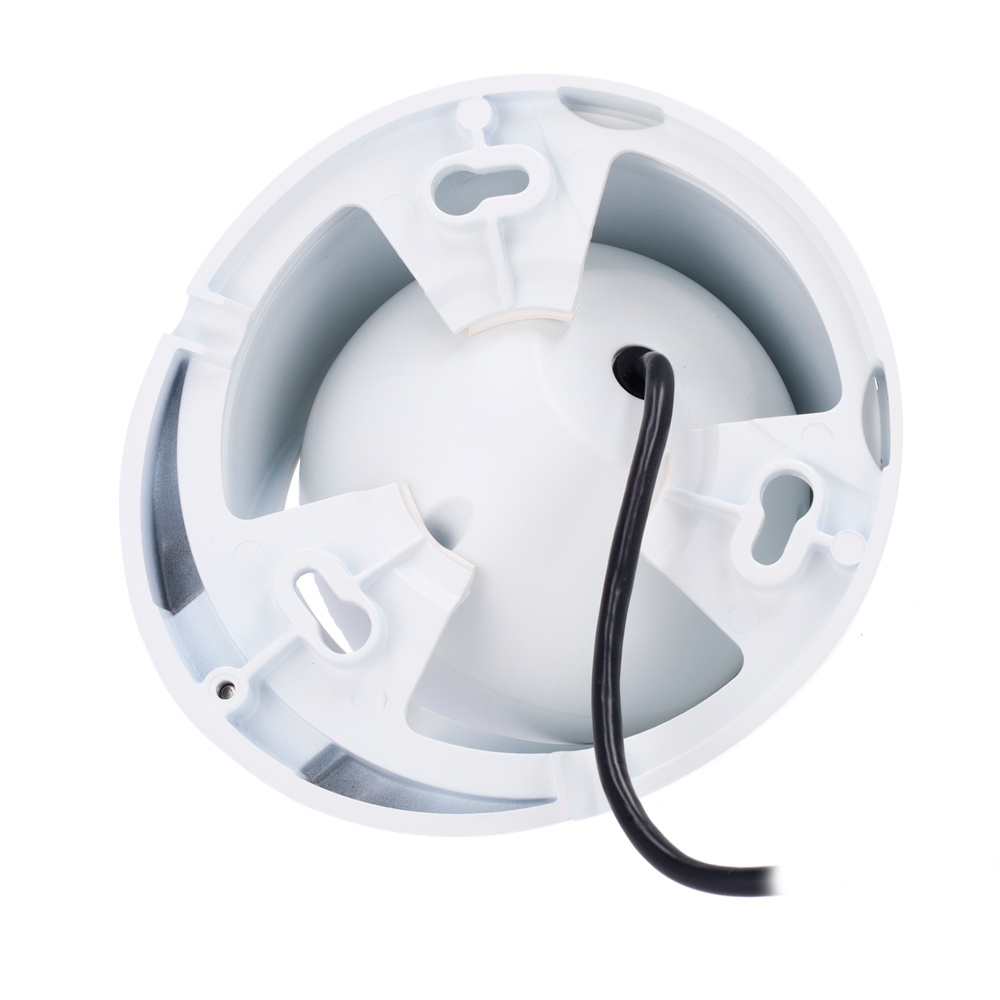

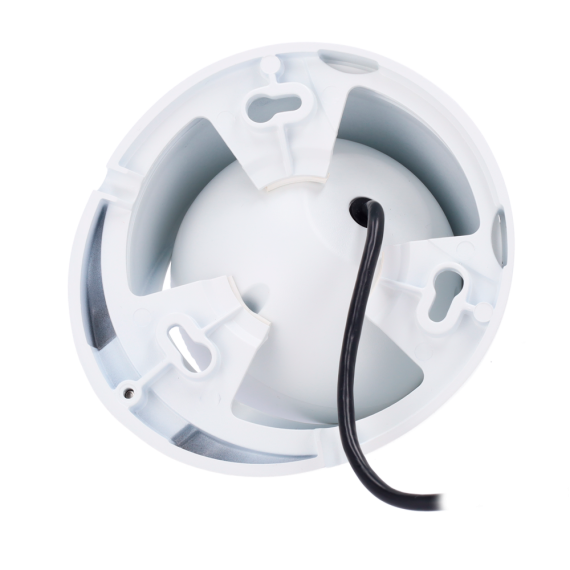

Base diameter | 94 (Ø) mm / 3 screws |
Weight | 550 g |
