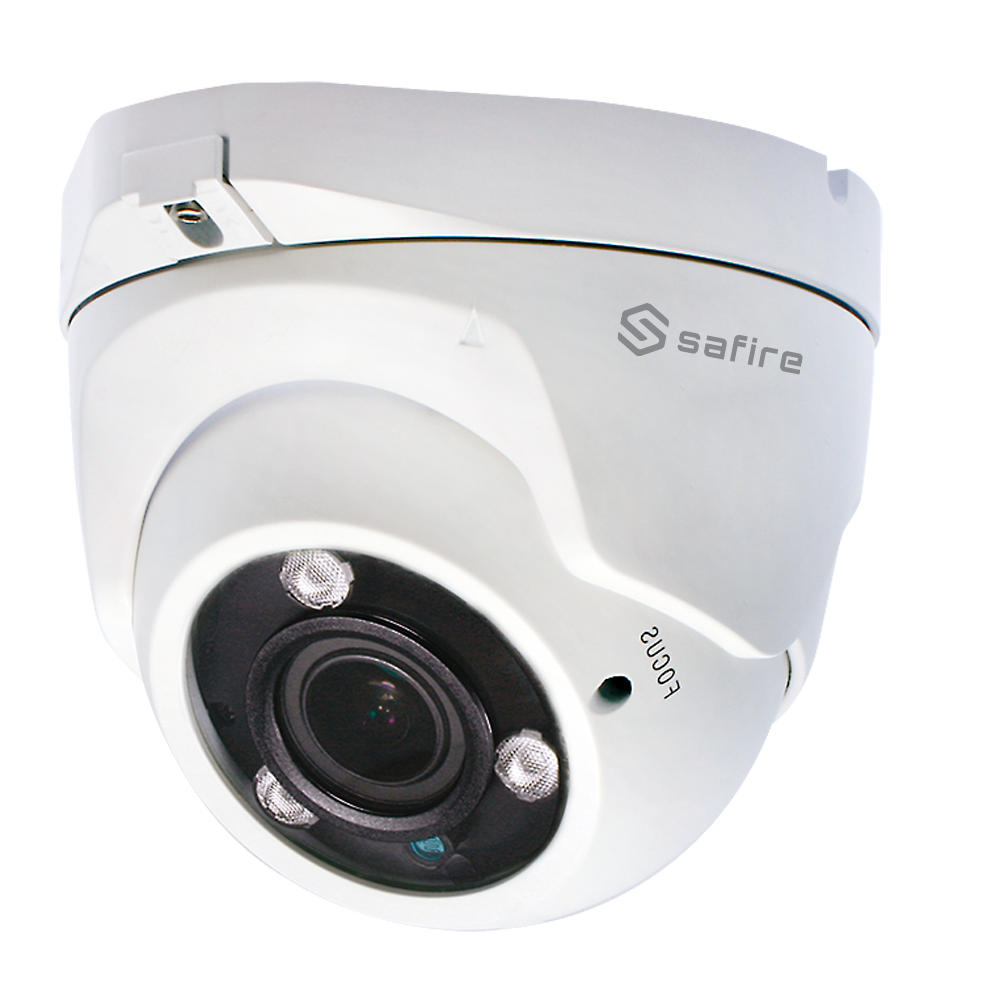

| Brand | Safire |
| Range | ECO |
| Image sensor | 3K High Performance CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |

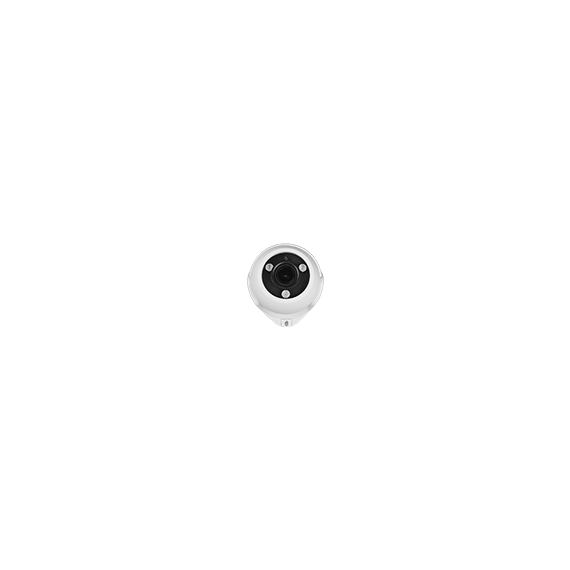

| Lens | 2.7~13.5mm varifocal |
| Viewing Angle (FOV) | 113º - 31º (H), 58º - 18º (V), 138º - 36º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 40 m) |
| Day / Night | Auto / Color / BW (black and white) |

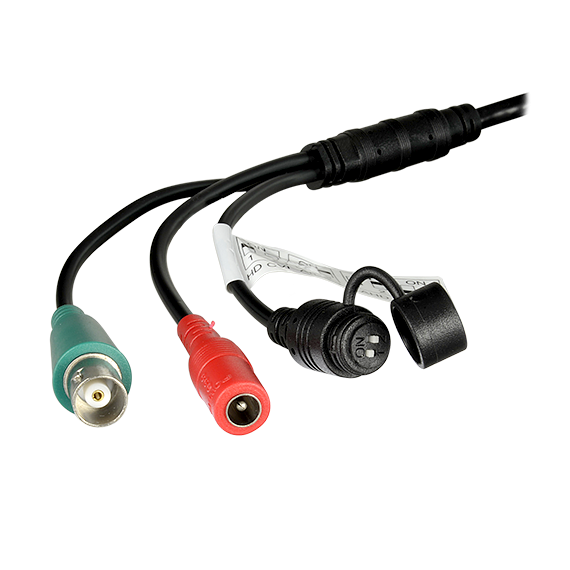

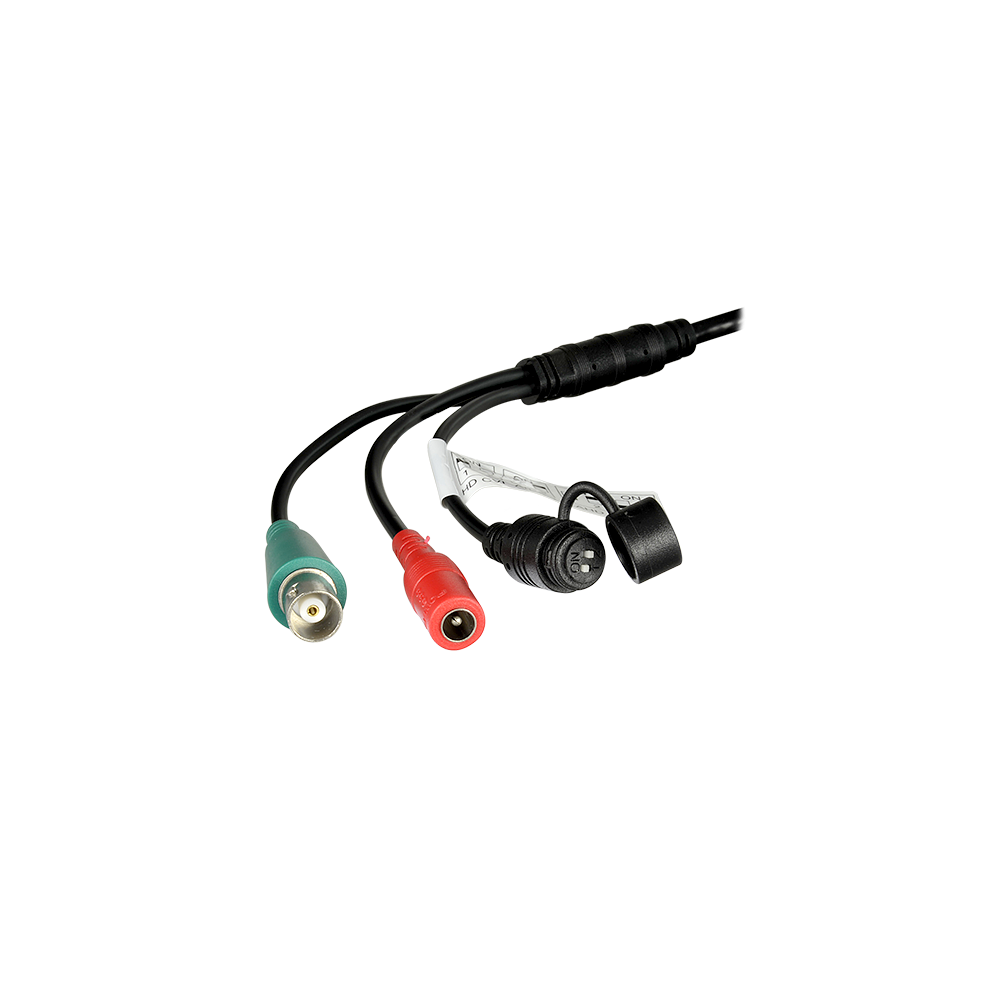

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 400 mA, 4.8 W max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ +50º C |
| Material | Metallic |
| Dimensions | 104 (D) x 119 (W) x 129.4 (H) mm |

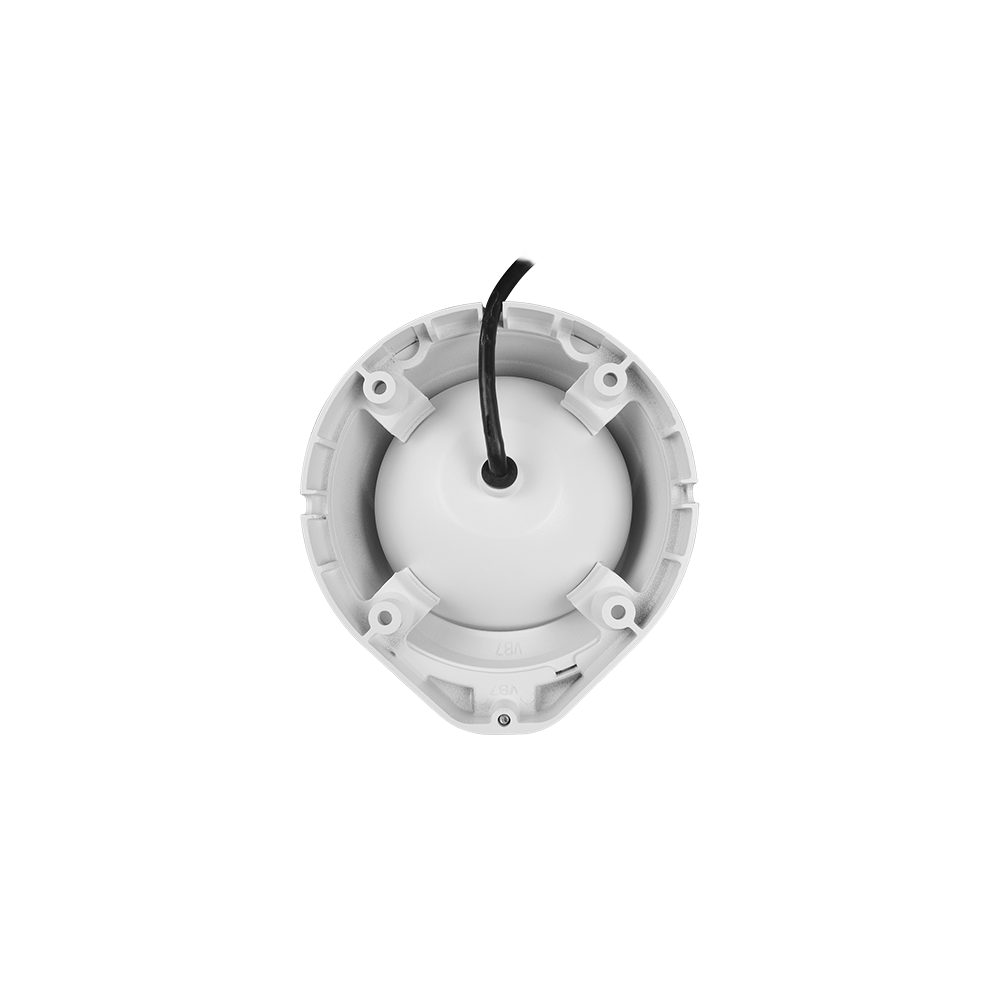

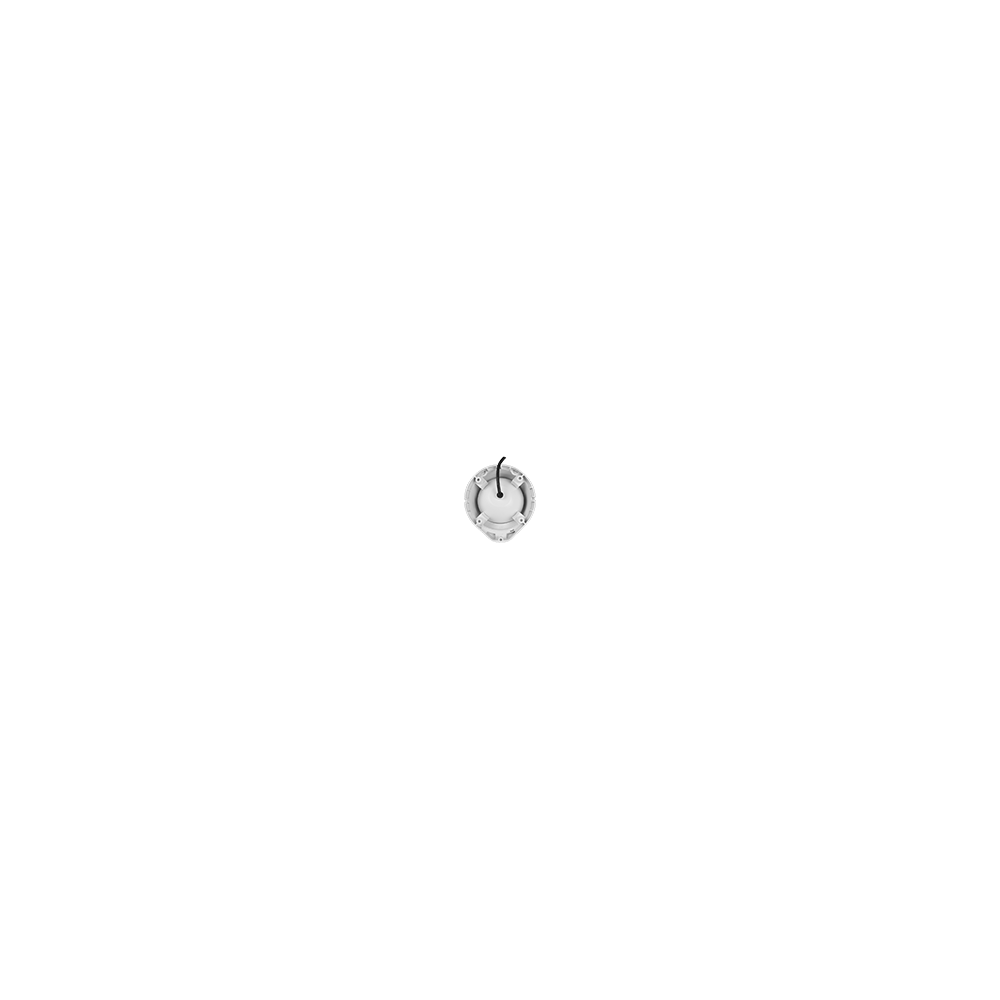

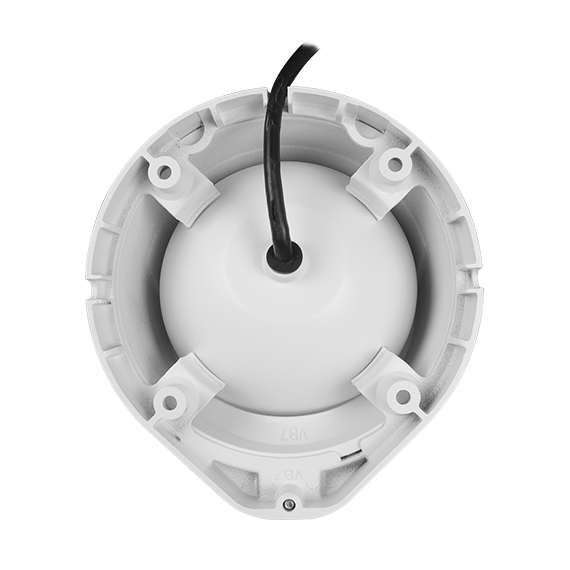

| Base diameter | 104 (Ø) mm / 4 screws |
| Weight | 520 g |
