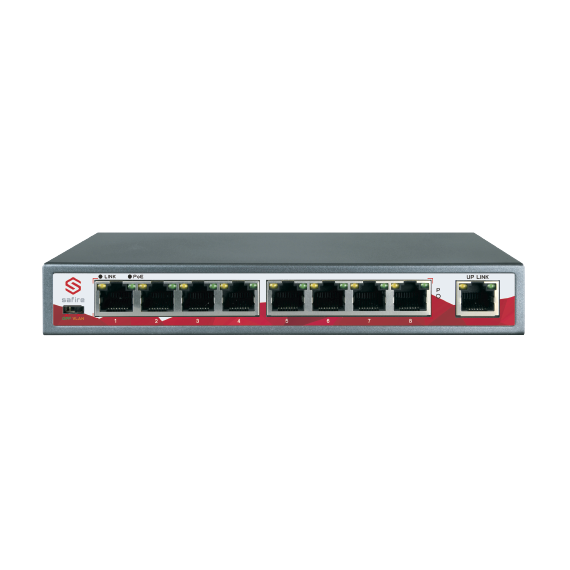

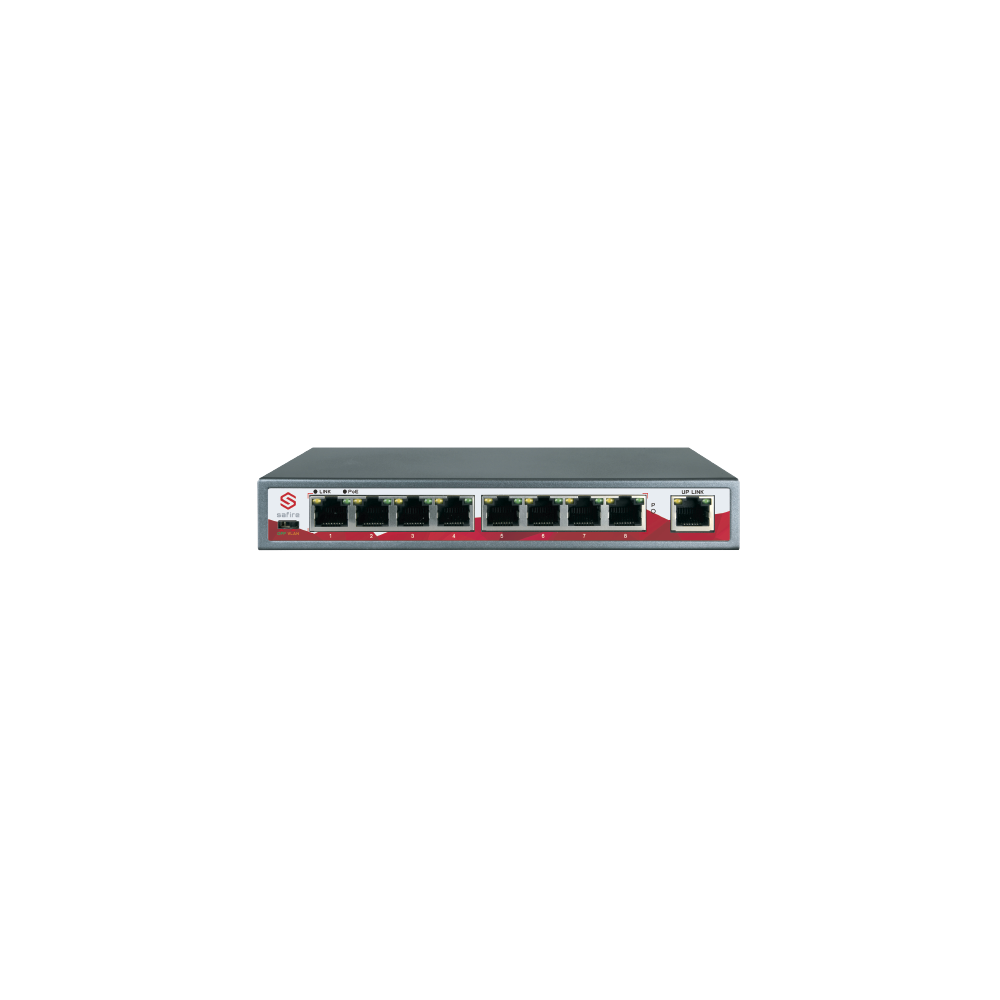

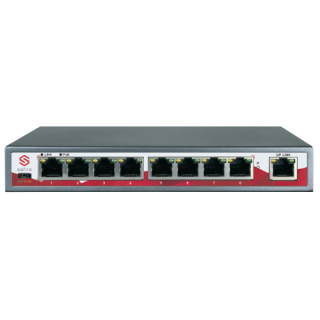

SAFIRE 9 port desktop Switch with 8 PoE port(s).
Quick and easy network connectivity for up to 8 Ethernet devices and also 1 Up-link RJ45 10/100Mbps port(s) for inter-connectivity con other network resources. Ports 1 to 8 support Power over Ethernet (PoE) and are able to provide electrical power over the same network cable to a camera or other PoE device.
It has a table of MAC addresses 1 K and supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging). Supports Auto-MDI/MDI-X. Protocols IEEE 802.3 10 Base-T / 100 Base-TX.
The Power over Ethernet (PoE) power supply of this switch meets the IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) standards, and self-determining the power needs of the powered device, up to 25.5 W per port and a total of 120 W. With CCTV mode which significantly increases the cable length to 250 metres @ 10Mps.
Interface | 8 RJ45 PoE port(s) + 1 Up-link port(s) |
Port speed | 10/100 Mbps |
MAC address table | 1 K |
Power supply | 25.5 W per port (120 W for the entire device) |
PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
Power | DC 48-56 V / 2.5 A |
Operating temperature | 0º C - 55º C |
Dimensions / Weight | 105 (D) x 28 (H) x 220 (W) mm / 600 g |
