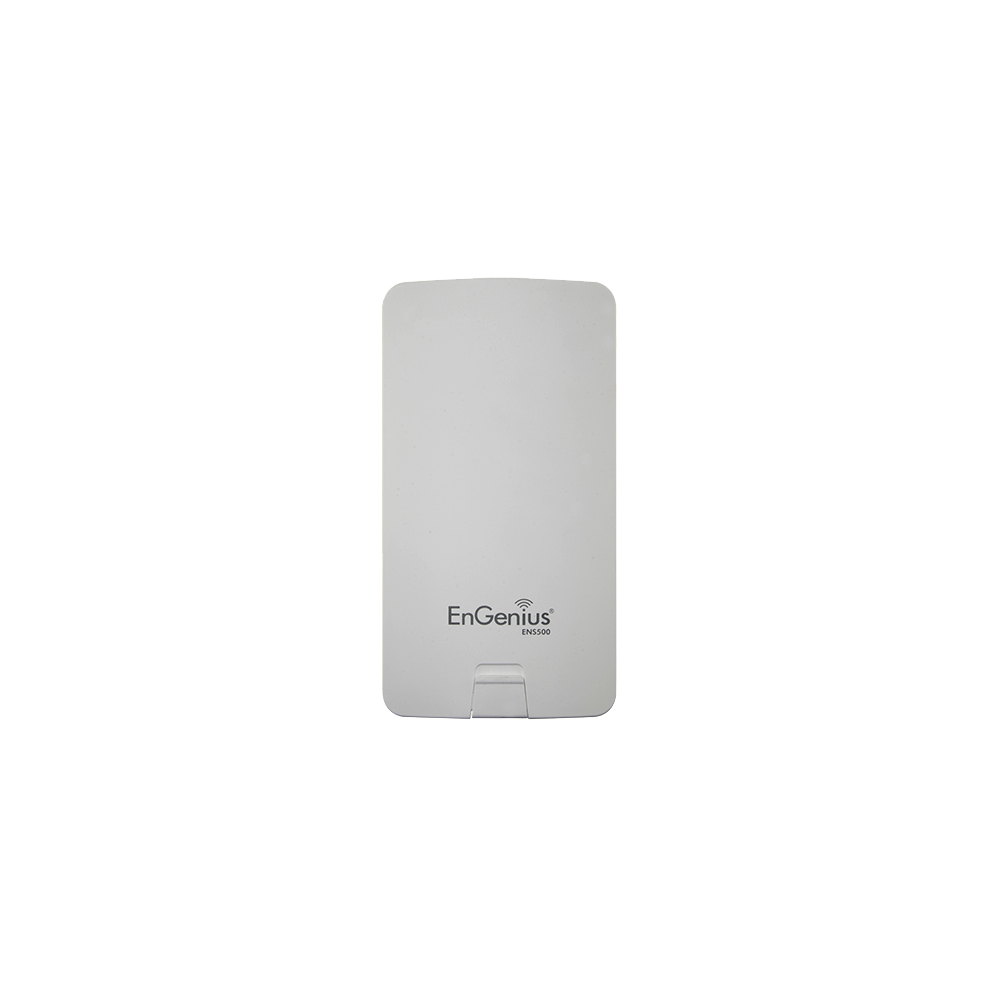

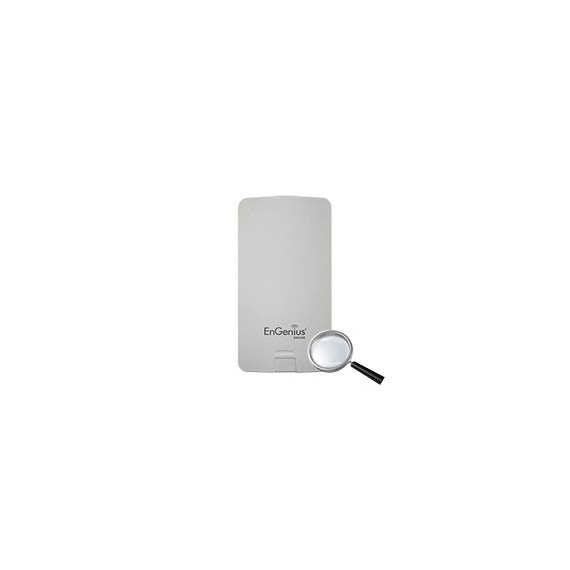

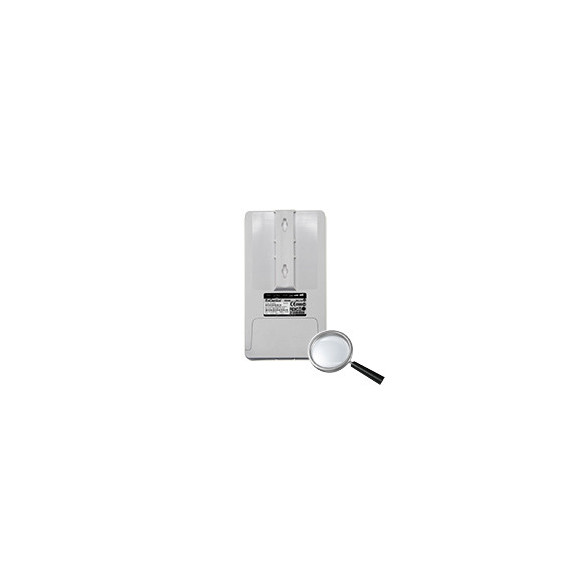

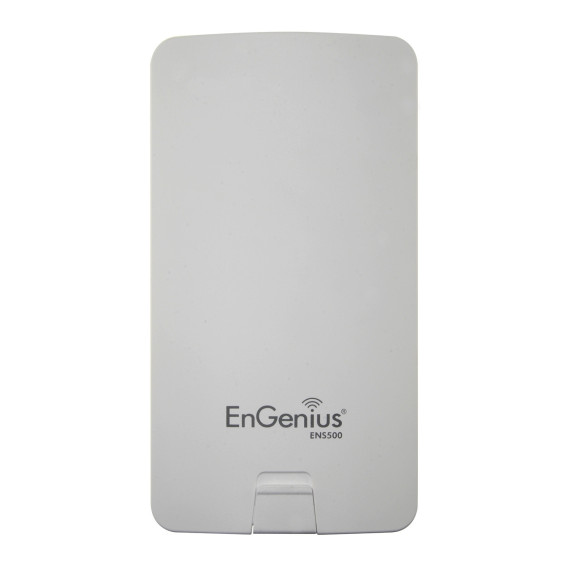

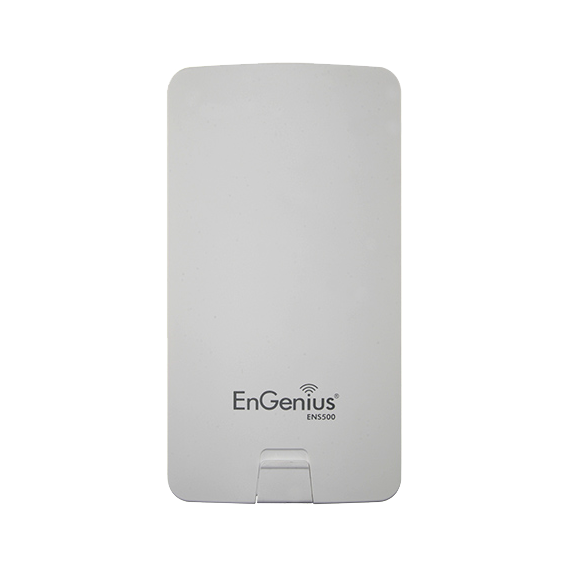

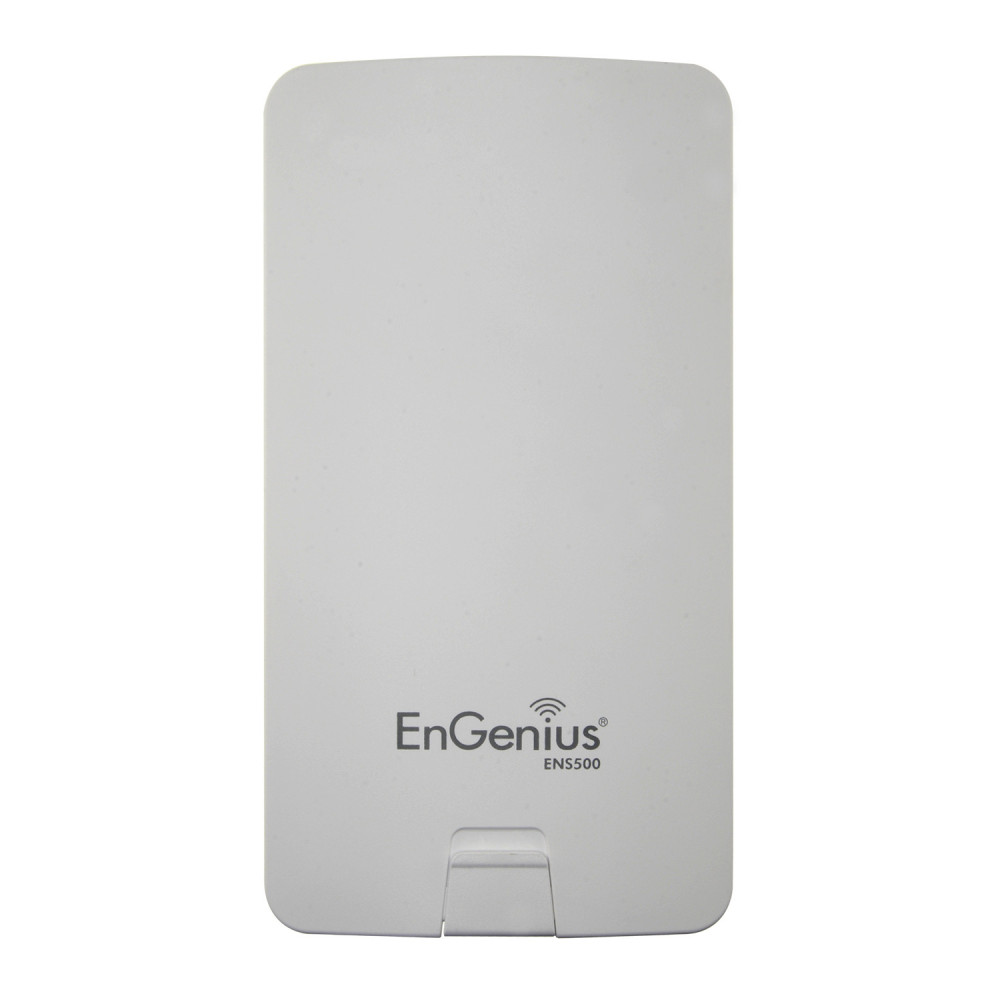

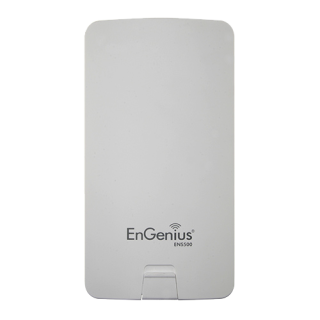

Outdoor, long range, wireless data link 802.11a/n compliant for data transmission speeds of up to 300 Mbps.

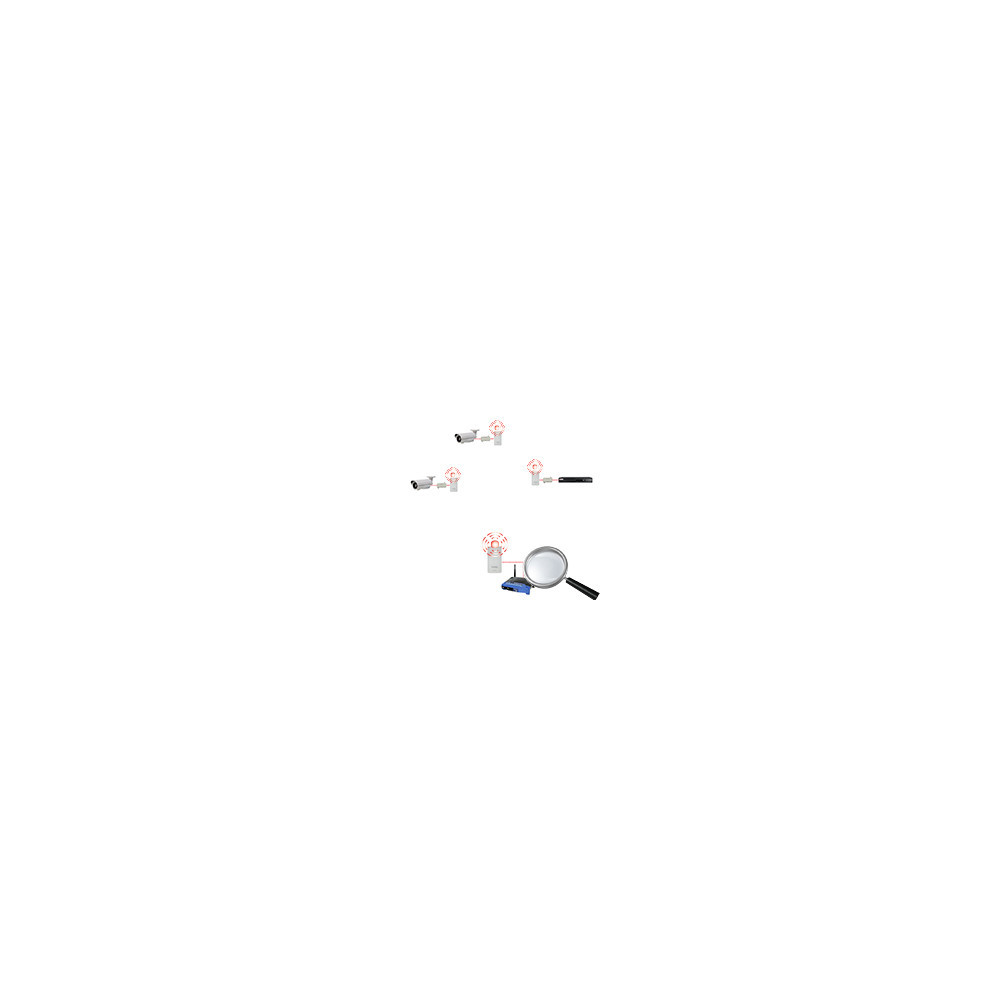

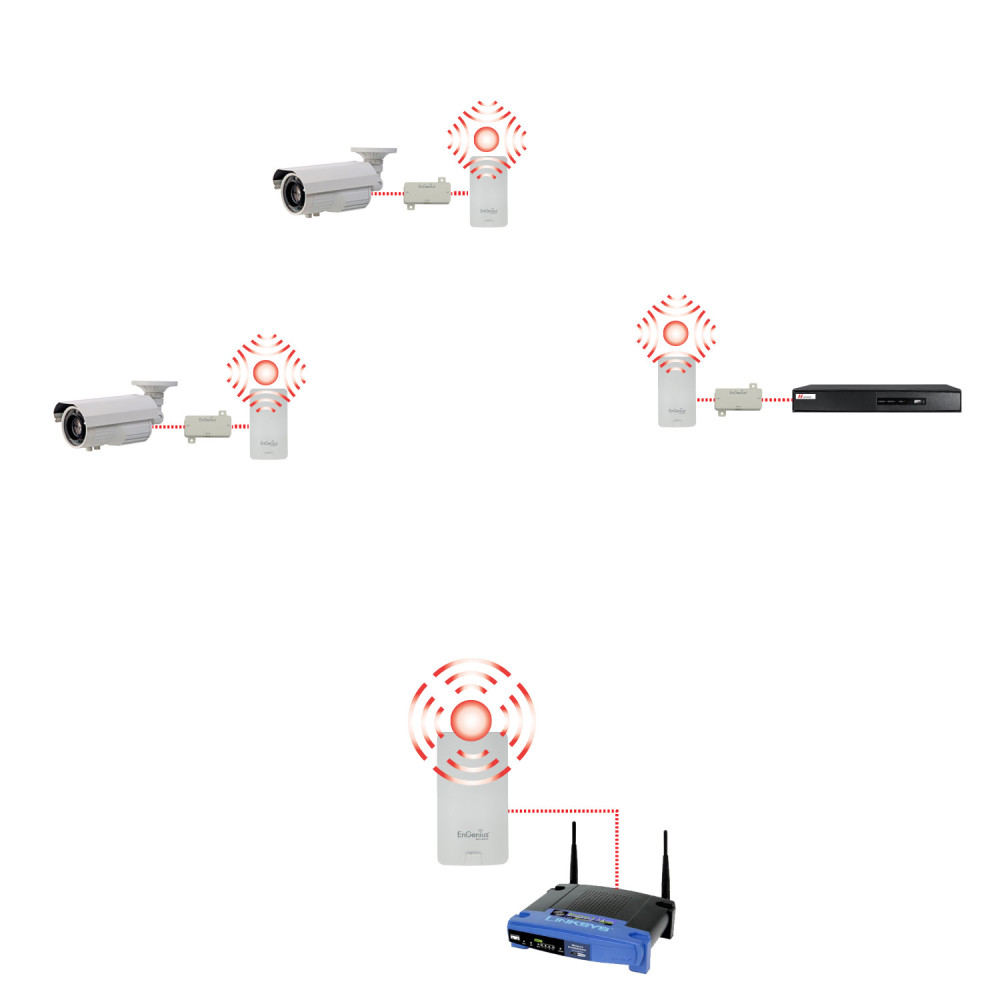

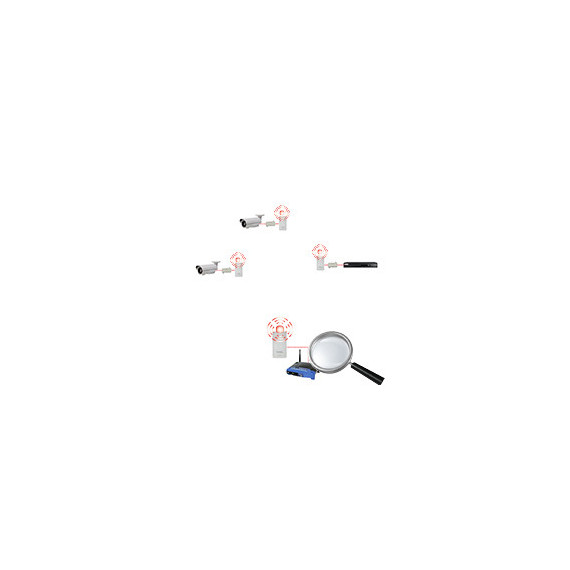

The ENS500 is the ideal solution for wirelessly connecting cameras with IP NVR's, working in the 5.4GHz & 5.8GHzGHz frequencies it avoids the usual, saturated, 2.4GHz band. The dual omnidirectional exterior 10dBi antennas, MIMO technology (multiple transmission/reception) and a maximum transmission power of 26dBm (configurable) makes this ideal for wireless bridges of up to several kilometres (exact distance depends on the topology). The antenna radiates 60º on the azimuth (horizontal plane) and 60º elevation (vertical plane).
Con un grado de protección IP65 y rango de temperatura de funcionamiento de -20 a 70ºC puede trabajar en exteriores en las condiciones más inhóspitas.
The ENS500 can work in several modes, both as an access point and as a wifi client, so with a single device you can implement most wireless network node types with total security: WEP & WAP encryption, WAP2, authentication 802.1x, hidden SSID and MAC address filtering. It supports work mode "point to point" and "point to multi-point".

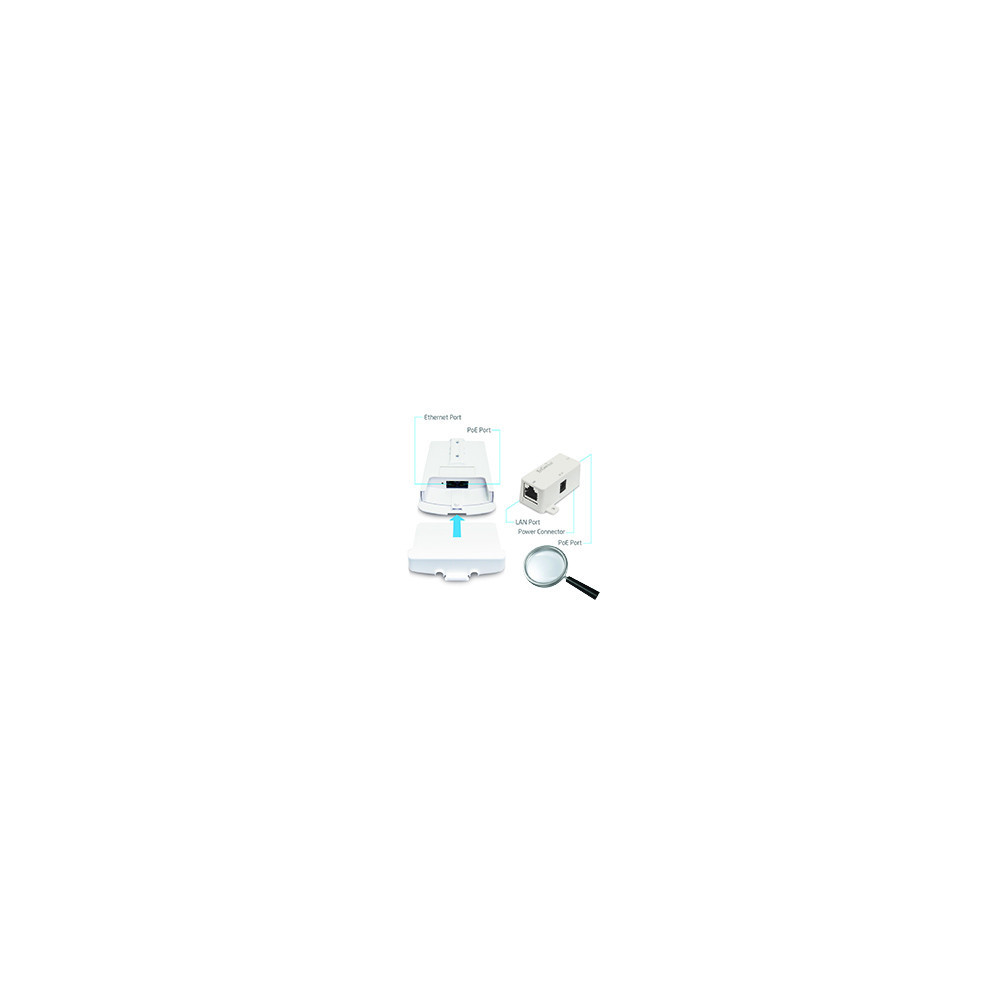

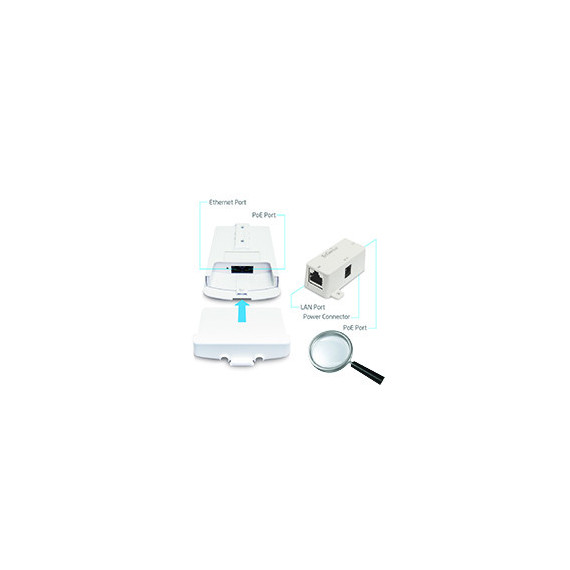

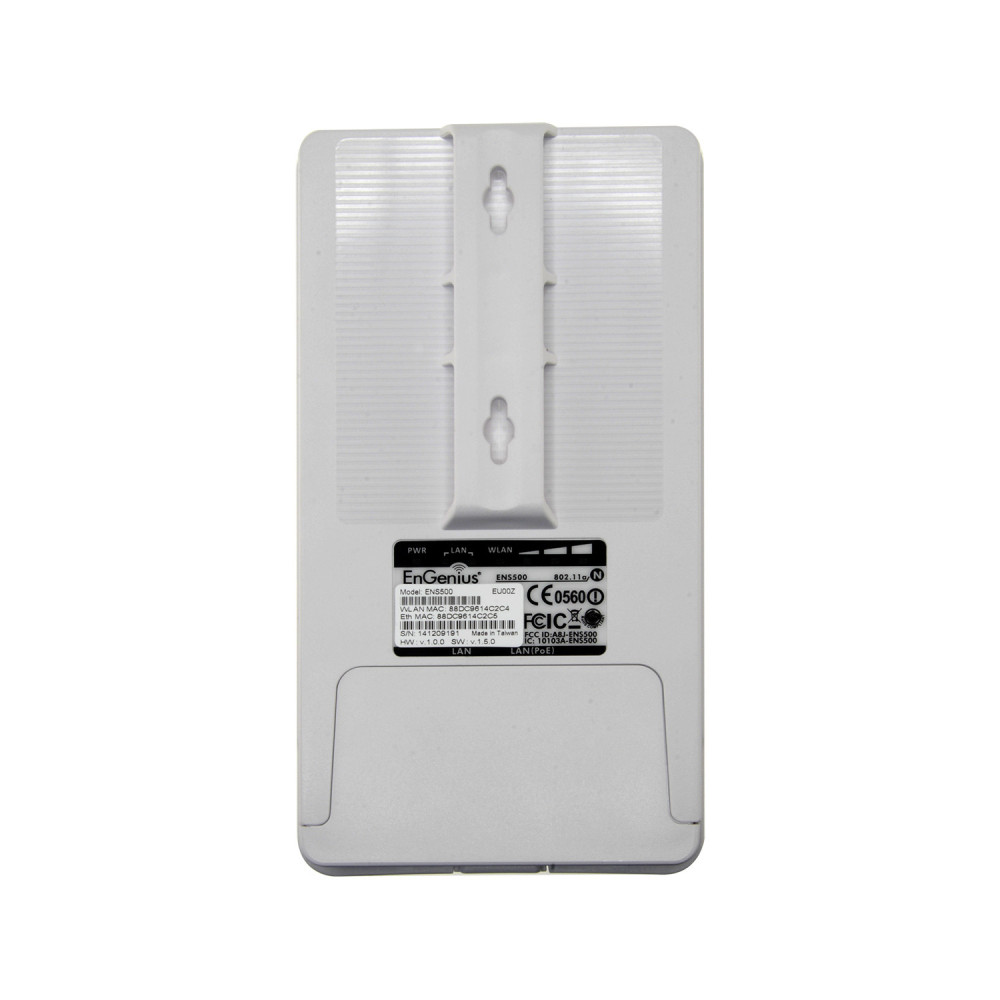

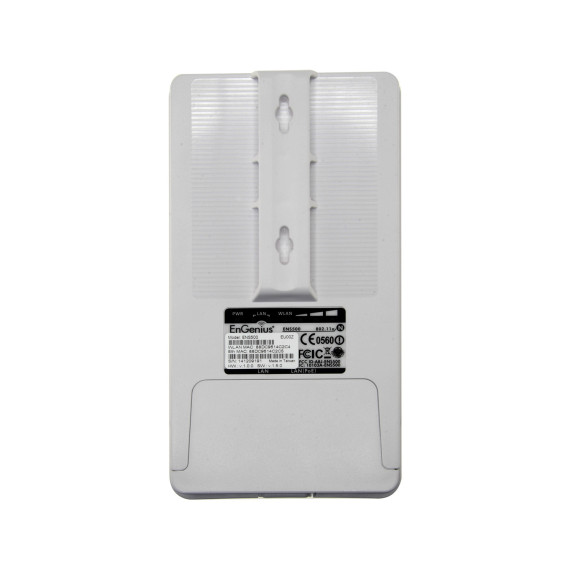

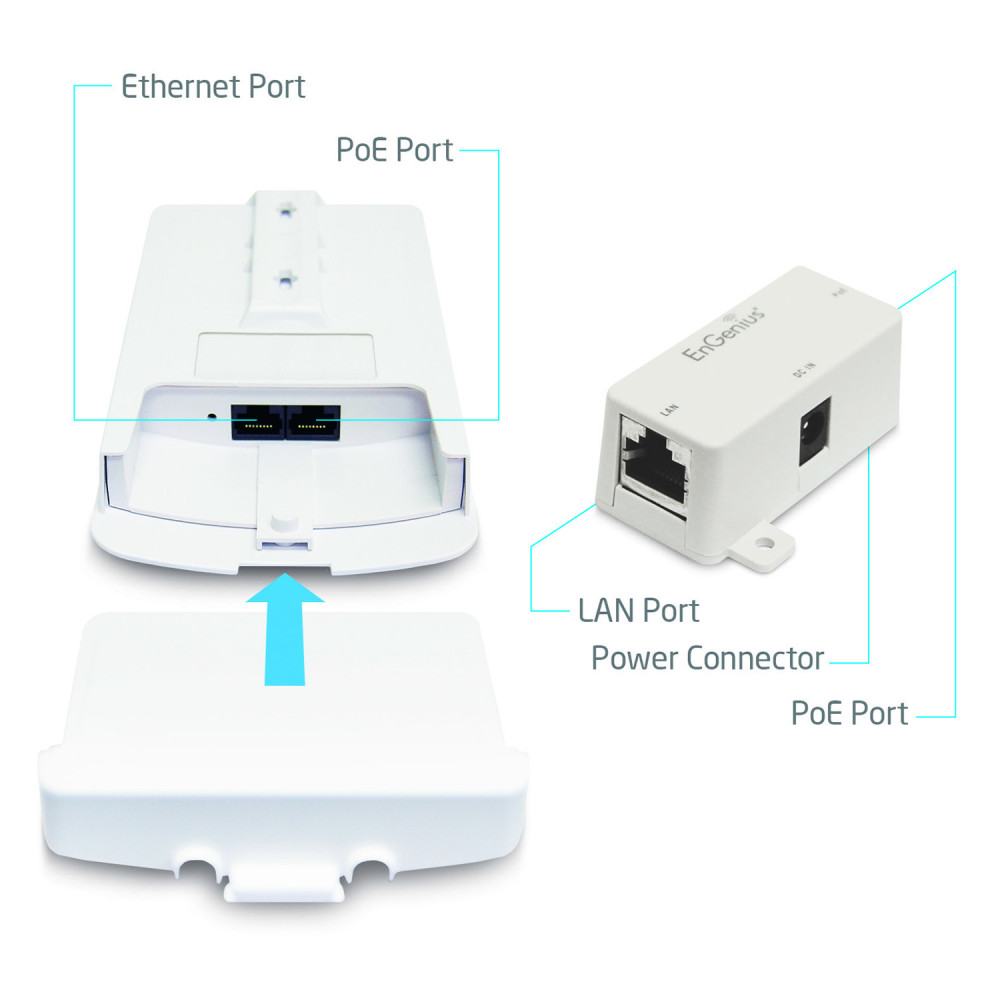

Web configurable, dual Ethernet ports, PoE injector and the signal level LED's make this an easy to deploy device.
| Wireless Standard | 802.11 a/n |
| Frequencies | 5.18GHz – 5.82 GHz |
| Maximum transmission power | 400 mW (26 dBm) |
| Maximum sensibility | 95 dBm at MCS0/MCS8 |
| Integrated antenna | 10 dB (60º Az y 60º E). Dual polarization |
| WiFi modes | Access point, Client bridge, WDS, Client Router |
| Security | WEP/WPA2/SSID cloaking/MAC Address filtering |
| Networking | DHCP, VPN, PPTP, PPoE, spanning tree, bandwidth reservation |
| Management | Configuration via web interface |
| Power | PoE (own design) |
| Operating temperature | -20ºC – 70ºC |
| Weight | 220gr |
