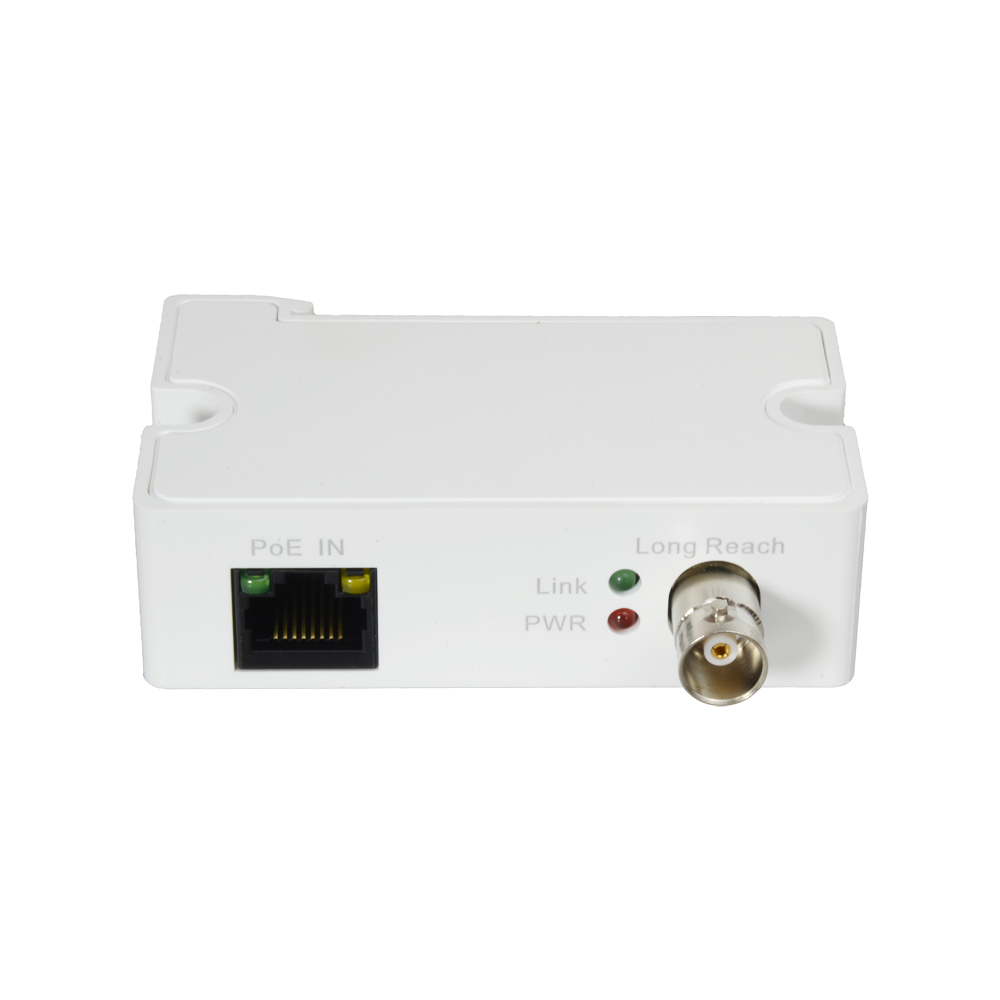

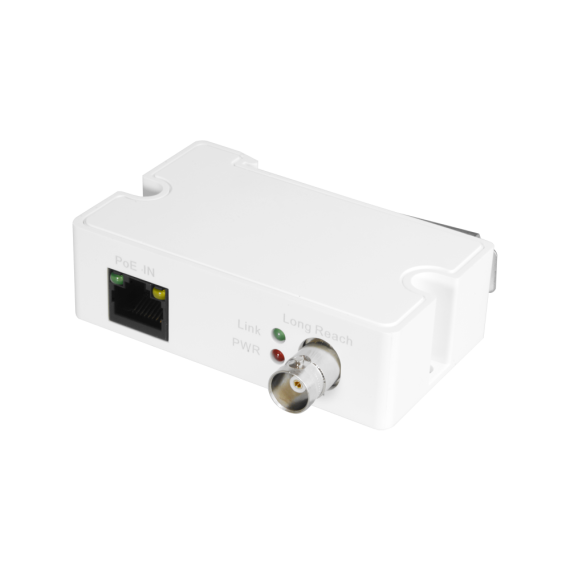

DAHUA LR1002-1EC

DAHUA LR1002-1EC

Branded EoC extender - Ethernet over coaxial cable - Active | Specific ePoE - Emitter compatible with range LR1002 - Allows transmission 1 IP channel - Maximum distance 1.000 m

Les merShow less

kr 665.85

Referanse:

LR1002-1EC

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Branded
Ethernet Extender via Coax
Active emitter
Converts PoE/PoE+ to ePoE
Transmit 1 IP link(s)
Maximum distance 1000 m at 10 Mbps or 400 m at 100 Mbps
Supports ePoE 48V and 53V

Compatible with Ethernet over coax LR1002

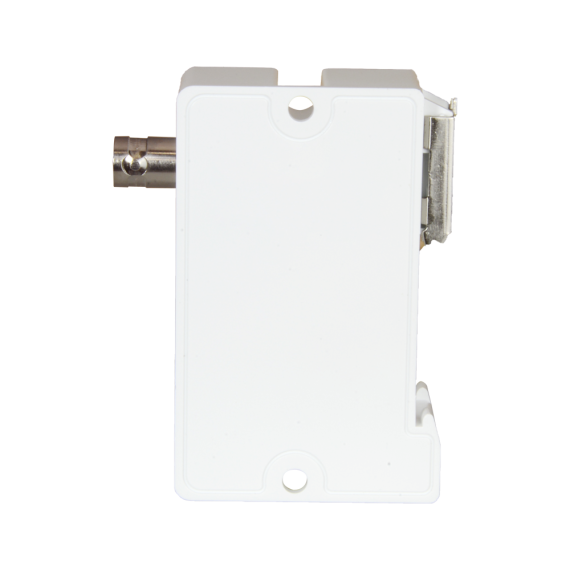

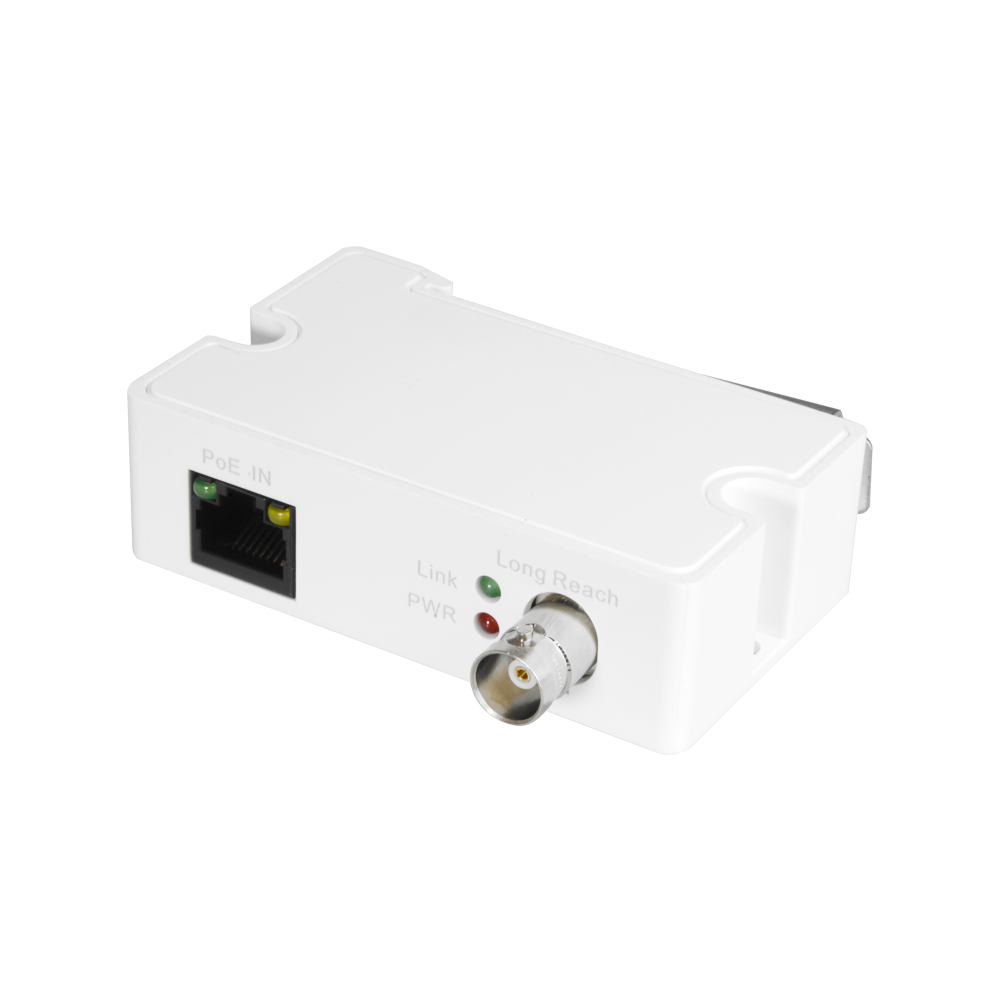

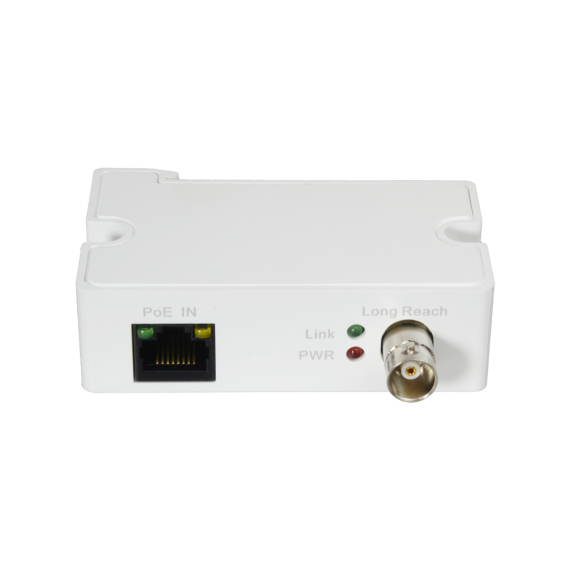

Connection over coaxial	Female BNC connector and RJ45 connector
Datarate	100Mbps symmetrical (100Mbps upstream, 100Mbps downstream)
Distance over coaxial	100 m between extenders up to 100Mbps (Up to 21W powered with 48V DC and 25.5W powered with 53V DC) 400 m between extenders up to 100Mbps (Up to 9W powered with 48V DC and 16W powered with 53V DC) 800 m between extenders up to 10Mbps (Up to 5W powered with 48V DC and 8W powered with 53V DC) 1000 m between extenders up to 10Mbps (Up to 4W powered with 48V DC and 6W powered with 53V DC)
Connection	Converter for Switch / Emitter
PoE Protocol	PoE (IEEE802.3af/at) or Hi-PoE \| ePoE 48V
Weight	61 g

Les merShow less

Produktdetaljer

Referanse LR1002-1EC
