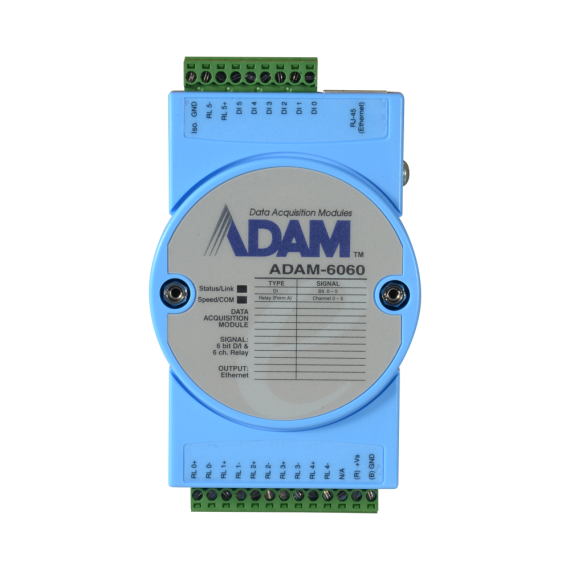

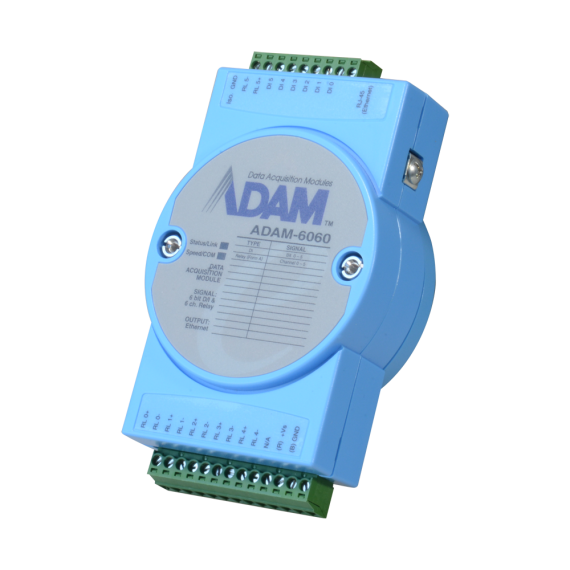

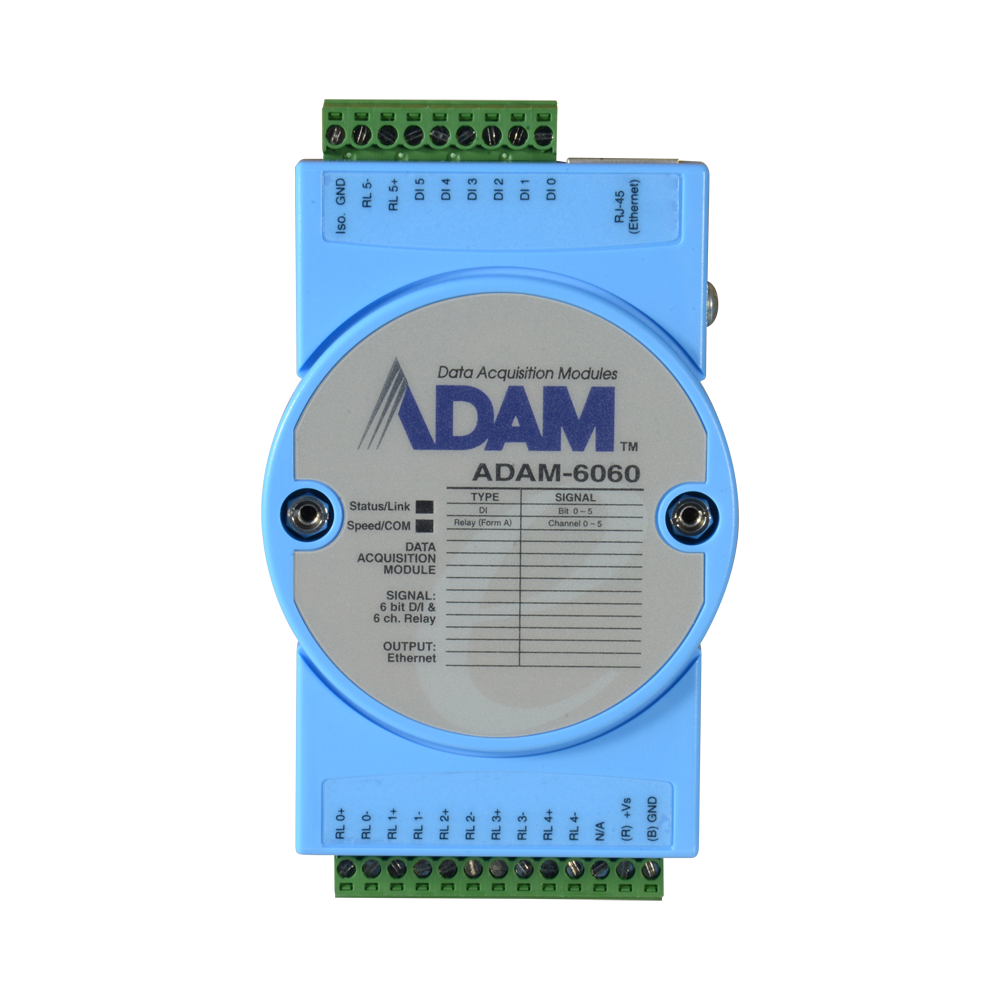

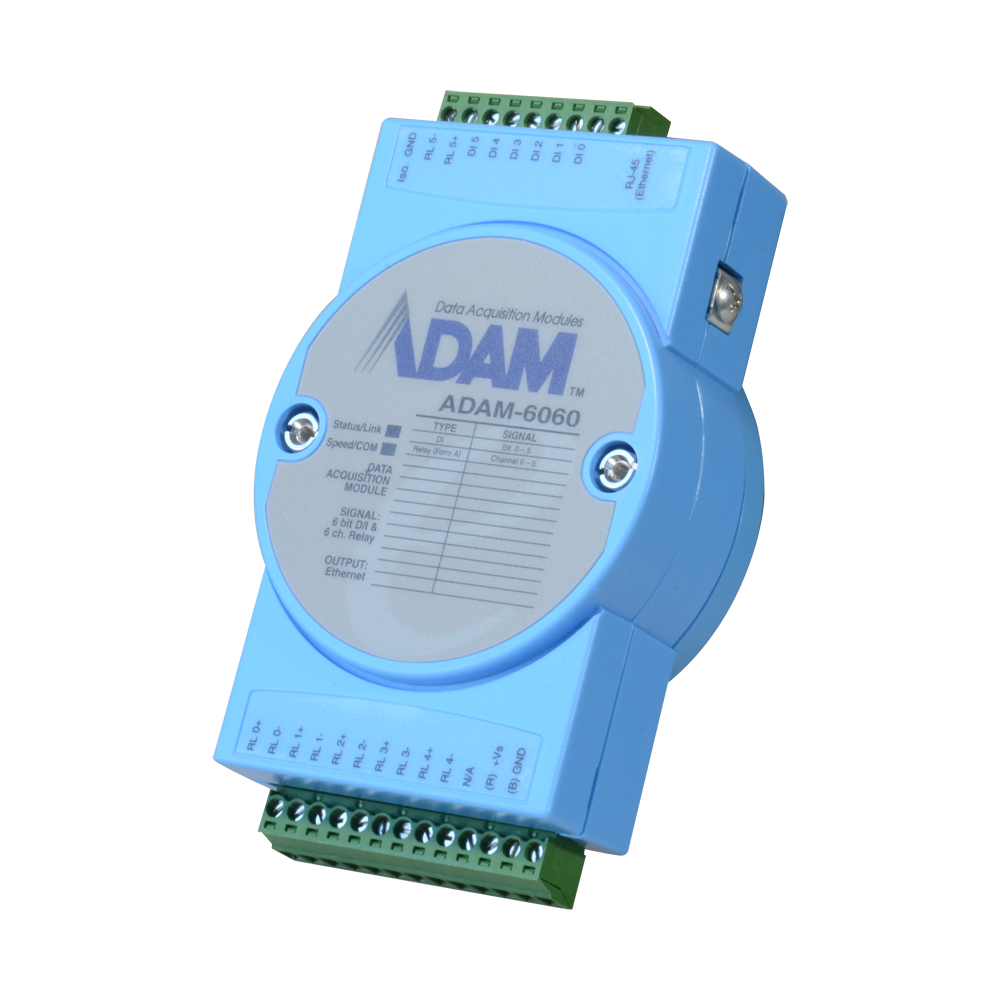

MARCA BLANCA ADAM-6060-B

Data acquisition and control module - 6 digital inputs / 6 relay outputs - Protocols: Modbus/TCP, TCP/IP, UDP, HTTP,... - Ability to create analog control rules - Integrated web server - 1 Ethernet port 10/100 Base-TX

Les merShow less

kr 6,369.00

Referanse:

ADAM-6060-B

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Data Acquisition and Control (DA&C) Modules
6 digital inputs and 6 relay outputs
LED indicator
Protocols: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Web language support: XML, HTML 5, Java Script
Ability to create analog control rules
Connection to the cloud: Enables remote monitoring and control as well as updating data with Azure
Automatic rerouting function to ensure daisy-chained data transmission
Integrated web server
Watchdog function for system recovery
1 Ethernet port 10/100 Base-TX

Inputs	6 Digital
Outputs	6 relays
Protocols	Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP
Supported web languages	XML, HTML 5, Java Script
Communication	1 Port 10/100 Base-TX
Watchdog	System: 1.6 seconds Communication: Programmable
Connectors	Plug-in / screw-tightening connectors
Dimensions	70x122x27mm
Temperature	Functioning: -40~70ºC Storage: -40~80ºC
Humidity	Functioning:20~95% (without condensation) Storage: 0~95% (without condensation)
Power	10~30VDC (24VDC Standard)
Consumption	2W@24VDC
Protection	TVS / ESD Power reversal protection Overvoltage protection: +/- 35VDC Insulation protection: 2500 VDC
