Ultra-miniature wired camera, high quality and low light, with microphone and wide angle lens.
Consisting of a sensor 1/4" Aptina© 960H CMOS (model MT9V139) with a resolution of 800 TVL. It has external microphone, which incorporates audio to the image. Fixed lens of 1.8 mm with a diagonal vision field of 94º. Minimum illumination of 0.1 Lux. Day/Night function sensitive to infrared lighting. Connecting video and audio via RCA connector.

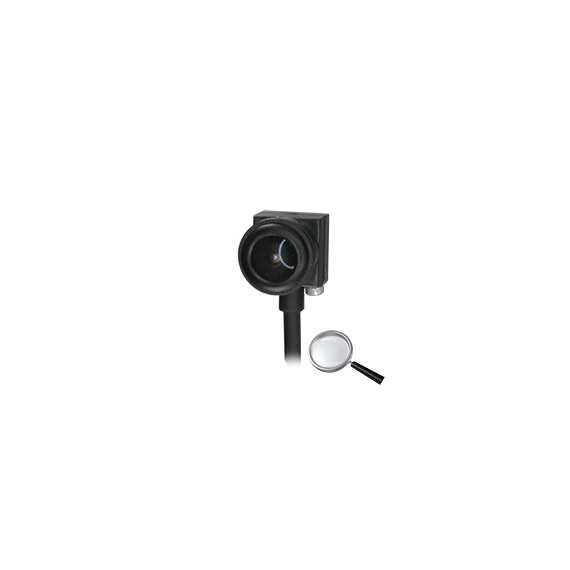

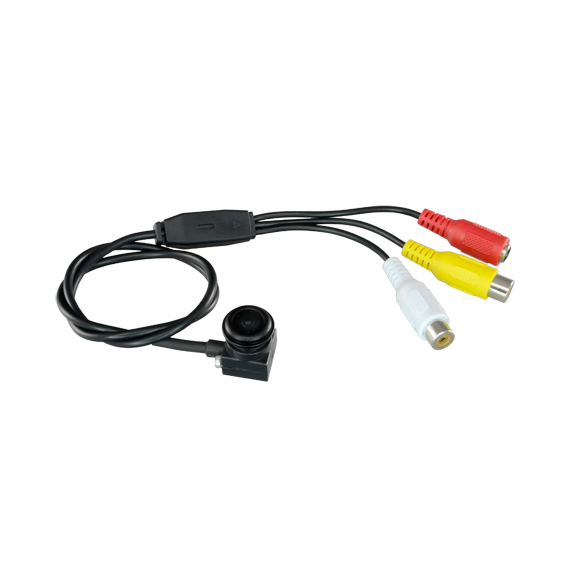

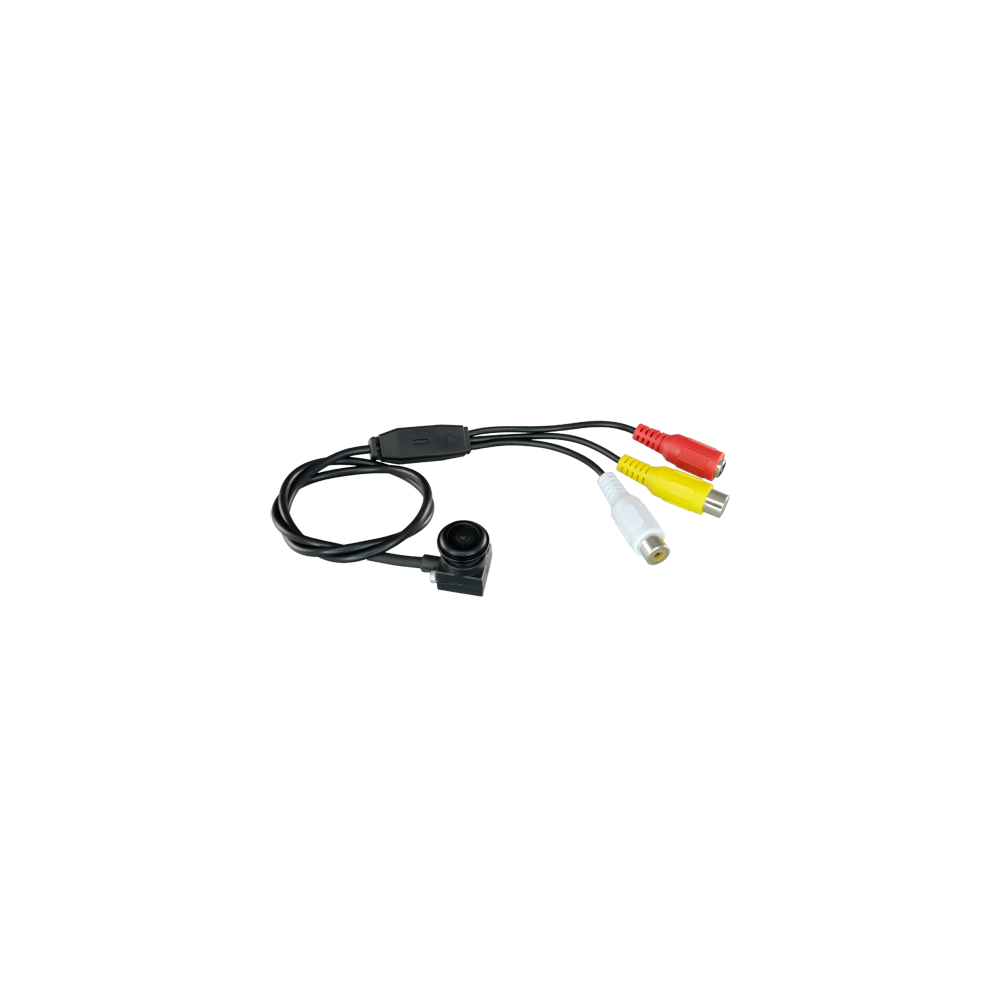

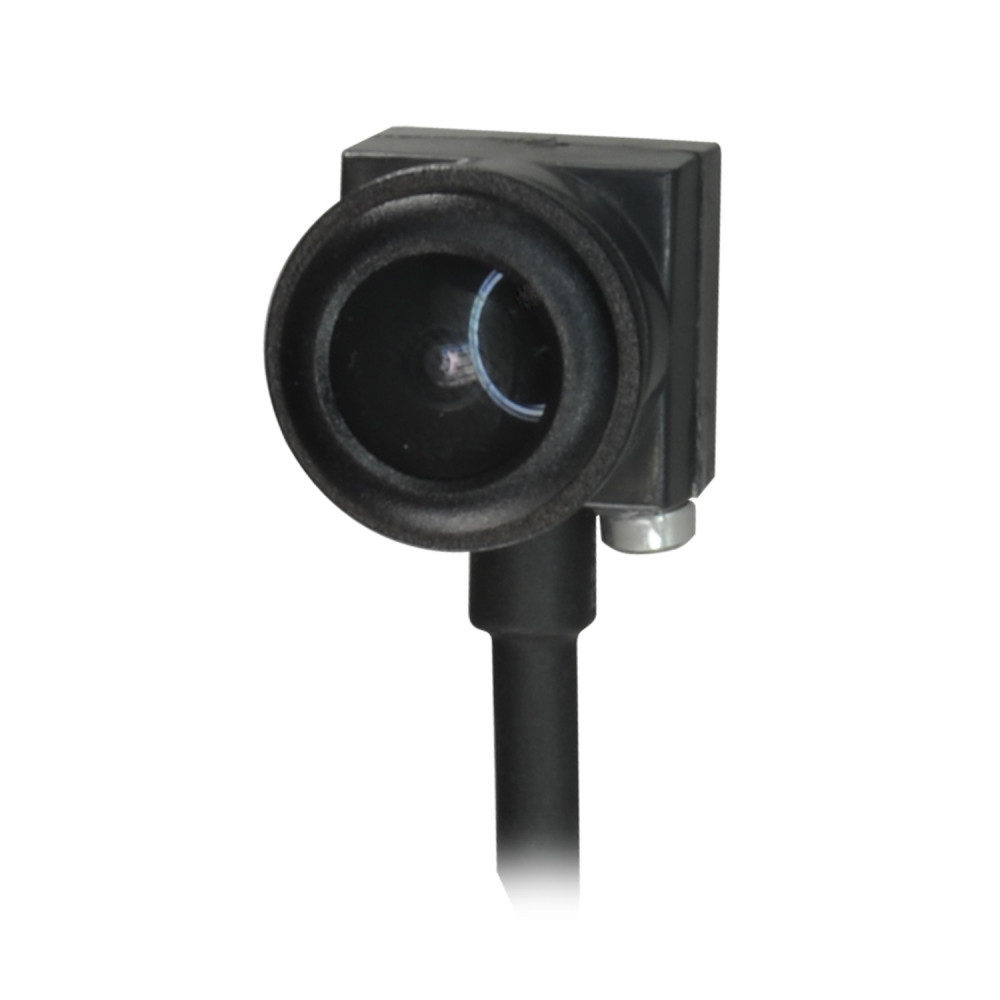

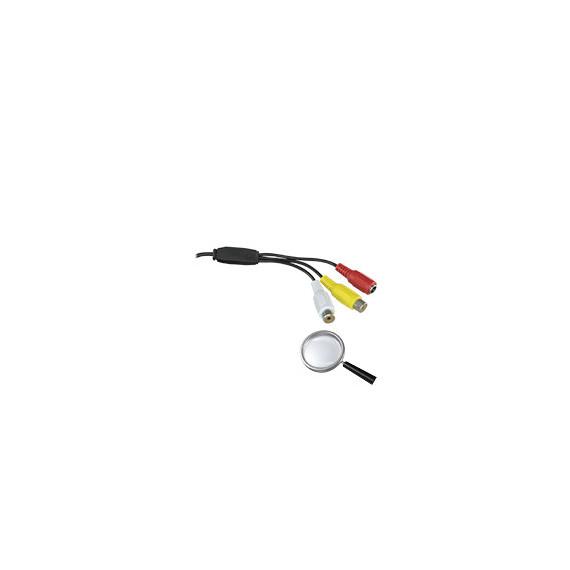

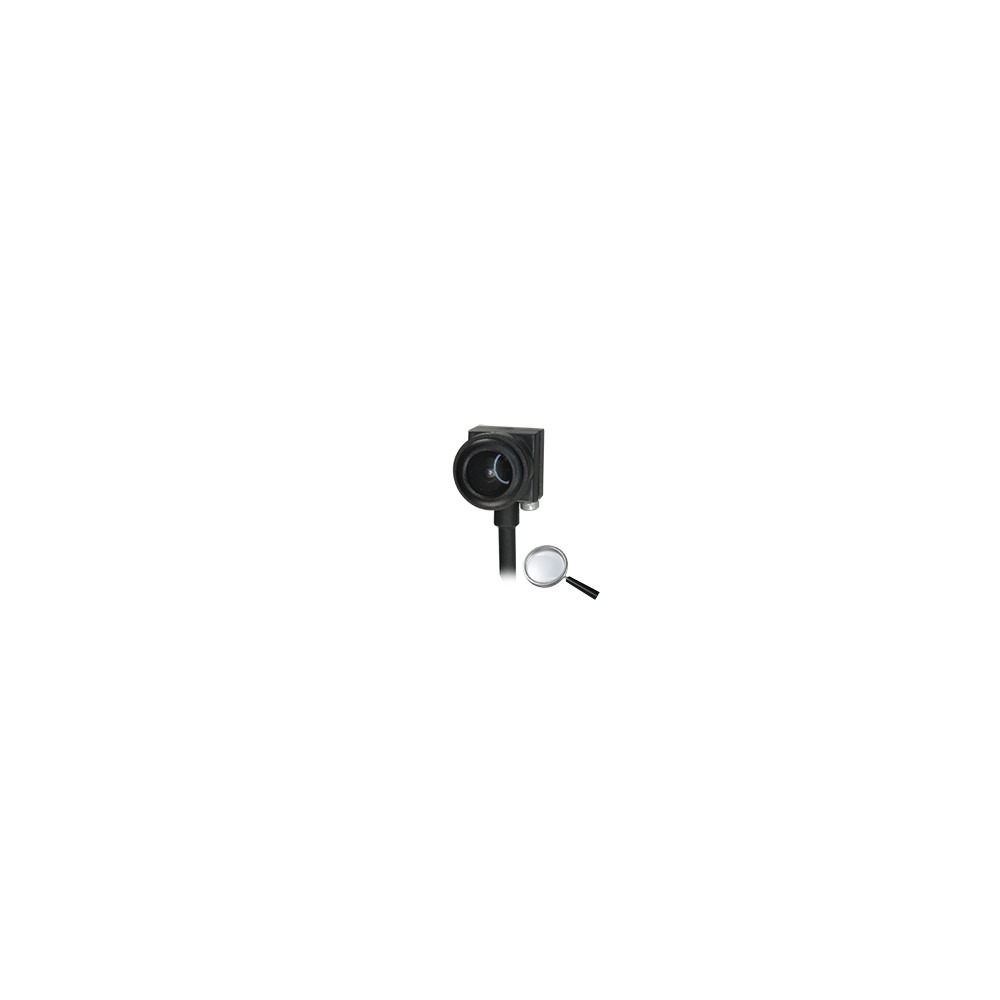

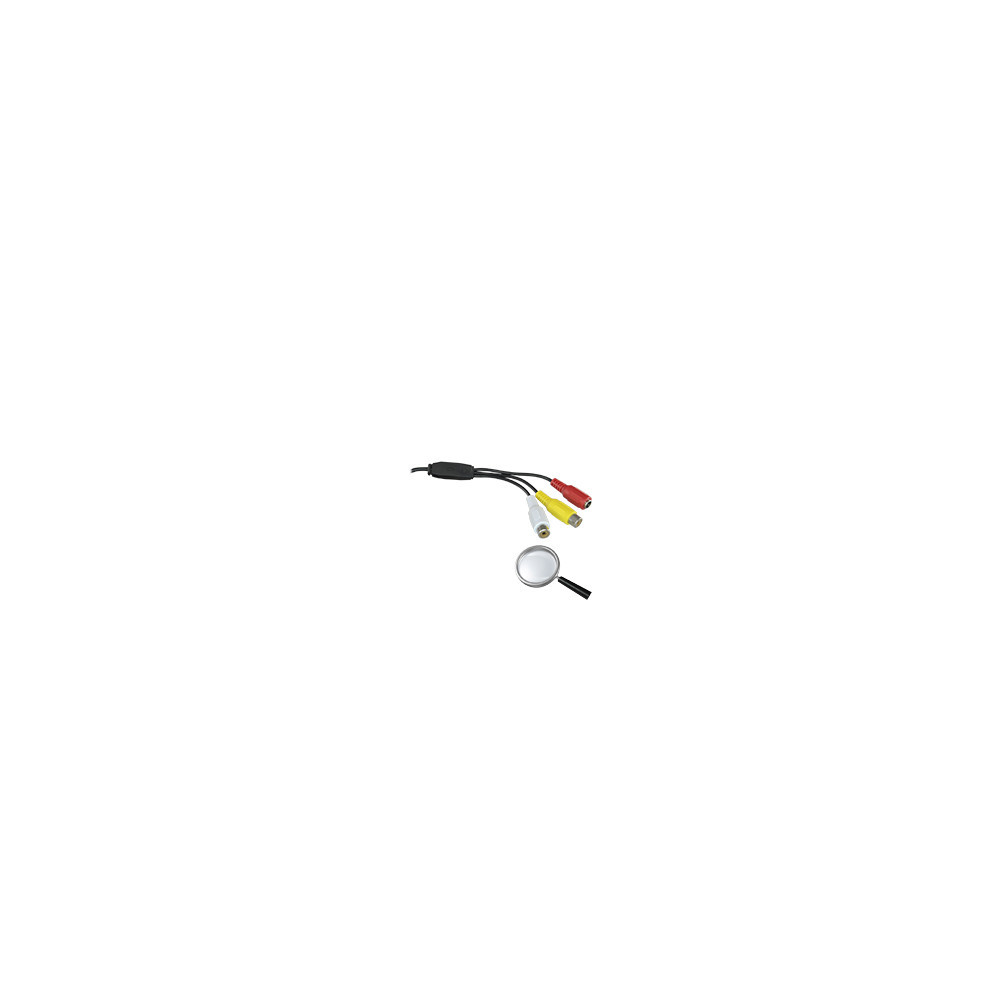

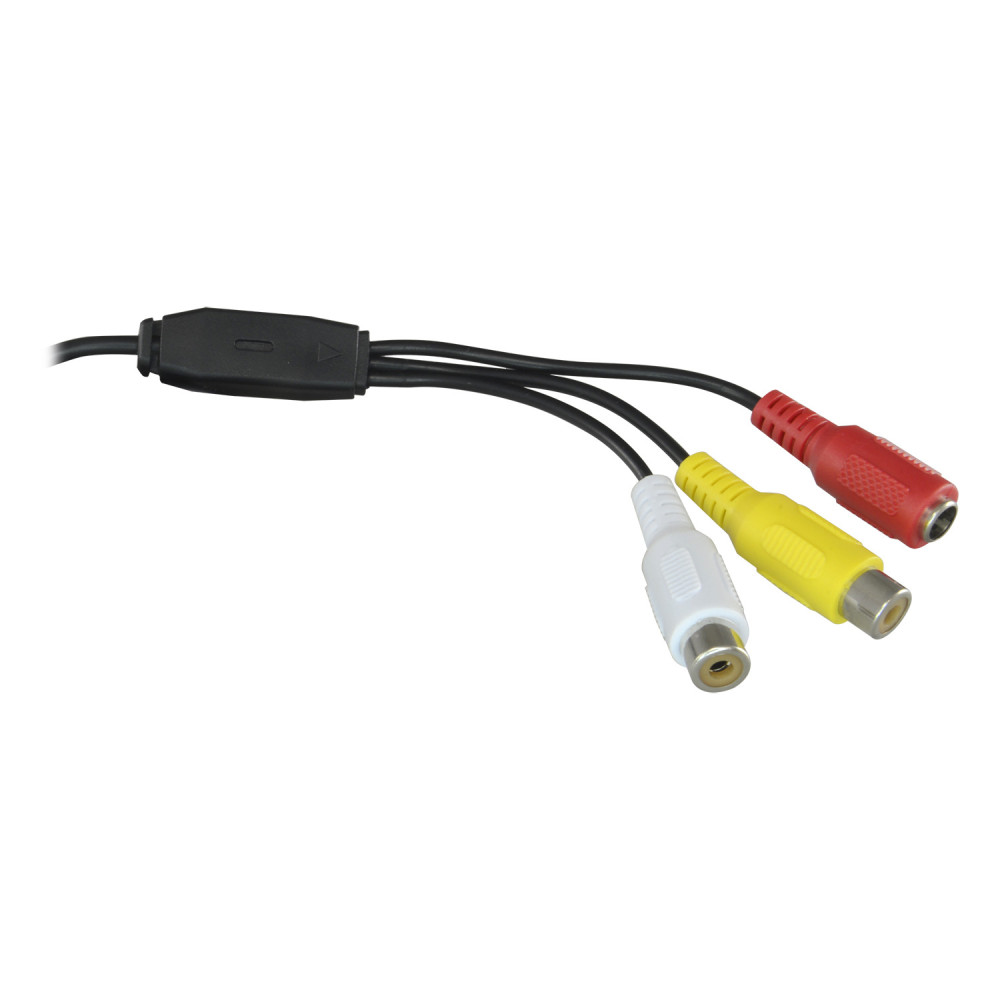

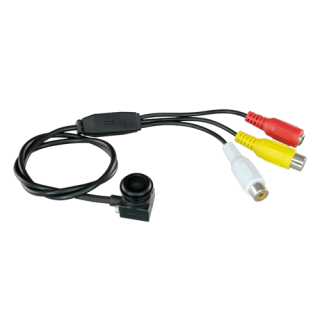

Incredible size for a high quality camera that is composed of three parts: First of all the lens with a straight head and small dimensions of only 14 x 14 x 20 mm; secondly the electronics, separated by a flexible cable of 500 mm; and finally the audio, video and power connectors.
The camera does its job with total discretion given the possibility to hide it anywhere. Finally, the microphone is integrated in the camera head.
| Image sensor | 1/4" Aptina© 960H CMOS (model MT9V139) |
| DSP | Integrated |
| Resolution | 800 TVL |
| Video output | 1 RCA |
| Audio output | 1 RCA |
| Minimum illumination | 0.1 Lux / F2.0 (IR sensitive) |
| Lens | 1.8 mm (D:94º) |
| Power | DC 12 V / 90 mA (DC 5~15V) |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 14 (H) x 14 (W) x 20 (D) mm |
| Weight | 27 g |
