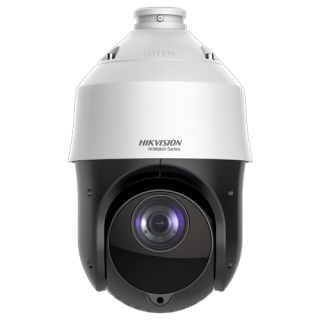

| Brand | Hikvision |
| Range | HiWatch Series |
| Image sensor | 1/2.8“ Progressive Scan CMOS |
| Resolution | 1080p (1920x1080) at 25 FPS |
| Video output | BNC in HDTVI & CVBS formats |
| Minimum illumination | 0.005 Lux (colour) / 0.001 Lux (B/N) |
| Infrared lighting | Automatic IR LED's, range 100 metres |
| Lens | Varifocal 4.8~120.0 mm (Optical Zoom 25X) |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/10,000s |
| Day / Night | Removable mechanical ICR filter |
| Noise reduction | 3D-NR |
| Gain Control | Auto / Manual |
| Backlight compensation | BLC / WDR |
| White balance | Auto, ATW, Interior, Exterior, Manual |
| Privacy masks | Up to 8 areas |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180° |
| Manual speed | Horizontal: 0.1°~80° /s, Vertical: 0.1° ~80°/s |
| Speed between Presets | Horizontal: 80° /s, Vertical: 80° /s |
| Preset positions | 256 preset, 5 auto pattern, 10 auto tour, auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / Hikvision |
| Audio | No |
| Alarms | No |
| Power | DC 12 V / 1,5 A |
| Temp. operation | -30º C ~ +65º C |
| Degree of protection | IP66 / Surges 4000V |
| Dimensions (without bracket) | 290 mm (H) x 165.9 (Ø) mm |
| Weight (without bracket) | 2000 g |
