Brand | X-Security | Image sensor | 1/2.7” STARVIS CMOS |
Resolution | 1080p(1920x1080), 720p(1280x720), D1(704x576), CIF(352x288) |
Compression | H.265+/H.265/H.264+/H.264 |
Main Stream rate | 1080p (1~25FPS) / 720p(1~50FPS) |
Extra Stream rate | 2º: D1/CIF (1 ~ 25 FPS), 3º: 720p/D1/CIF (1 ~ 25 FPS) |
Bitrate | 448 Kbps ~ 8192 Kbps |

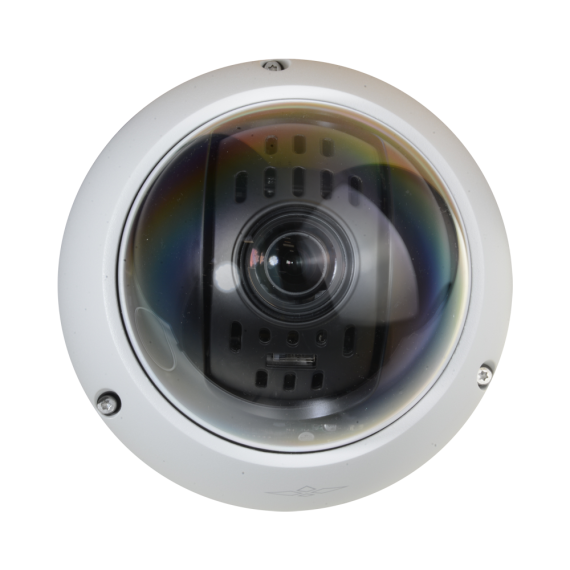

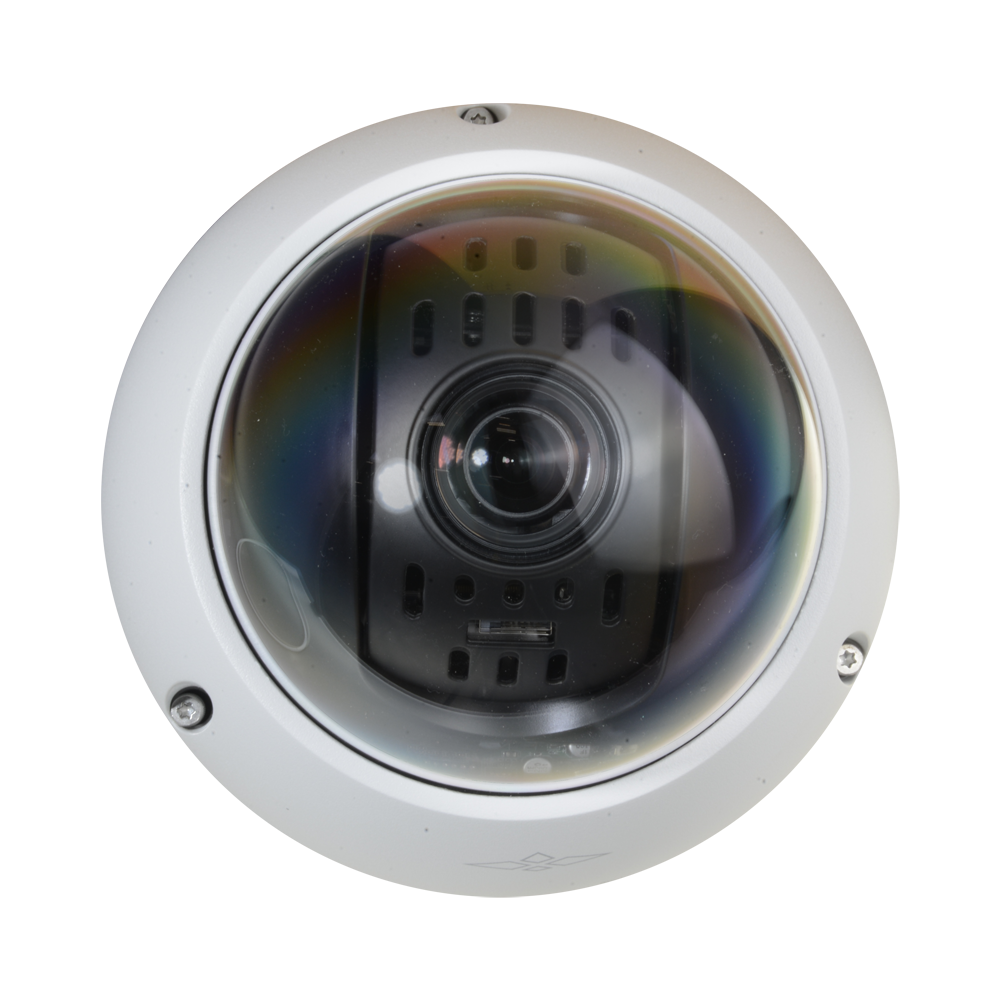

Lens | 5.1 ~ 61.2 mm (Optical Zoom 12X) Auto Focus |
Digital zoom | 16 X |
Image improvements | WDR (120dB), 3DNR, HLC, BLC, AGC, Privacy Mask, Motion Detection |
Intelligent detection | Tripwire, Perimeter, Lost/Abandoned object |
Minimum illumination | 0.005 Lux (colour) / 0.0005 Lux (B/N) |
Day / Night | Removable mechanical ICR filter |
Network interface | Ethernet 10/100 BaseT |
Remote access | WEB interface, CMS software, mobile application and NVR |
Memory | Slot for Micro SD card (Max 128 GB) |
Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -2°~90°, Auto flip 180° |
Manual speed | Horizontal: 0.1°~300° /s, Vertical: 0.1°~1200° /s |
Speed between Presets | Horizontal: 300° /s, Vertical: 200° /s |
Preset positions | 300, 5 auto pattern, 8 auto tour, auto pan, 5 auto scan |
Communication | DH-SD, ONVIF Compatible |
Alarms | 2 inputs / 1 relay NO/NC |
Audio | 1 input (Line In) / 1 output (Line Out) |
Power | AC 24 V / 1.5 A , PoE+ IEEE802.3at |
Degree of protection | IP66, Vandal-proof to IK10 |
Temp. operation | -40º C ~ +60º C |
Dimensions | 155 mm (H) x 170 (Ø) mm |
Weight | 1800 g |
