JADE BIRD JBE-P2L1-EXLP
kr 2,111.03
JADE BIRD JBE-P2L1.1L

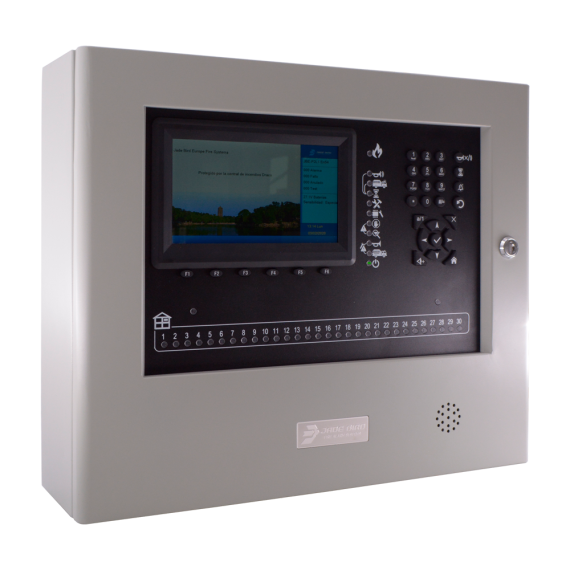

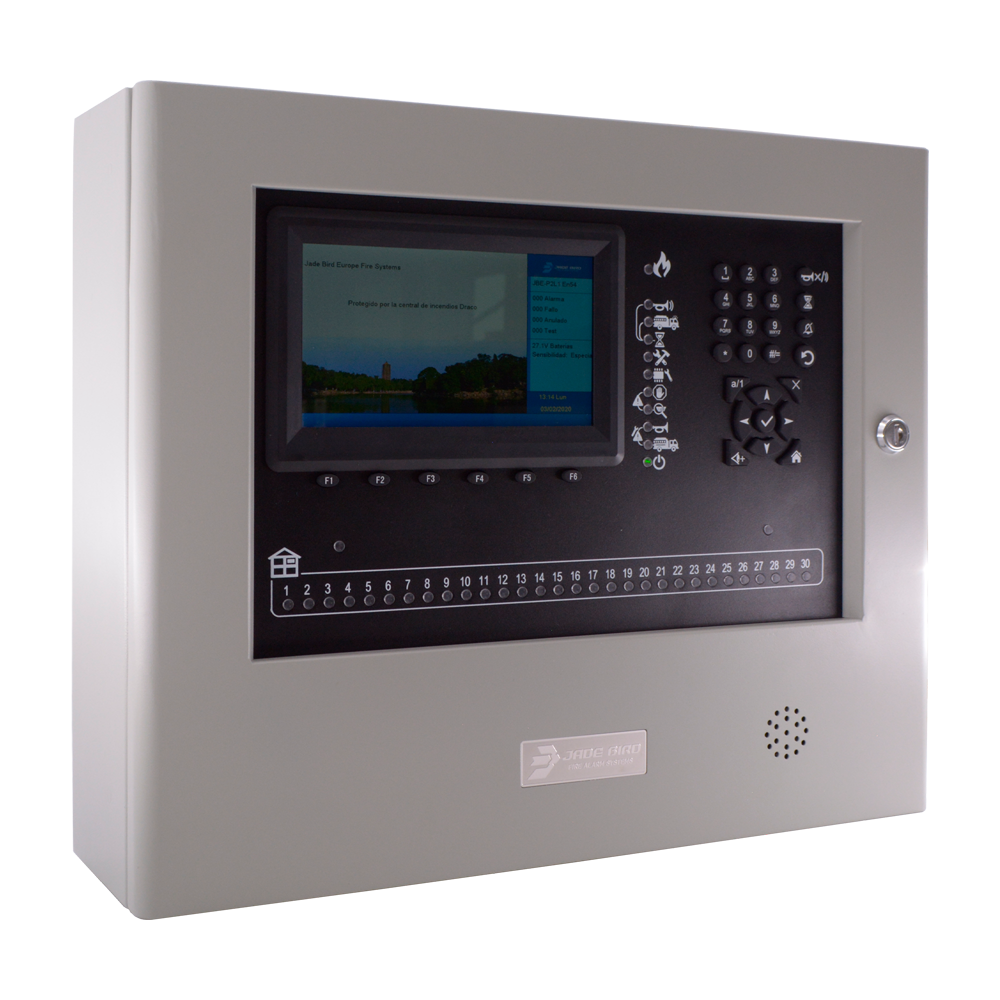

Jade Bird Analog Control Panel with 1 expandable loop - Up to 200 devices per loop - USB for programming and updating data - Color LCD display of 7” - EN54-2, EN54-4 Certificates
Les merShow less
kr 9,170.20
Referanse:
JBE-P2L1.1L
Merke:
![JADE BIRD]()
Relaterte produkter
- Jade Bird - Central de 1 lazo ampliable
- Color LCD display of 7"
- 200 dispositivos por lazo - Totalmente programable desde el panel frontal
- USB for programming data and firmware update
- Web service-based commissioning tool
- Portable programmer with device diagnostics function
- Up to 4 amps available for powering external devices
- Sturdy metal box with lockable front door
Number of address loops 1 (can be expanded to 2)) User selectable loop topologies Class A (ring) or Class B (piece up to 32 devices) 24 VDC outputs to field devices 2 Maximum number of devices 200 (can be expanded to 400)) Maximum number of output groups 400 Maximum loop distance 2.000 m Recommended cable type 2 x 1.5 mm² unshielded twisted pair Maximum number of addressable points 200 per Class A loop (max 2 x 200)) Loop voltage 20~30V Available current per loop 200 mA External power outputs 2 x 2A@24 VDC Cable input Perforations of Ø20 mm (14x) Alarm and Fault Outputs Normally open relays without voltage (up to 2A@30 VDC) Power 230 VAC (196 - 253 V) 2.5A max. Protection fuse 2.5 A Max. dC output direct current (Imax a) 5.5 A Max. alarm DC output current (Imax b) 4 A Battery capacity 2x 12V 7Ah~12Ah Operating temperature -5 to +40 °C Storing temperature -20 to +55 °C Humidity (non condensing) < 95 % Degree of protection IP30 Dimensions 440 (W) x 370 (H) x 126 (D) mm Weight (without batteries) 4 kg Standards EN 54-2 and EN 54-4 DoP DoP-0370-CPR-3813-1
Sist vist
JADE BIRD
Referanse: JBE-P2L1.1L
kr 9,170.20
Jade Bird Analog Control Panel with 1 expandable loop - Up to 200 devices per loop - USB for programming and updating data - Color LCD display of 7” - EN54-2, EN54-4 Certificates
