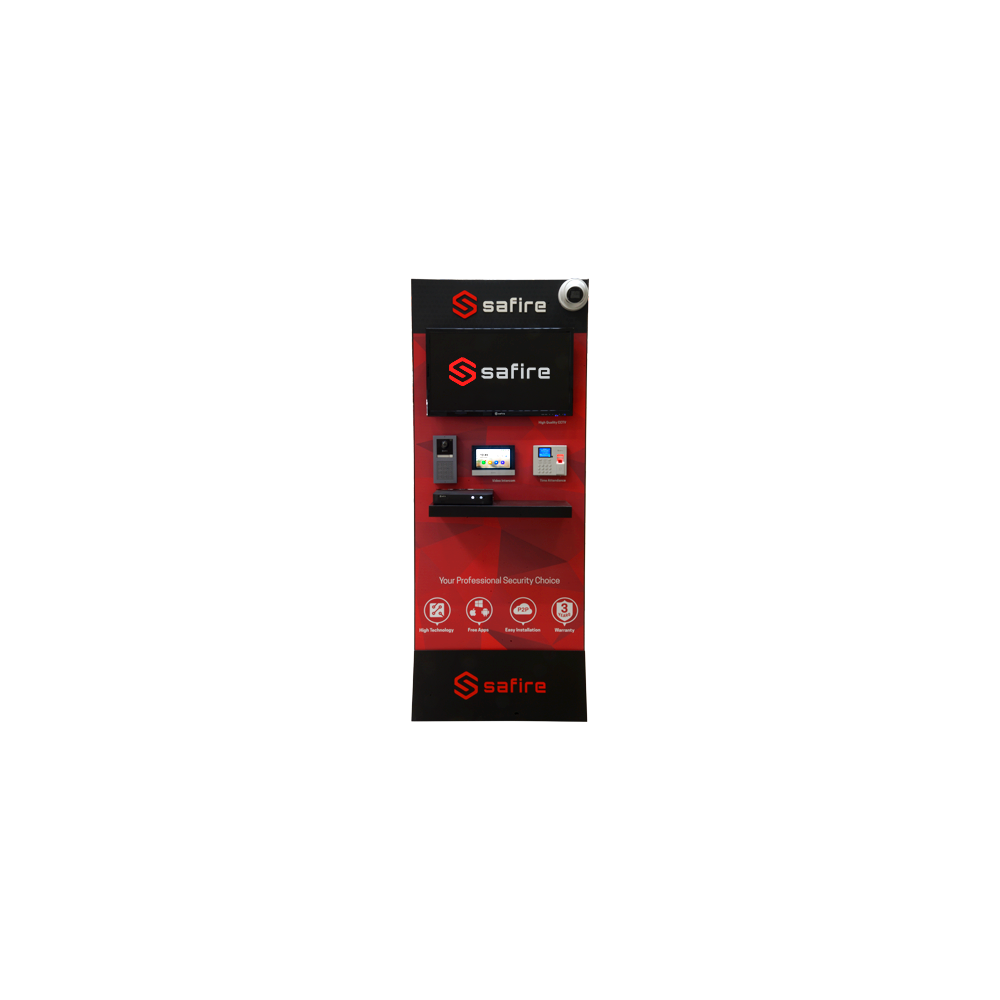

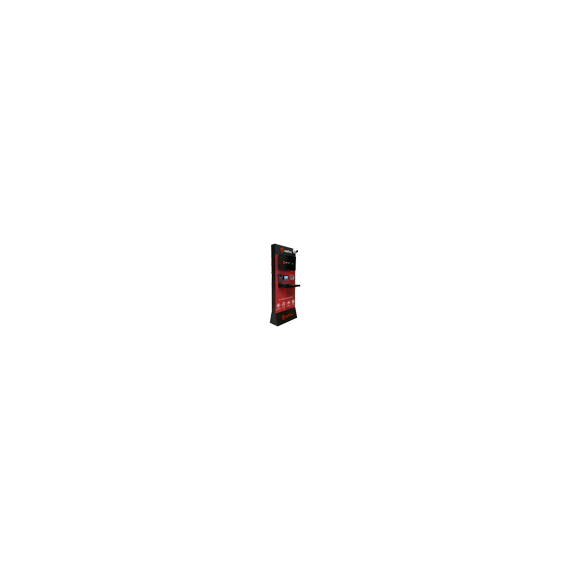

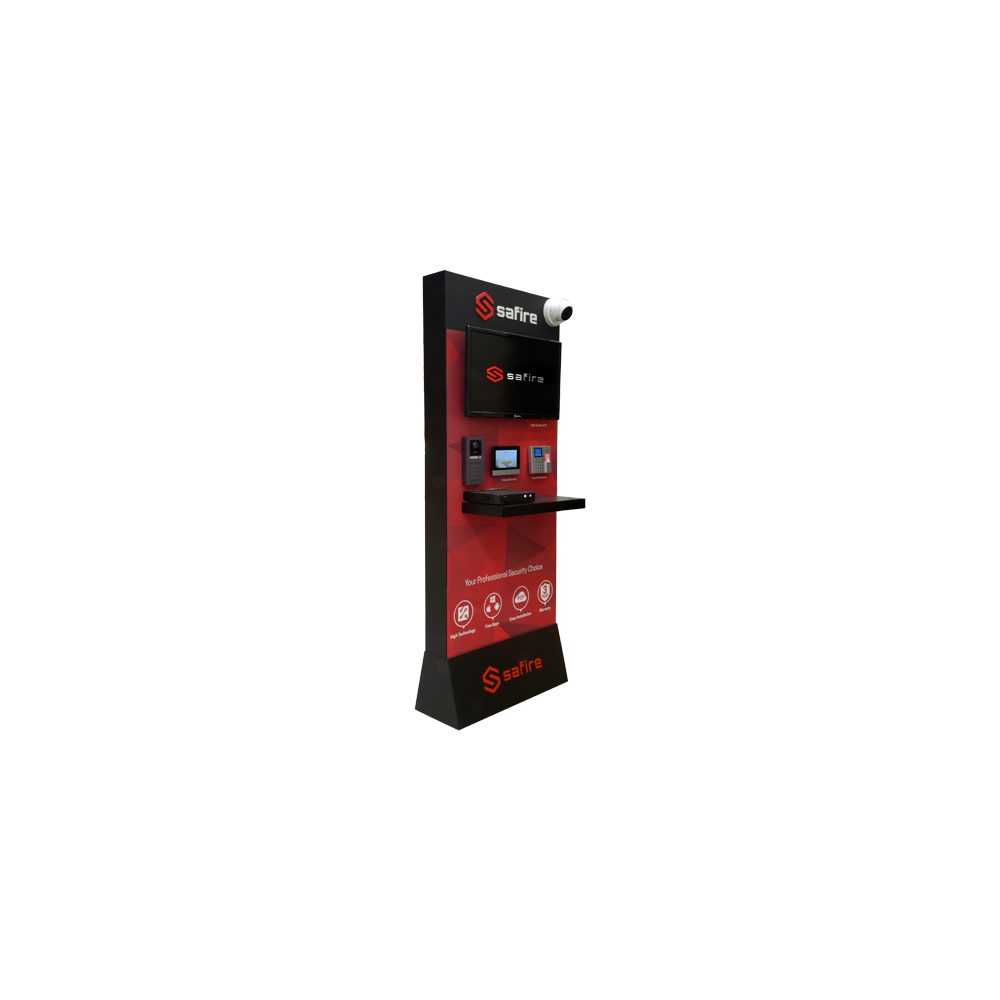

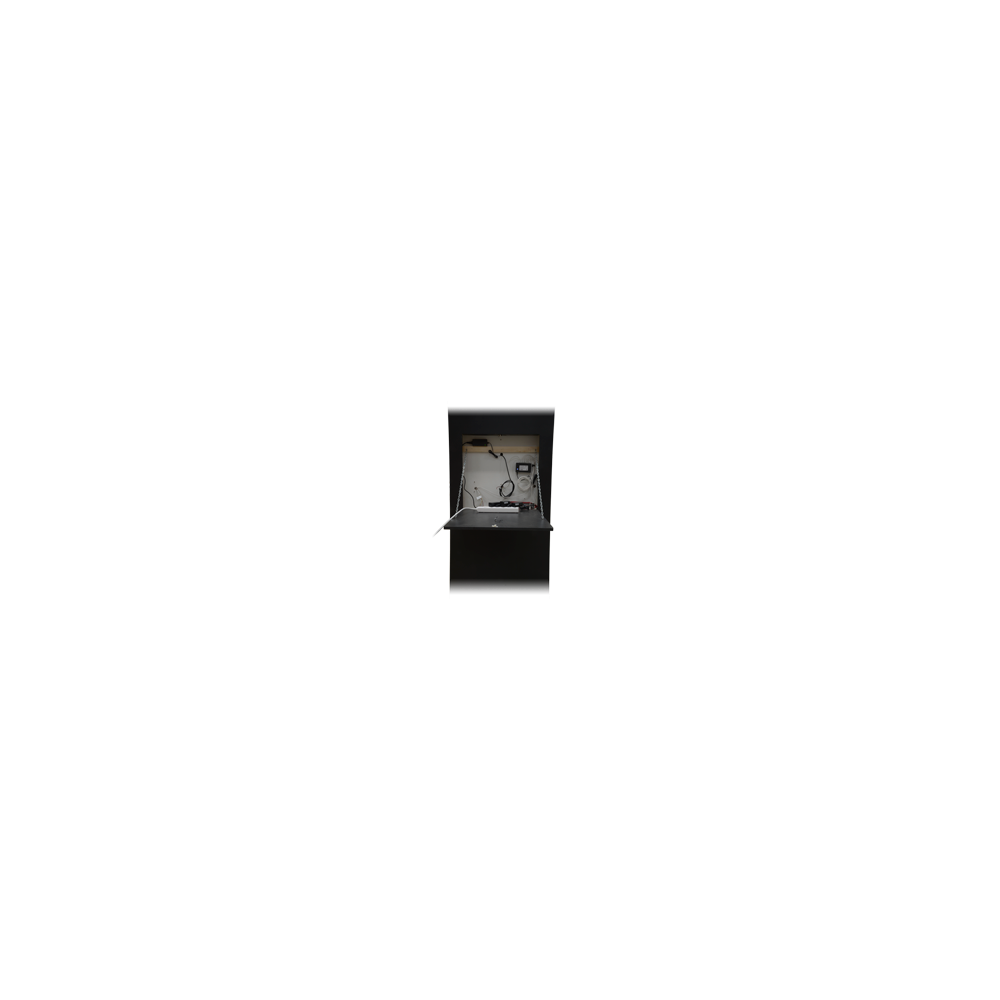

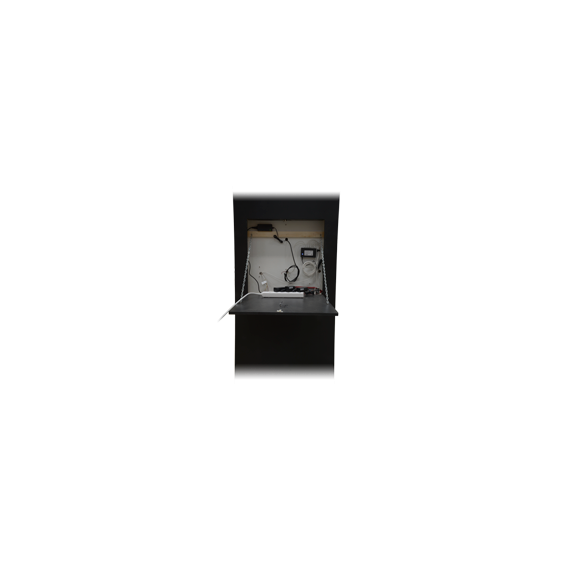

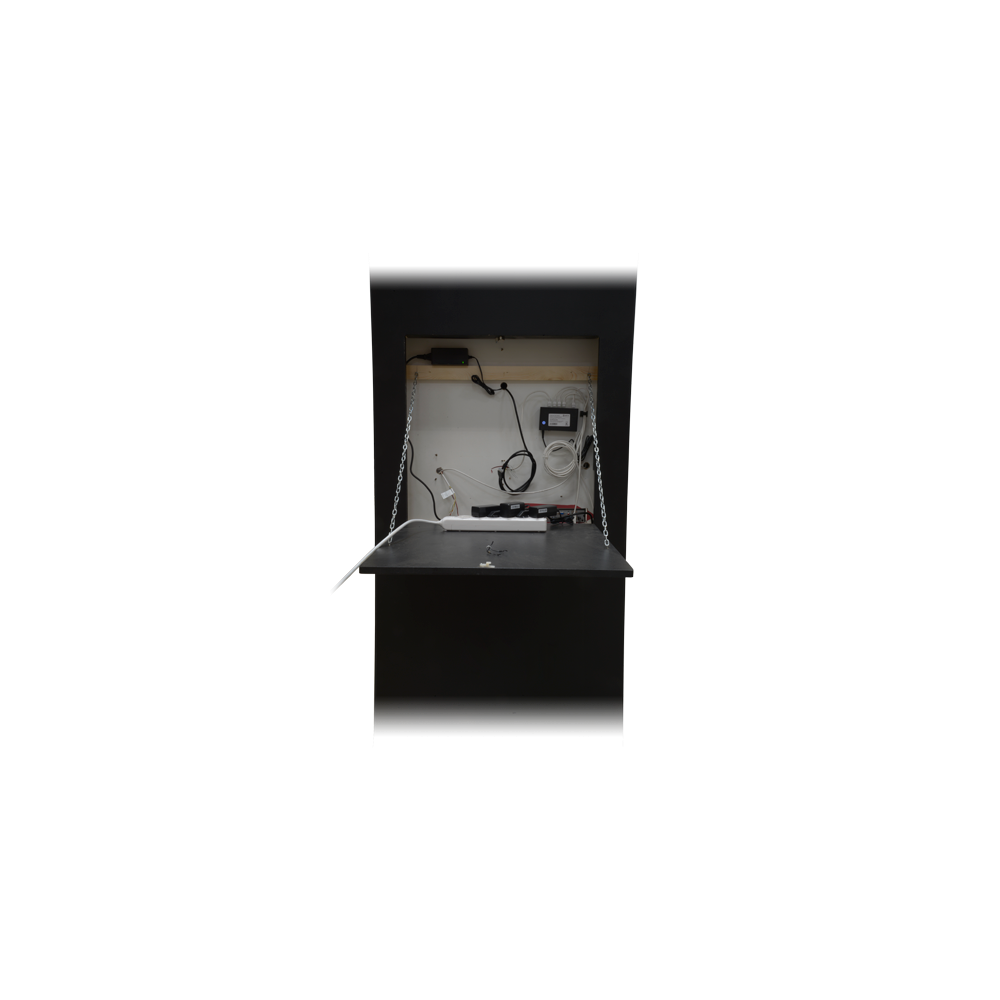

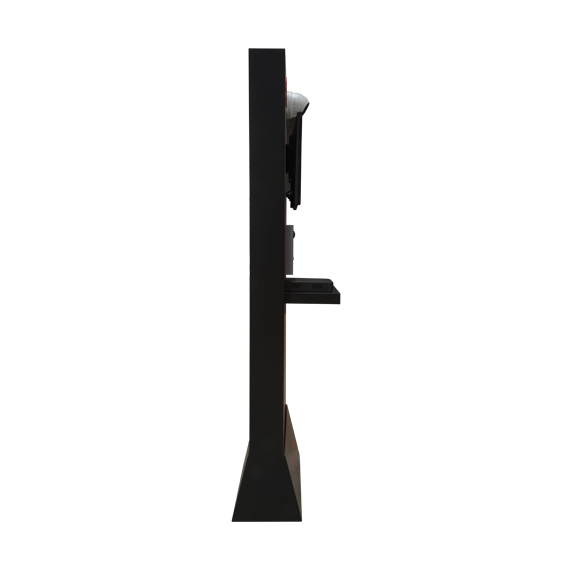

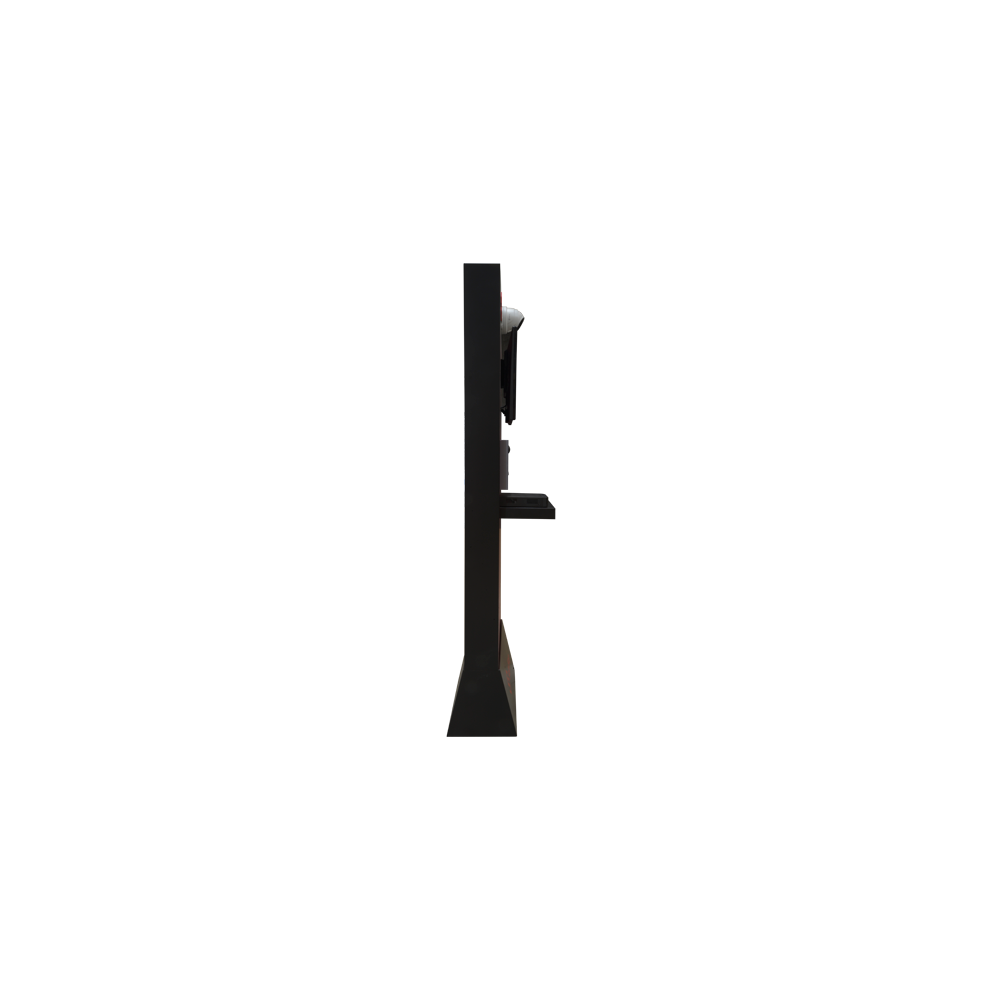

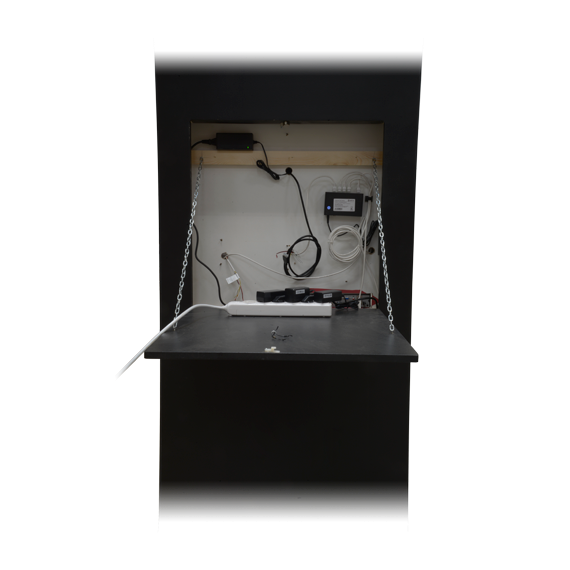

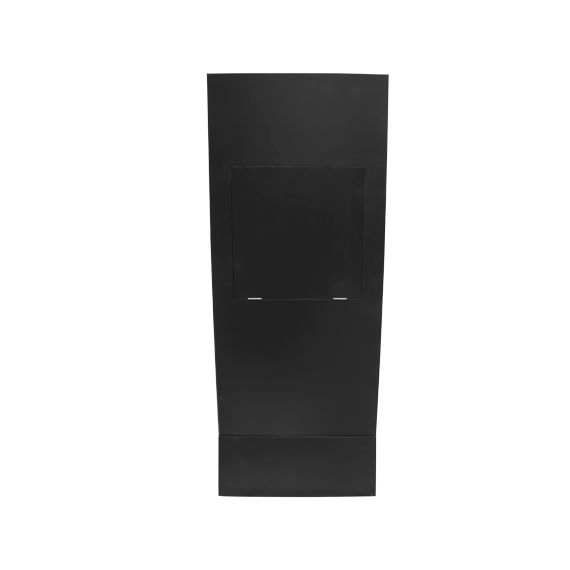

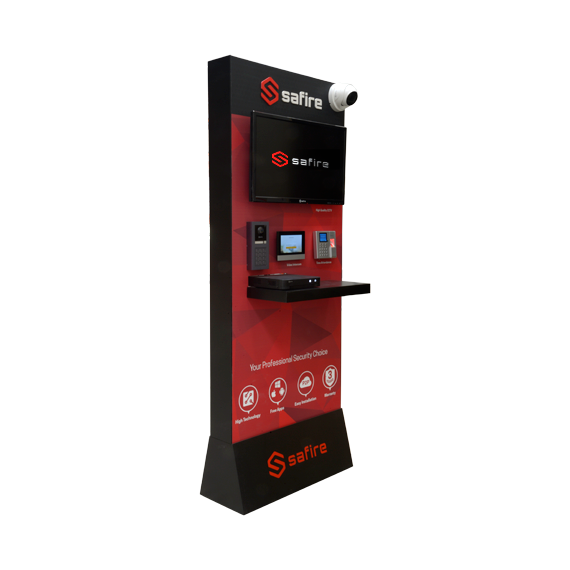

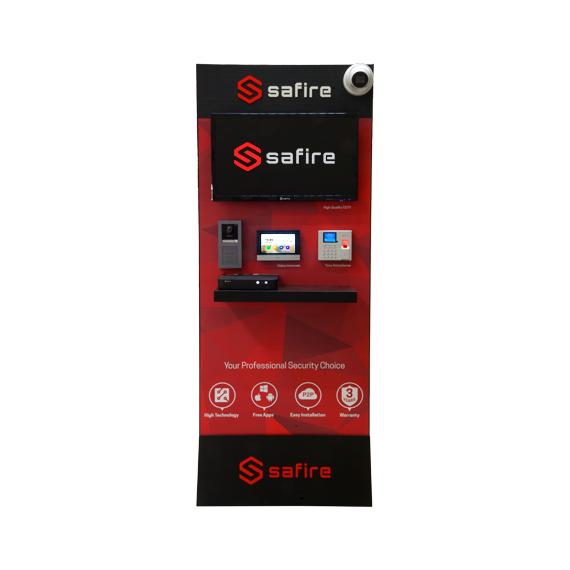

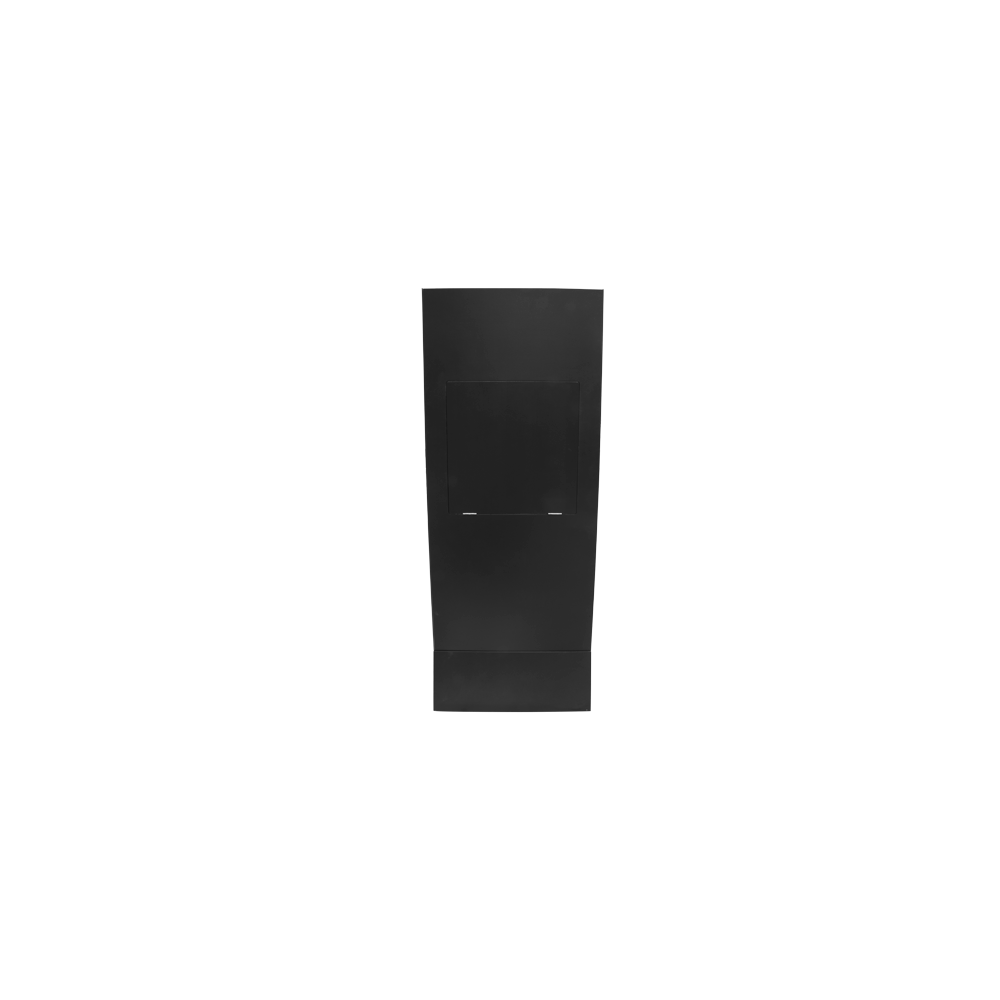

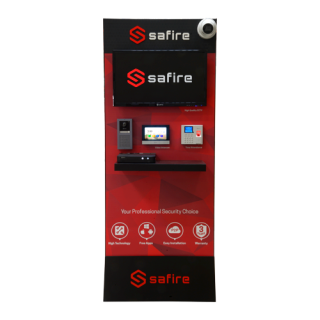

Totem Stand | |
| Dimensions | High: 202 cm Width: 81 cm Depth: 15 cm (40 cm with shelf) |
Video Intercom System | |
| Brand | Safire |
| Model | SF-VIMOD-CAM-IP |
| Operating system | LINUX OS |
| Image sensor | Low Illumination 2 MP IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | D: 180º H:96º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |
| Outputs | 2 relay / 1 module output |
| Inputs | 4 inputs |
| Remote access | Mobile app or Safire Control Center-software |
| Network interface | Ethernet 10/100 BaseT |
| Modular | Compatible with Safire extension modules |
| Power | DC 12 V / 850 mA max. / PoE (IEEE 802.3af) |
| Degree of protection | IP65 |
| Material | Stainless steel |
| Temp. operation | -40º C ~ +60º C |
Video intercom monitor | |
| Brand | Safire |
| Model | SF-VIDISP01-7IP |
| Operating system | LINUX OS |
| LCD | 7" 1024x600, Capacitive |
| Operation mode | Tactile Buttons |
| Inputs | 8 Configurable alarm entries |
| Audio | Two-way audio with microphone and speaker with noise reduction |
| Remote access | Mobile app or Safire Control Center-software |
| Memory | Slot MicroSD up to 32GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP |
| Power | DC 12 V / 600 mA /standard PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +55º C |
Keyboard Module | |
| Brand | Safire |
| Model | SF-AC3003KEMD-IP |
| Keypad | Numeric keypad for access control and calls to different apartments |
| Remote access | Safire Control Center AC through main panel |
| Modular | Compatible with Safire extension modules |
| Power | 4 wire communication between modules |
| Degree of protection | IP65 |
Access Control and Presence | |
| Brand | Safire |
| Model | SF-AC3003KEMD-IP |
| CPU | Linux |
| Sensor | Optic |
| Activation sensor | Infrared auto-activation |
| Read time | < 1 Sec. |
| Capacity | Up to 1.000 fingerprints/cards (Up to 10 per user) |
| Records | 100.000 records and 50.000 attendance tables |
| Identification modes | Fingerprint, EM Card, Pin and combinations |
| Proximity card | 125 KHz EM card |
| Screen | 2.4" Color TFT LCD |
| Communication | TCP/IP, USB, RS485 |
| Outputs | Doorbell, Relay |
| Inputs | Door sensor, Open button |
| Software | Safire Control Center |
| Power | DC 12 V / 1A max. |
| Degree of protection | No |
| Temp. operation | -10º C ~ +55º C |
Camera 4K | |
| Brand | Safire |
| Range | ULTRA |
| Image sensor | High Performance CMOS Ultra Low Light |
| Maximum resolution | 8 Mpx (3480x2160) |
| Resolution | 8Mpx at 15 FPS |
| Lens | 2.7~13.5mm Motorised auto-focus |
| Minimum illumination | 0.003 Lux @(F1.2, AGC ON) |
| Infrared lighting | 0 Lux / SMART IR EXIR LEDs (60 m) |
| Day / Night | Auto / Colour / BW (Black and White) |
| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | WDR (130dB), 3D DNR, AWB, ATW, BLC, AGC, HLC, Mirror, Smart IR |
| Lens Adjustment | 3 Axis |
| Power | DC 12 V / 900 mA, 11 w max |
| Degree of protection | Valid for Interior |
| Temp. operation | -40º C ~ +60º C |
| Material | Metallic |
Recorder 4K | |
| Brand | SAFIRE |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 8 Channels BNC, (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 8 Channels from BNC and 8 (replacement) + 2 (extra) IP Channels (up to 8Mpx) Enhanced IP Mode:8 Channels from BNC and 8 (replacement) + 8 (extra) IP Channels (up to 8Mpx) Enhanced IP mode limits bandwidth to 4Mbps per IP channel |
| Input bandwidth | 64 Mbps |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u |
| Display resolution | 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| BNC input resolution | 8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 720p |
| Main Stream coding | TVI: 8 MP (8FPS), 5 MP, 4 MP(15FPS), 3 MP(18FPS), 1080p / 720(25FPS)
AHD: 5 MP, 4 MP, 1080P CVI:5 MP, 4 MP, 1080P |
| Extra Stream coding | WD1 / 4CIF (12FPS) / CIF (25 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | No |
| Video analysis | No |
| Recording method | Manual, programmed, motion detection, alarm |
| Backup | USB / Network / Cloud (Microsoft One Drive, Dropbox) |
| Internal memory | 1 HDD SATA 3.5" of up to 6TB (not included) |
| Communication | RS485 (PTZ) / 2 x USB 2.0 (Mouse and Backup) / RJ45 (Ethernet) |
| Remote access | Web browser, Smartphone App and Safire Control Center CMS Software |
| Power | DC 12 V / 1.5 A (Consumption W 15 ) |
CCTV monitor | |
| Brand | Safire |
| Size (inches) | 28" |
| Number of colours | 16.7 M |
| Resolution | 3840x2160 (4K) @ 60Hz |
| Viewing angle | 170º/160º (Horizontal/Vertical) |
| Brightness | 280 cd/m2 |
| Contrast ratio | 3000:1 (typical) |
| Response time | 5 ms |
| Inputs | 2 x HDMI 2.0, 2 x DP1.2 |
| Speakers | 2x 5W |
| Energy consumption | On-mode < 40W, Standby-mode < 0.5W |
| Power | 12 VDC / 5A |
