| Brand | Ajax |

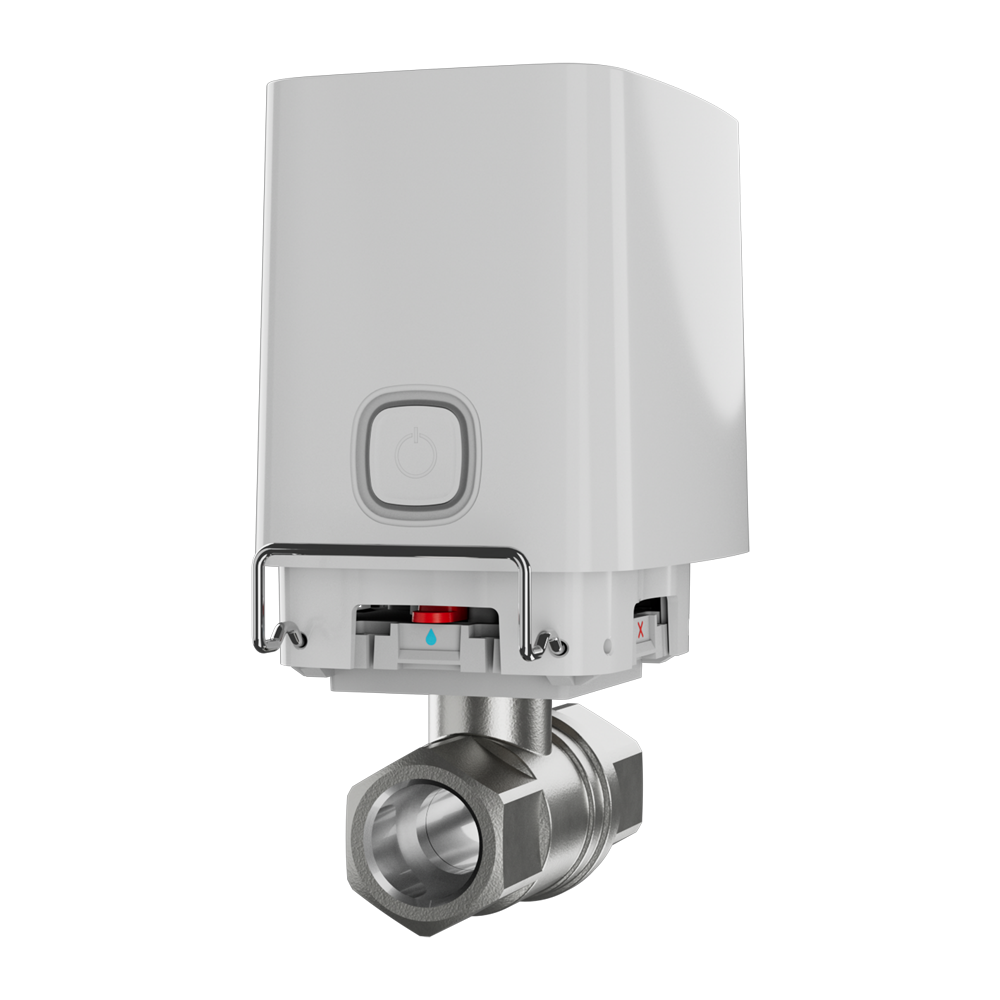

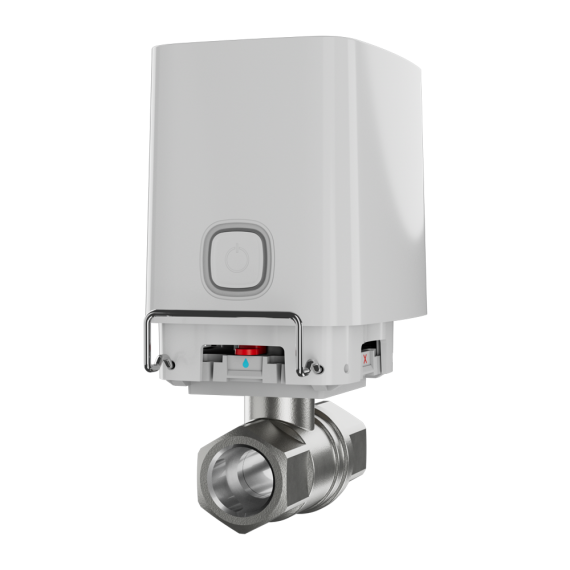

| Functionality | Water shutoff solenoid valve for water supply and heating systems |
| Transmission distance | 1.100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power | 4 batteries CR123A or external to 7,5 V - 14 V DC |
| Notification of overheating | Available (when the device exceeds +60ºC) |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |
| Automation scenarios | Water leakage scenario Reactions to alarms Reactions to changing the security mode Actions by programming Temperature scenarios Humidity scenarios Scenarios by level of CO2 By pressing the button Pressing the LightSwitch |
| Operating temperature | 0º C ~ 60º C |
| Operating humidity | Up to 95% |
| Weight | 1336 g |
| Dimensions | 159 (H) x 70(An) x 104 (D) mm |
| Use | Interior |
| Colour | White |
Shut-off valve | |
| Valve type | Bonomi Industries shut-off valve of 1" (DN 25)) |
| Operating environment | Hot and cold water pipes |
| Valve material | Brass |
| Type of connection and thread | F/F (Thread size 1")) |
| Operating temperature range of liquids | From 5ºC to 120ºC |
Electric actuator | |
| Electric actuator torque | Up to 8,5 N-m |
| Operating pressure of the electric actuator | To 10 bars |
| Closing speed | Less than 5 seconds |
| Remote control | Management and configuration through Ajax mobile apps |
| Manual control | Button located on the actuator housing for opening/closing the valve when pressed |
