SAFIRE FRITTSTÅENDE SOLCELLEPANELKIT 80W 256WH FOR CCTV
Stand-alone power supply system for CCTV - Solar panel of 80W - Lithium LiFePo Battery 256Wh (20Ah) - Integrated MPPT regulator : AC&DC converter - Support for mast anchorage - RS-485 for communication | Streetlight connection
kr 7,390.00
Referanse:
SF-SOLARKIT-AC-BATT-256WH
Merke:
Relaterte produkter
- Stand-alone power supply system for CCTV
- Connection with streetlight
- Solar panel up to 80W
- 256wh LiFePo battery with 2000 charge and discharge cycles
- Integrated MPPT regulator
- AC&DC Converter
- Maximum supported load 40W
- Output voltage 12V DC
- Communication RS485 for third-party integration

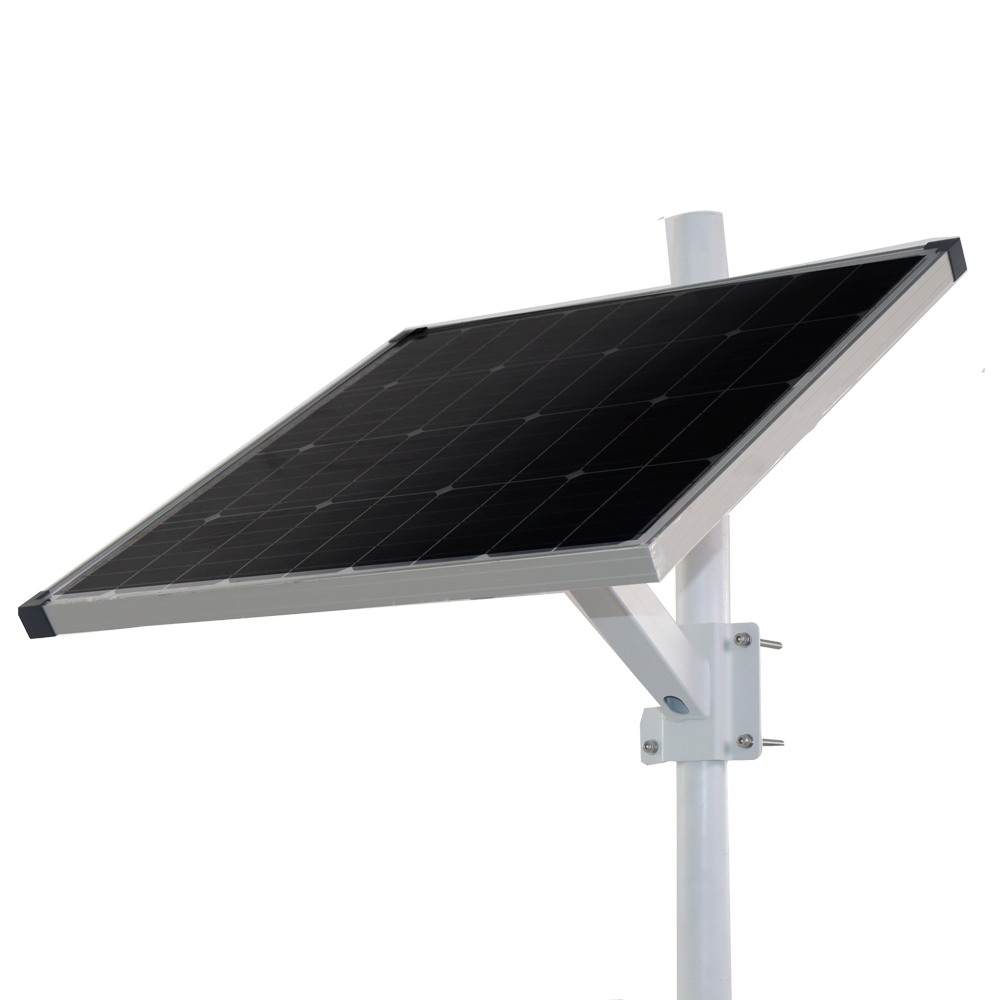

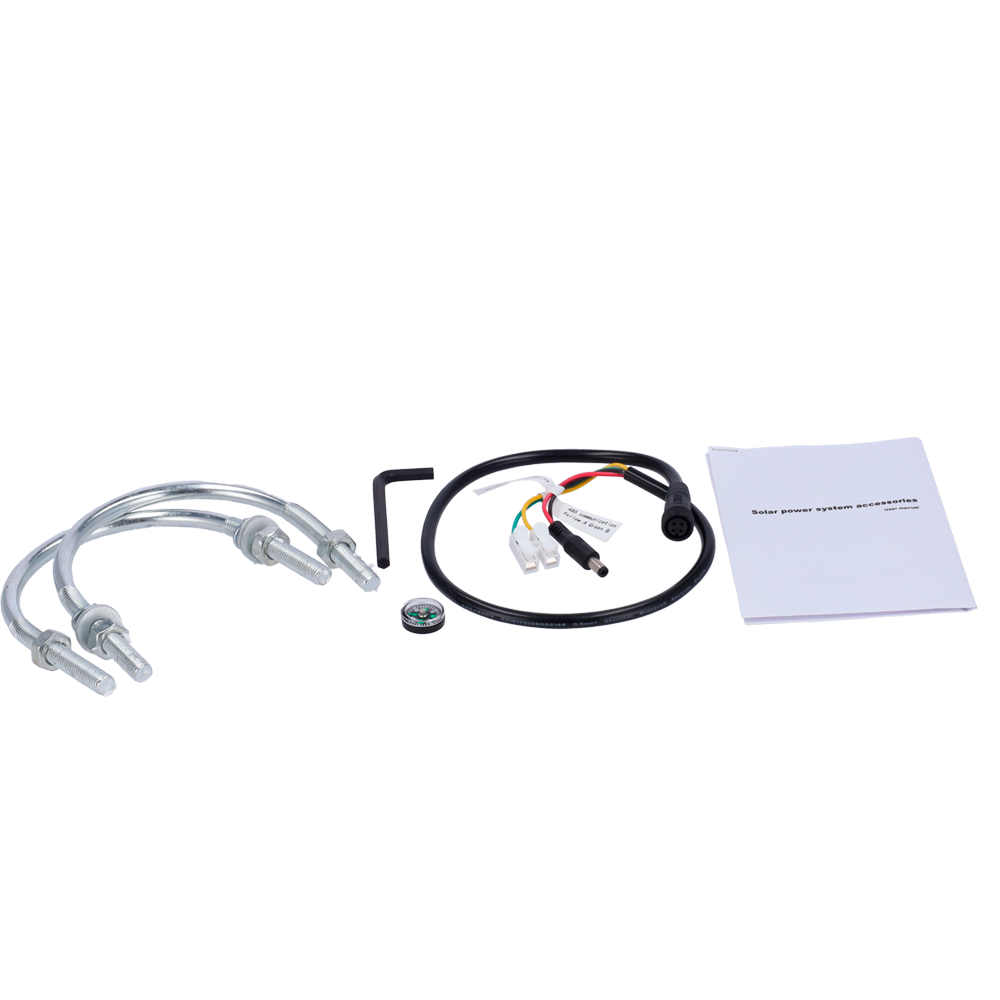

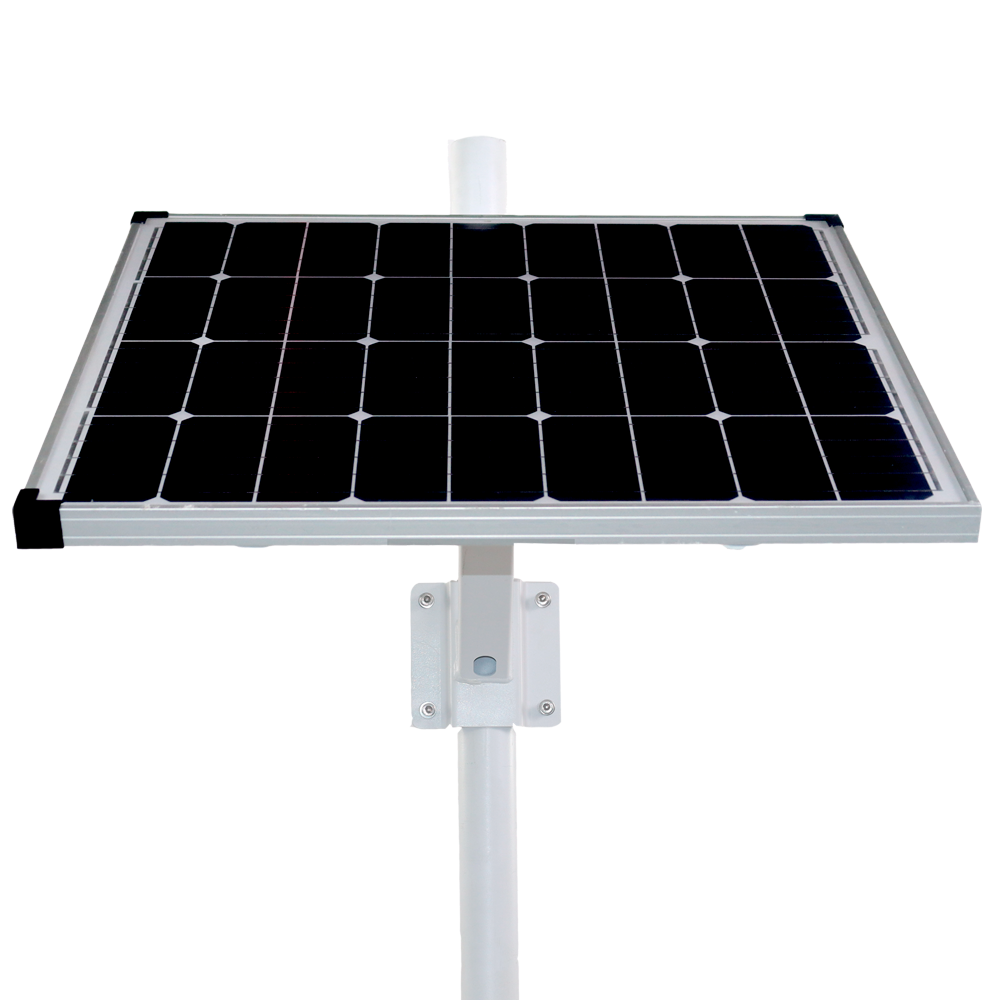

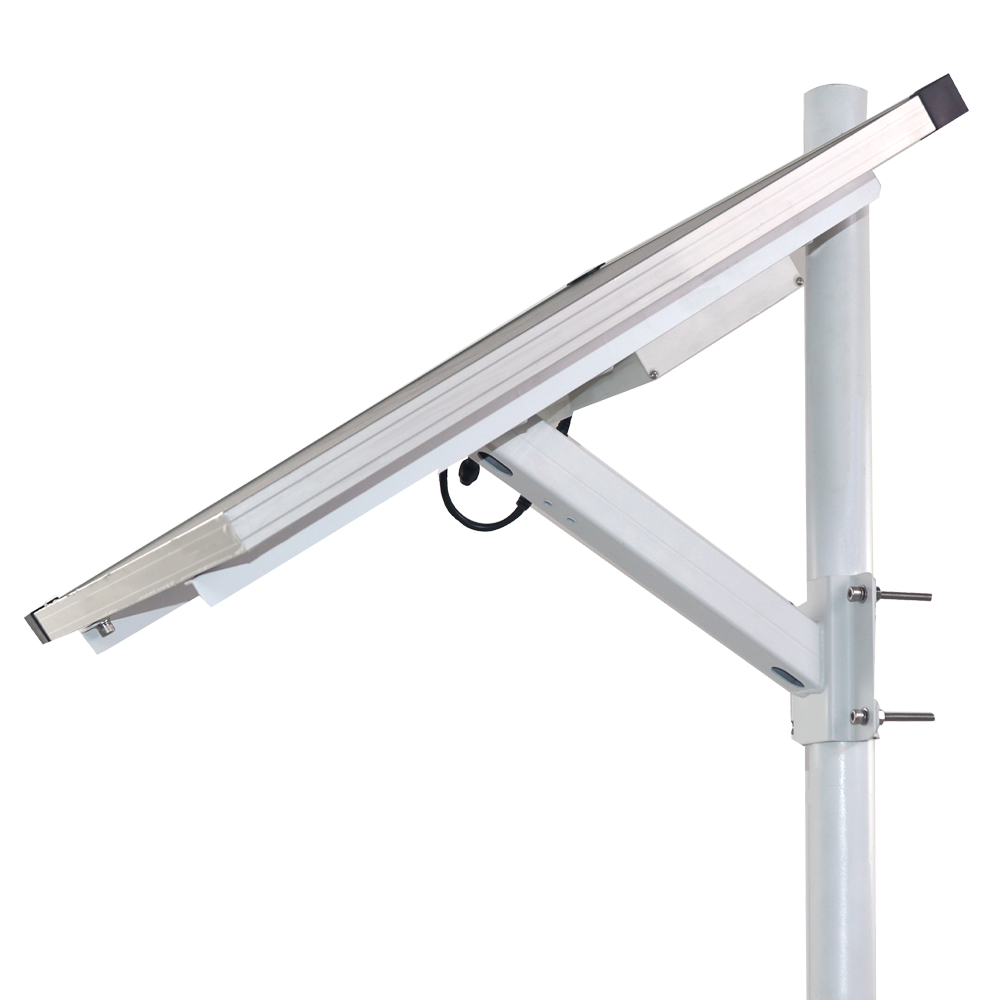

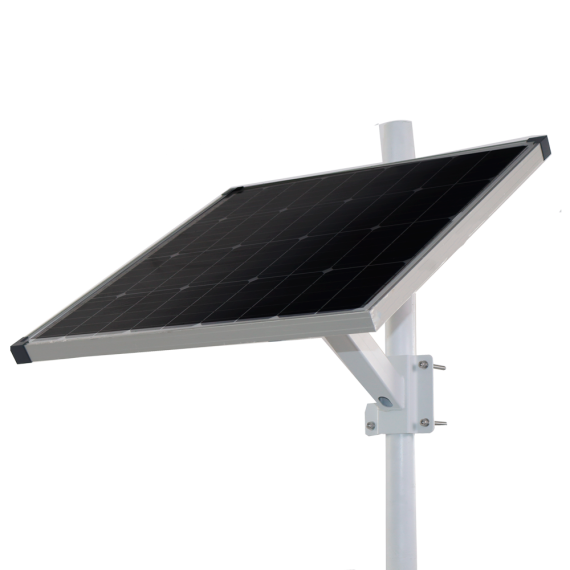

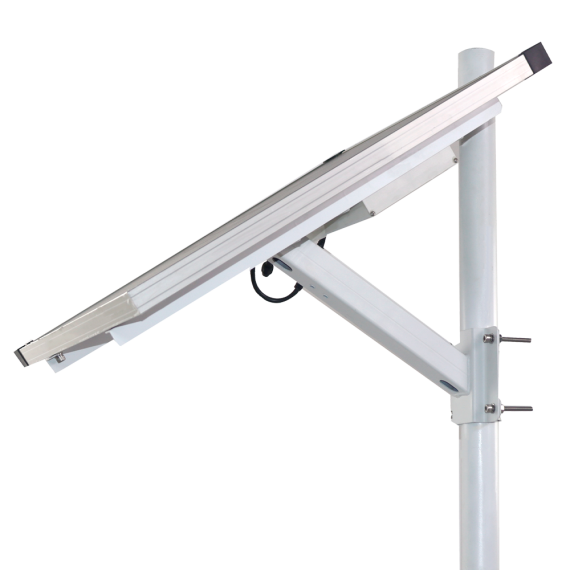

- Mast support included
- Degree of protection IP67
Technical system information
Solar panel module 80W Battery Lithium LiFePo 256wh Solar input voltage 18V Load voltage 10~14.6V Maximum current load 10A Maximum load supported 40W Regulator Integrated MPPT Converter AC & DC Communication RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption Output Voltage 12V Integrated DC Regulator (with standard jack connector compatible with CCTV cameras) Bracket Support for mast or vertical infrastructure mounting
Connection with streetlightSolar Panel

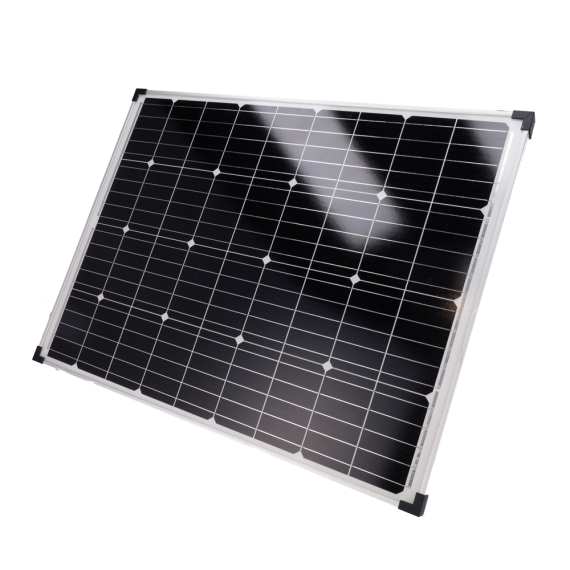

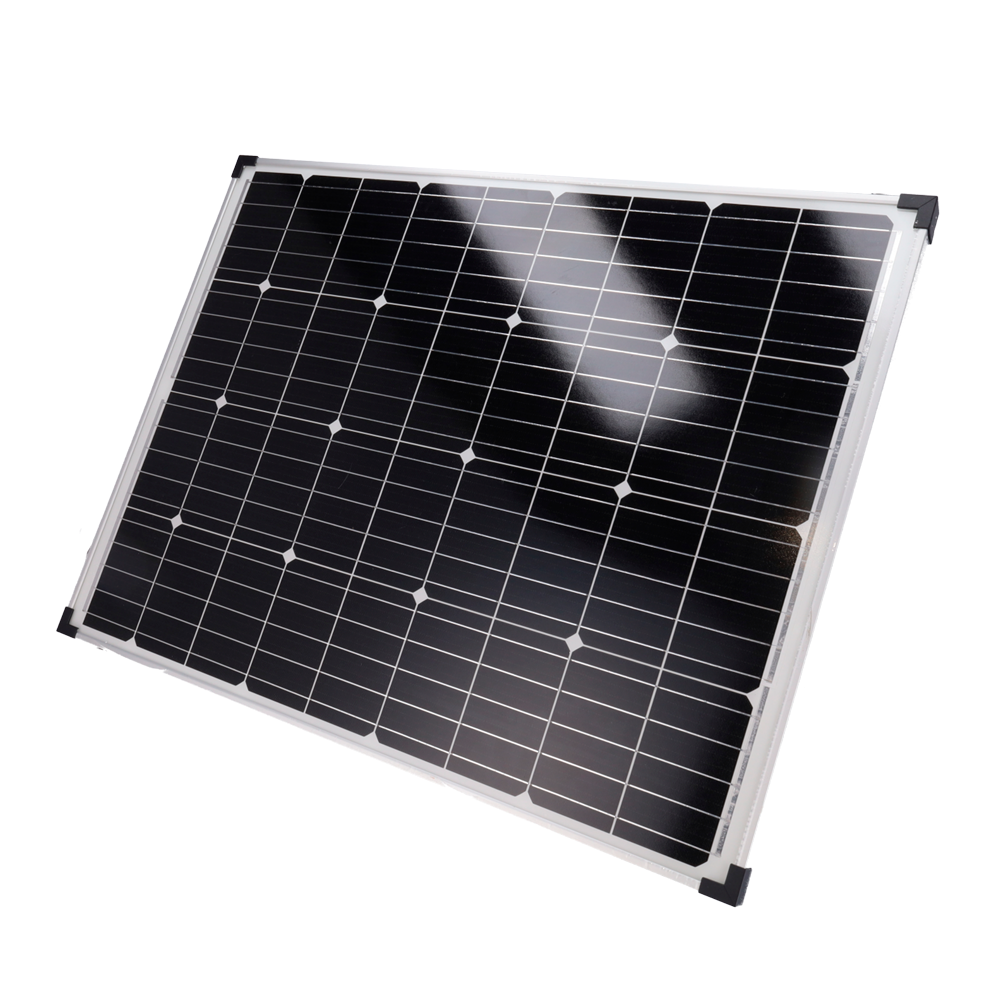

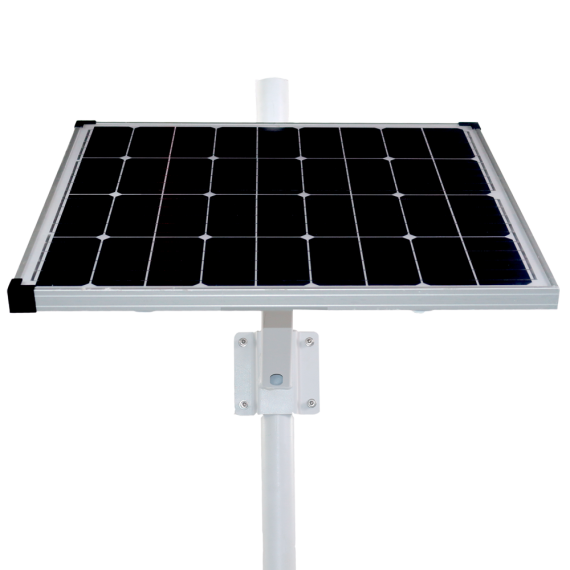

Power 80 W Cells 156 monocrystalline Optimum Voltage 18V Optimum operating current 3.33A Short-circuit voltage 3.66V Open circuit voltage 21.24V Glass thickness 3.2mm Power tolerance (W) ±3% Maximum load capacity 60 m/s (5Kg/sg.m) Maximum hail load 23m/s, 7.53g Efficiency 21.6% Temperature Range -20ºC ~ 85ºC Module dimensions 680 (W) x 30 (H) x 510 (D) mm Weight 13 Kg (with battery) Degree of protection IP67 Battery

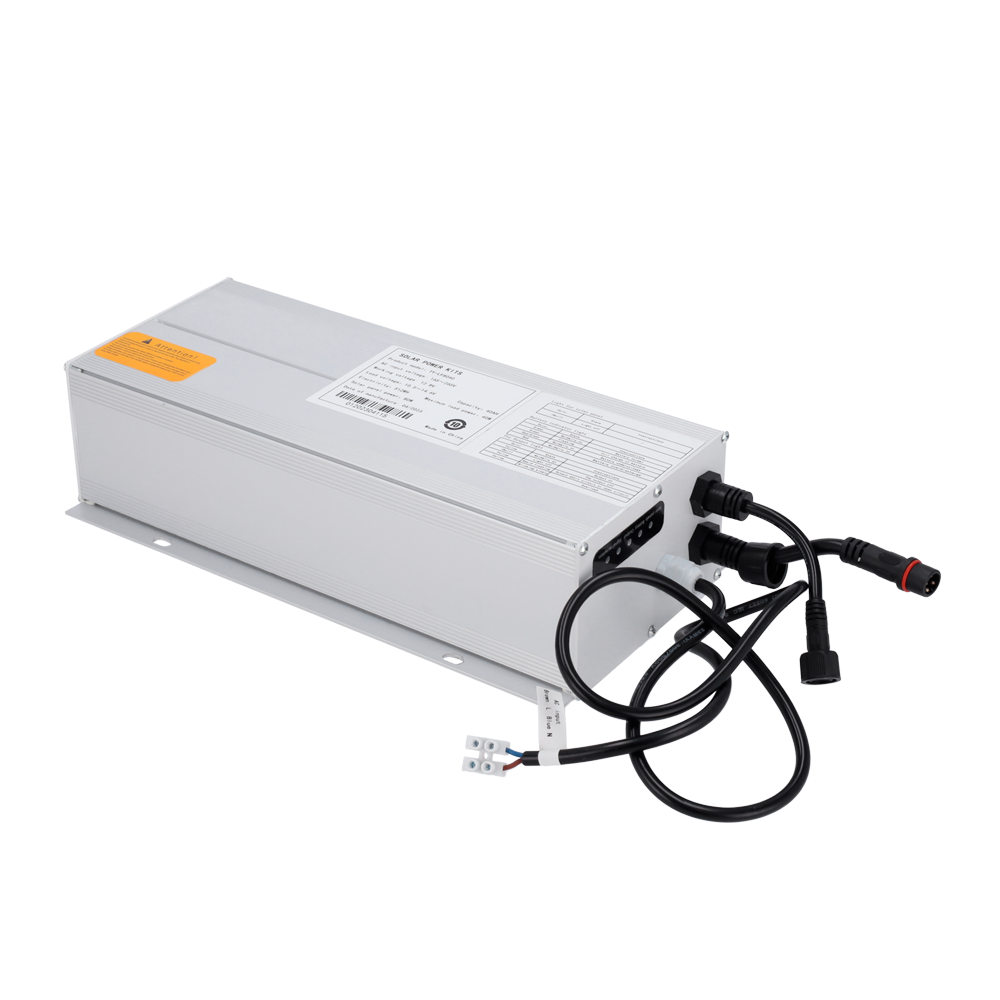

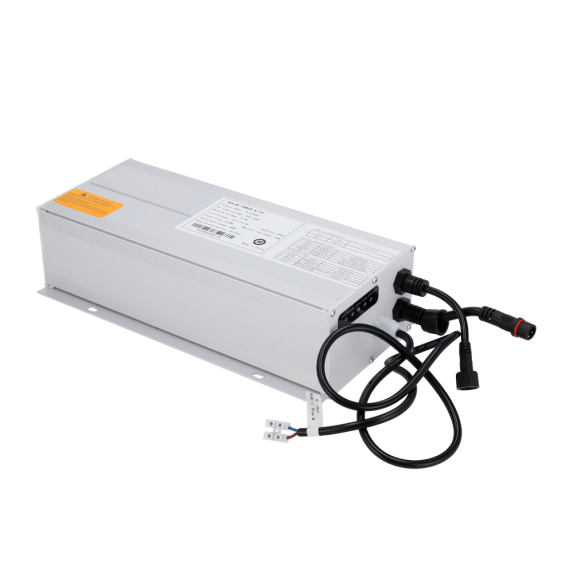

Material LiFePo Capacity 20Ah (256Wh) Nominal voltage 12.8V Operating temperature Charge: 0 °C to 65 °C (32 °F to 140 °F)
Discharge: -30 °C to 65 °C (-22 °F to 140 °F)Cycles >2000 Battery size 120 (W) x 75 (H) x 104 (D) mm Degree of protection IP67
