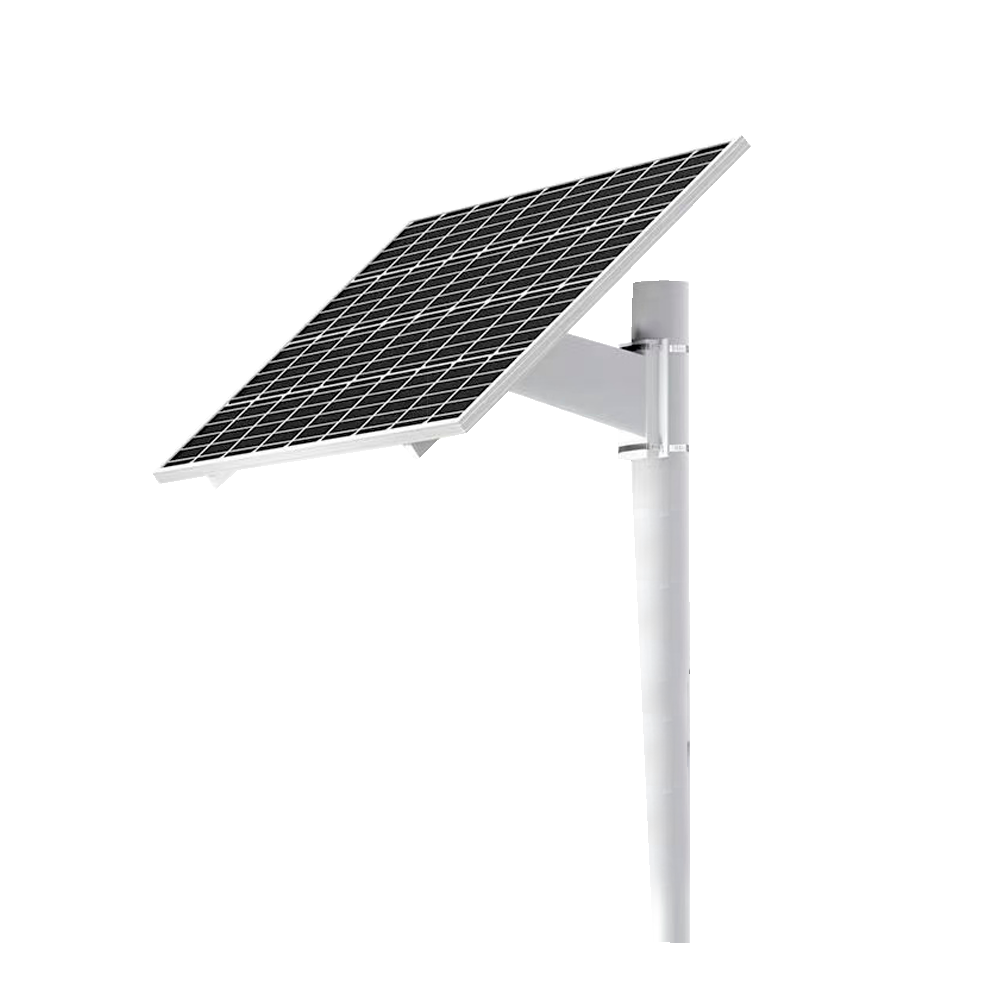

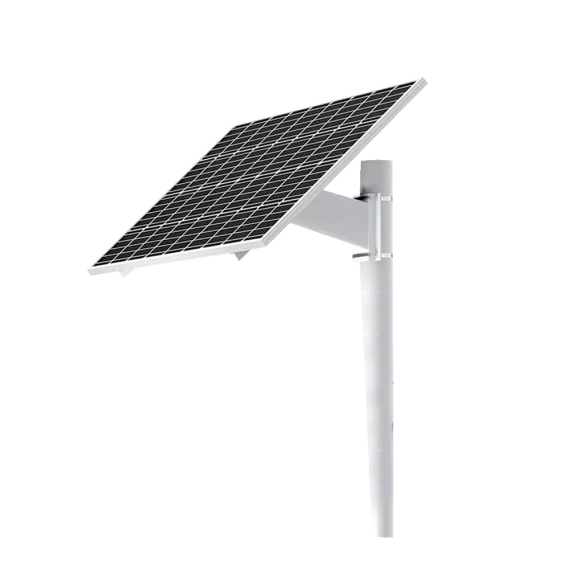

Stand-alone power supply system for CCTV - Solar panel of 60W - Lithium LiFePo Battery 256Wh (20Ah) - Integrated MPPT regulator - Support for mast anchorage - RS-485 for communication
Technical system information |
|
| Solar panel module | 60W |
| Battery | Lithium LiFePo 256wh |
| Solar input voltage | 18V |
| Load voltage | 9~12.6V |
| Maximum input power | Up to 120W in total |
| Maximum current load | 10A |
| Maximum load supported | 20W |
| Regulator | Integrated MPPT |
| Communication | RS485 (For integration with third parties). Provides all system information such as load level, system status or power consumption |
| Output Voltage | 12V Integrated DC Regulator (with standard jack connector compatible with CCTV cameras) |

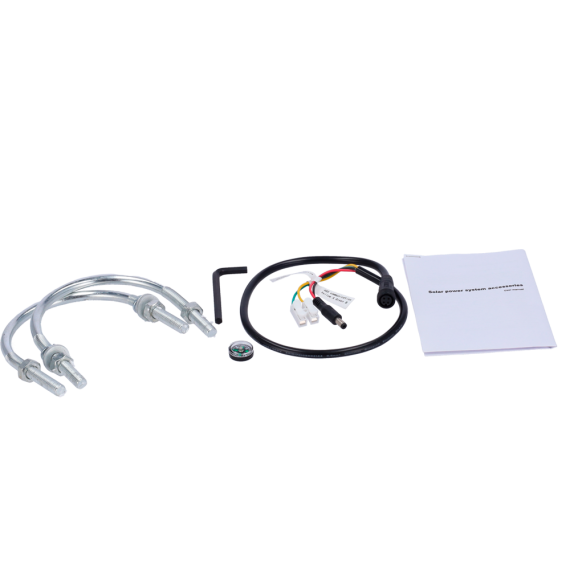

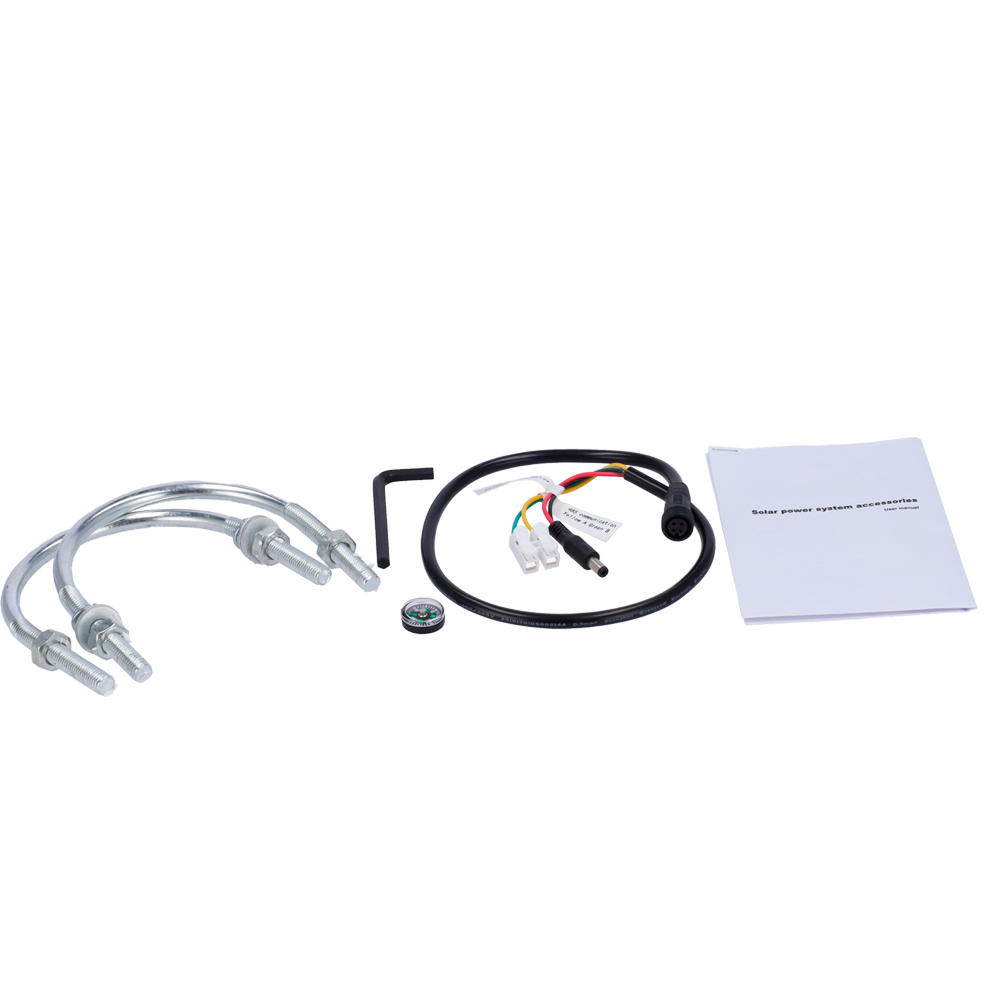

| Bracket | Support for mast or vertical infrastructure mounting |

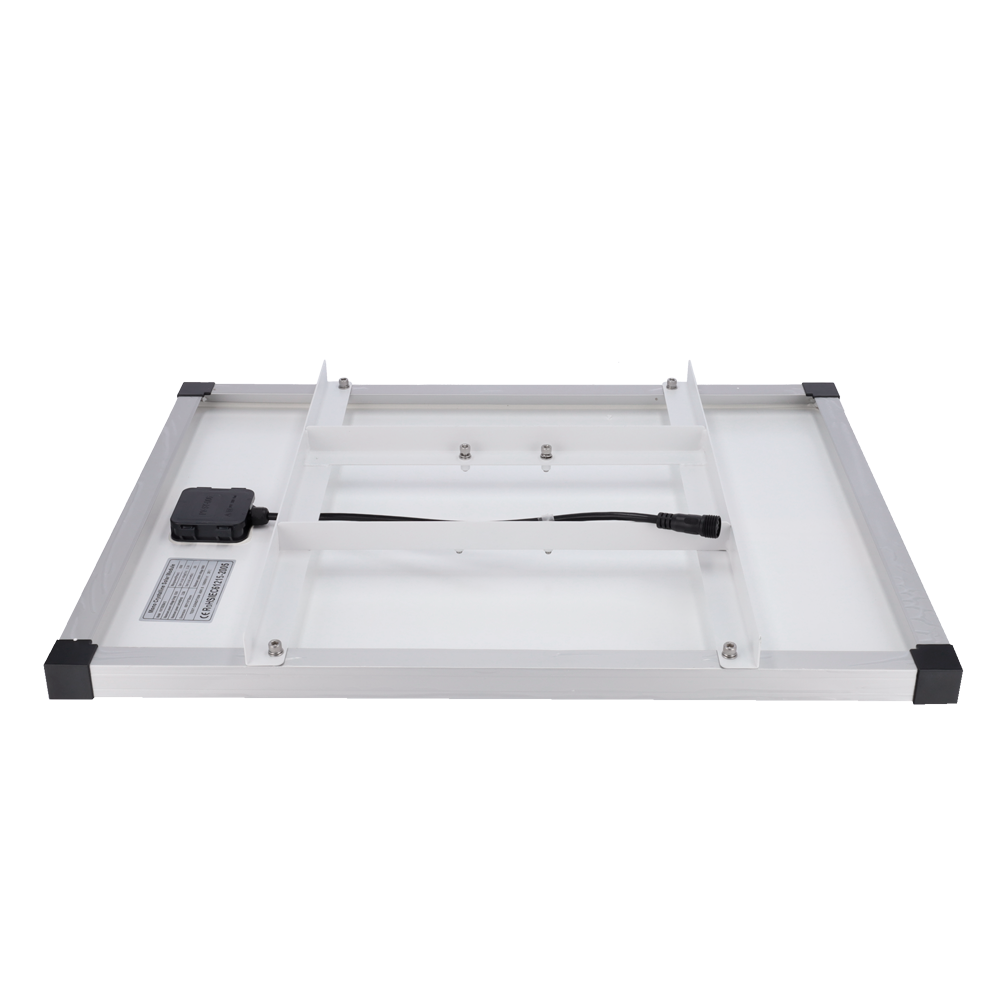

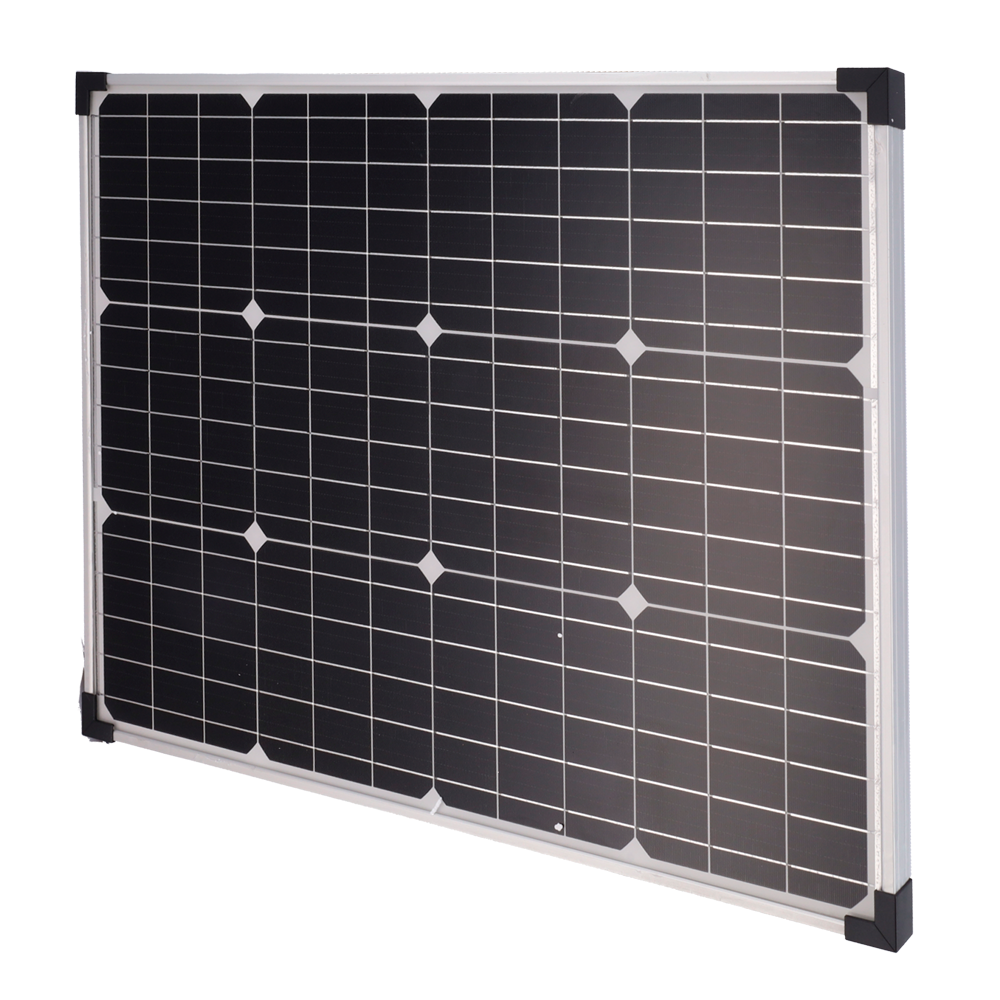

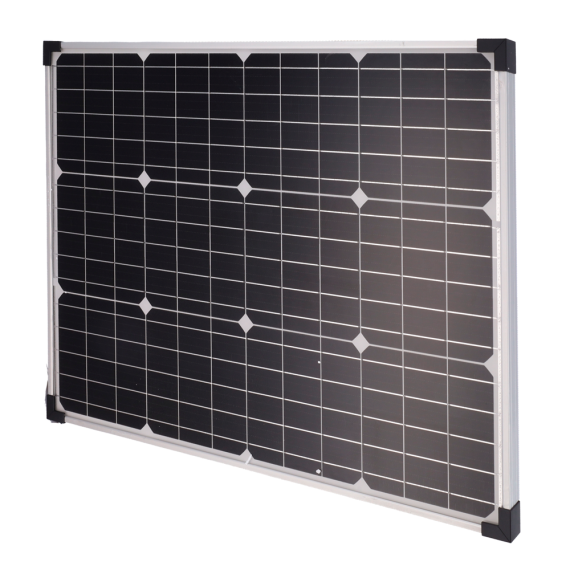

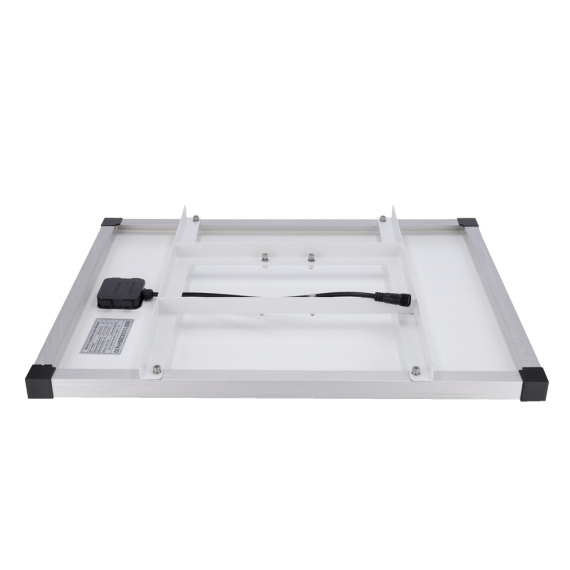

Solar Panel |
|
| Power | 60 W |
| Cells | 156 monocrystalline |
| Optimum Voltage | 18V |
| Optimum operating current | 3.33A |
| Short-circuit voltage | 3.66V |
| Open circuit voltage | 21.24V |
| Glass thickness | 3.2mm |
| Power tolerance (W) | ±3% |
| Maximum load capacity | 60 m/s (5Kg/sg.m) |
| Maximum hail load | 23m/s, 7.53g |
| Efficiency | 21.6% |
| Temperature Range | -20ºC ~ 85ºC |
| Module dimensions | 680 (W) x 30 (H) x 510 (D) mm |
| Weight | 4 Kg (with battery) |
| Degree of protection | IP67 |

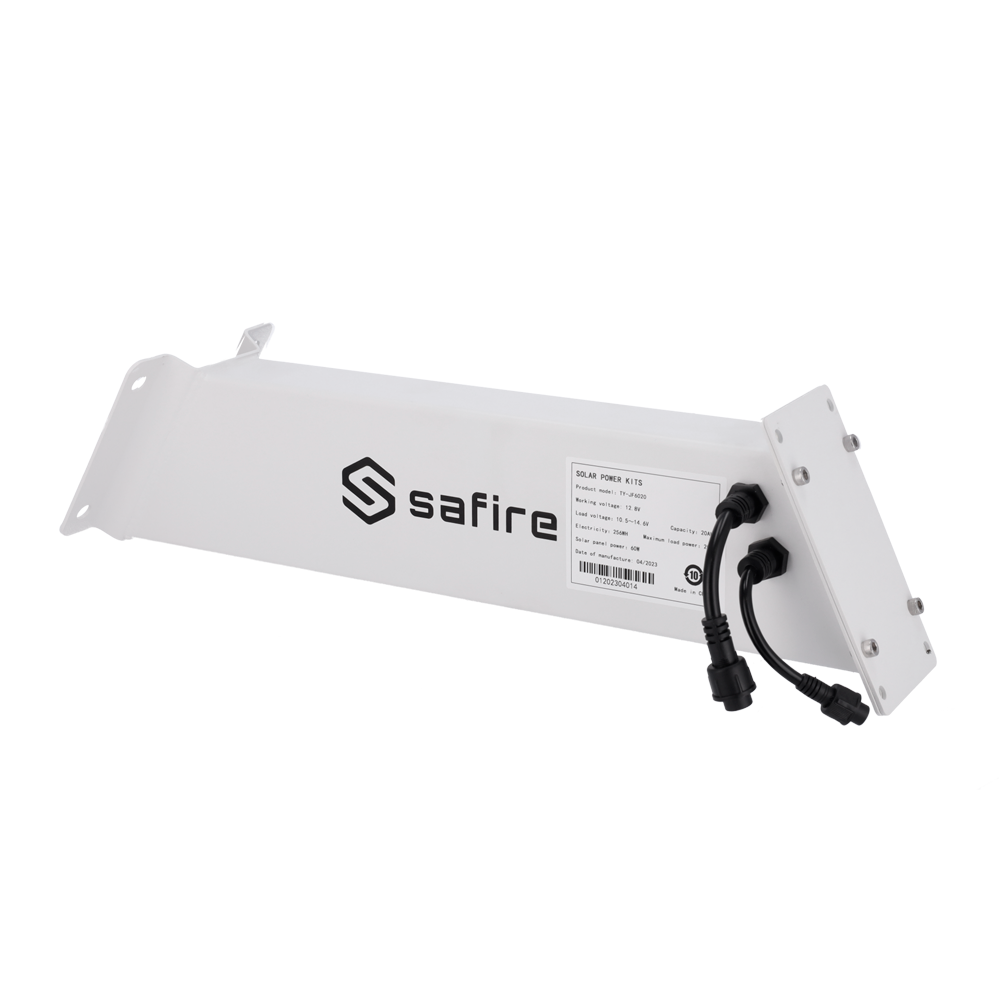

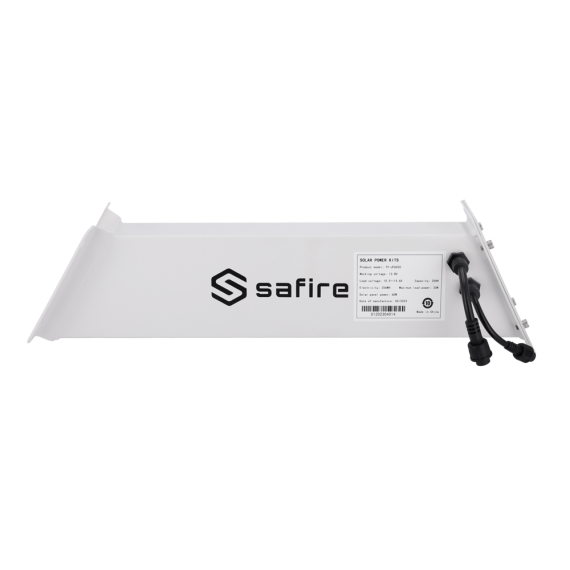

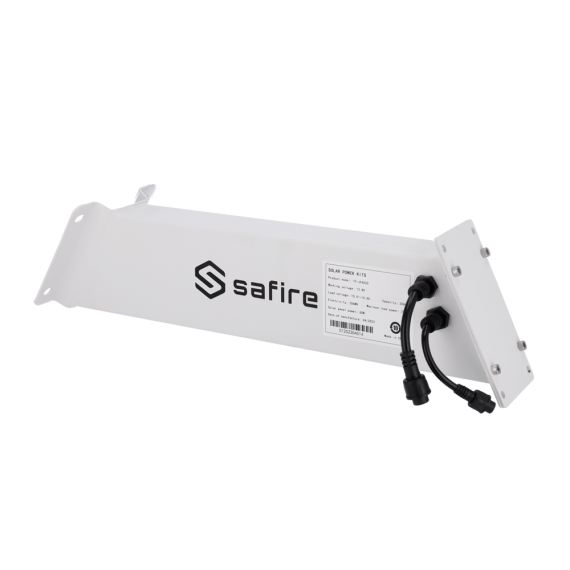

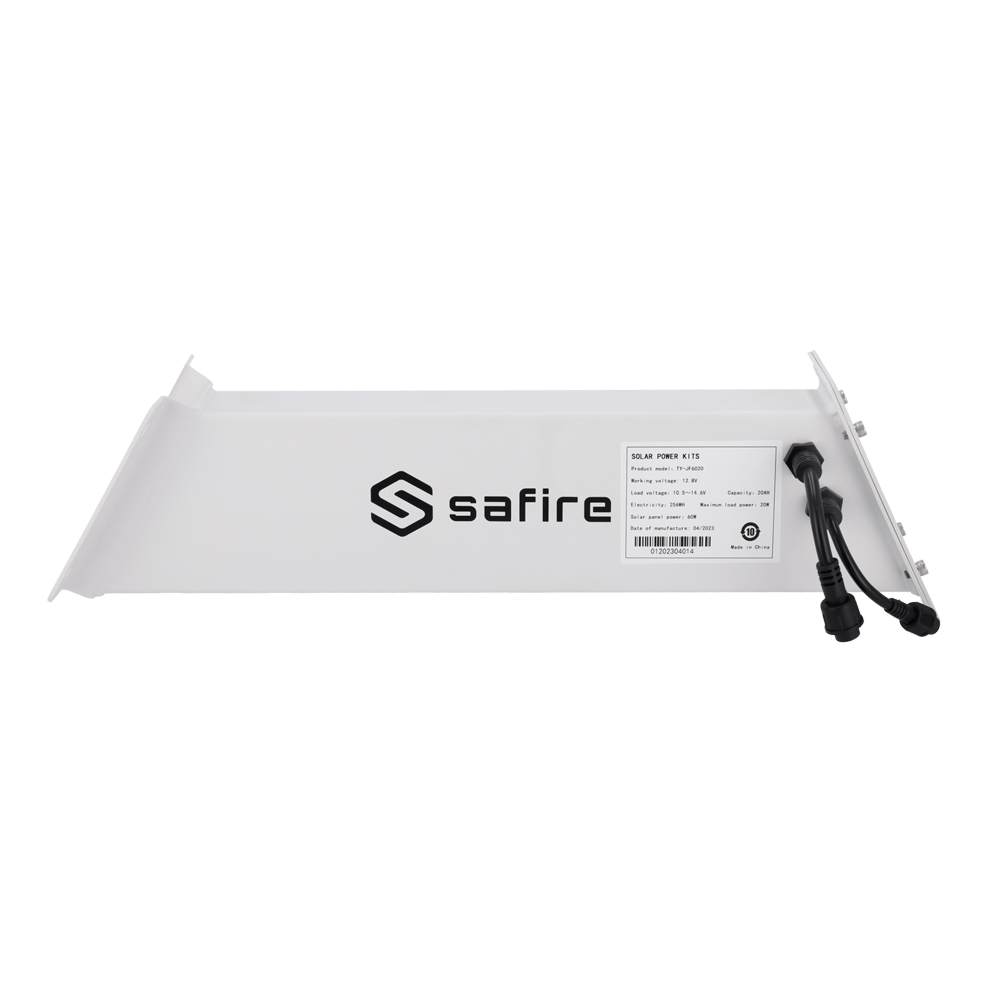

Battery |
|
| Material | LiFePo |
| Capacity | 20Ah (256Wh) |
| Nominal voltage | 12.8V |
| Operating temperature | Charge: 0 °C to 65 °C (32 °F to 140 °F) Discharge: -30 °C to 65 °C (-22 °F to 140 °F) |
| Cycles | >2000 |
| Battery size | 205 (W) x 40 (H) x 100 (D) mm |
| Degree of protection | IP67 |
