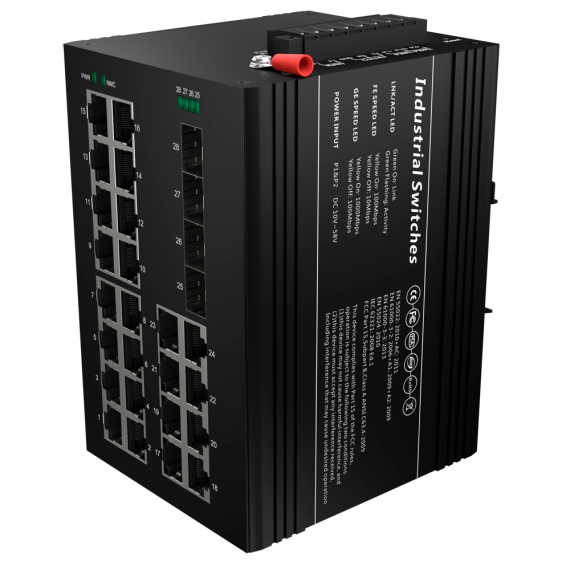

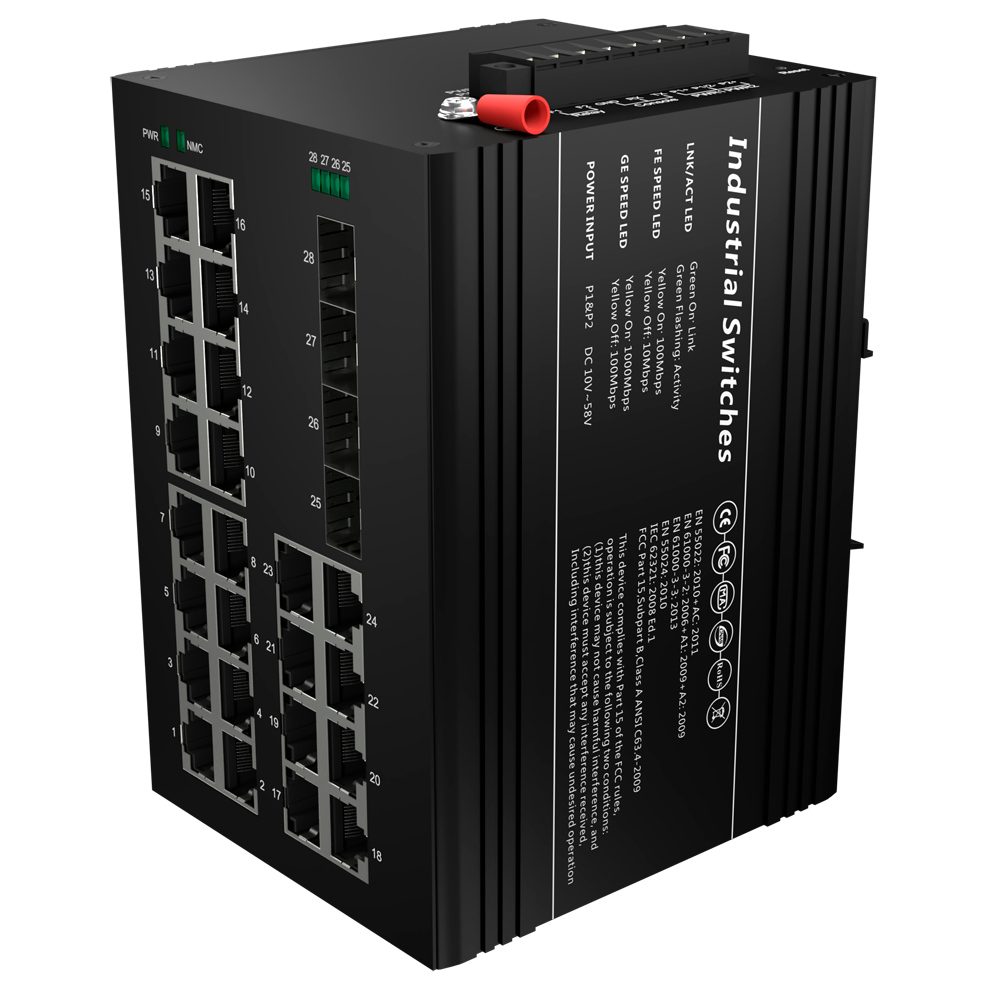

MARCA BLANCA SW2624HIPOE-MGF-360-DIN

White Brand PoE Switch - DIN rail mount - 24 Gigabit Ports + 4 Gigabit SFP - 90W ports 1-2 23-24/30W ports 3-22 /Max 360W - IEEE802.3af/at/bt | PoE/PoE+/Hi-PoE - VLAN/STP/RSTP/MSTP/ERPS/SNMP/ACL - Static LAG/IGMP Snooping/DHCP Snoop/802.1x

Les merShow less

kr 15,054.00

Referanse:

SW2624HIPOE-MGF-360-DIN

Merke:

Last ned produktark

Relaterte produkter

Beskrivelse
Produktdetaljer

Beskrivelse

White Label
Manageable Desktop Switch
20 Ports RJ45 Gigabit PoE+ 802.3.af/at + 4 Gigabit Hi-PoE Ports
4 Gigabit SFP Ports
Supports PoE power up to 360 W total for all ports
Up to 90W on port 1-2 and 23-24
Up to 30W on ports 3-22
Compatible with PoE IEEE802.3af/at and Hi-PoE

DIN rail mount

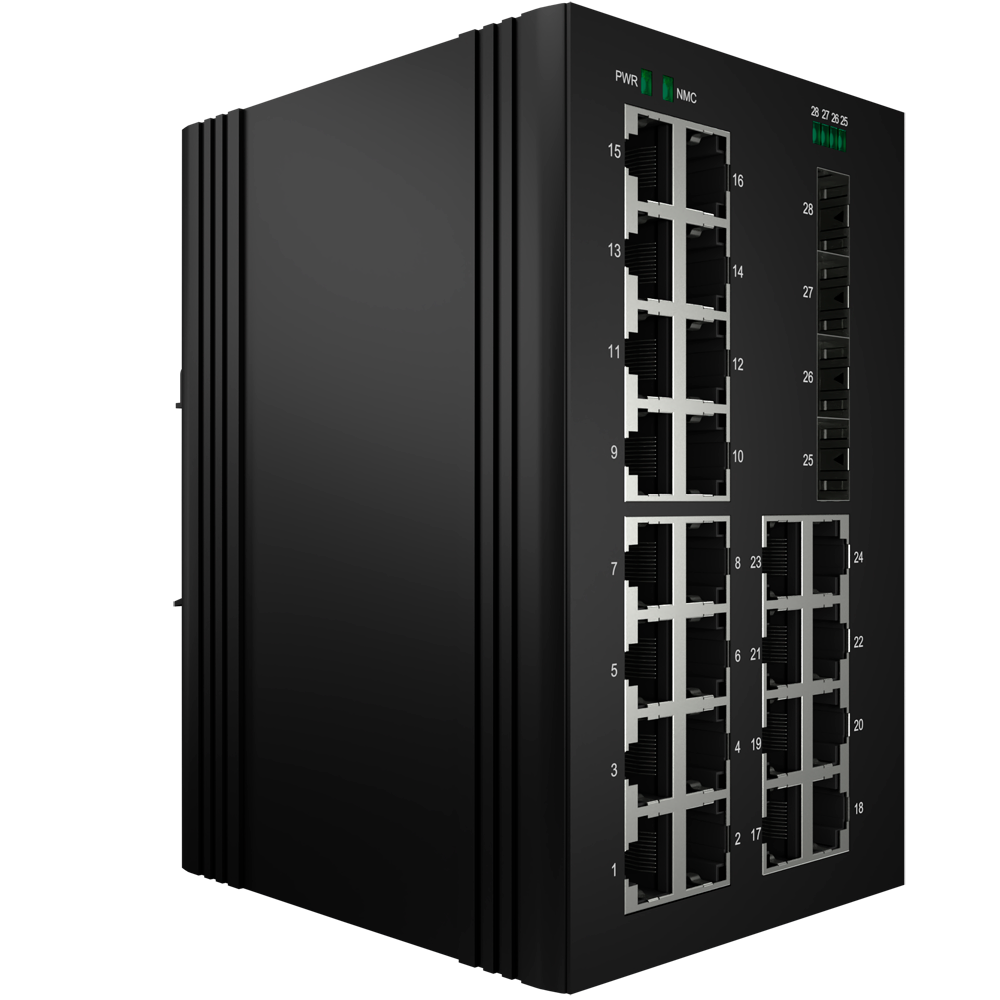

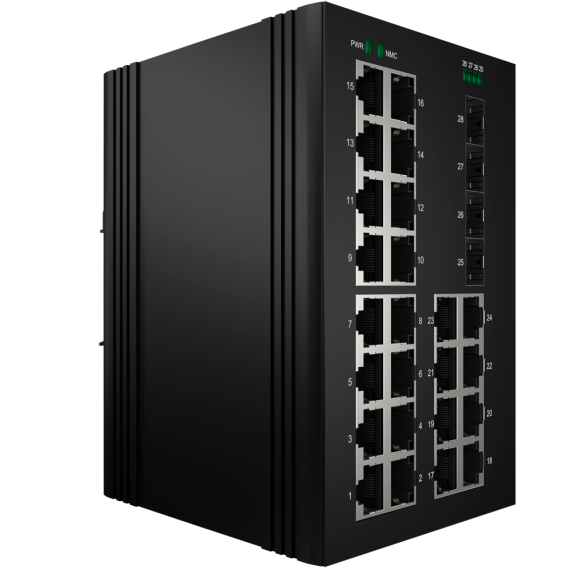

Interface	24 Ports RJ45 Gigabit + 4 SFP Gigabit Ports
PoE characteristics	Up to 90W ports 1-2 and 23-24 IEEE802.3bt Hi-PoE Up to 30W ports 3-22 IEEE802.3af/at PoE/PoE+ Maximum 360W
Supported Topologies	Ring / Star / Bus / Tree
Physical Layer Protocols	MDX/MDIX/Flow Control
Network Protocols	VLAN/STP/RSTP/MST/ERPS/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ
Management Protocols	SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon
Quality of service	Highlighting and priority mapping Supports SP and WRR algorithms Rate limit QoS-based policies
Link Aggregation	Up to 12 groups
Jumbo Frame	10Kbyes
ACL	Supports 500 ACL of standard and extended type
Switching Capacity	68Gbps
MAC Table	16K
Packet Forwarding Rate	50,59Mbps
Buffer	12M
Installation	DIN rail

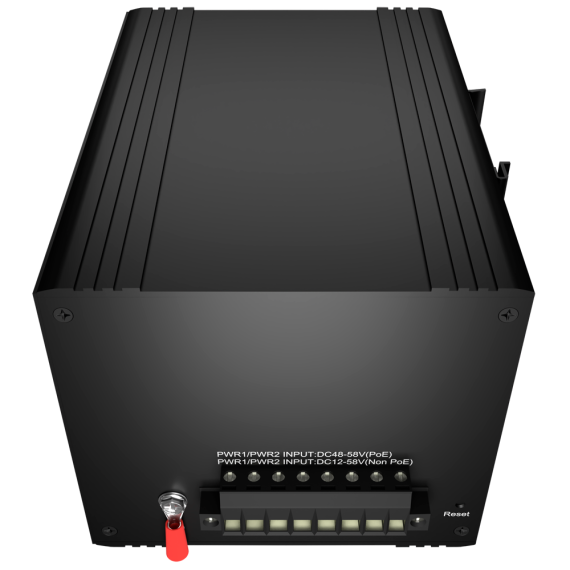

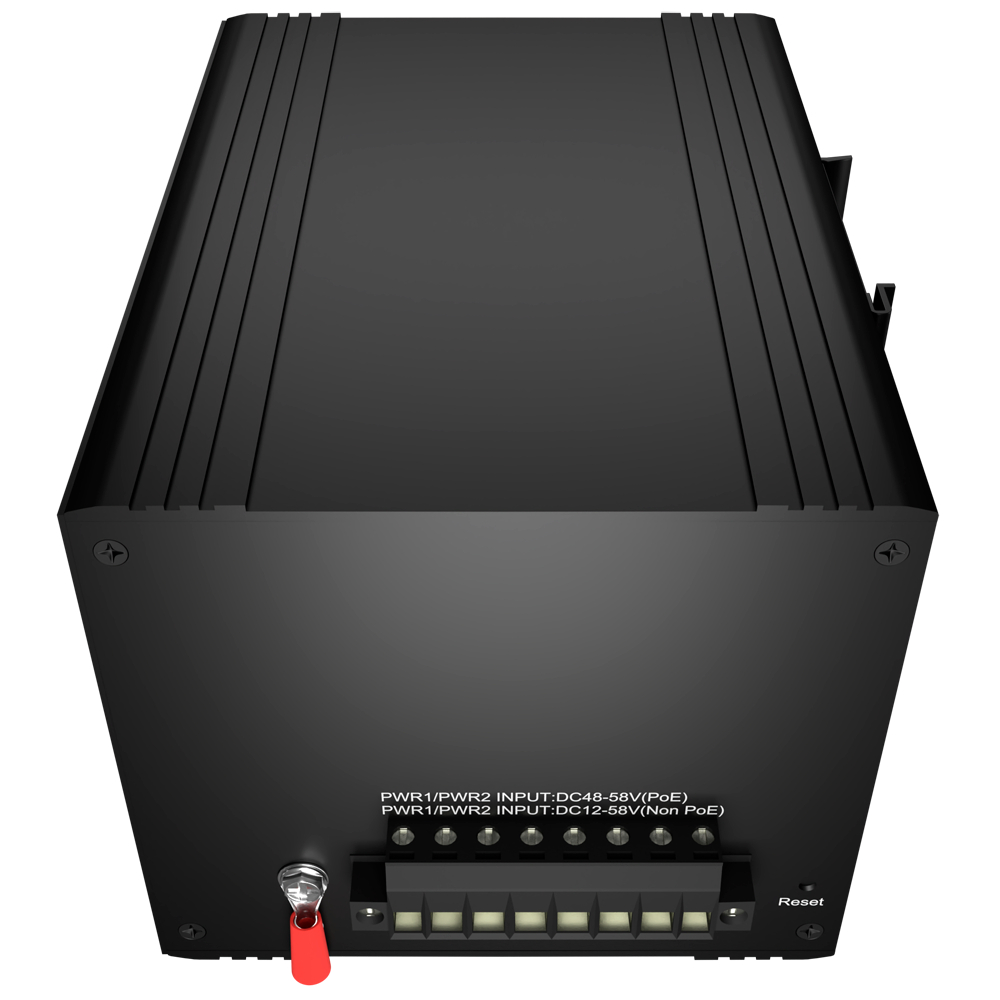

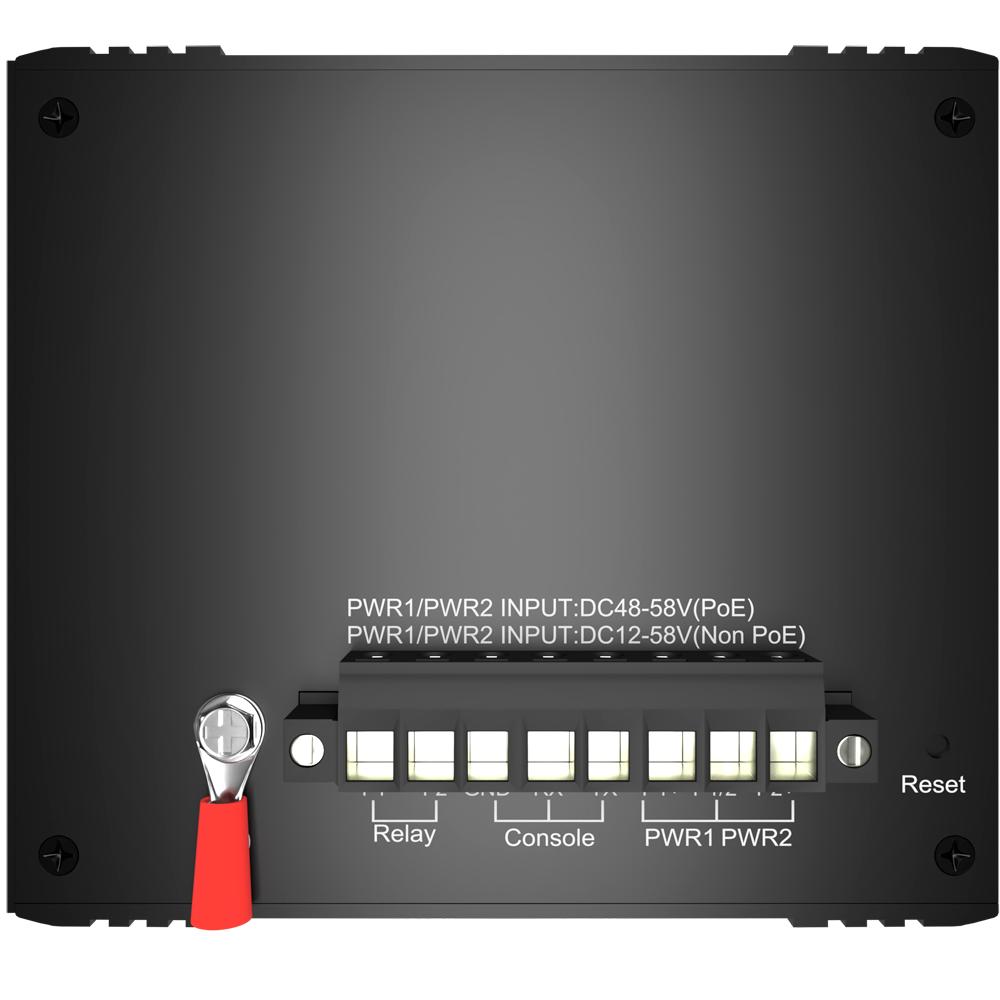

Power	DC 48 V ~ 58 V- The equipment does not include power supply. The following references are recommended: - DC48V5A-DIN
Dimensions	108 (D) x 104 (H) x 143 (W) mm
Weight	1,3 Kg
Operating temperature	-40º C ~ 75º C

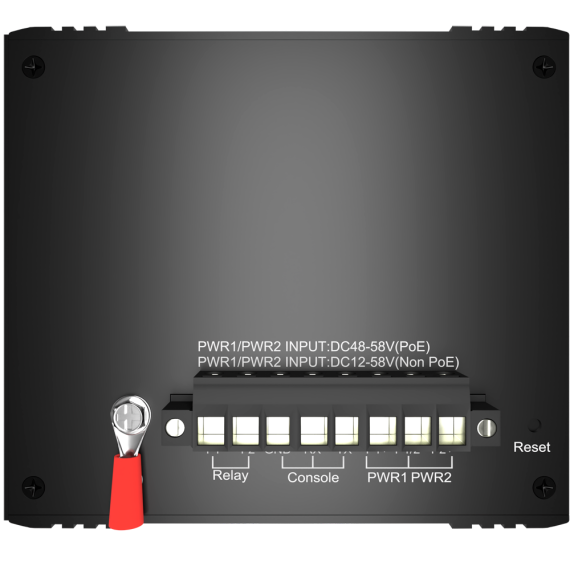

Relay Output	Switch failure is reported via relay. The relay interface can be connected to a buzzer or other monitoring devices to achieve the physical layer shutdown alarm function. When the switch is off, RELAY1 and RELAY2 will change to the connected state and, therefore, the buzzer will sound and the monitoring devices will detect the switch failure and report the errors to the data center. This output cannot be configured at software level.
