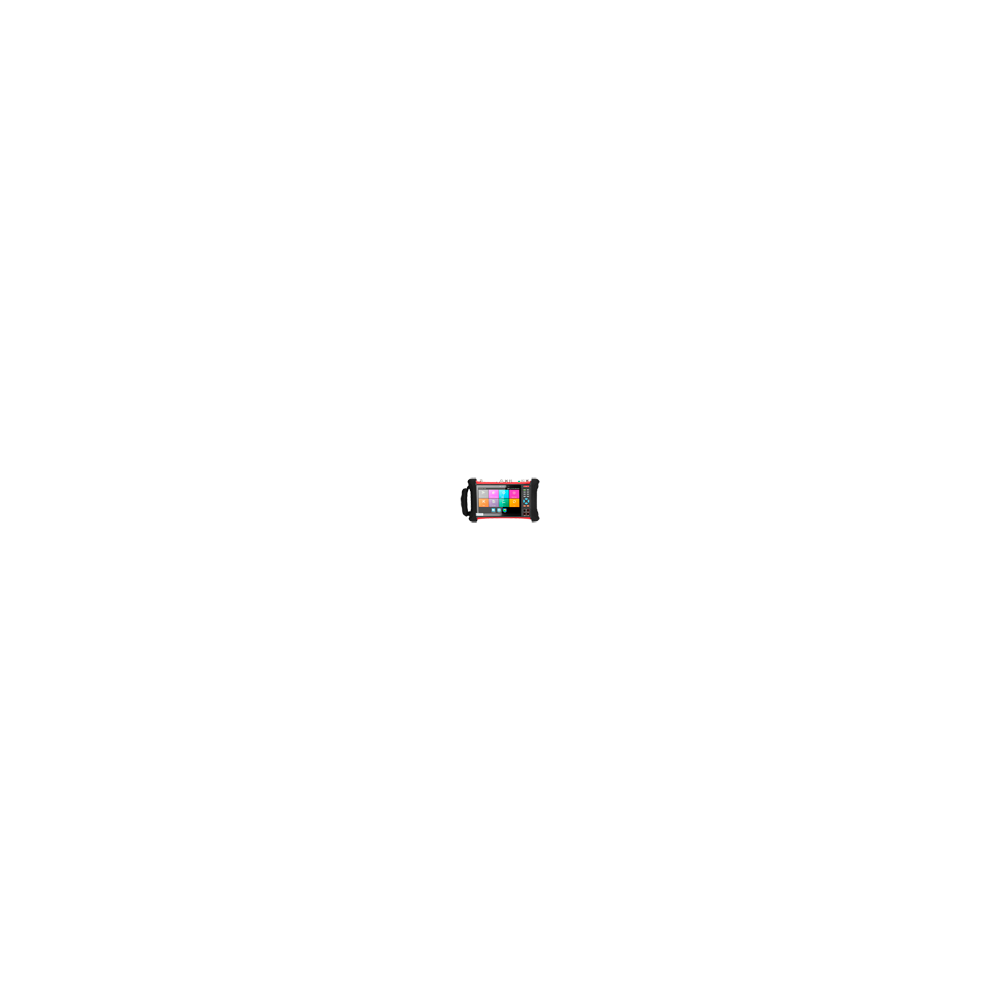

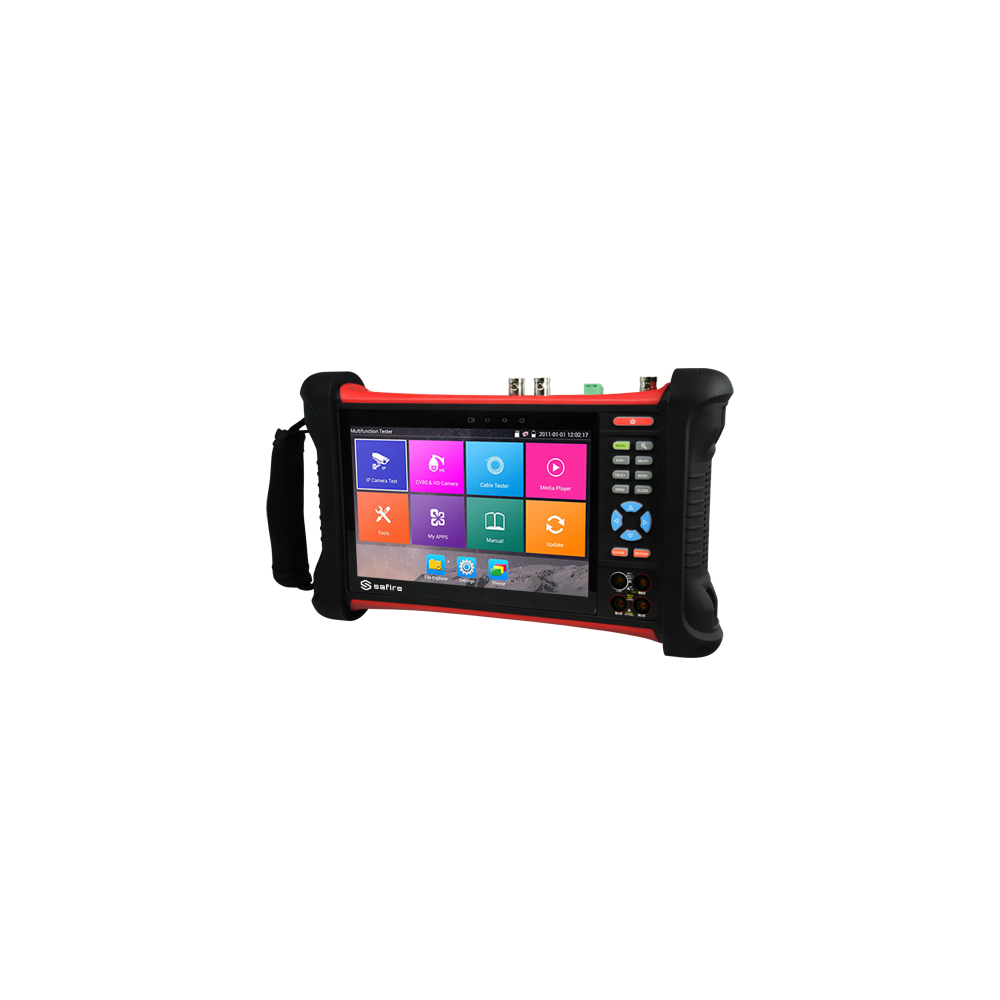

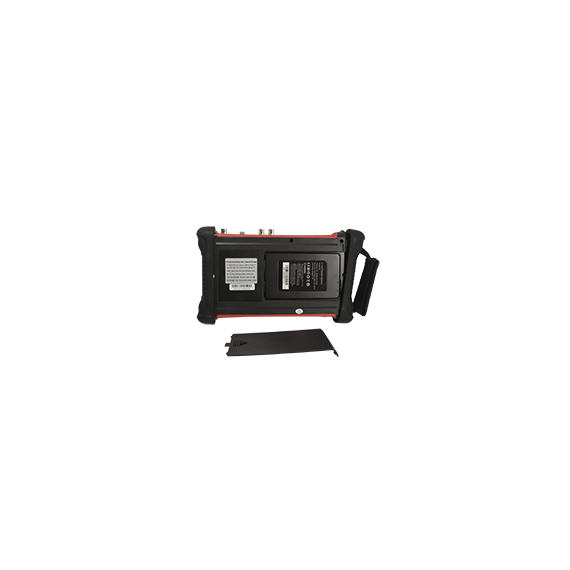

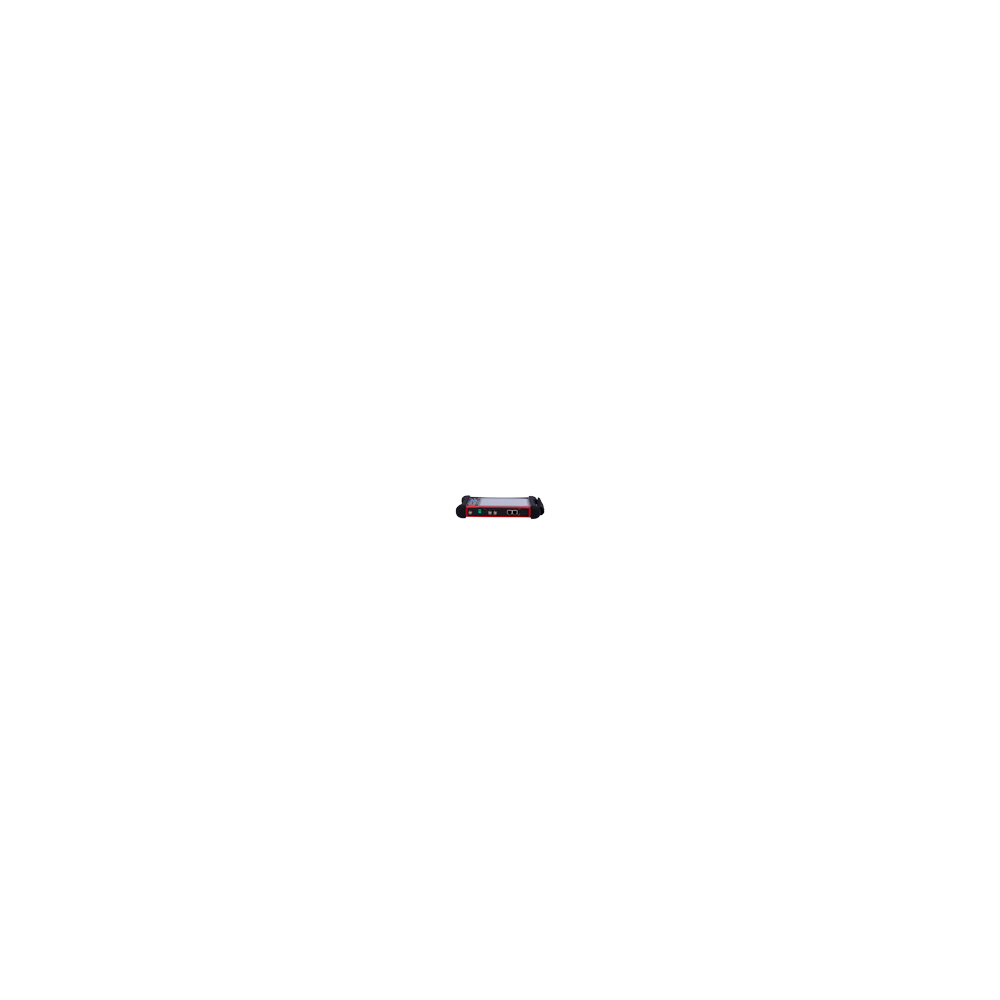

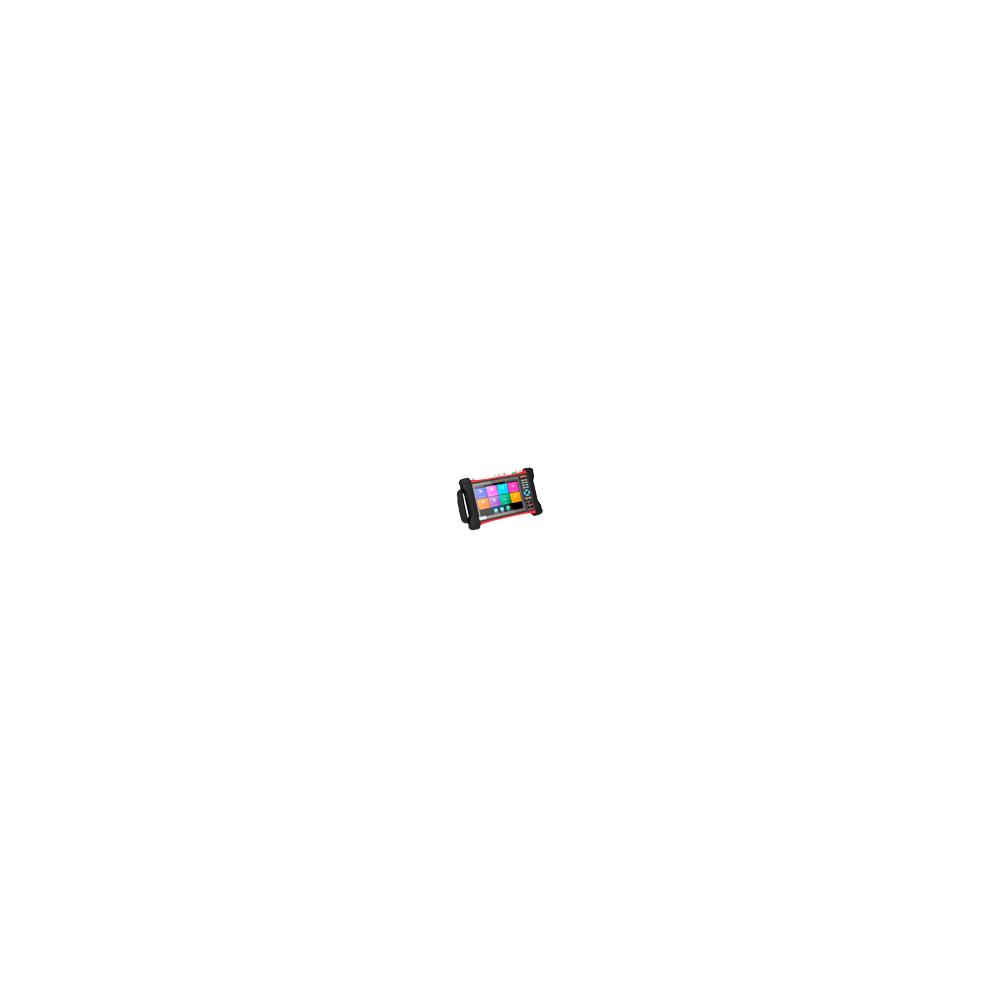

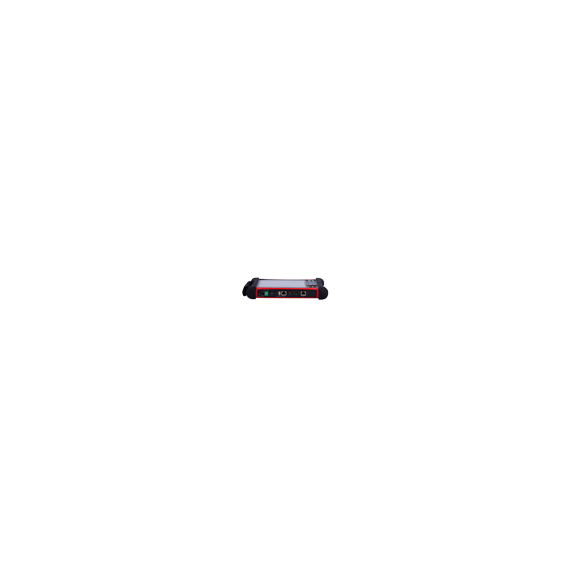

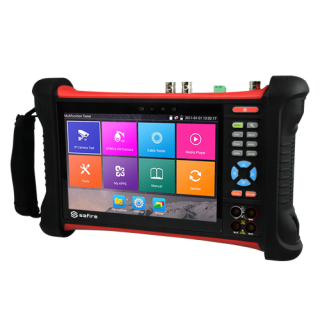

SAFIRE SF-TESTER7-5N1-4K

Multifunctional CCTV Tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras (4K) - Colour LCD display 7" - Test of video, audio, UTP and TDR cables - Built-in battery 5000 mAh - WiFi connection / Digital multimeter

Les merShow less

kr 13,317.00

Referanse:

SF-TESTER7-5N1-4K

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

Safire
Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras

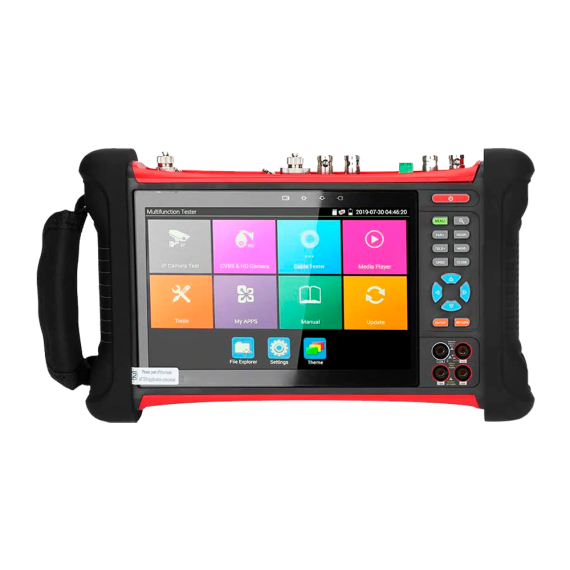

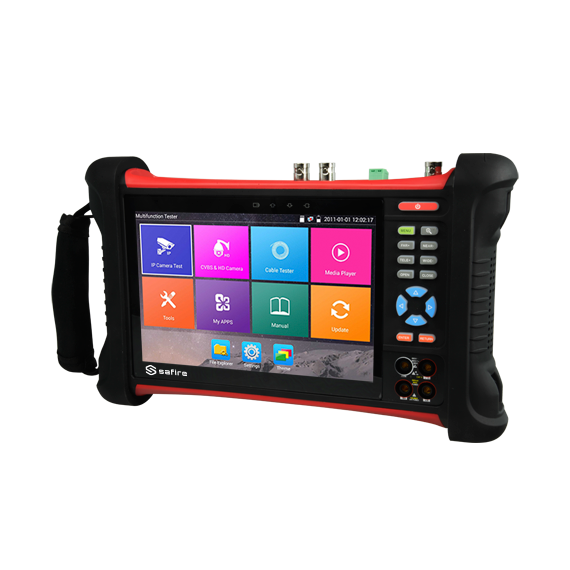

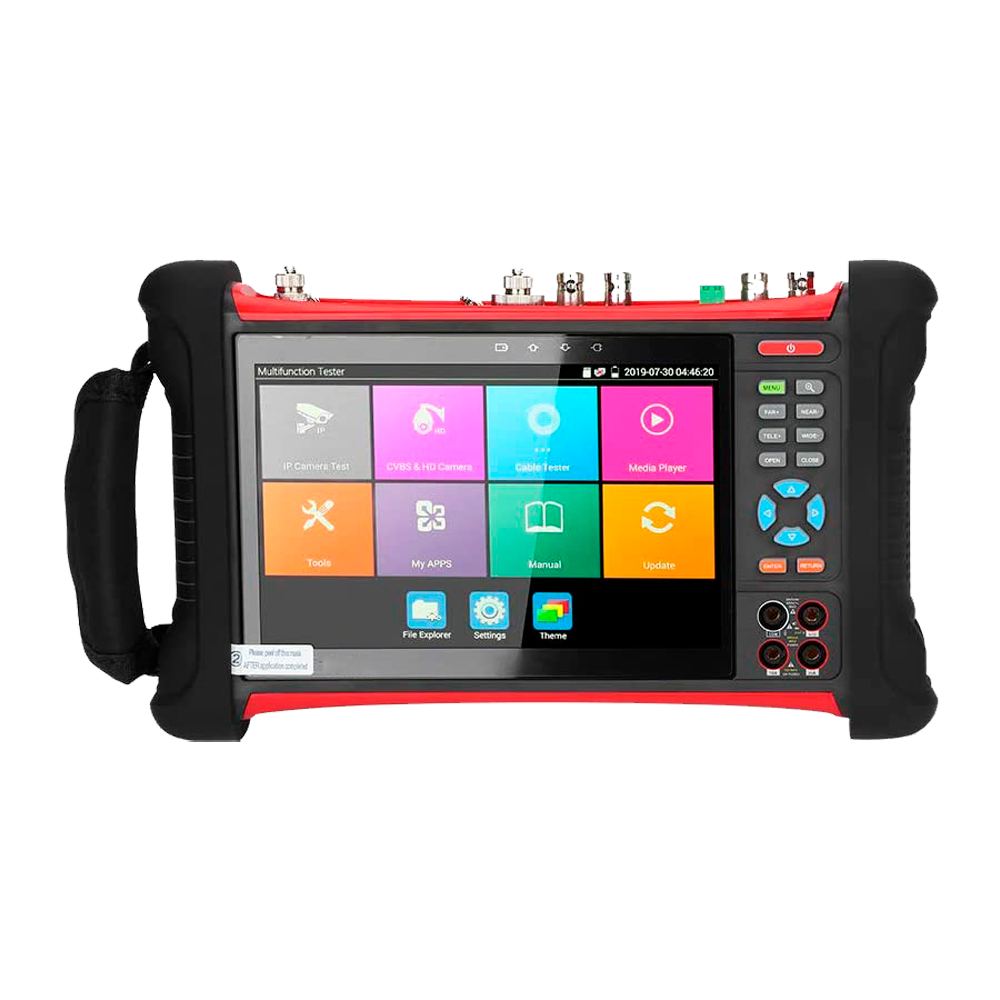

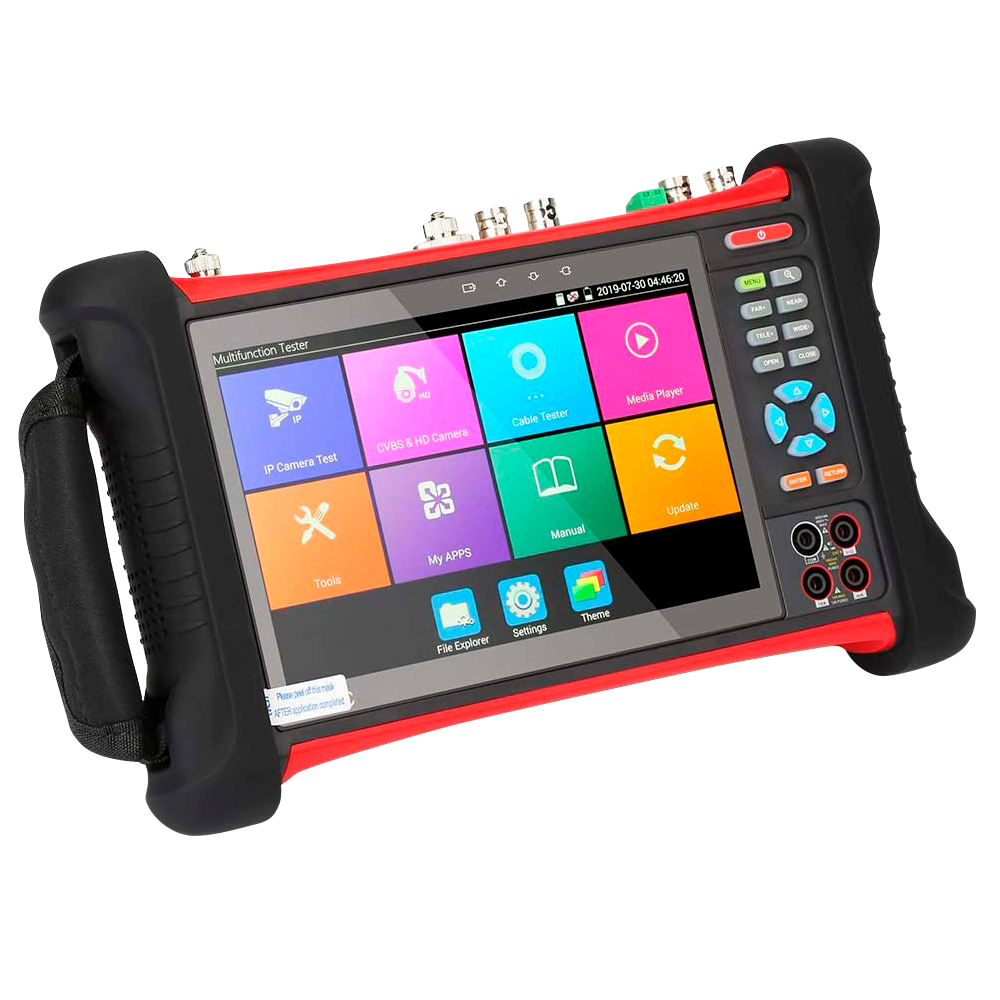

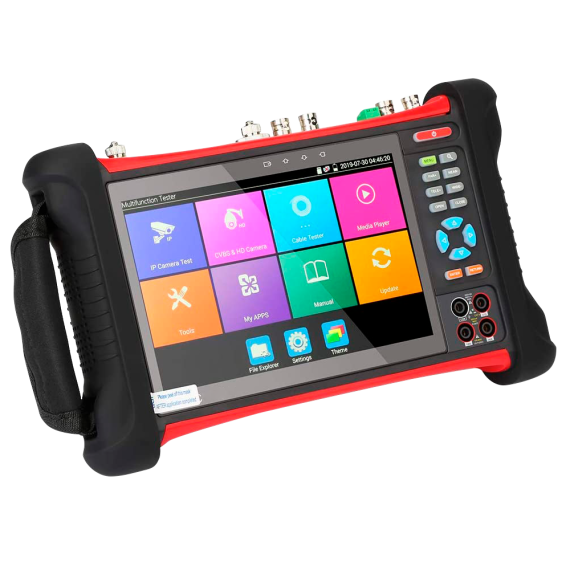

LCD 7" touch screen
Resolution 1920x1200
Decodes camera image up to 4K (HDTVI / HDCVI / AHD / IP)
Built-in WiFi
Audio Input/Output
PTZ analyser and controller. Supports multiple protocols
UTP Cable Tester
Digital multimeter
Micro SD card of 8 GB for recording
Rechargeable lithium battery 7.4V 5Ah
DC power supply outputs 12 V and PoE power supply
Multi-language menu
BNC and HDMI video Input/Output

TDR function that can detect cable faults and the distance at which the fault is located

Brand	SAFIRE
Screen	TFT-LCD 7” resolution 1920x1200
Formats	HDTVI / HDCVI / AHD / Analog CVBS / IP (4K)
Video settings	Brightness, contrast and saturation

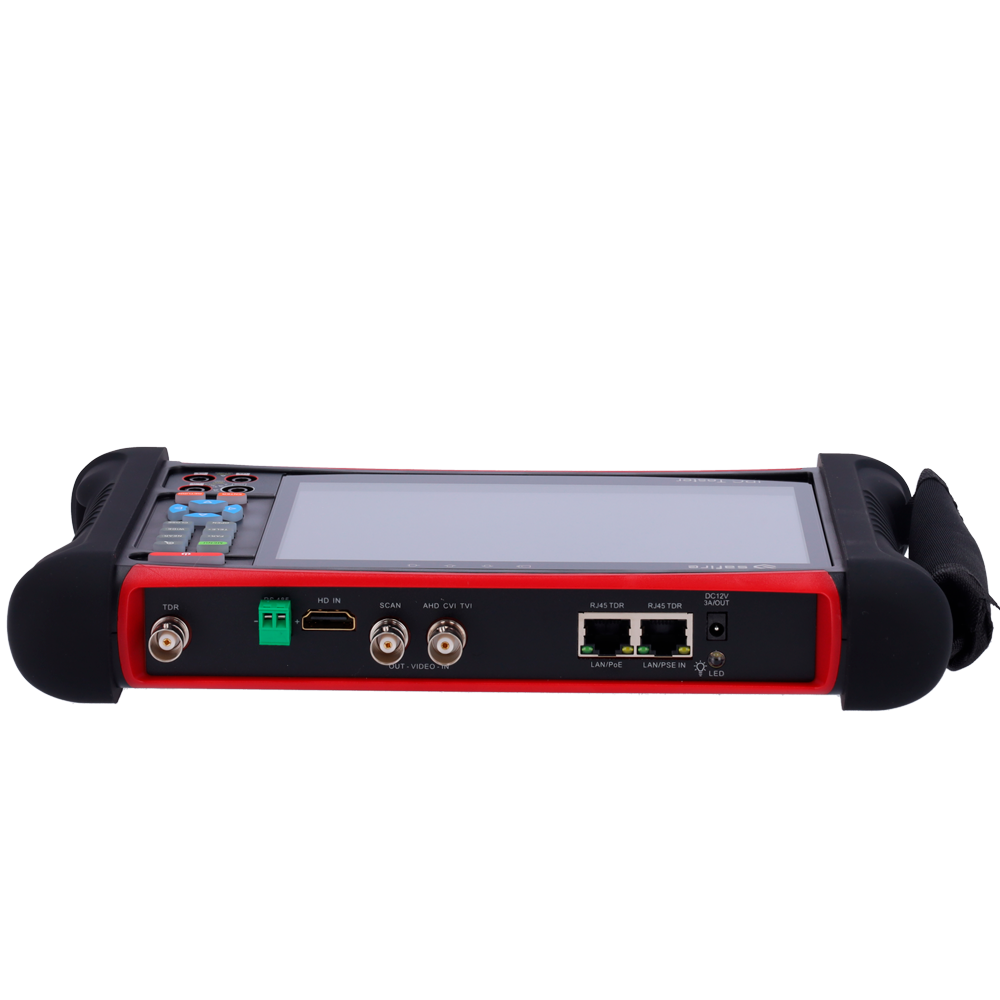

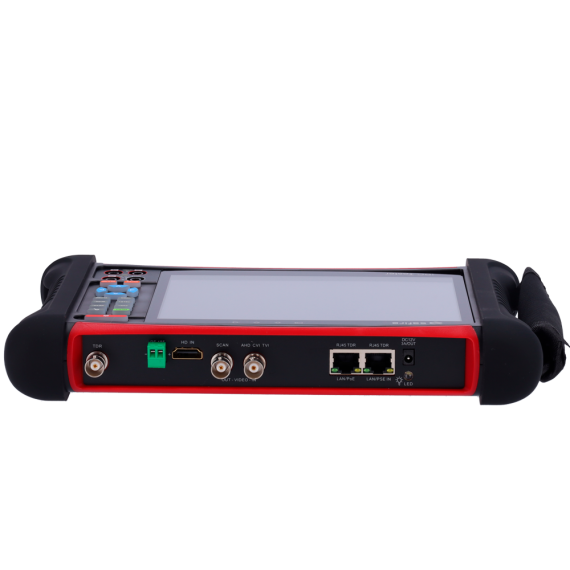

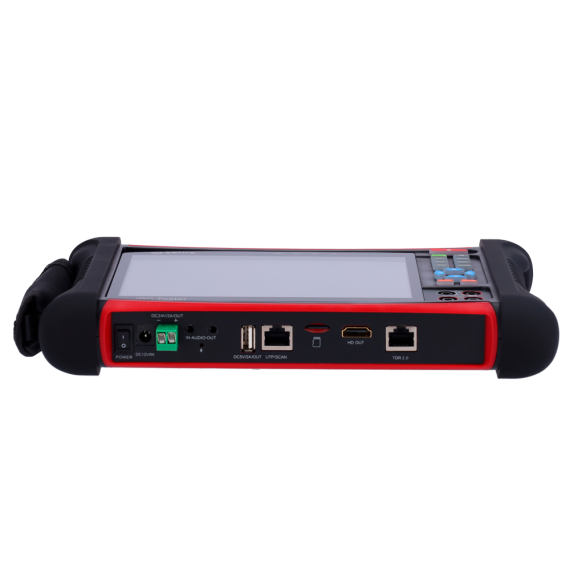

Inputs	BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI (4K 30fps), Audio

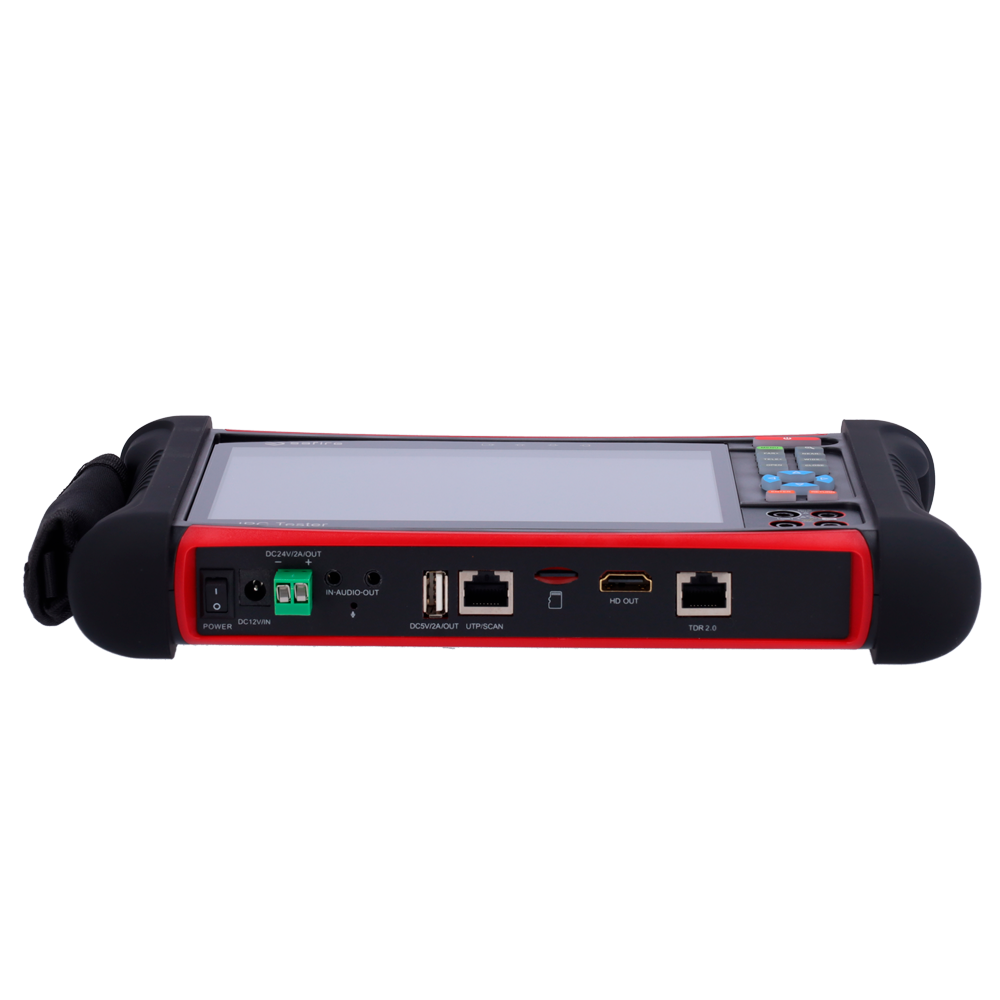

Outputs	BNC, DC12V 3A, HDMI, Audio
PTZ	RS485
Communication	WiFi, RJ45 10/100/1000M
Speaker	Incorporated
Digital multimeter	Voltage, current, resistance, diode and capacity
Video generator	Multicolour bar
Cable Tester	Independent accessory
TDR	Double TDR: UTP and Coaxial cable, to detect cable faults and the distance at which the fault is located

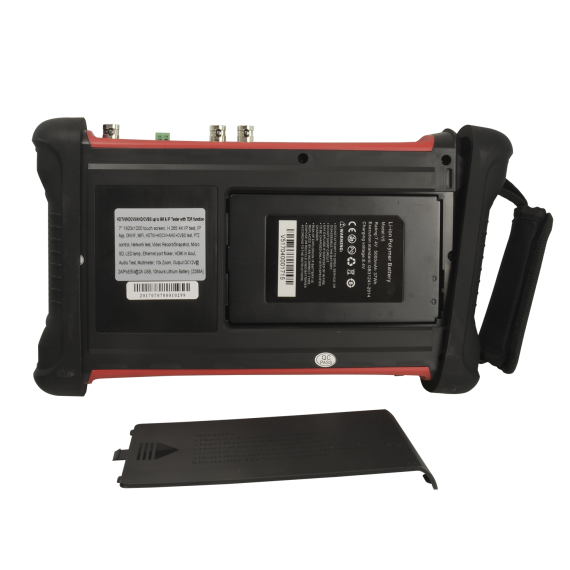

Power	Lithium Battery 7.4 V 5000 mAh
Charger	DC 12V 2A
Temp. operation	-10º C ~ +50º C
Dimensions / Weight	255 mm x 160 mm x 46 mm / 950 g
