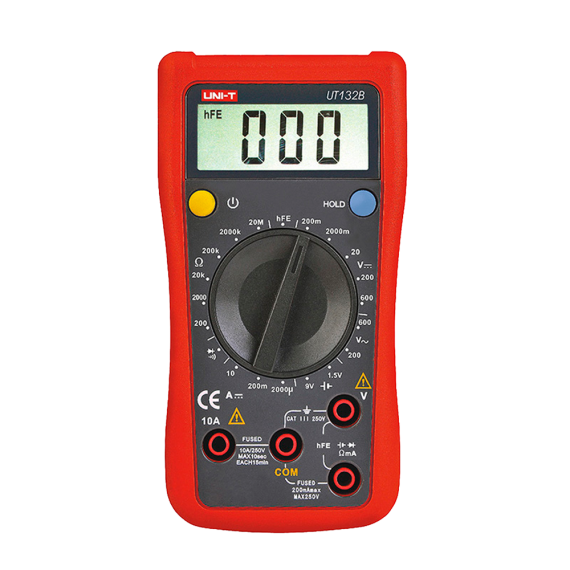

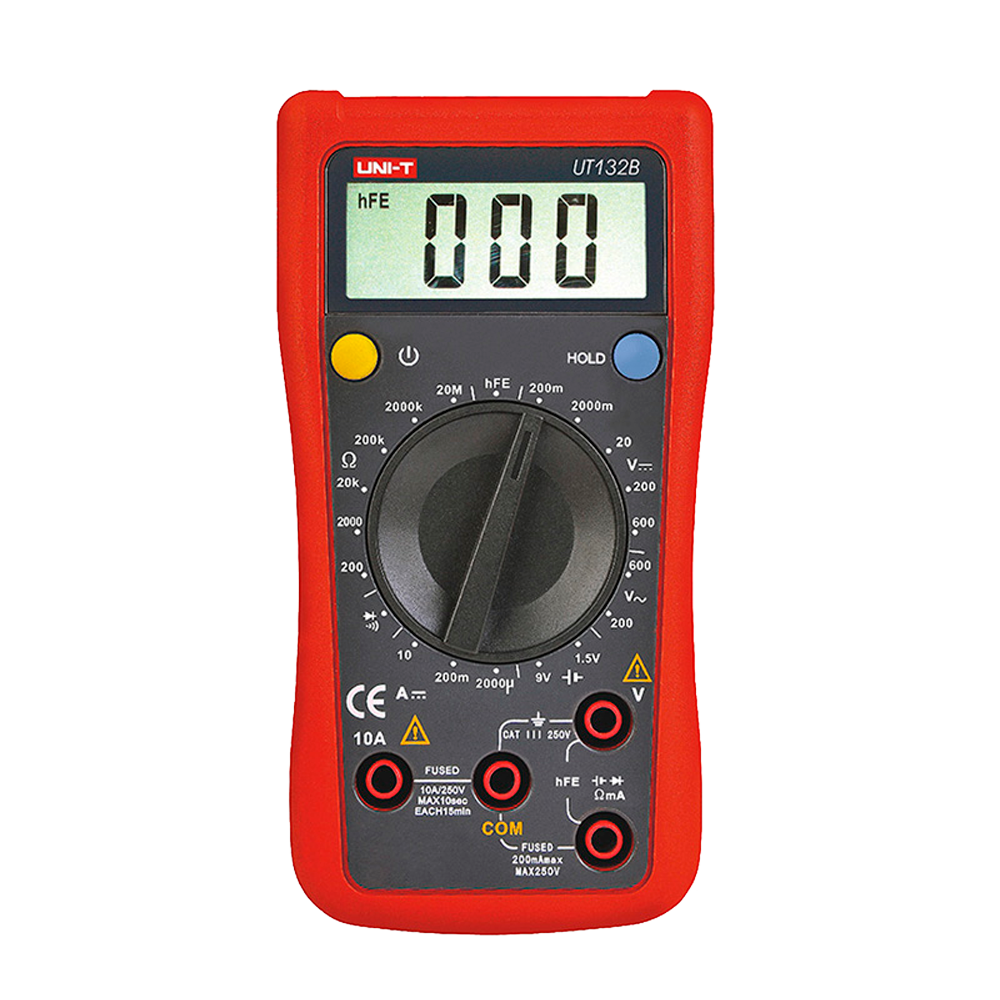

UNI-TREND UT132B

Handheld Digital Multimeter - DC and AC voltage measurement up to 600V - DC current measurement up to 10A - Resistance measurement | Diode and hFE test - Battery test - Buzzer for continuity test

Les merShow less

kr 550.05

Referanse:

UT132B

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Handheld Digital Multimeter
LCD backlight display up to 2000 accounts
DC and AC voltage measurement up to 600V
DC current measurement up to 10 A
Measurement of resistance up to 20 MΩ
Battery test up to 9V
Buzzer for continuity test
Diode and transistor tests

Automatic shutdown

Brand	Uni-T
Measuring range DC voltage	200mV ±(0.5%+2) 2000mV ±(0.5%+2) 20V ±(0.5%+2) 200V ±(0.5%+2) 600V ±(0.5%+2)
Measuring range AC voltage	200V ±(1.2%+3) 600V ±(1.2%+3)
DC current measuring range	2000μA ±(1%+2) 200mA ±(1%+2) 10A ±(1%+2)
Resistance measuring range	200Ω ±(0.8%+5) 2000Ω ±(0.8%+5) 20kΩ ±(0.8%+5) 200kΩ ±(0.8%+5) 2000kΩ ±(0.8%+5) 20MΩ ±(0.8%+5)
Battery test	1.5V ±(1%+2) 9V ±(1%+2)
Display dimensions	49mm x 18mm
Display accounts	2000 accounts
Input impedance	10MΩ approx. Yes, it is available
Continuity test	Yes, it is available
Diode and transistor tests	Yes, it is available
Power	Stack 9V (6F22)
Dimensions	137 (H) x 72 (W) x 35 (D) mm
Weight	200 g
