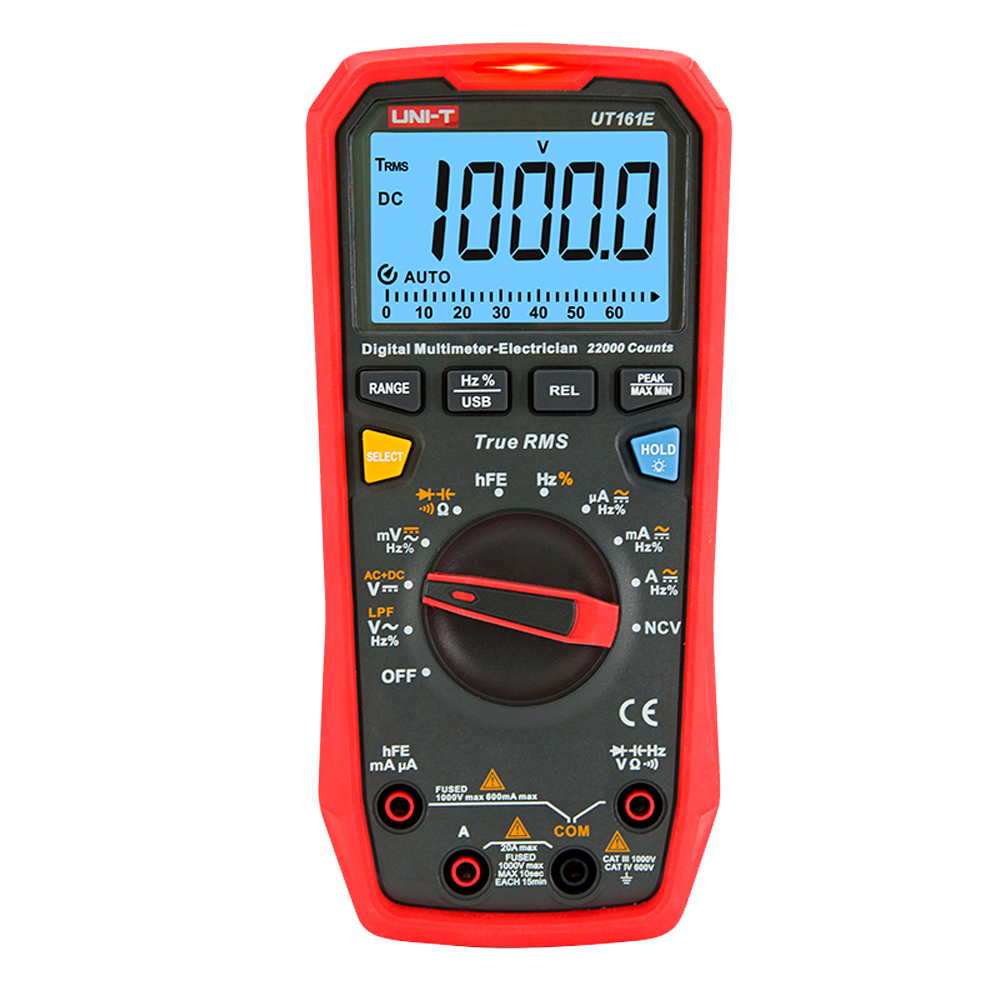

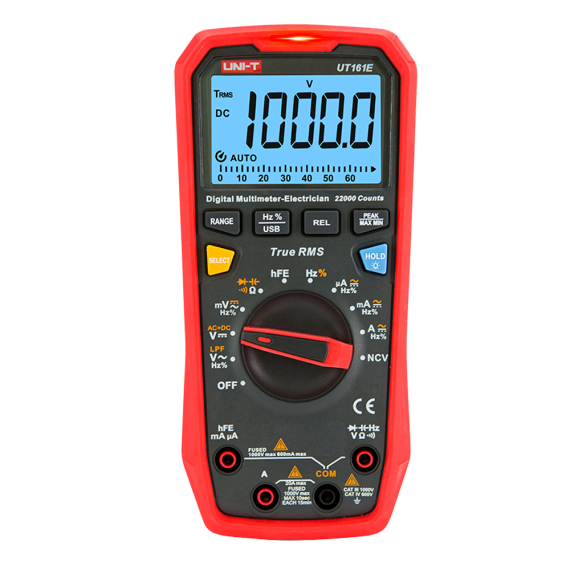

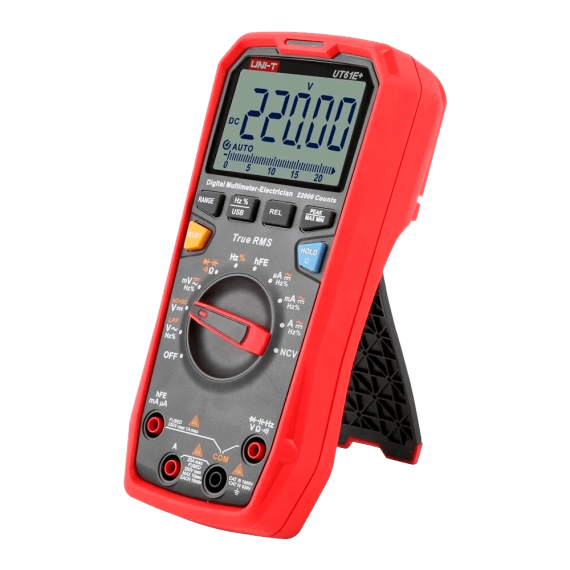

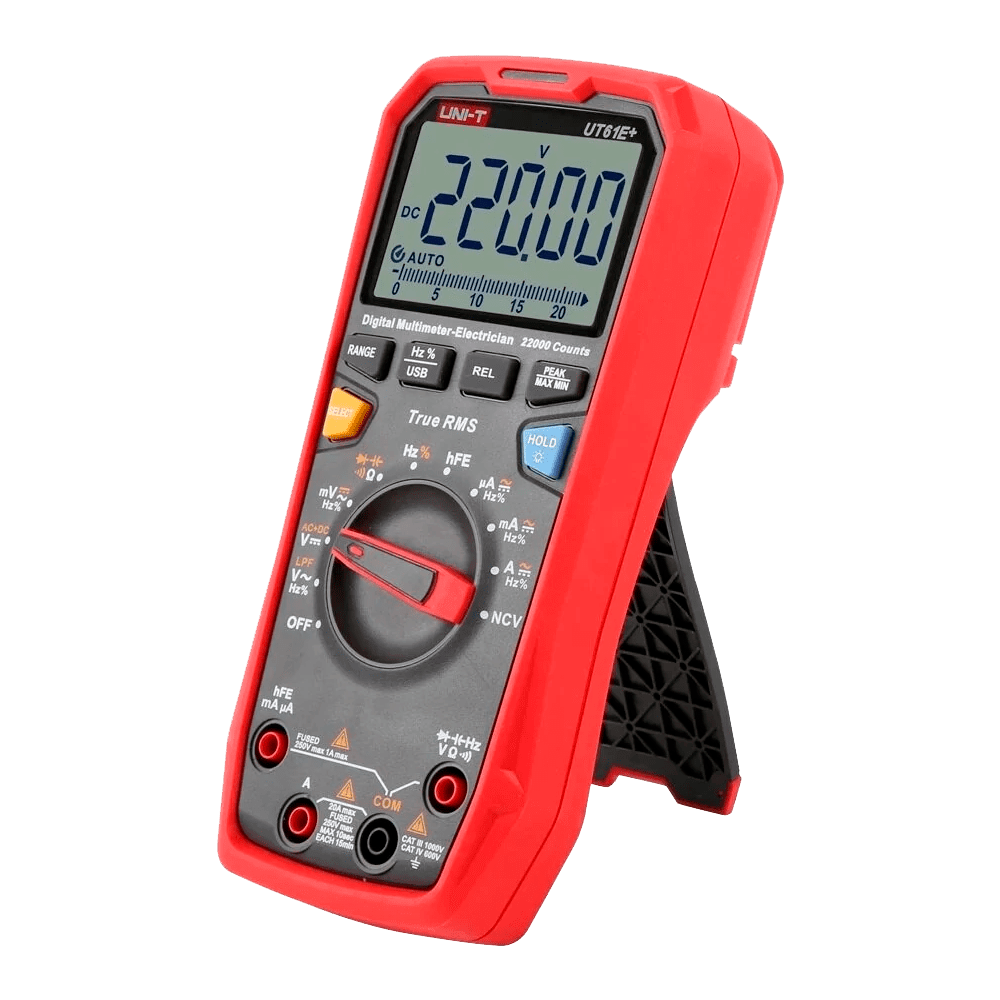

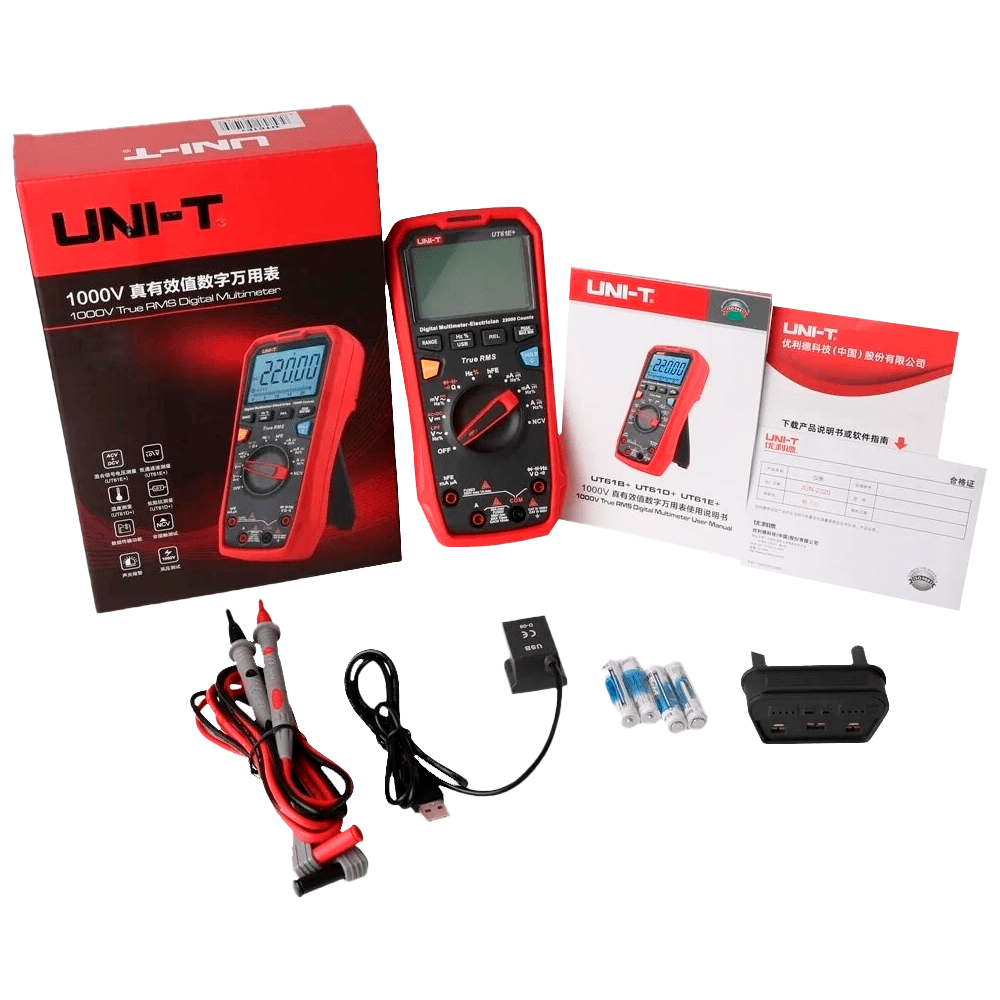

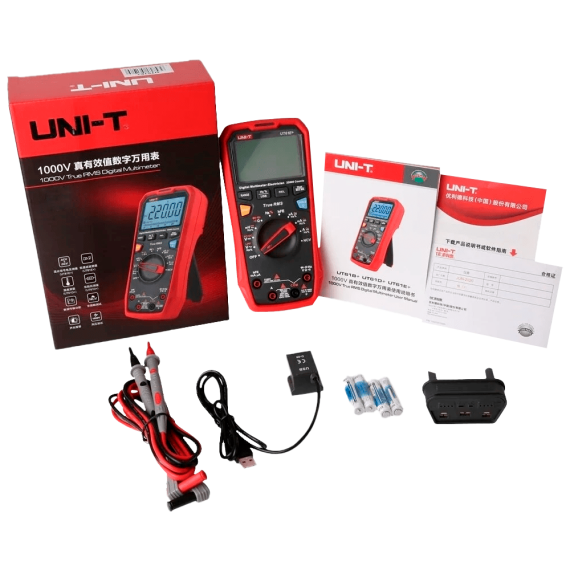

UNI-TREND UT161E

Digital multimeter CAT III - LED display up to 22000 accounts - DC and AC measurement up to 1000V and 20A - PC connection - High AC accuracy with True RMS function - Measurement of resistance, capacitance and hFE

Les merShow less

kr 2,605.50

Referanse:

UT161E

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Digital multimeter CAT III 1000V
LED backlight display up to 22000 accounts
DC and AC voltage measurement up to 1000 V
DC and AC current measurement up to 20 A
Bandwidth 40~10kHz
LPF filter
High accuracy in AC with built-in True RMS function
Resistance, capacitance, frequency and hFE measurement of transistors
Buzzer for continuity test
NCV (non-contact voltage) function
Diode test
PC connection

Automatic shutdown

Brand	Uni-T
Measuring range DC and AC voltage	DC 1000V ±(0.05%+5) AC 1000V ±(0.8%+10)
DC and AC current measuring range	DC 20A ±(0.5%+10) AC 20A ±(0.8%+10)
Resistance measuring range	220MΩ ±(0.5%+10)
Capacitance measuring range	220mF ±(3%+5)
Frequency measurement range	220MHz ±(0.01%+5)
Duty cycle	0.1%~99.9% ±(2%+5)
Display accounts	Up to 22000
Display dimensions	58mm x 36mm
Auto Range / Manual Range / True RMS	Yes, it has
Bandwidth	40~10kHz
Continuity test	Yes, it is available
Diode test	Around 3V
LPF/LoZ (ACV) (Phantom Voltage Measurement)	Yes, it is available
Power	4 x batteries (R03) 1.5V
Dimensions	90 (H) x 120 (W) x 33.5 (D) mm
Weight	350 g
Security	CAT III 1000V, CAT IV 600V CAT IV [%VAR%]
