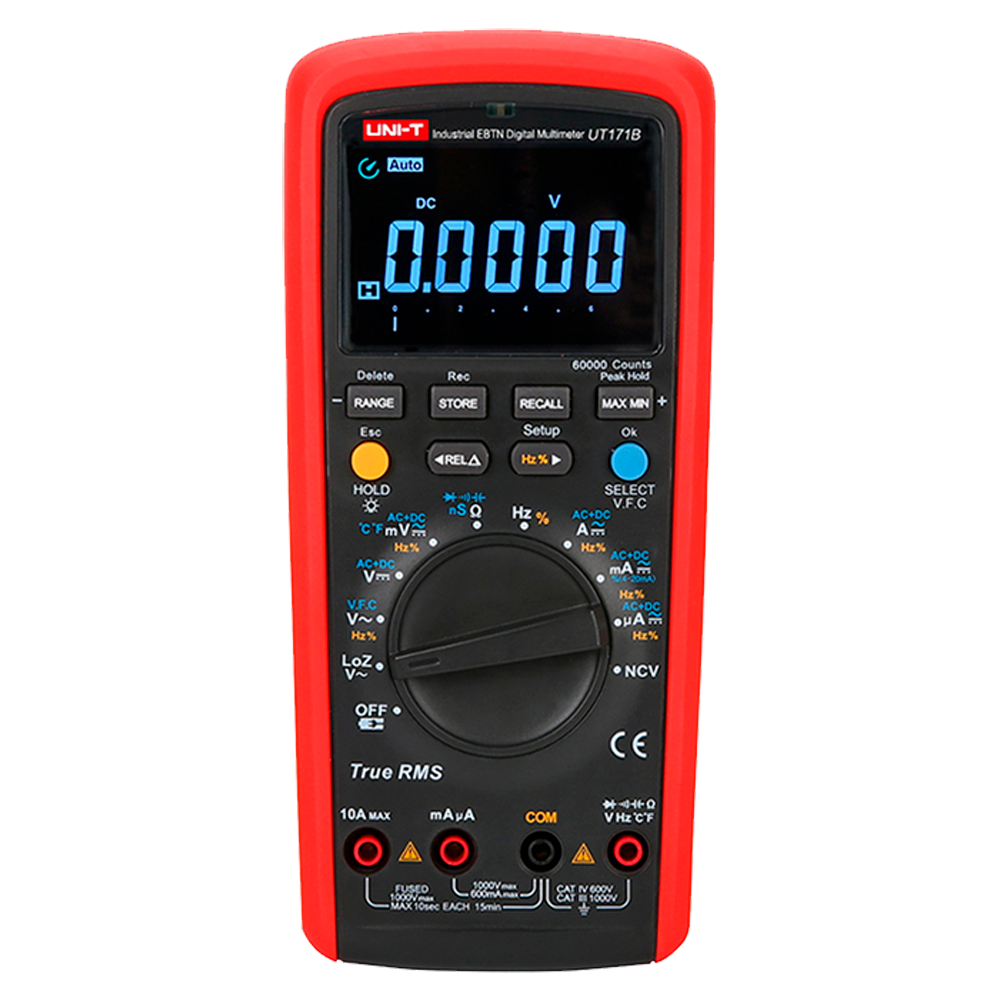

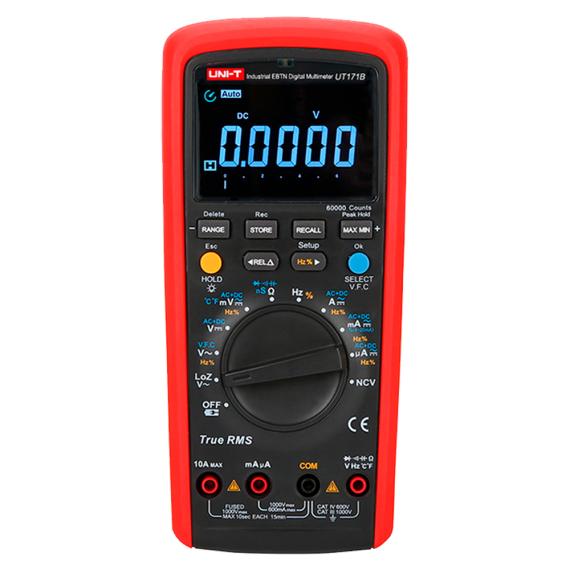

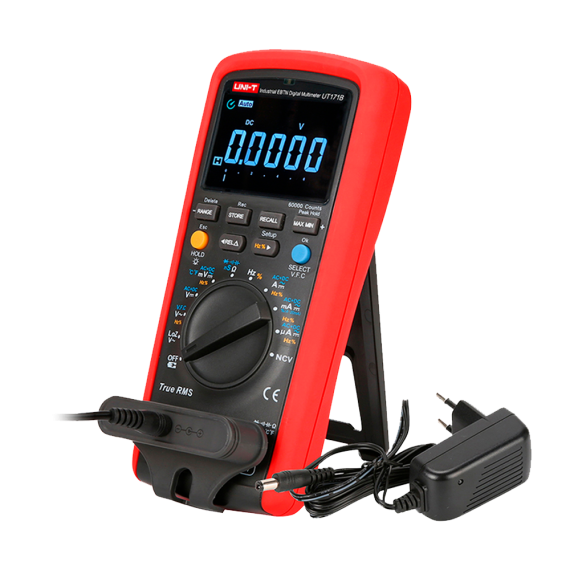

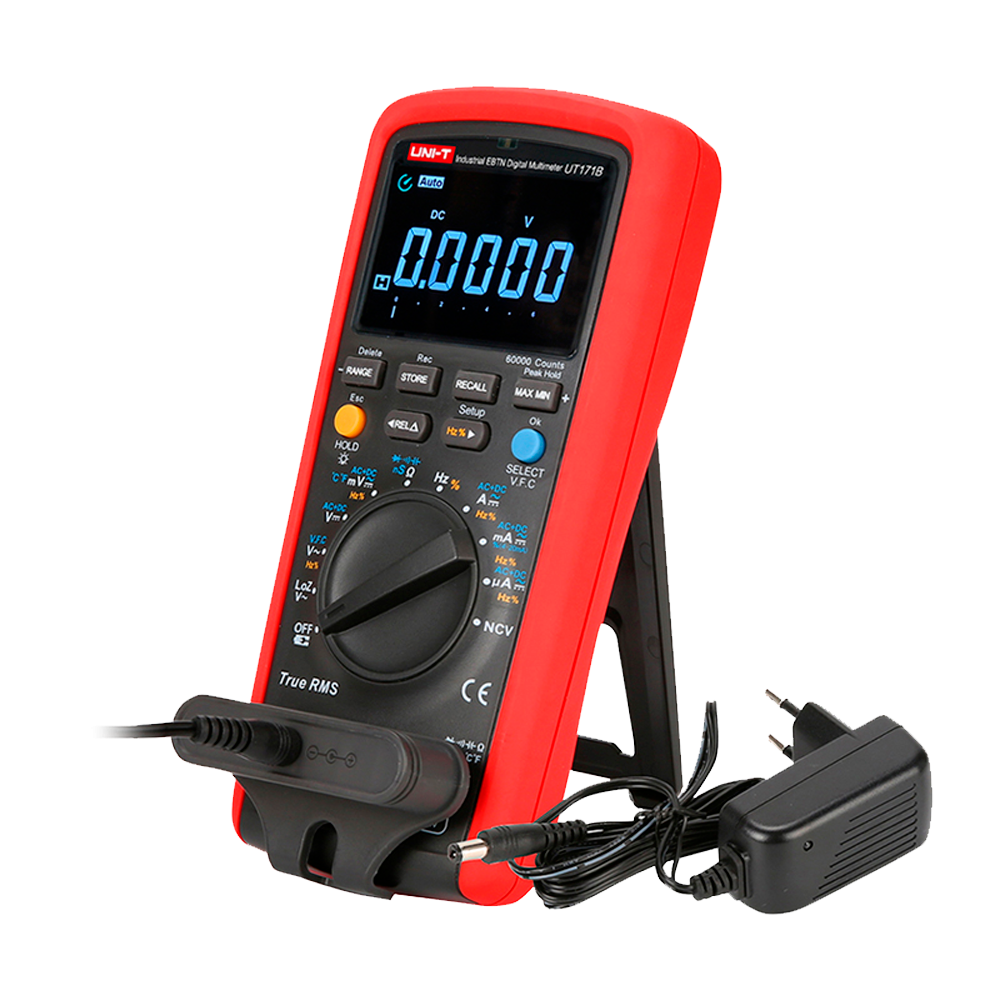

| Brand | Uni-T |
| Measuring range DC and AC voltage | DC 1000V ±(0.025%+5) AC 1000V ±(0.4%+40) |
| DC and AC current measuring range | DC 10A ±(0.15%+2) AC 10A ±(0.75%+5) |
| Resistance measuring range | 60MΩ ±(0.05%+2) |
| Capacitance measuring range | 60mF ±(2.5%+40) |
| Frequency measurement range | 10Hz~10MHz ±(0.01%+5) |
| Temperature measurement range | -40°C~1000°C ±(1%+30) |
| Display accounts | Up to 60000 |
| Bandwidth | 100 kHz |
| Input impedance for DCV | 1GΩ |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Relative mode | Yes, it is available |
| Continuity test | Yes, it is available |
| Diode test | Yes, it is available |
| LoZ (ACV) | Yes, it has |
| NCV/Data hold/MAX/MIN | Yes, it is available |
| VFC Low Pass Filter (LPF) | Yes, it is available |

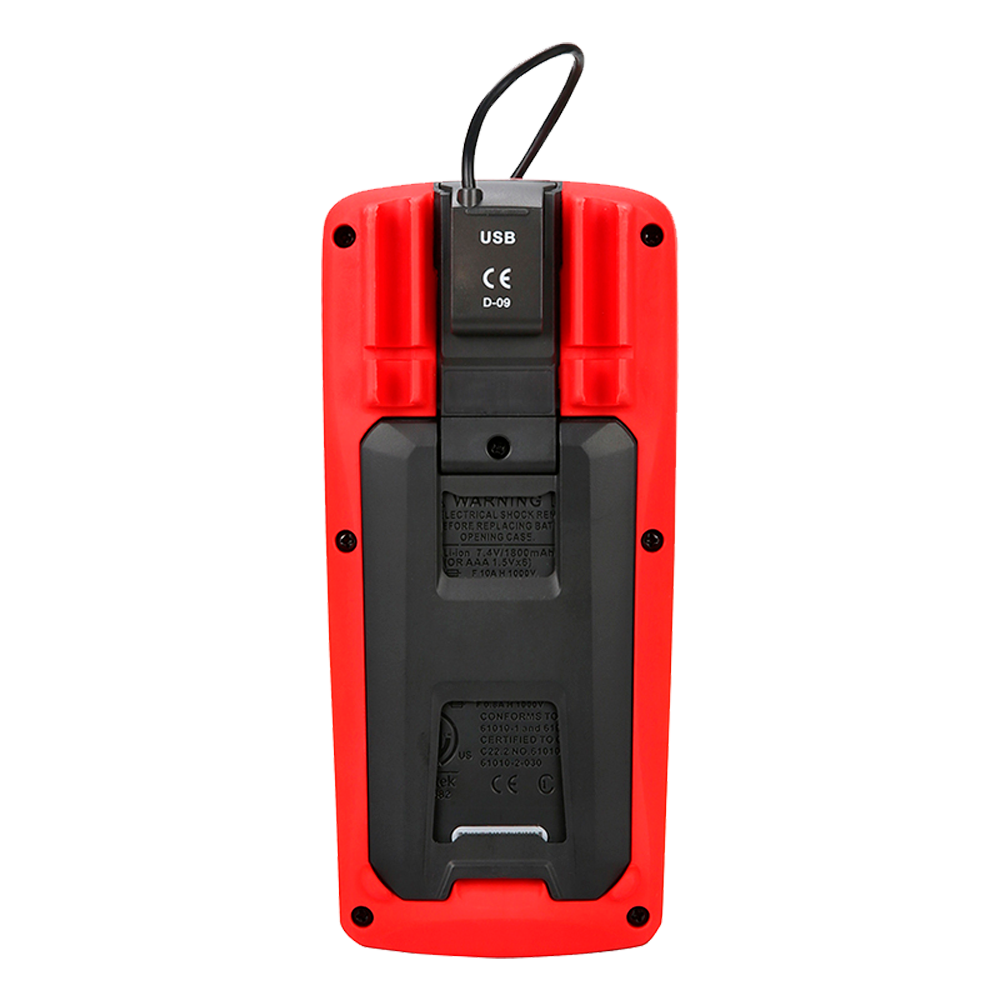

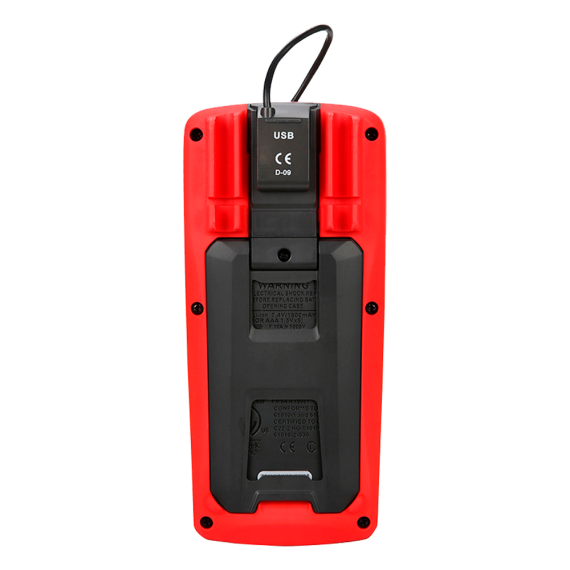

| Communications | USB/Bluetooth |
| Duty cycle | 0.1%~99.9% |
| Data storage | 9999 |
| Power | Lithium Battery 2000 mAh 7.4V |

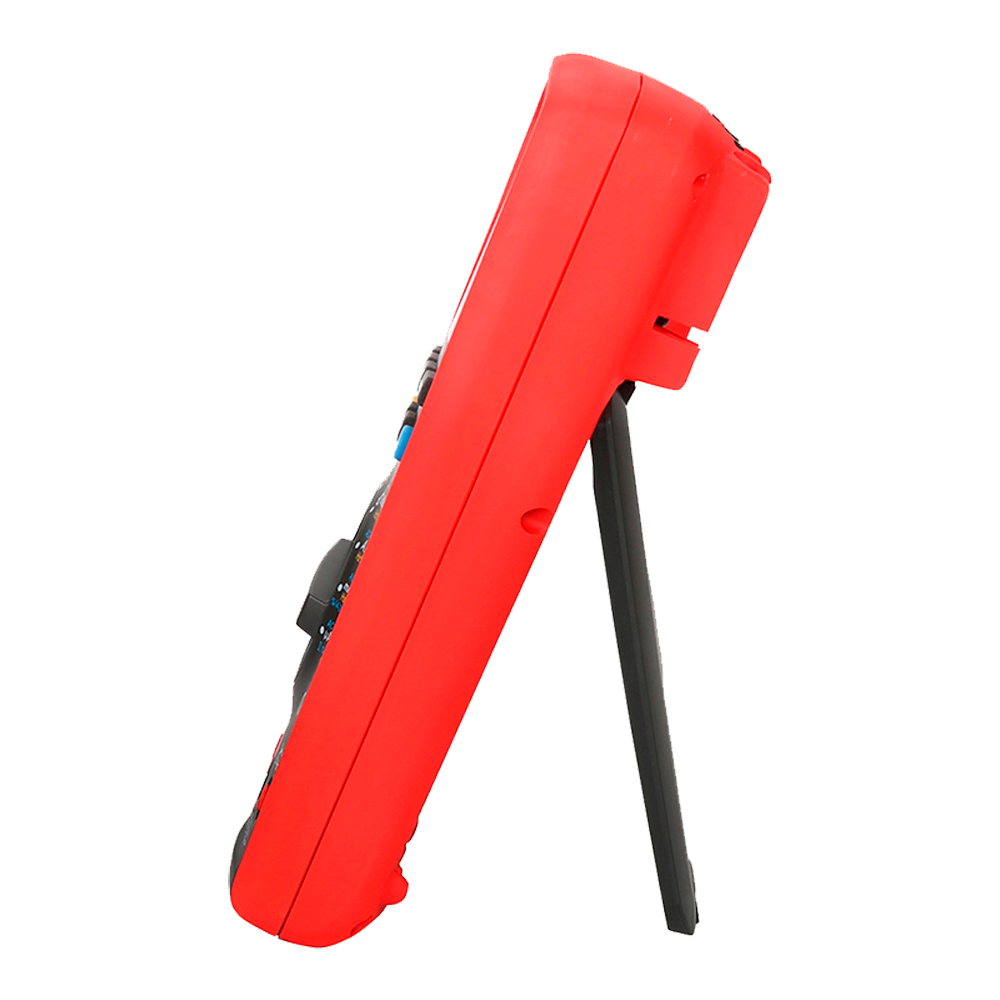

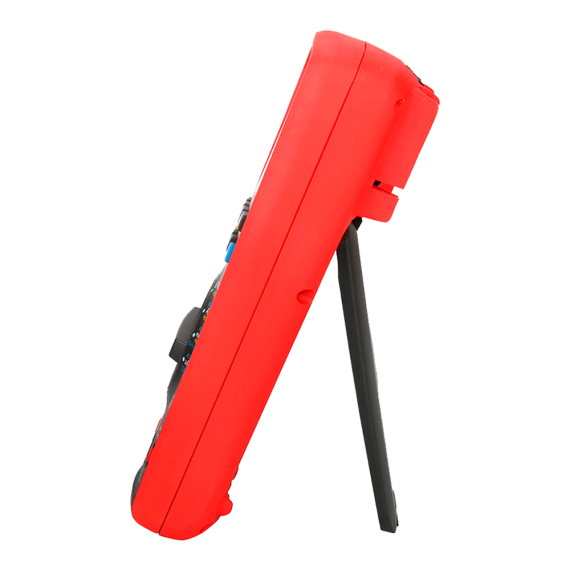

| Dimensions | 206 (H) x 95 (W) x 55 (D) mm |
| Weight | 384 g |
| Security | CAT III 1000V/ CAT IV 600V CAT IV [%VAR%] |
