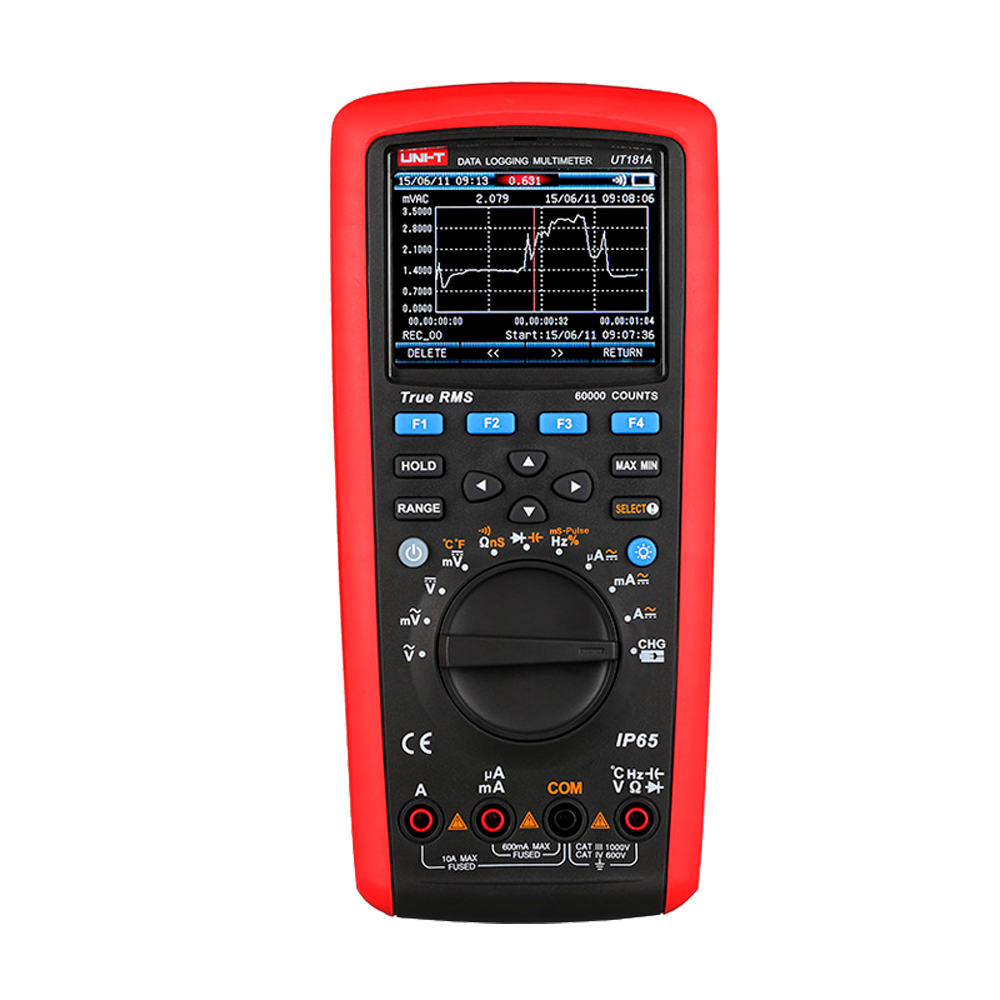

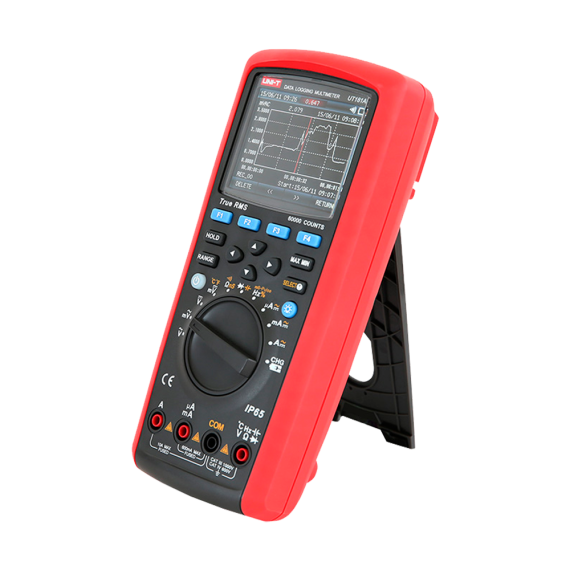

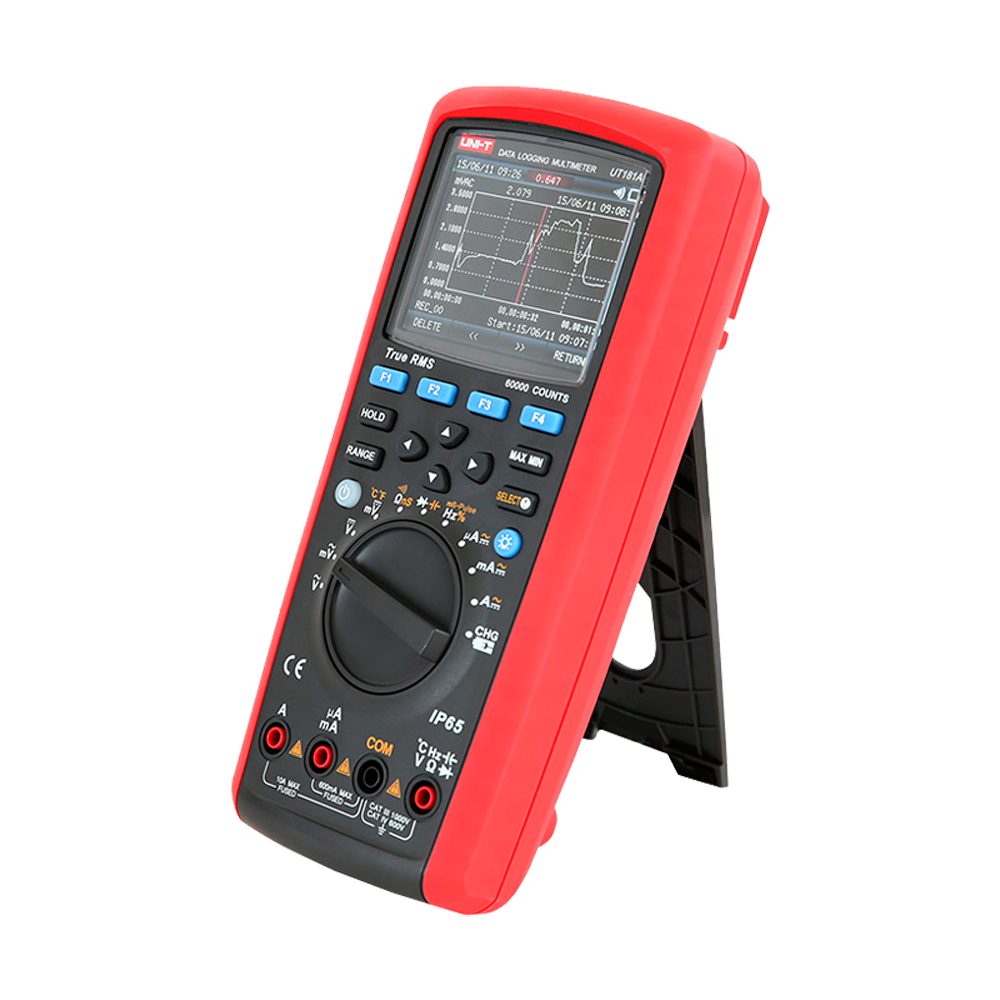

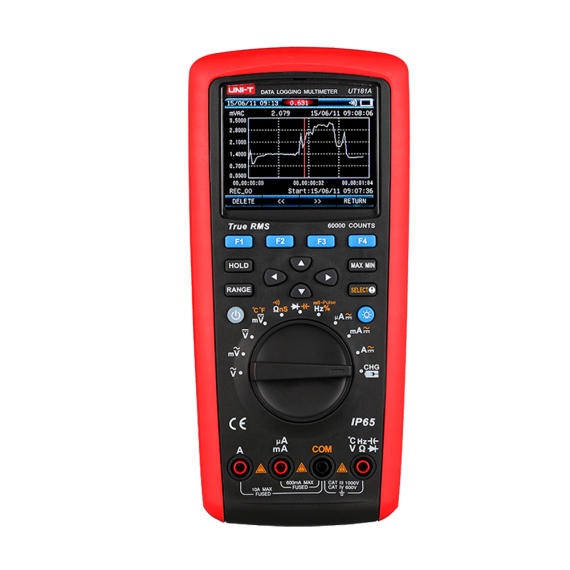

UNI-TREND UT181A

True RMS Datalogging Multimeter - PC connection for data dump - AC/DC measurement: to 1000V and 10A - Resistance, capacitance, conductance measurement - Measurement of frequency, temperature, continuity - Data logging and visualization

Les merShow less

kr 8,540.25

Referanse:

UT181A

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Datalogging multimeter CAT III 100V/ CATIV 600V
LCD display up to 6000 accounts
DC and AC voltage measurement up to 1000 V
DC and AC current measurement up to 10 A
High accuracy in AC with built-in True RMS function
Resistance, capacitance, conductance, frequency and temperature measurement
Buzzer for continuity test
Diode test
Logging function for up to 20000 datasets and visualization for trend tracking
Automatic shutdown

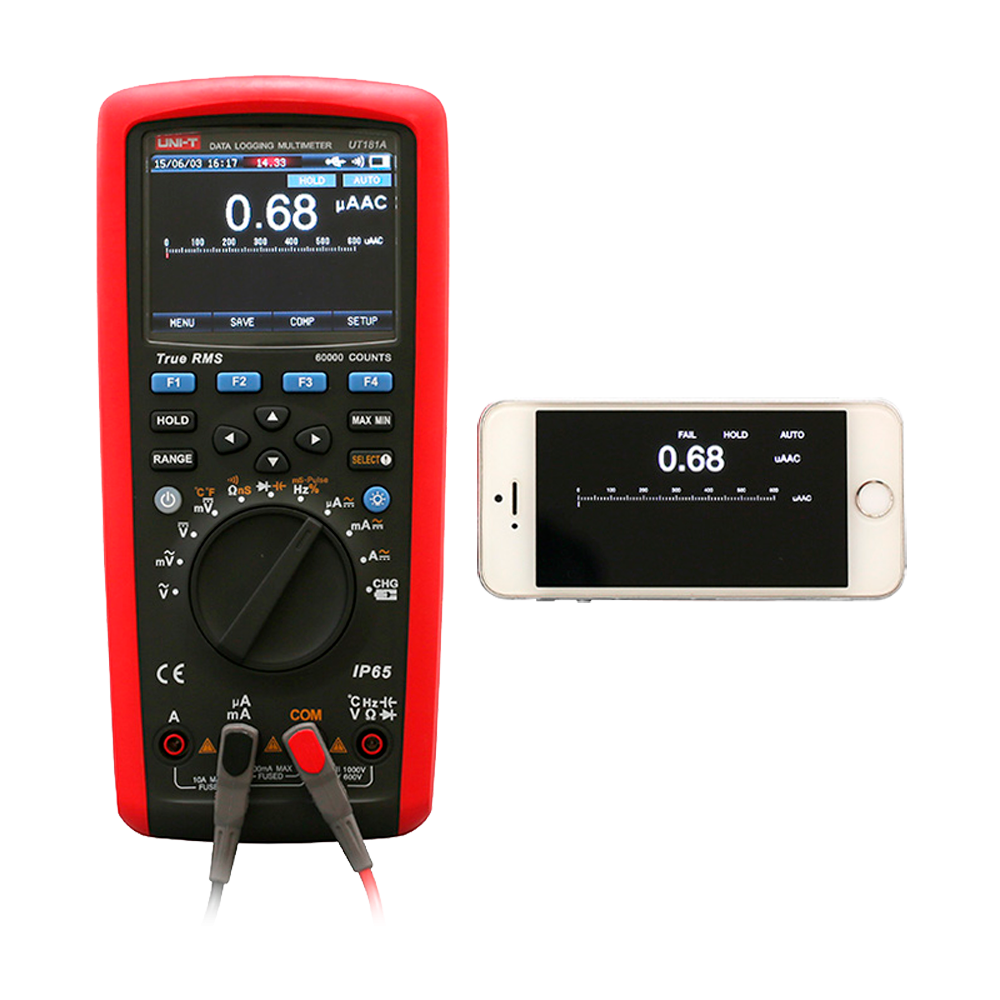

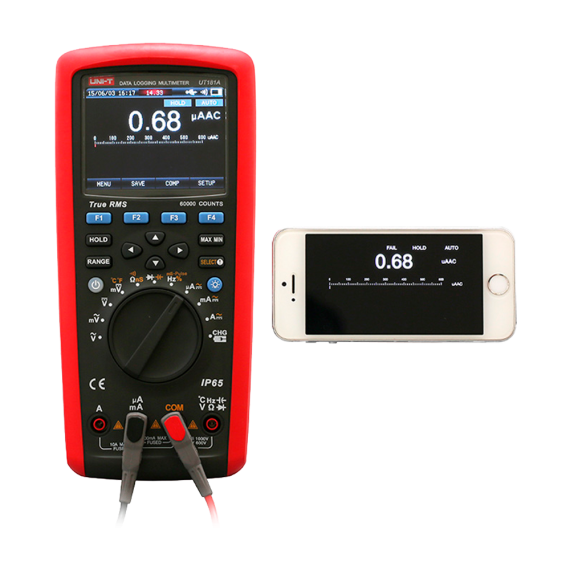

PC connection for data dump.

Brand	Uni-T
Measuring range DC and AC voltage	DC 1000V ±(0.025%+5) AC 1000V ±(0.3%+30); Frequency of response: 40~500Hz
DC and AC current measuring range	DC 10A ±(0.08%+10) AC 10A ±(0.6%+20); Frequency of response: 40~500Hz
Resistance measuring range	60MΩ ±(0.05%+2)
Capacitance measuring range	60mF ±(2%+5)
Frequency measurement range	10Hz~60MHz ±(0.01%+5)
Temperature measurement range	-40°C~1000°C ±(1%+30)
Display accounts	Up to 60000
Auto Range / Manual Range / True RMS	Yes, it has
Bandwidth	100 kHz
Relative mode	Yes, it is available
Data logging	20000
Continuity test	Yes, it is available
Low pass filter	1 kHz
Diode test	Up to 3V
Dual temperature measurement	T1, T2, T1-T2, T2-T1
Input protection	Yes, it is available
DC input impedance	≥10MΩ
Power	Lithium Battery 2200 mAh 7.4V
Dimensions	195 (H) x 95 (W) x 58 (D) mm
Weight	638.6 g
Security	CAT III 100V/ CATIV 600V CATIV [%VAR%]
