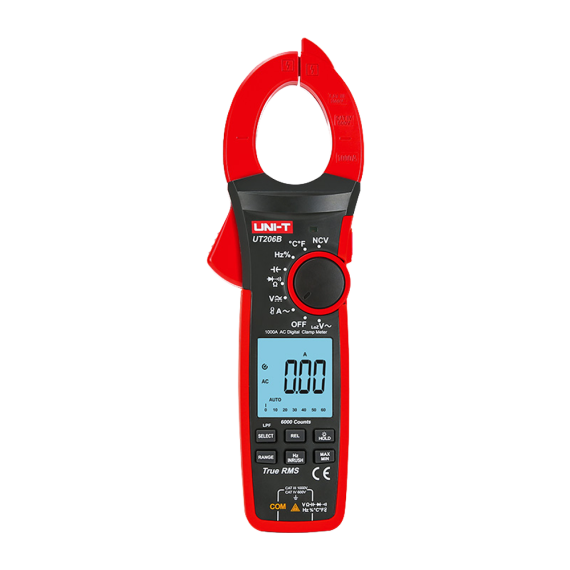

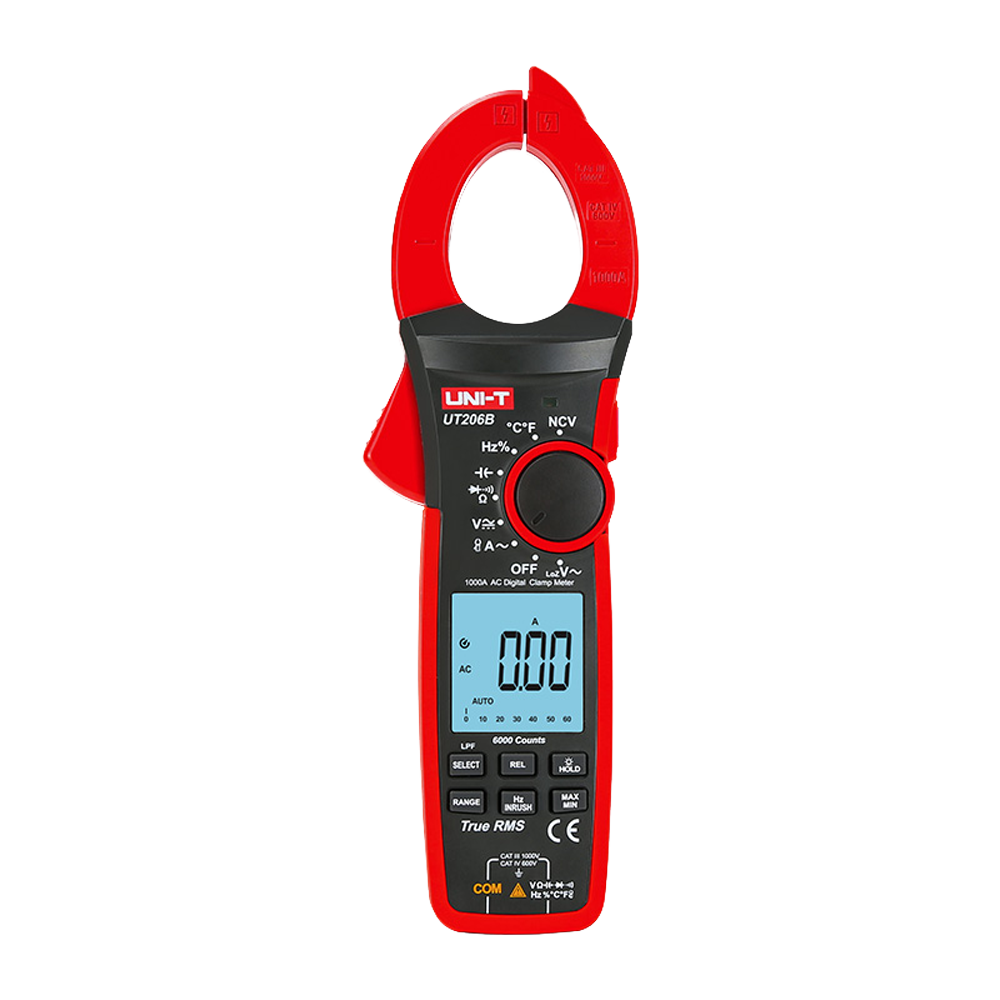

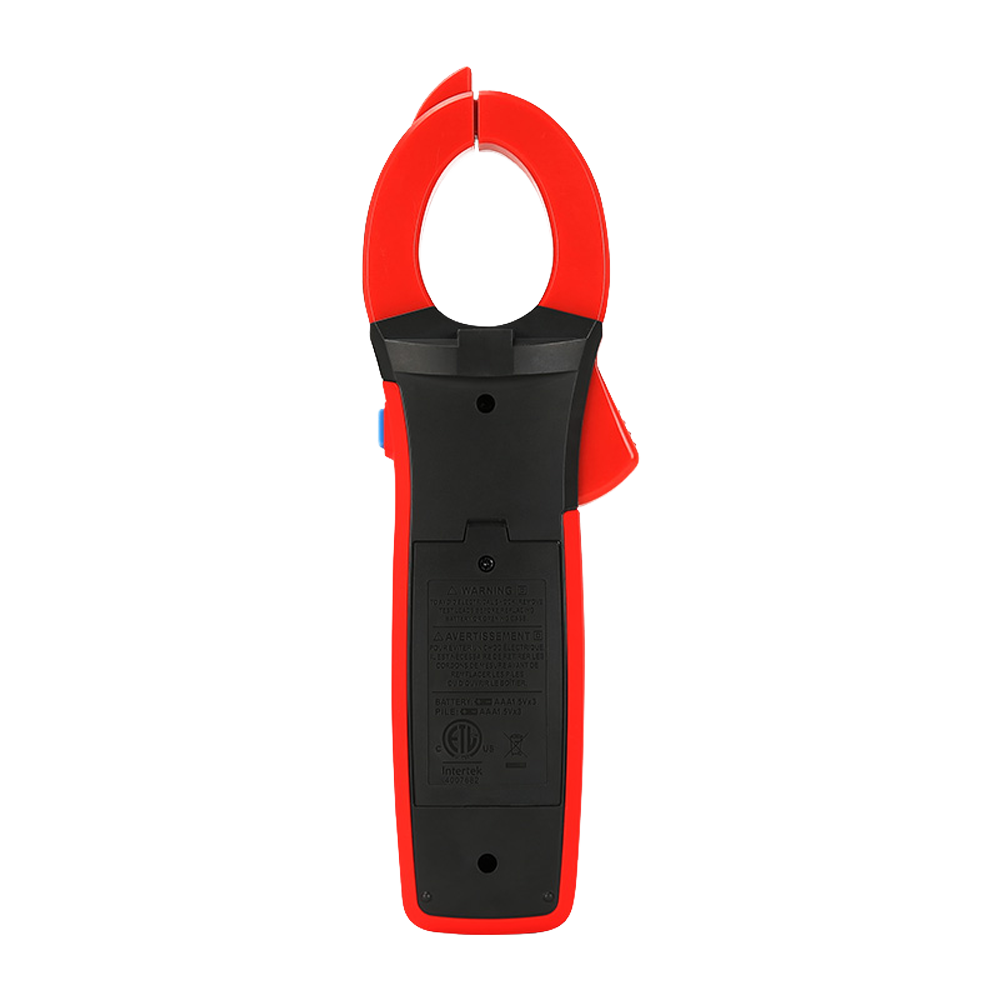

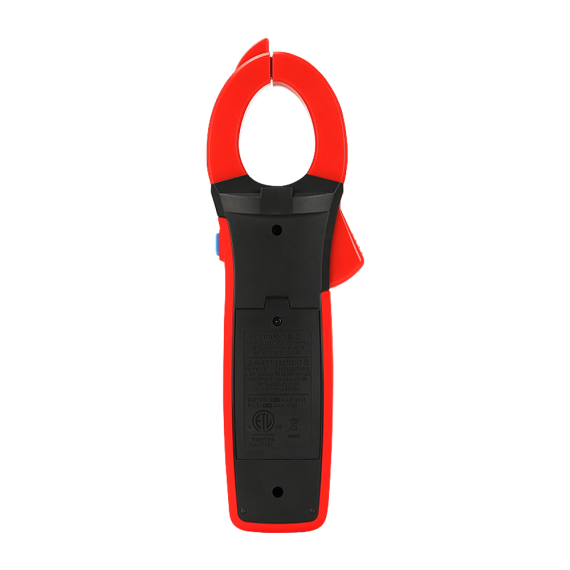

UNI-TREND UT206B

LCD clamp meter - DC measurement up to 1000V - Measurement in AC up to 1000V and 1000A - Resistance/capacitance/frequency/temperature - Auto Range | Test diodes| True RMS | NVC - Clamp opening of 42mm
Les merShow less
kr 1,650.15
Referanse:
UT206B
Merke:

Last ned produktark

Beskrivelse
  • UNI-T
  • Clamp meter CAT III 1000V/ CAT IV 600V
  • LCD display up to 6000 accounts
  • AC current measurement up to 1000 A
  • DC and AC voltage measurement up to 1000 V
  • High accuracy in AC with built-in True RMS function
  • Resistance and capacitance measurement
  • Temperature measurement
  • Buzzer for continuity test
  • Diode test
  • NCV (non-contact voltage) function
  • Low pass filter
  • Automatic shutdown

    BrandUni-T
    Measuring range AC current1000A ±(2.5%+5); Response frequency: 50~60Hz
    DC and AC voltage measuring rangeAC: 1000V ±(1.2%+3); Response frequency: 40~400Hz
    DC: 1000V ±(0.5%+5)
    Resistance measuring range60MΩ ±(1%+2)
    Capacitance measuring range60mF ±(4%+5)
    Input current1000A ±(10%+10)
    Low Pass Filter (LPF ACV)1000V±(2%+5)
    LoZ ACV1000V ±(2%+5)
    Temperature measurement range-40°C~1000°C ±(1%+2)
    Display accountsUp to 6000
    Display dimensions43mm x 45mm
    Clamp opening42mm
    Analog barYes, it is available
    Auto Range / Manual Range / True RMSYes, it is available
    Diode testYes, it is available
    NCV function (non-contact voltage detection)Yes, it is available
    Relative modeYes, it is available
    MAX/MIN registerYes, it is available
    Continuity testYes, it is available
    Low battery indicatorYes, it is available
    Input protectionYes, it is available
    Input impedance DCV>10MΩ
    Power3 x batteries (R03) 1.5V
    Dimensions272 (H) x 81 (W) x 43.5 (D) mm
    Weight465 g
    SecurityCAT III 1000V/ CAT IV 600V CAT IV [%VAR%]
