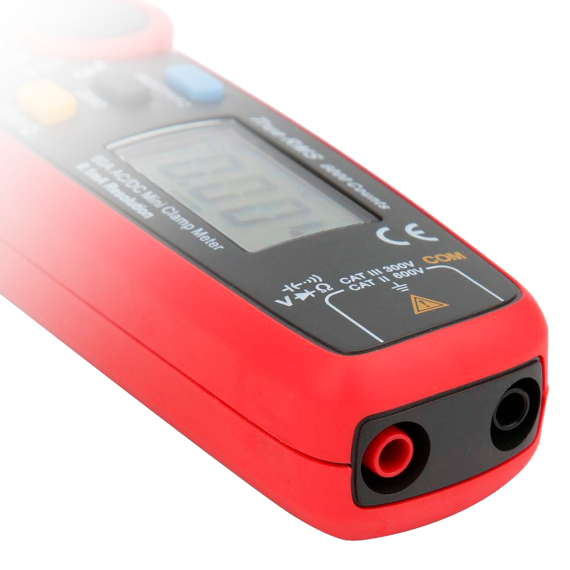

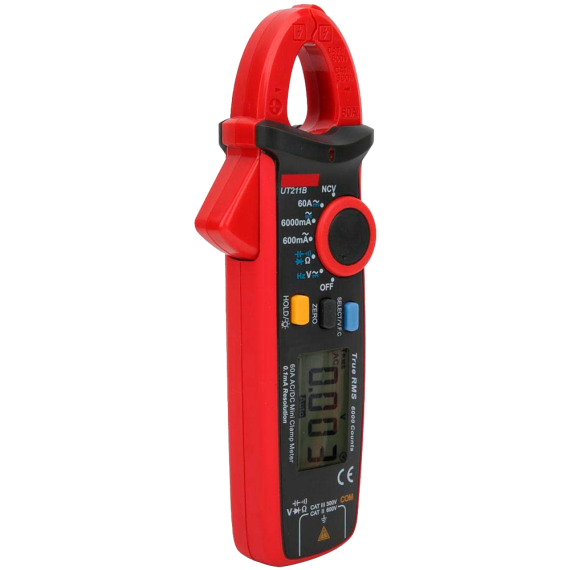

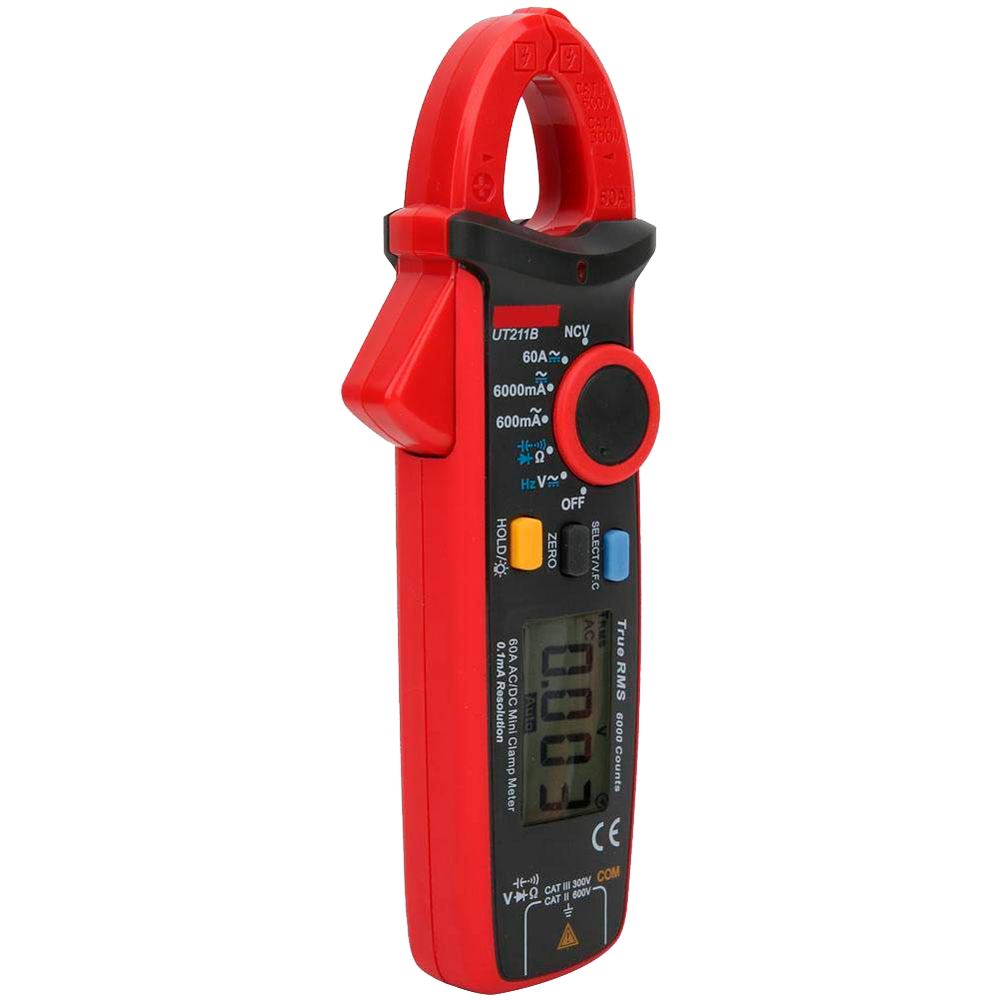

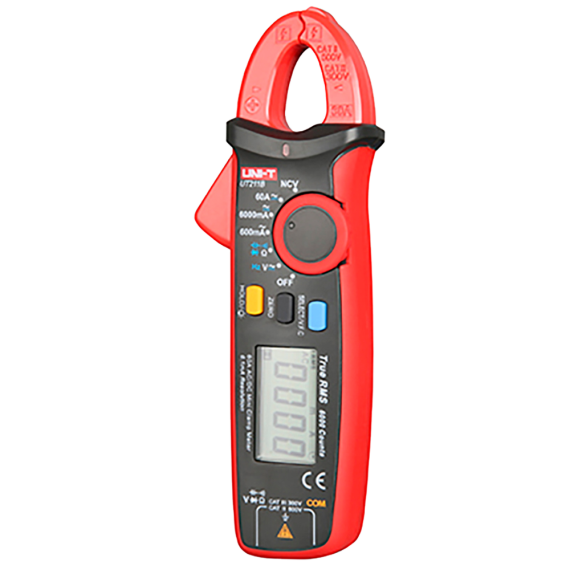

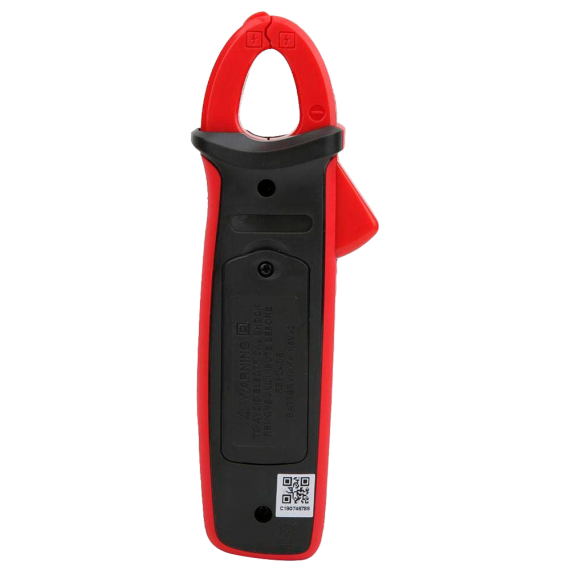

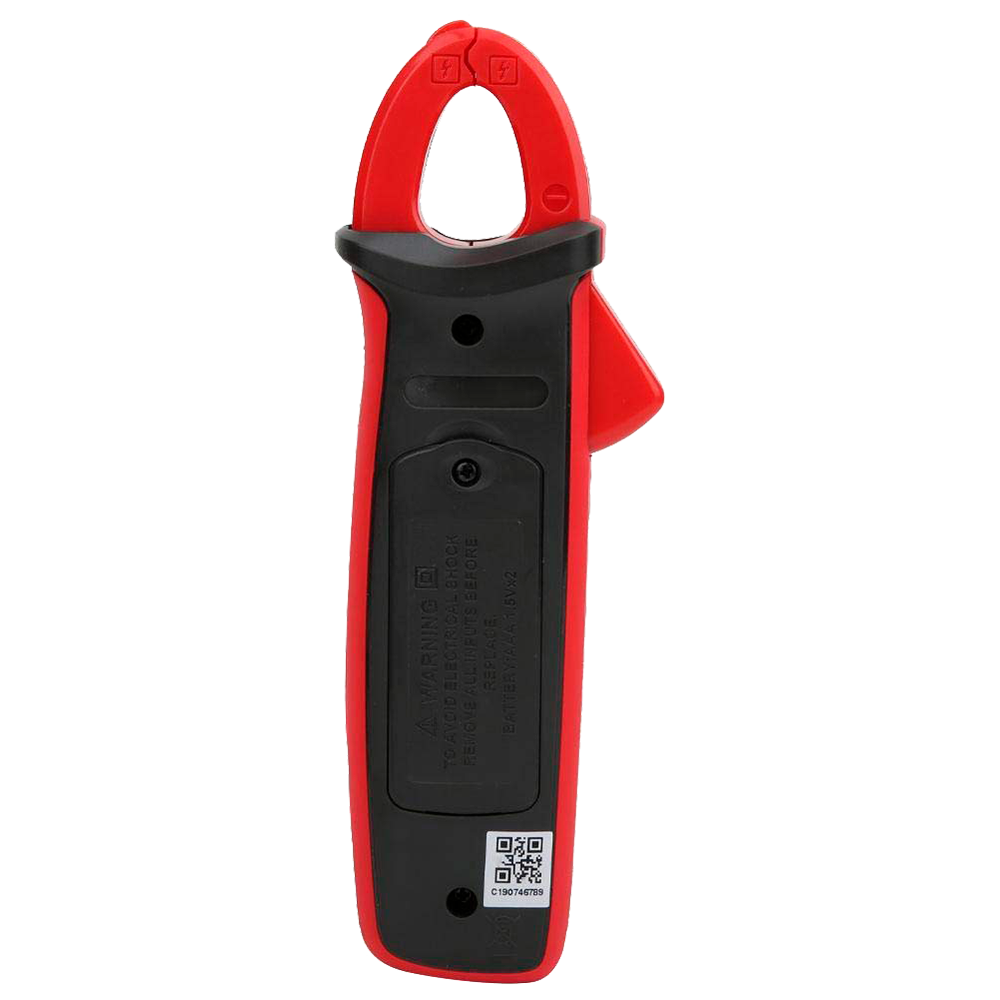

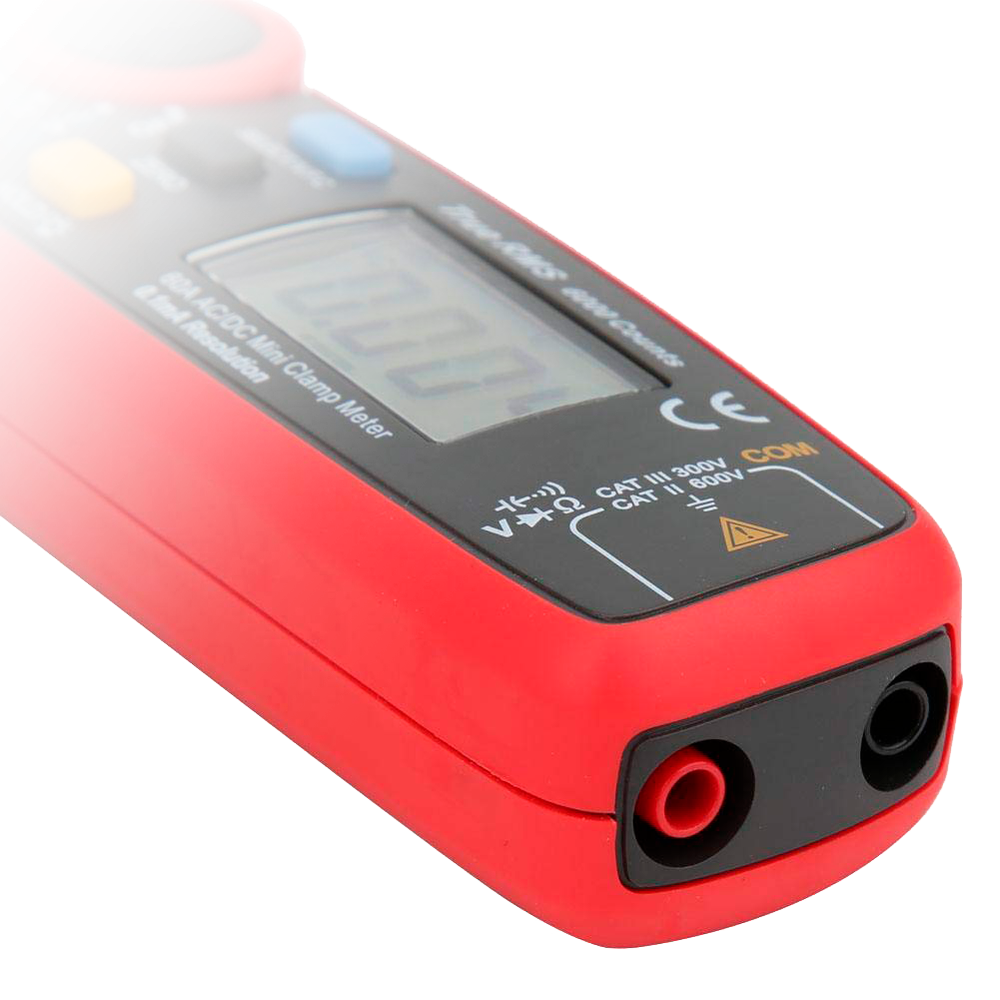

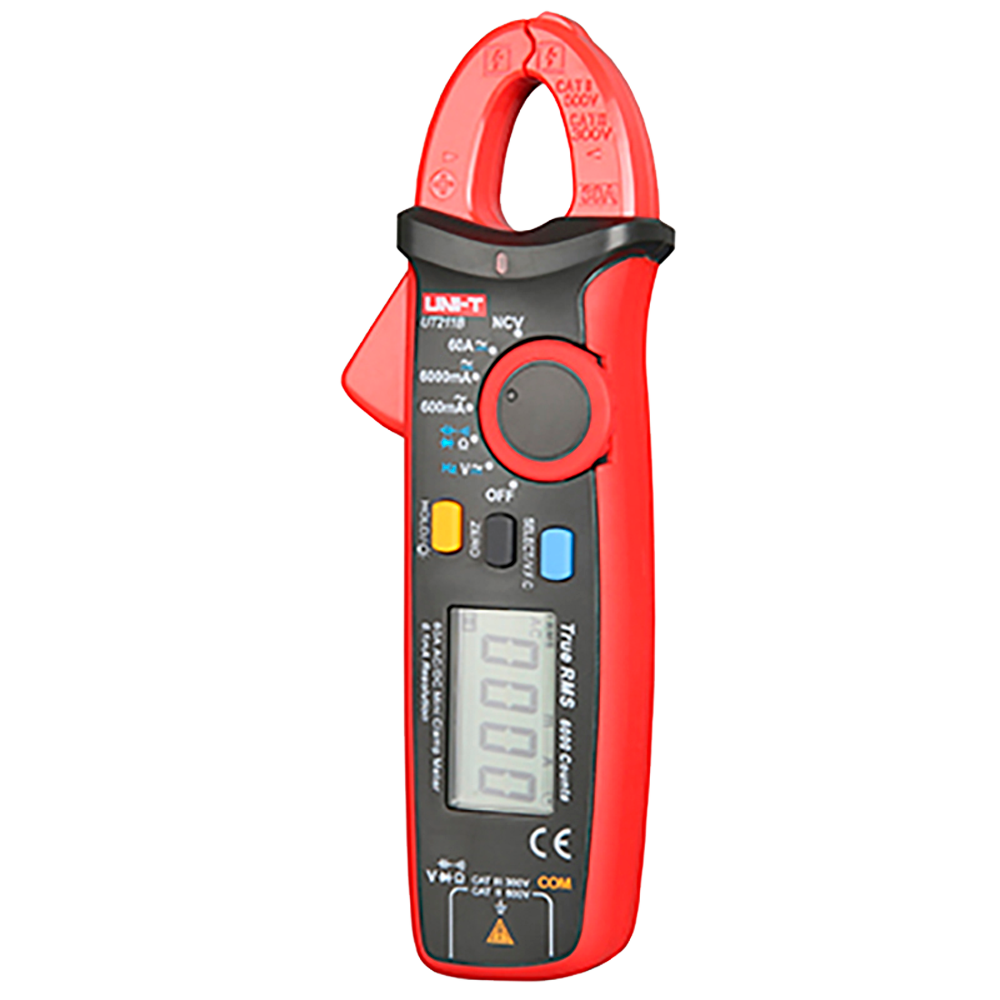

UNI-TREND UT211B

Mini clamp ammeter - DC and AC measurement up to 600V and 60A - Measures resistance and capacitance - Auto Range | Diode Test - True RMS | Continuity Buzzer | NVC - Clamp opening of 17mm

Les merShow less

kr 2,605.50

Referanse:

UT211B

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Mini clamp meter 600V
Ergonomic and lightweight design
LED backlight display up to 6000 accounts
DC and AC current measurement up to 60 A
DC and AC voltage measurement up to 600 V
High accuracy in AC with built-in True RMS function
Resistance and capacitance measurement
Buzzer for continuity test
NCV (non-contact voltage) function
Diode test
Includes Zero mode for calibration

Automatic shutdown

Brand	Uni-T
Measuring range DC and AC current	DC 60A ±(2%+3) AC 60A ±(2.5%+5)
DC and AC voltage measuring range	DC 600V ±(0.7%+3) AC 600V ±(1%+3)
Resistance measuring range	60MΩ ±(1.5%+2)
Capacitance measuring range	62mF ±(10%)
Display accounts	Up to 6000
Display dimensions	39.3mm x 26.5mm
Auto Range / Manual Range / True RMS	Yes, it has
Diode test	Around 3V
VFC and NCV function (Non-contact voltage detection)	Yes, it is available
Relative mode	No
MAX/MIN register	No
Continuity test	Yes, it is available
ZERO Mode	Yes, it is available
Clamp opening	17mm
Low battery indicator	Si dispone (<2.5V)
Protección de entrada	Si dispone
Impedancia de entrada DCV	>10MΩ
Power	2 x batteries (R03) 1.5V
Dimensions	175 (H) x 60 (W) x 33.5 (D) mm
Weight	170 g
Security	CAT II 600V/ CAT III 300V CAT III [%VAR%]

Les merShow less

Produktdetaljer

Referanse UT211B

Sist vist

Vis mer

Del

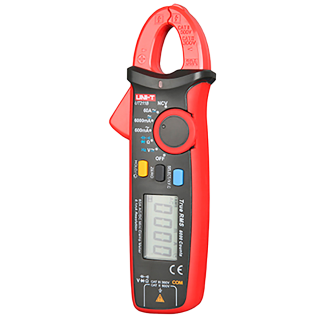

UNI-TREND UT211B
