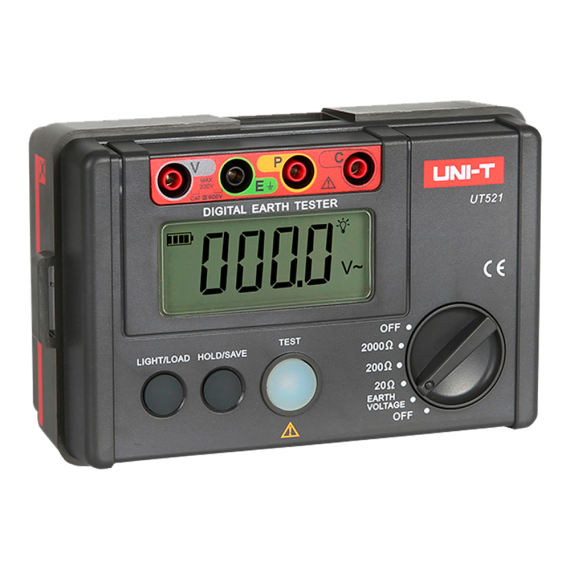

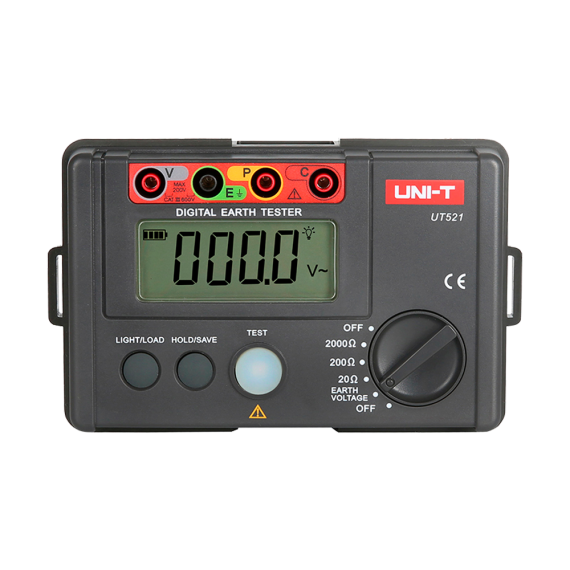

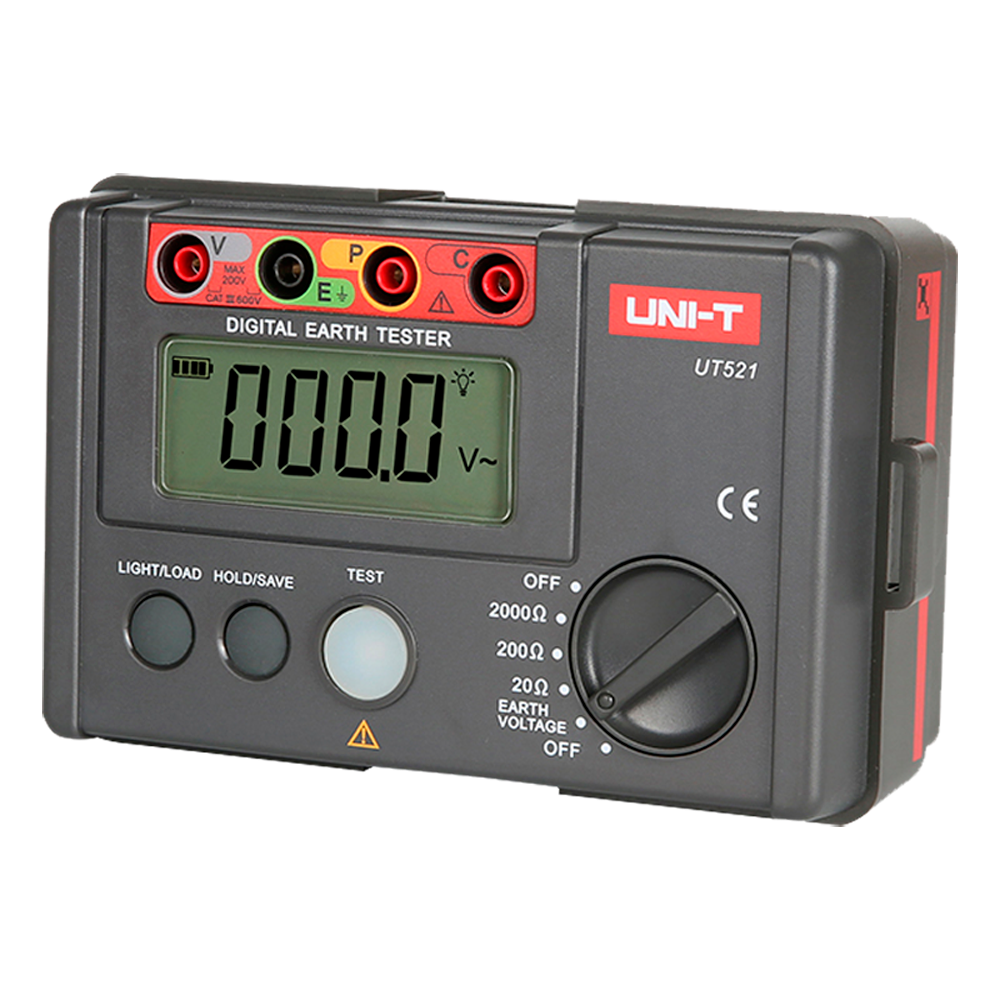

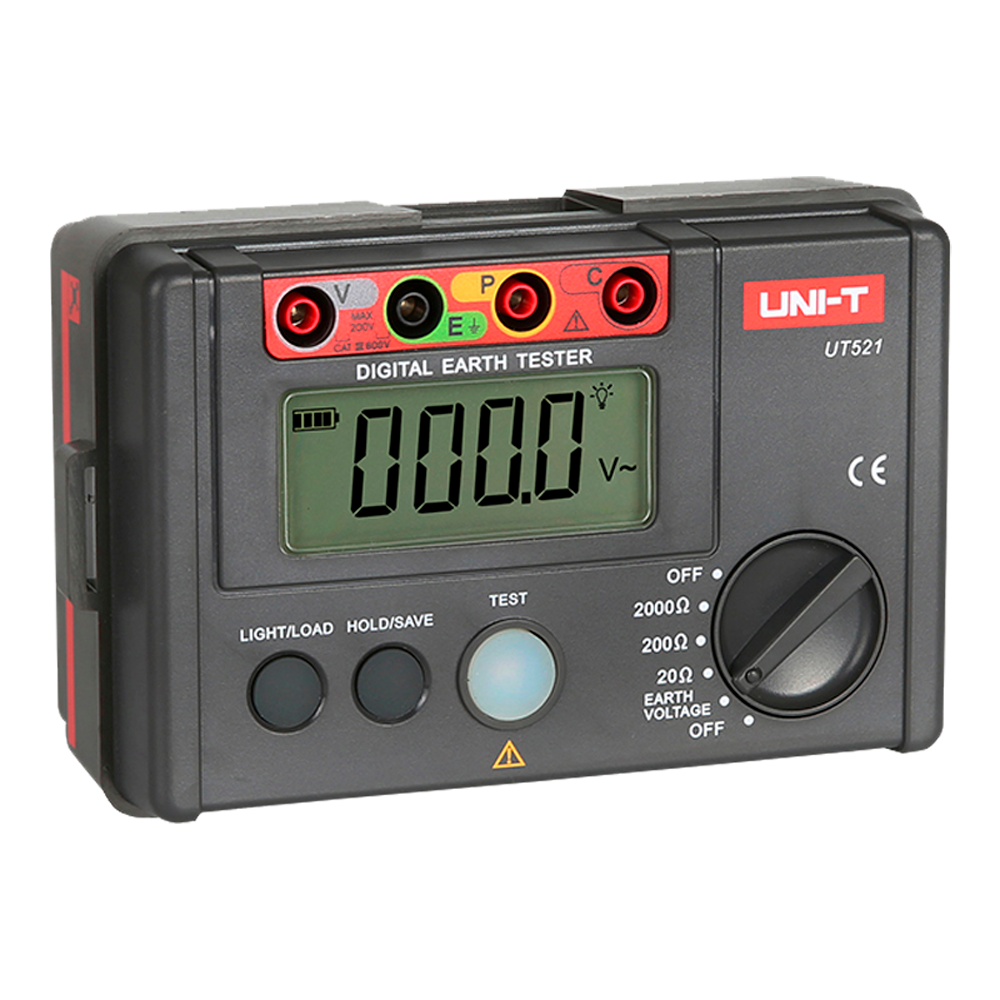

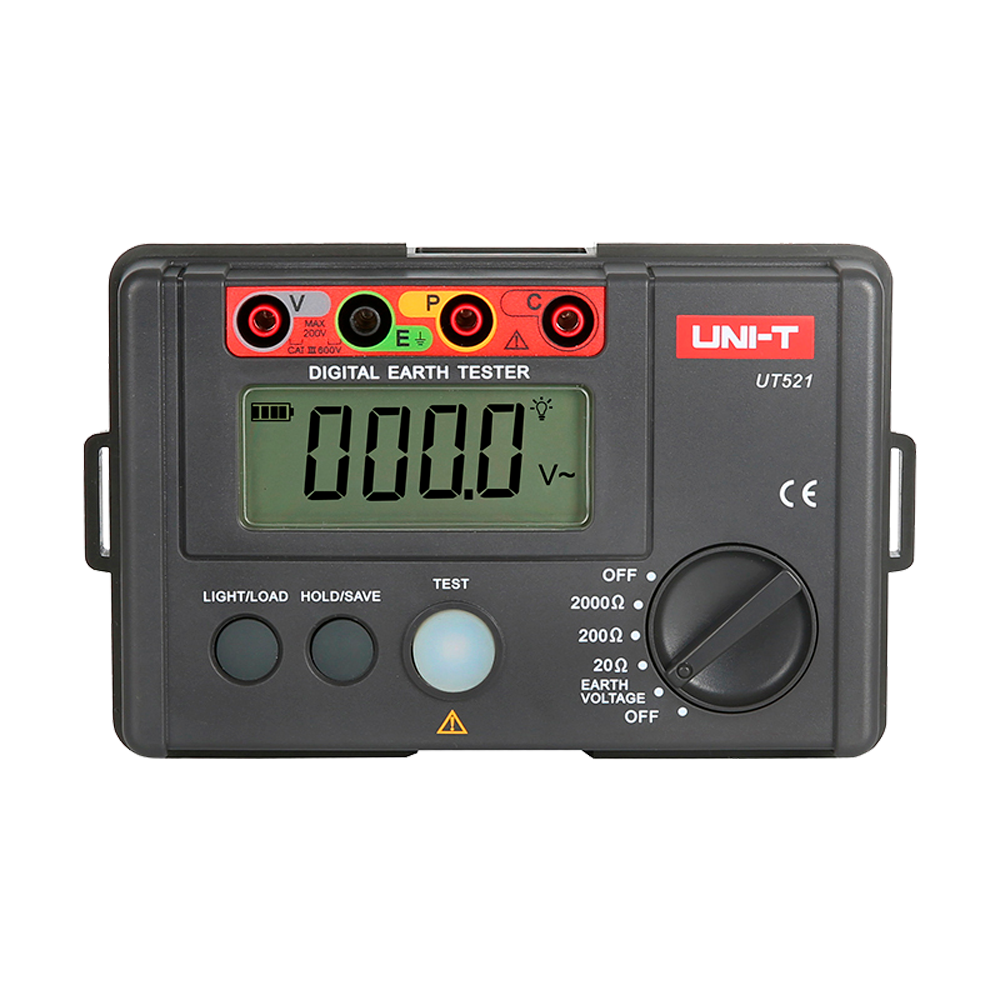

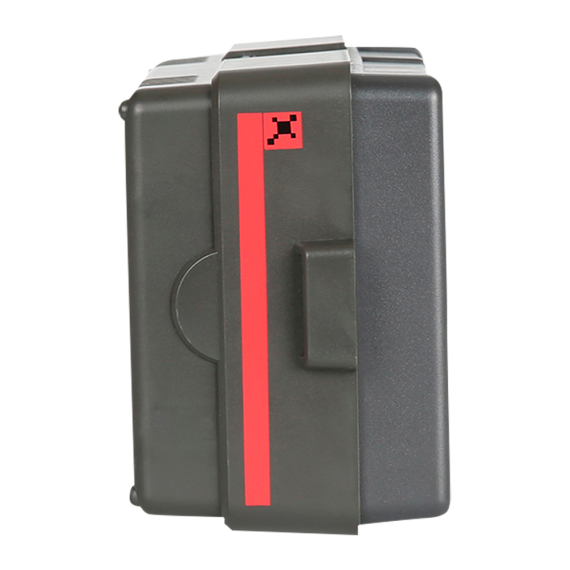

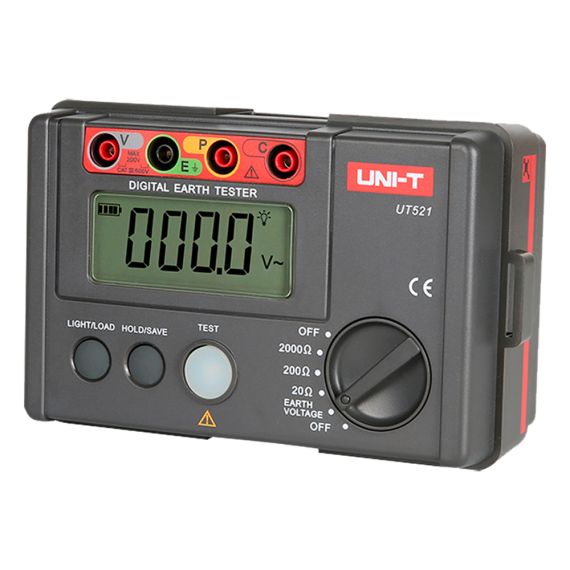

UNI-TREND UT521

Earth Resistance Meter - LCD display up to 2000 accounts - Earth resistance measurement up to 2000Ω - AC ground voltage measurement up to 200V - Data storage - Automatic shutdown

Les merShow less

kr 3,676.65

Referanse:

UT521

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
CAT III earth resistance meter 600V
LCD display up to 2000 accounts

Performs accurate earth resistance measurements up to 2000Ω of 3 cables and 2 single wires in electrical and power systems, lightning protection equipment and grounding systems in electrical equipment

Brand	Uni-T
Measuring range earth resistance	0~20Ω ±(2%+10) 0~200Ω ±(2%+3) 0~2000Ω ±(2%+3)
Measuring range of AC voltage to ground	0~200V ±(1%+4); Frequency: 50Hz/60Hz
Display dimensions	70.6mm x 34mm
Display accounts	Up to 2000
Testing 3 cables and 2 cables	Yes, it is available
Data storage	2000
Dimensions	100 (H) x 160 (W) x 70.5 (D) mm
Power	6 x batteries 1.5V (LR6)
Weight	560 g
Security	CAT III 600V

Les merShow less
