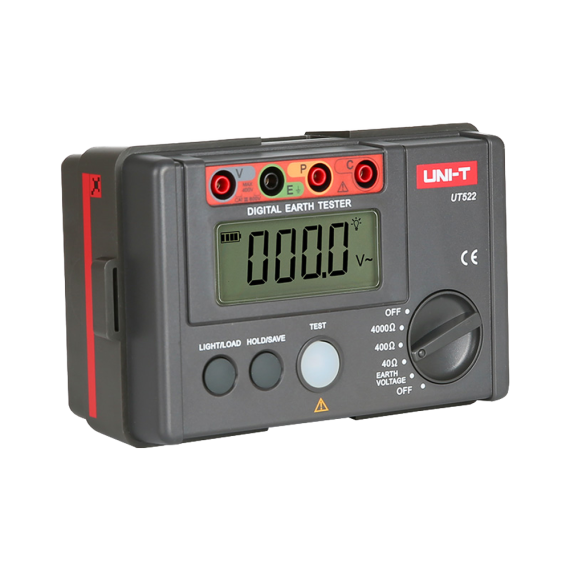

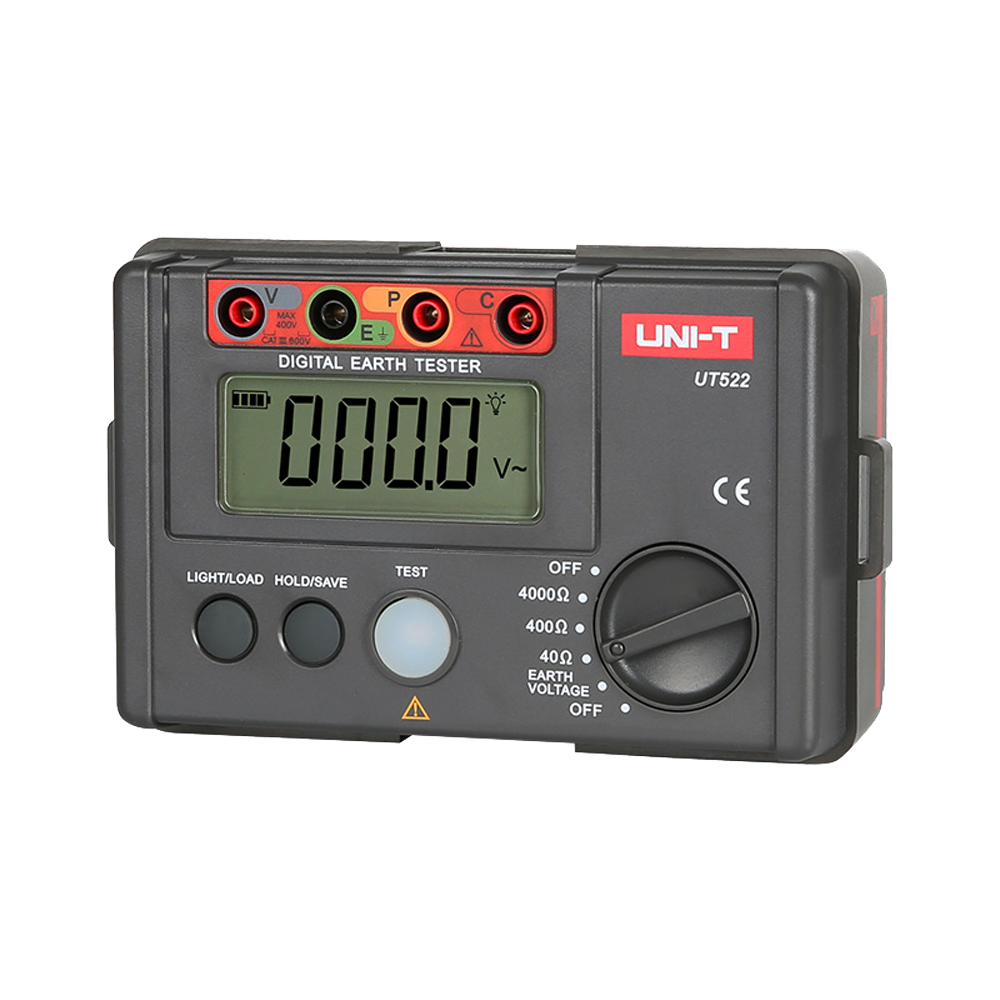

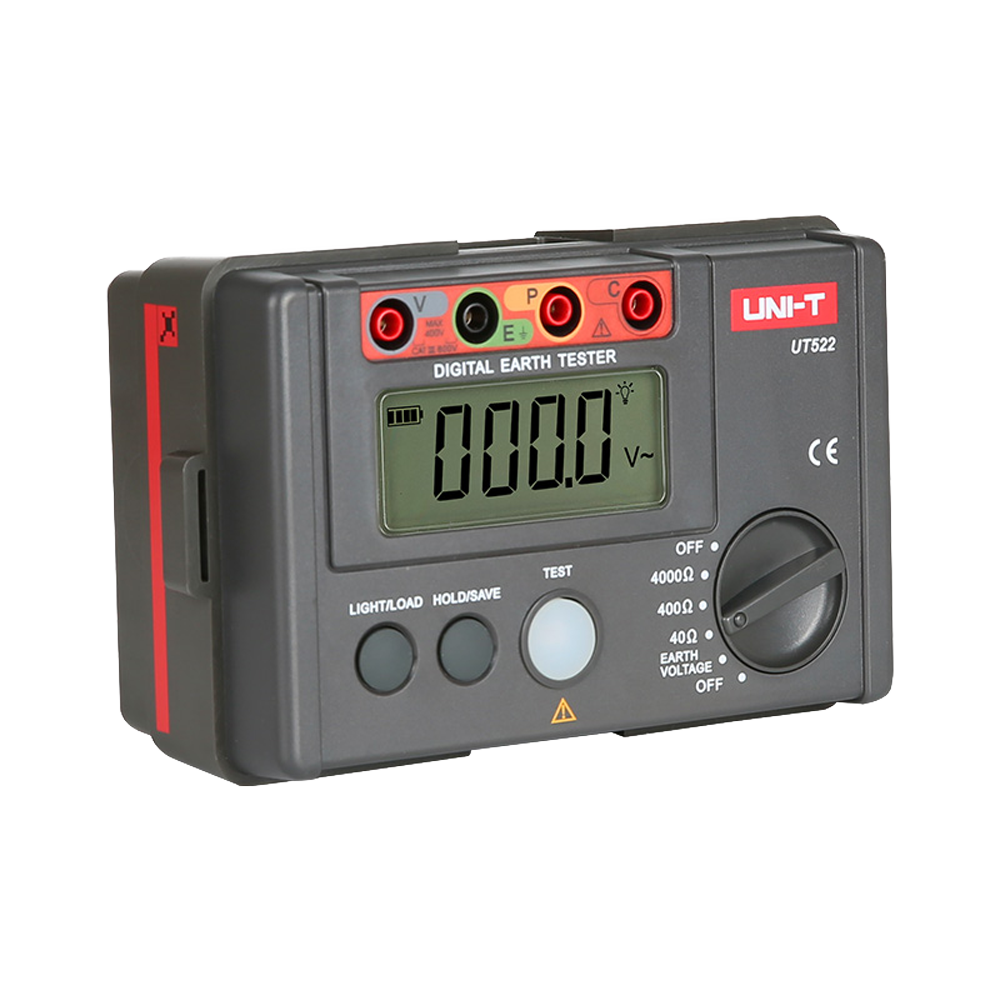

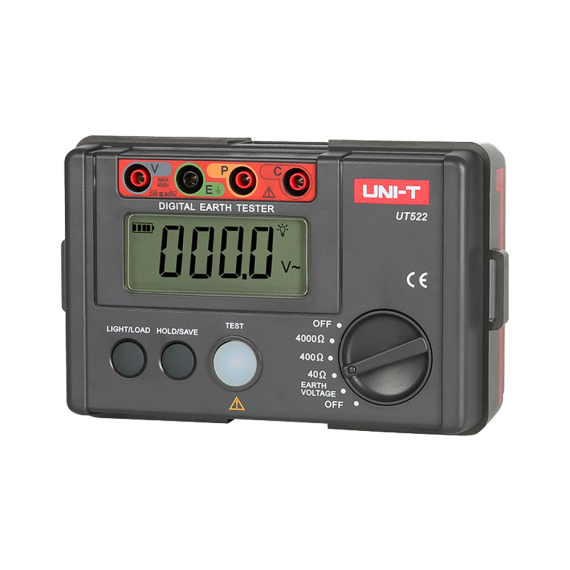

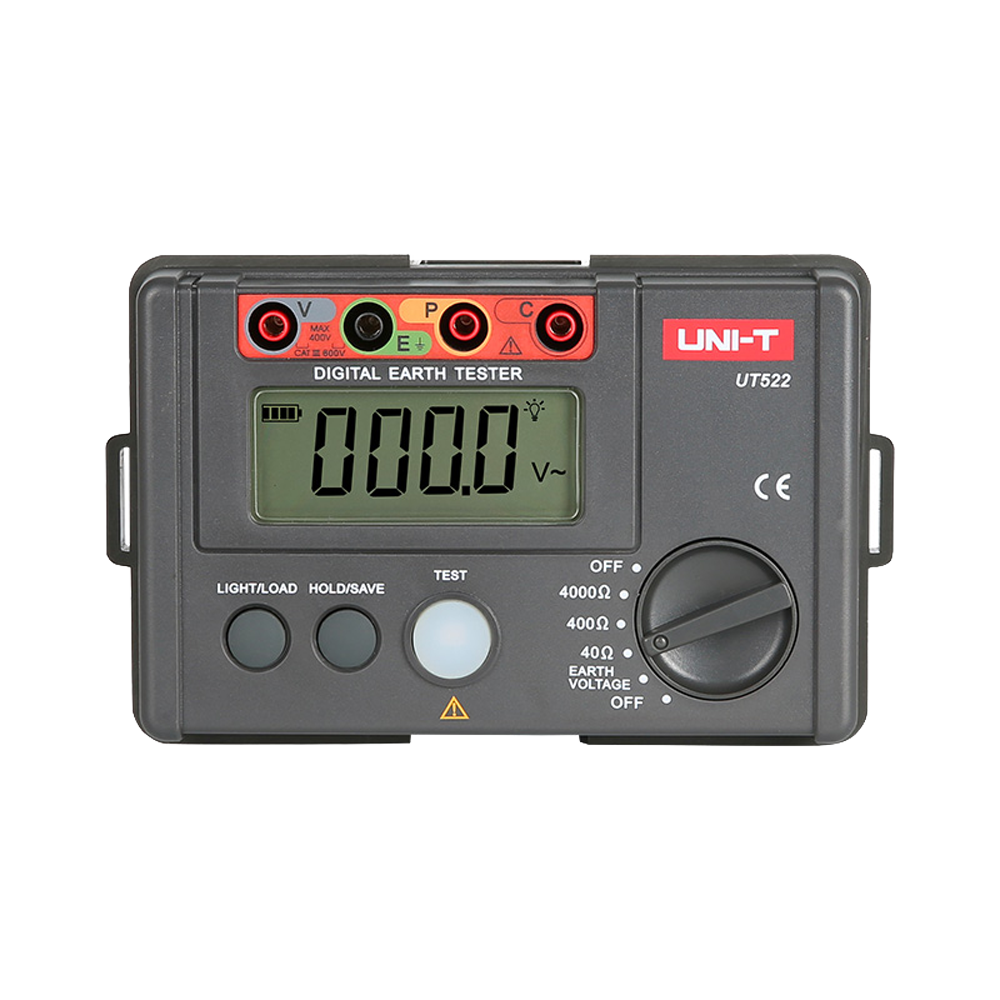

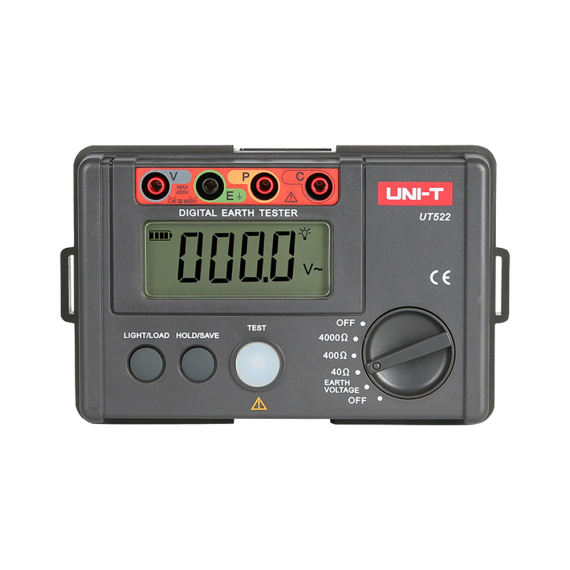

UNI-TREND UT522

Earth Resistance Meter - LCD display up to 4000 accounts - Earth resistance measurement up to 4000Ω - AC ground voltage measurement up to 400V - Data storage - Automatic shutdown

Les merShow less

kr 4,053.00

Referanse:

UT522

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
CAT III earth resistance meter 600V
LCD display up to 4000 accounts

Performs accurate earth resistance measurements up to 4000Ω of 3 cables and 2 single wires in electrical and power systems, lightning protection equipment and grounding systems in electrical equipment

Brand	Uni-T
Measuring range earth resistance	0~40Ω ±(2%+20) 0~400Ω ±(2%+3) 0~4000Ω ±(2%+3)
Measuring range of AC voltage to ground	0~400V ±(1%+6); Frequency: 50Hz/60Hz
Display dimensions	70.6mm x 34mm
Display accounts	Up to 4000
Testing 3 cables and 2 cables	Yes, it is available
Dimensions	100 (H) x 160 (W) x 70.5 (D) mm
Power	6 x batteries 1.5V (LR6)
Weight	560 g
Security	CAT III 600V

Les merShow less

Produktdetaljer

Referanse UT522

Sist vist

Vis mer

Del

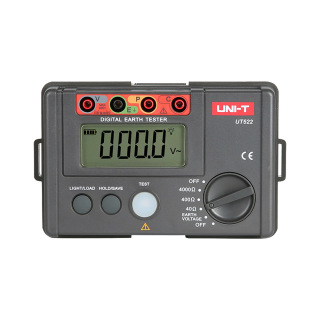

UNI-TREND UT522
