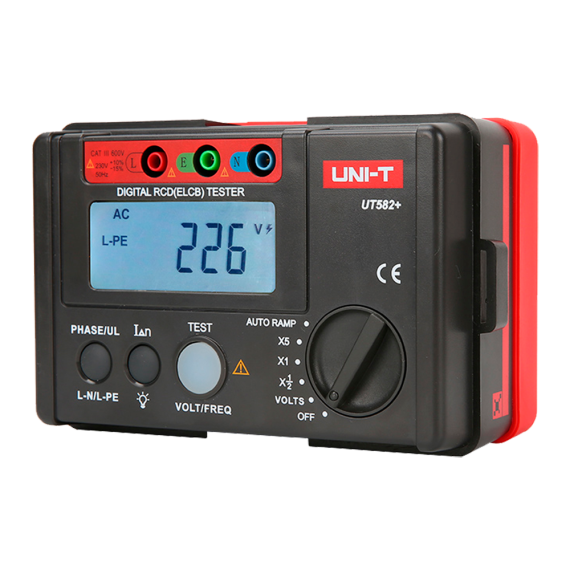

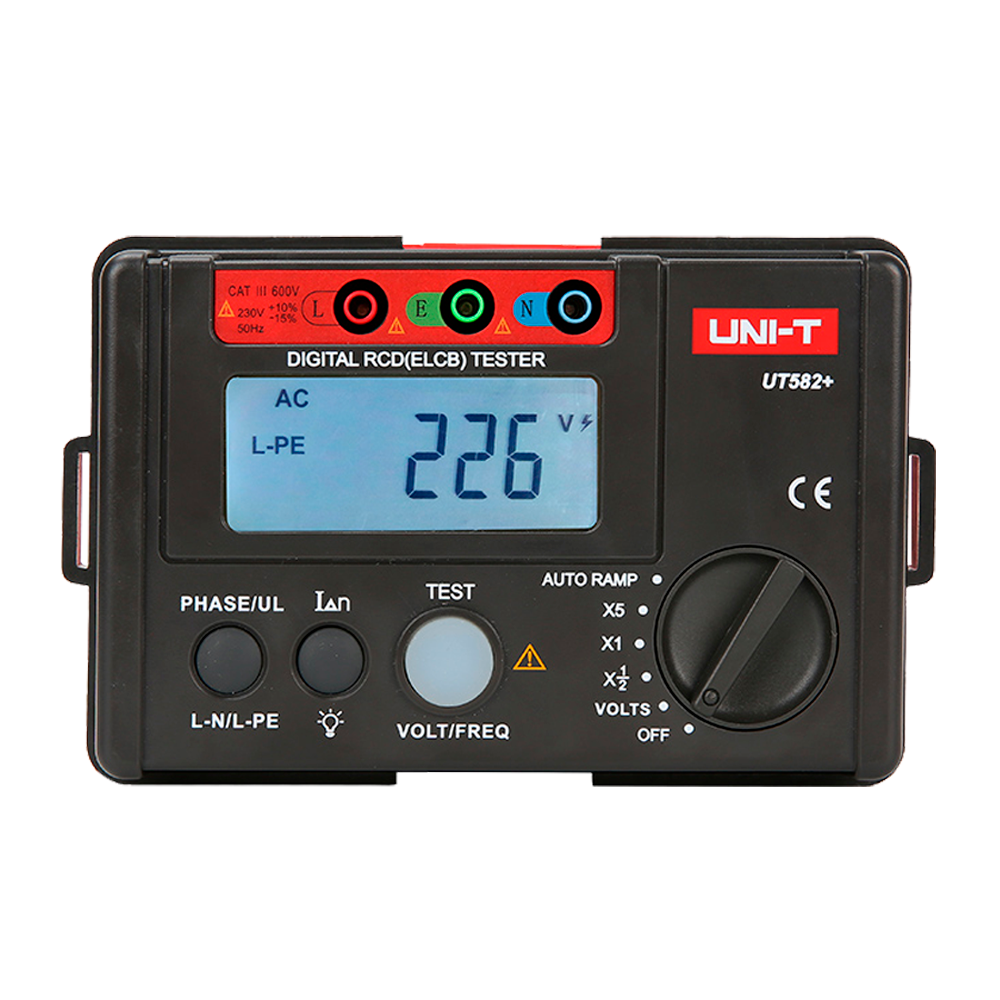

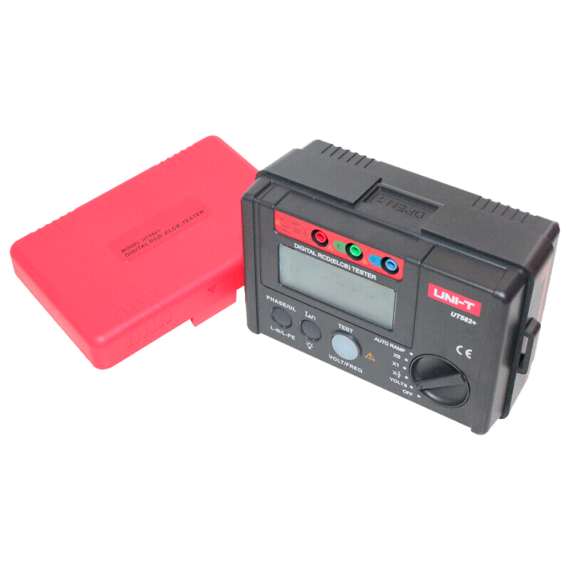

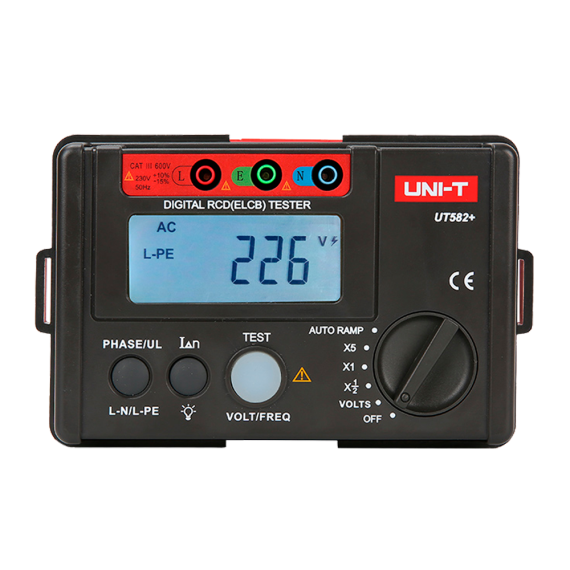

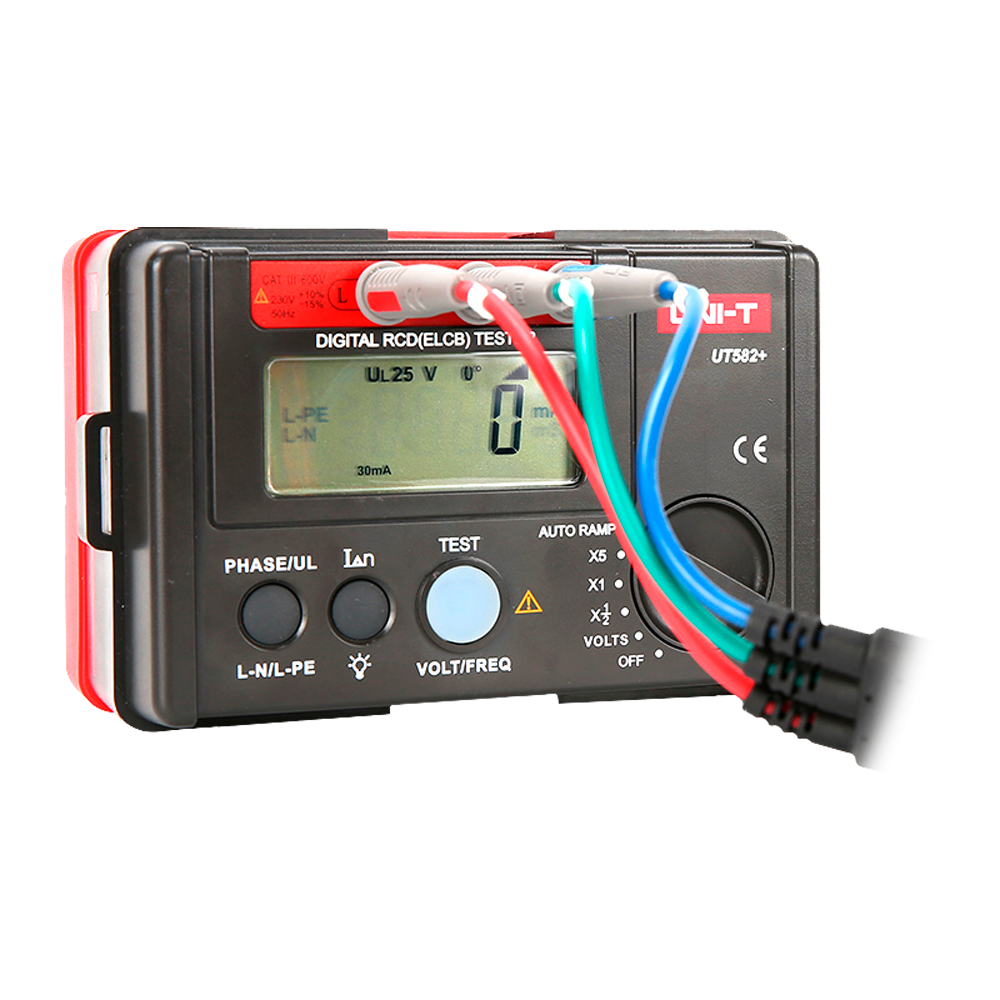

UNI-TREND UT582+

Circuit breaker trigger time tester - LCD display up to 1000 accounts - Compatible with single-phase circuits 195V~253V - AC voltage measurement up to 600V - Phase selector 0º and 180º - Automatic shutdown

Les merShow less

kr 2,721.30

Referanse:

UT582+

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Circuit breaker trigger time tester
LCD display up to 1000 accounts
Compatible with single-phase circuits of 195~253V
AC voltage measuring range 30~600V
Frequency measurement range 45~65Hz
Phase angle selection 0~180º

Automatic shutdown

Brand	Uni-T
Isolation Resistance	X1/2: 10mA/20mA/30mA/100mA/300mA/500mA 2000mS -10%~0% X1: 10mA/20mA/30mA/100mA/300mA 1000mS 0%~10% 500mA 300ms 0%~10% X5: 10mA/20mA/30mA 40ms 0%~10% AUTO RAMP: 10mA/20mA/30mA/100mA/300mA/500mA 300ms -10%~10%
Auto ramp	Yes, it is available
AC voltage measuring range	30V~6000V ±(3%+3)
Display dimensions	71mm x 34mm
Display accounts	Up to 1000
Phase angle selection	0º y 180º
Connection tester	Simultaneous test of trigger time and trigger current
Dimensions	160 (H) x 100 (W) x 71 (D) mm
Power	6 x batteries 1.5V (LR6)
Weight	400 g
Security	CAT III 300V/ CAT III 600V
