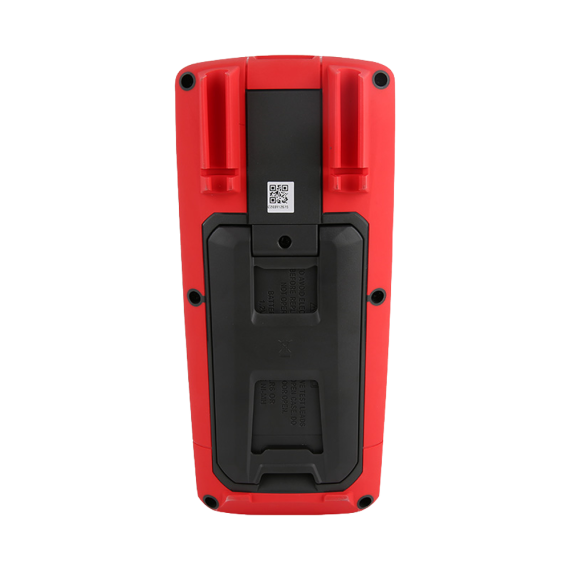

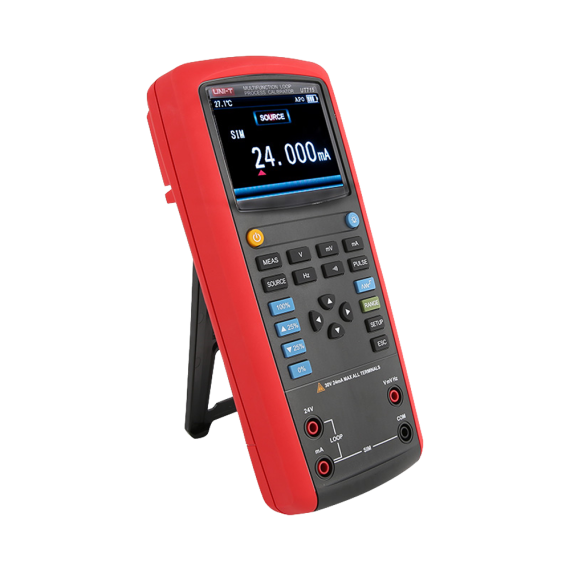

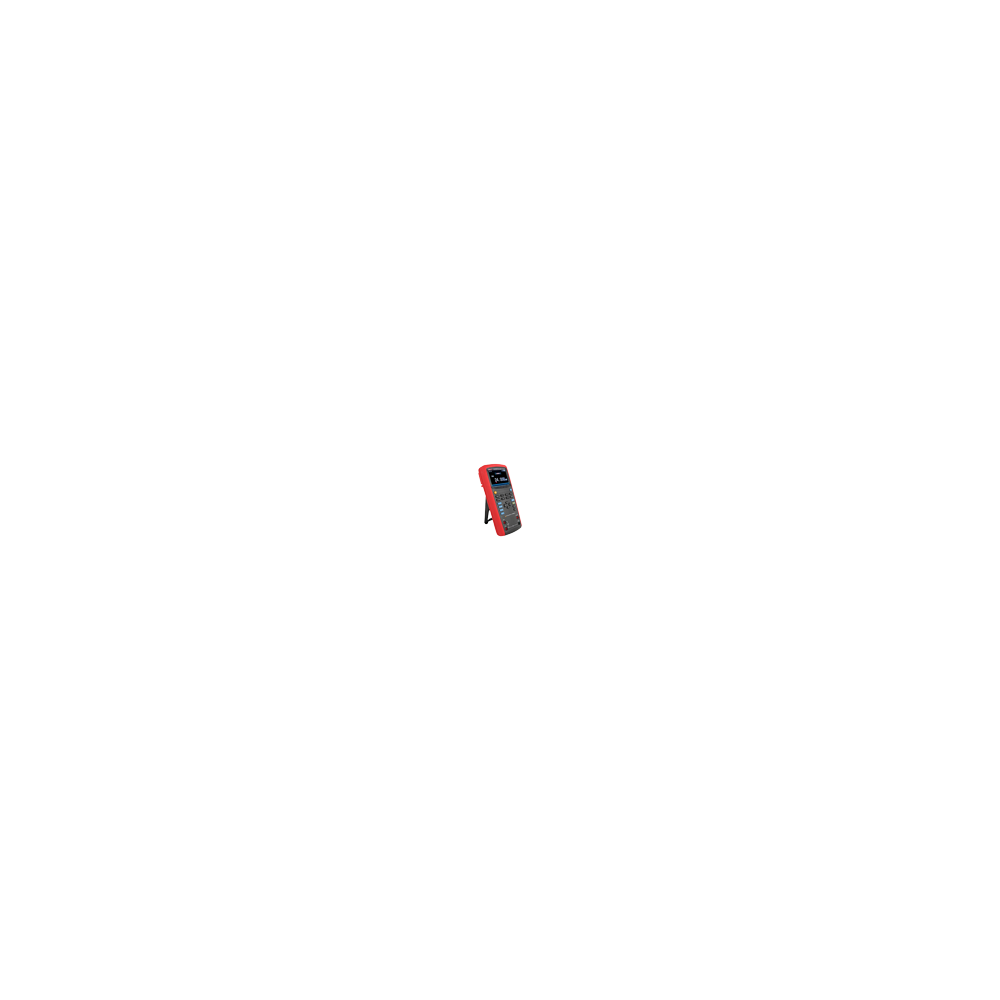

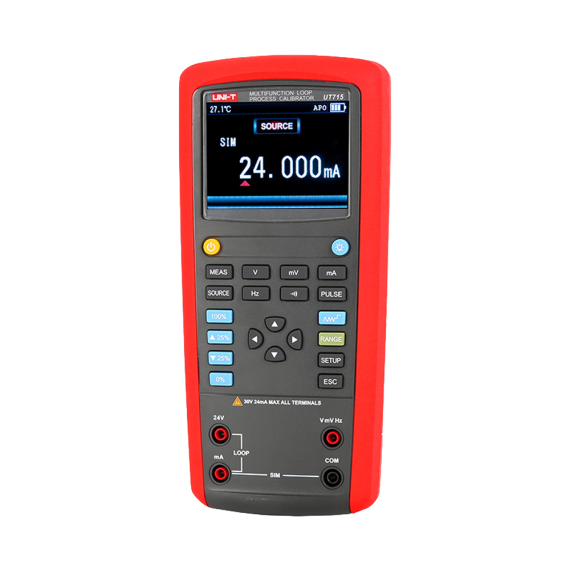

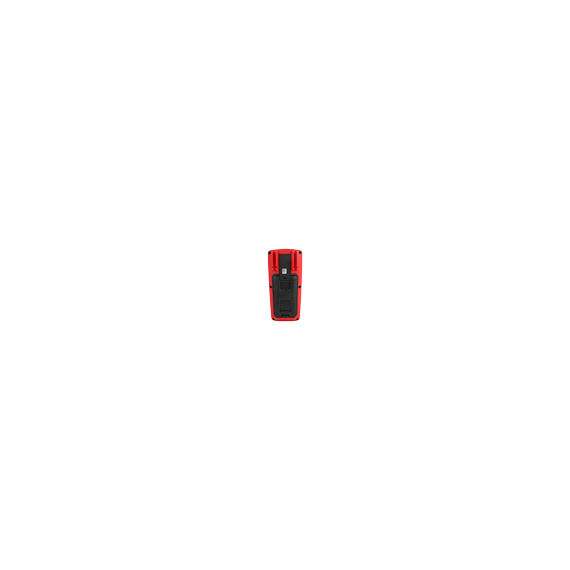

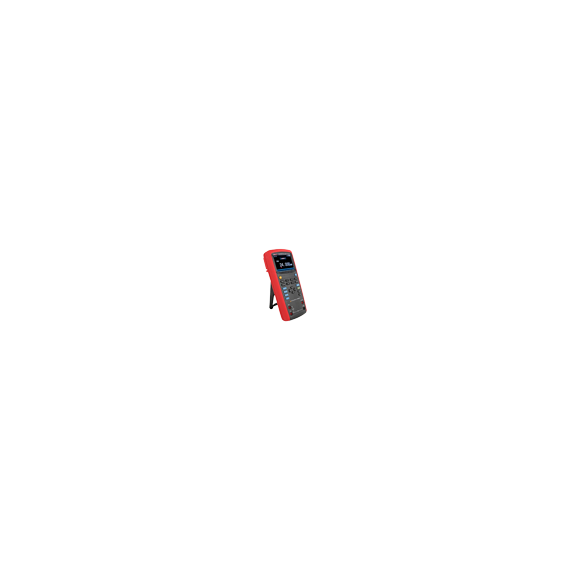

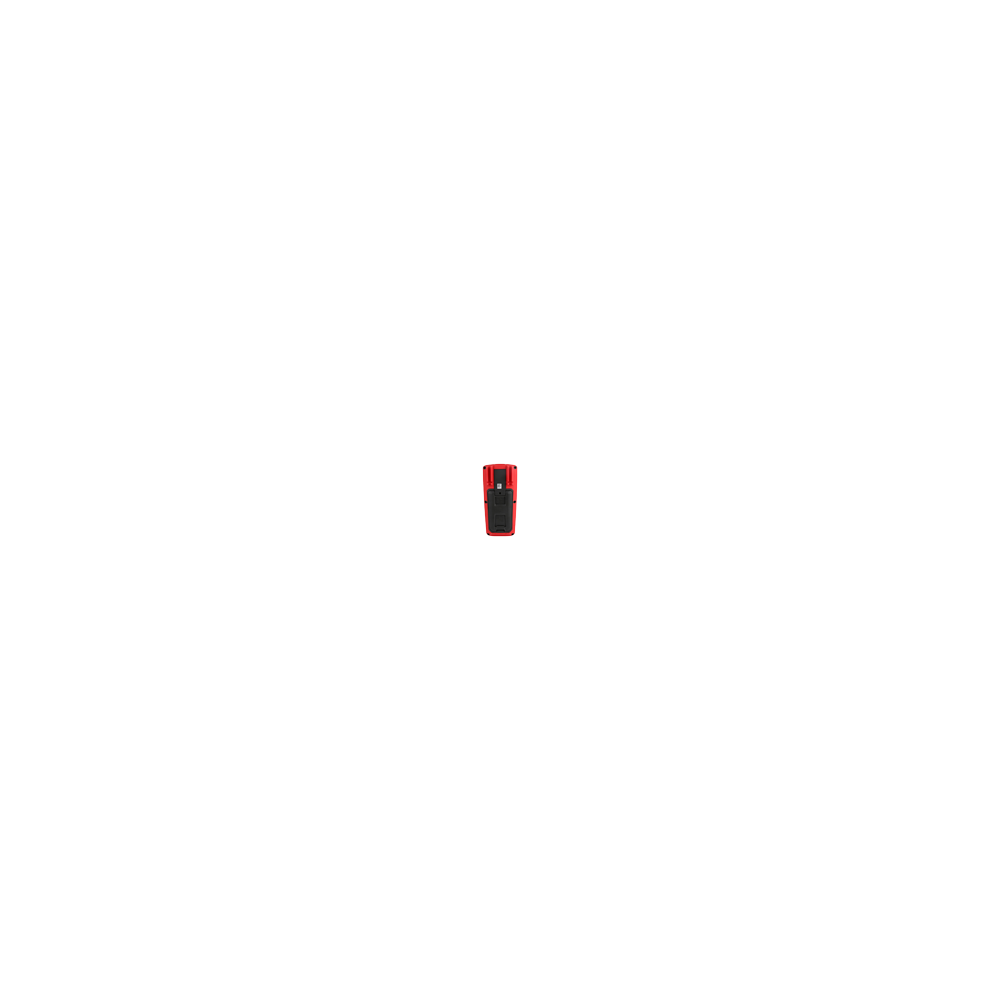

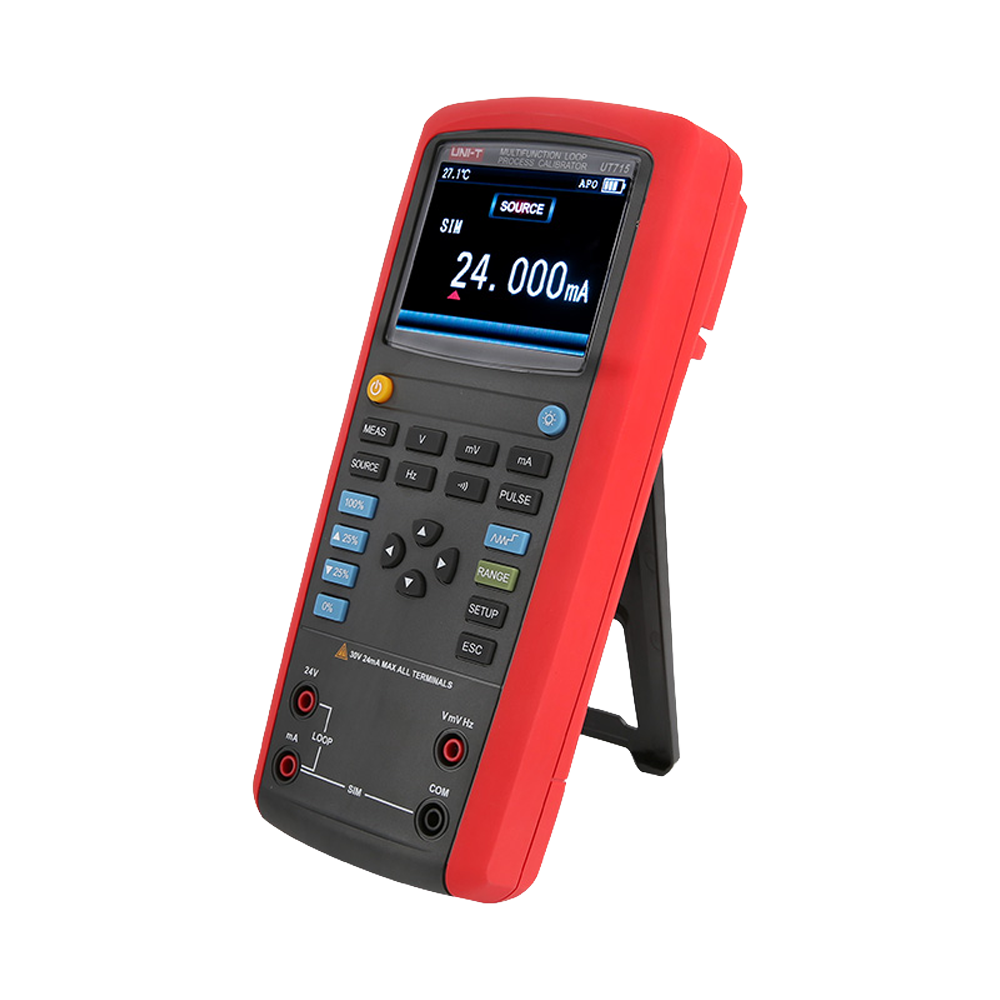

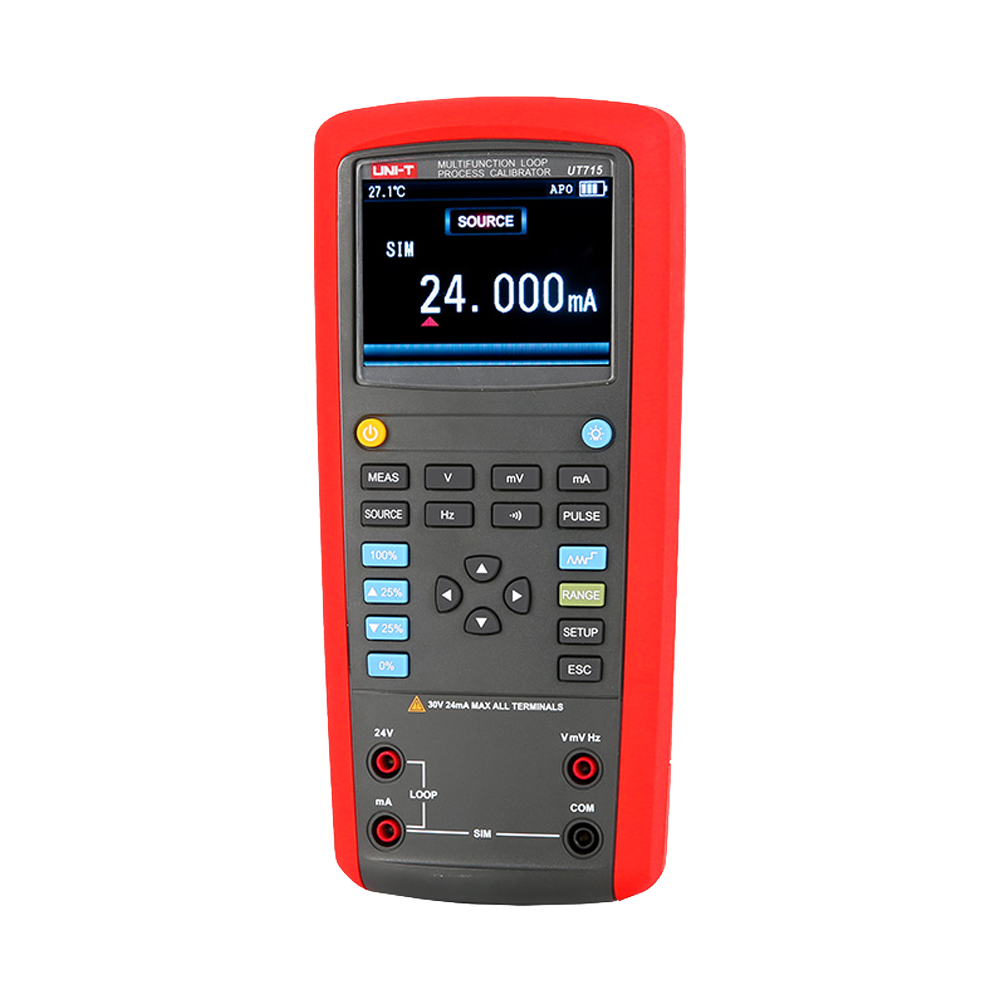

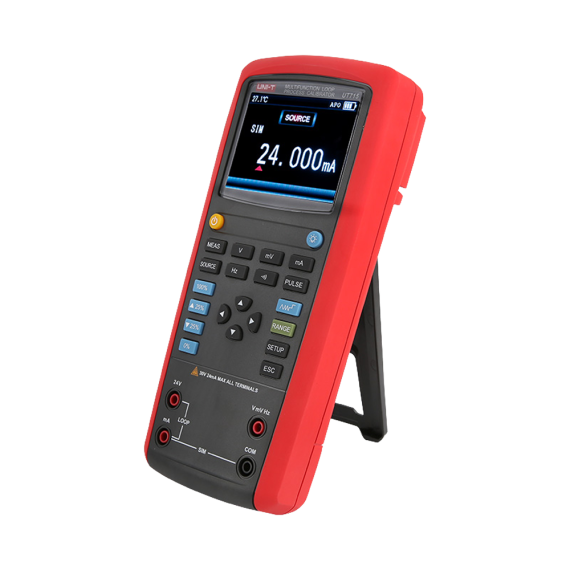

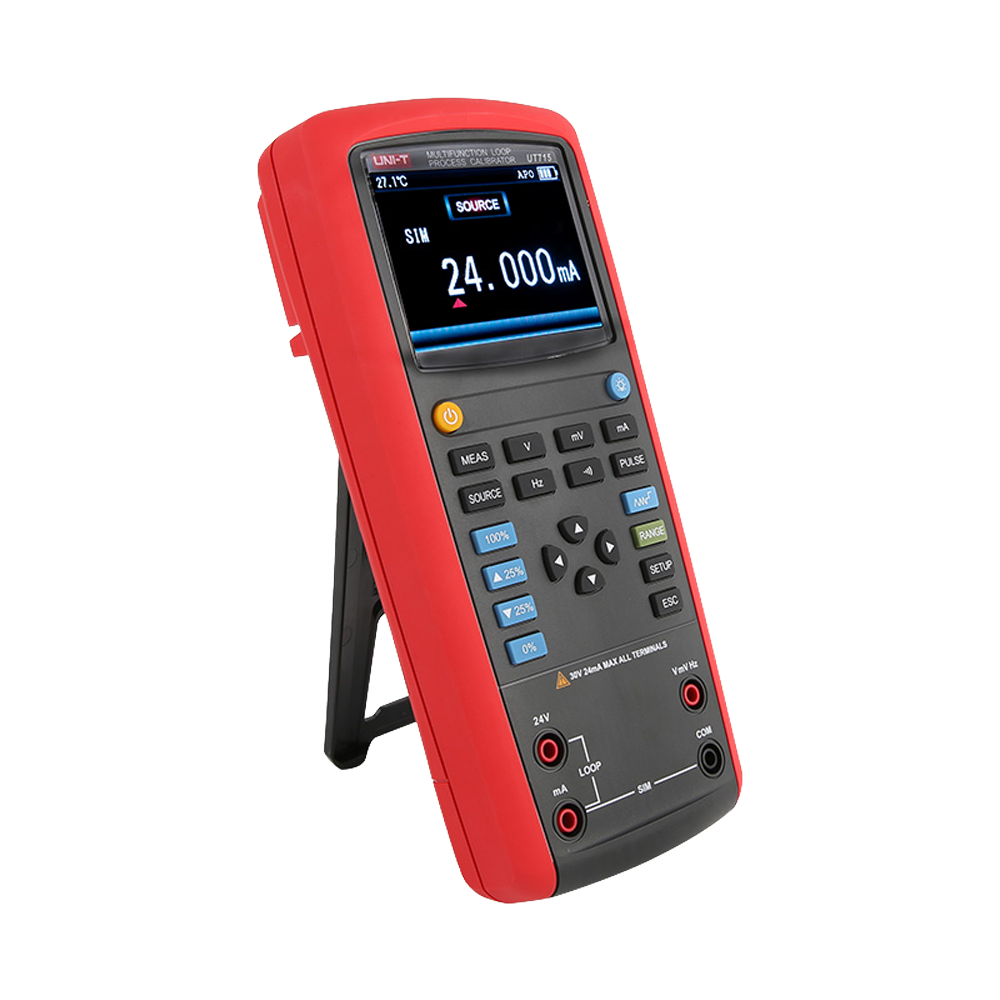

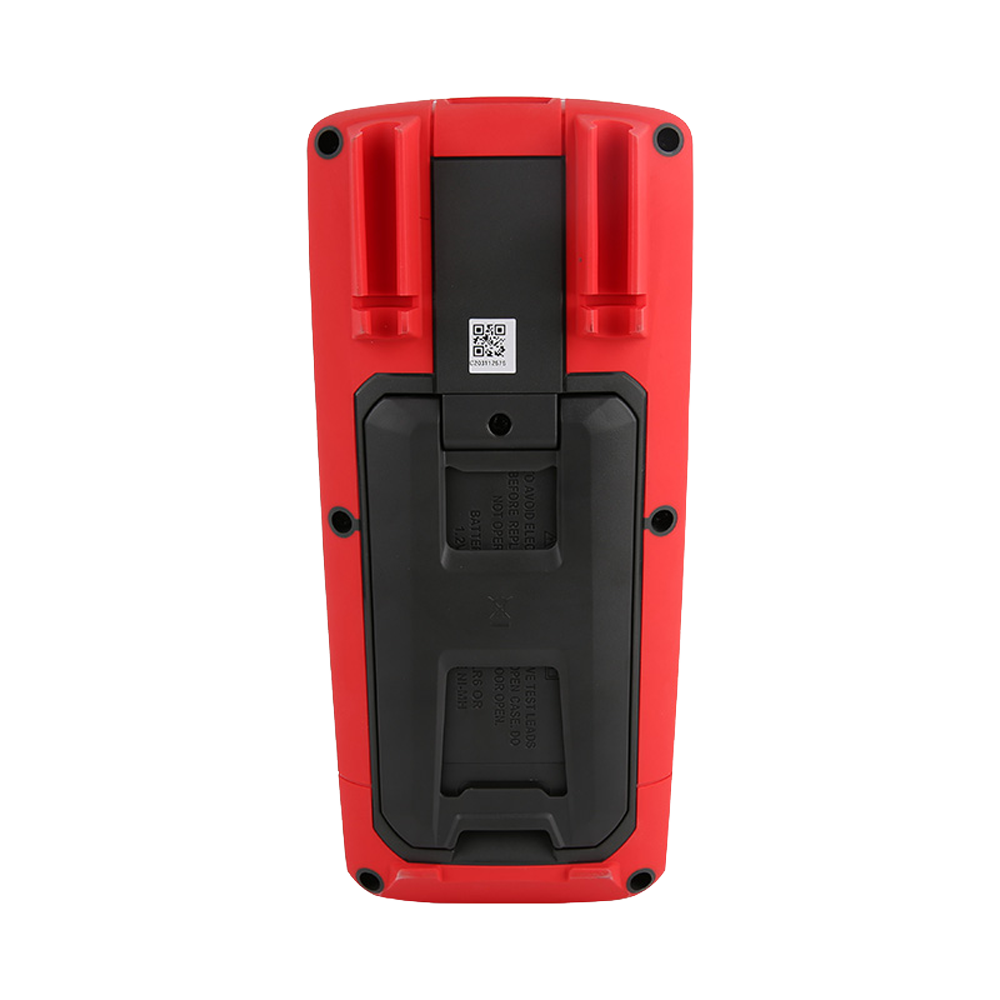

UNI-TREND UT715

Retrofit/loop process calibrator - LCD display up to 20000 accounts - Measures and generates feedback voltages - Measures and generates feedback voltages - USB communication available - Automatic shutdown

Les merShow less

kr 16,646.25

Referanse:

UT715

Merke:

Last ned produktark

Beskrivelse
Produktdetaljer

Beskrivelse

UNI-T
Multifunction loop/feedback process calibrator
Measures and generates feedback/loop voltages and currents
Designed with 0,02 % accuracy, adjustable backlighting and automatic shutdown
Especially suitable for calibration, repair and maintenance of industrial control systems
LCD display up to 20000 accounts
Passage/ramp functions
Rechargeable battery
Contrast adjustment
Automatic shutdown (adjustable time)
USB communication

Stores and retrieves configurations

Brand	Uni-T
Measurements
DC voltage (V)	200mV/30V ±(0.02%+2)
DC current (mA)	20mA ±(0.02%+2)
Feedback current (mA)	20mA ±(0.02%+2)
Frequency (Hz)	100Hz ±(0.01%+1) 1kHz ±(0.01%+1) 10kHz ±(0.01%+1) 100kHz ±(0.01%+1)
Continuity test	Yes, it is available
Source
DC voltage (V)	100mV ±(0.02%+10) 1000mV ±(0.02%+10) 10V ±(0.02%+10)
DC current (mA)	20mA ±(0.02%+2) 20mA (SIM) ±(0.02%+2)
Frequency (Hz)	200Hz ±(0.01%+1) 2000Hz ±(0.01%+1) 20kHz ±(0.01%+1)
Pulses (Hz)	100Hz ±1 1kHz ±1 10kHz ±1
Output voltage of bucle7retroalimentación (V)	24V ±10%
Display dimensions	70.6mm x 34mm
Display accounts	Up to 20000
Operating temperature	-10°C~55°C
Characteristics
Communication	Yes, it is available. USB
Passage/ramp functions	Yes, it is available
Contrast adjustment	Yes, it is available
Automatic shutdown	Yes, it is available. Adjustable time
Other functions	Stores and retrieves configurations
Dimensions	195 (H) x 95 (W) x 58 (D) mm
Power	6 x rechargeable batteries 1.2V (AA)
Weight	650 g
