Switch | |
| Interface | 4 PoE ports RJ45 + 1 UpLink port |
| Port speed | 4 x 10/100, 1 x 10/100 Mbps |
| Power supply | Up to 30 W per port (35 W for the complete device) |
| PoE features | According to norm IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Power | DC 48 V / 800 mA máx. |
| Operating temperature | 0º C - 40º C |
| Dimensions | 83.1 (D) x 27.6 (H) x 105 (W) mm |

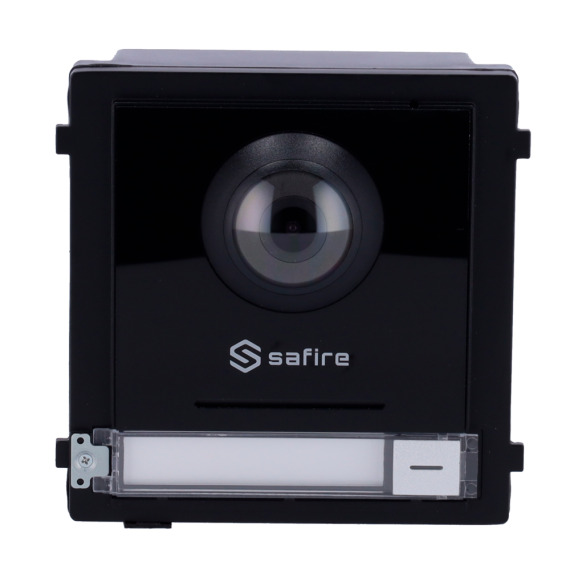

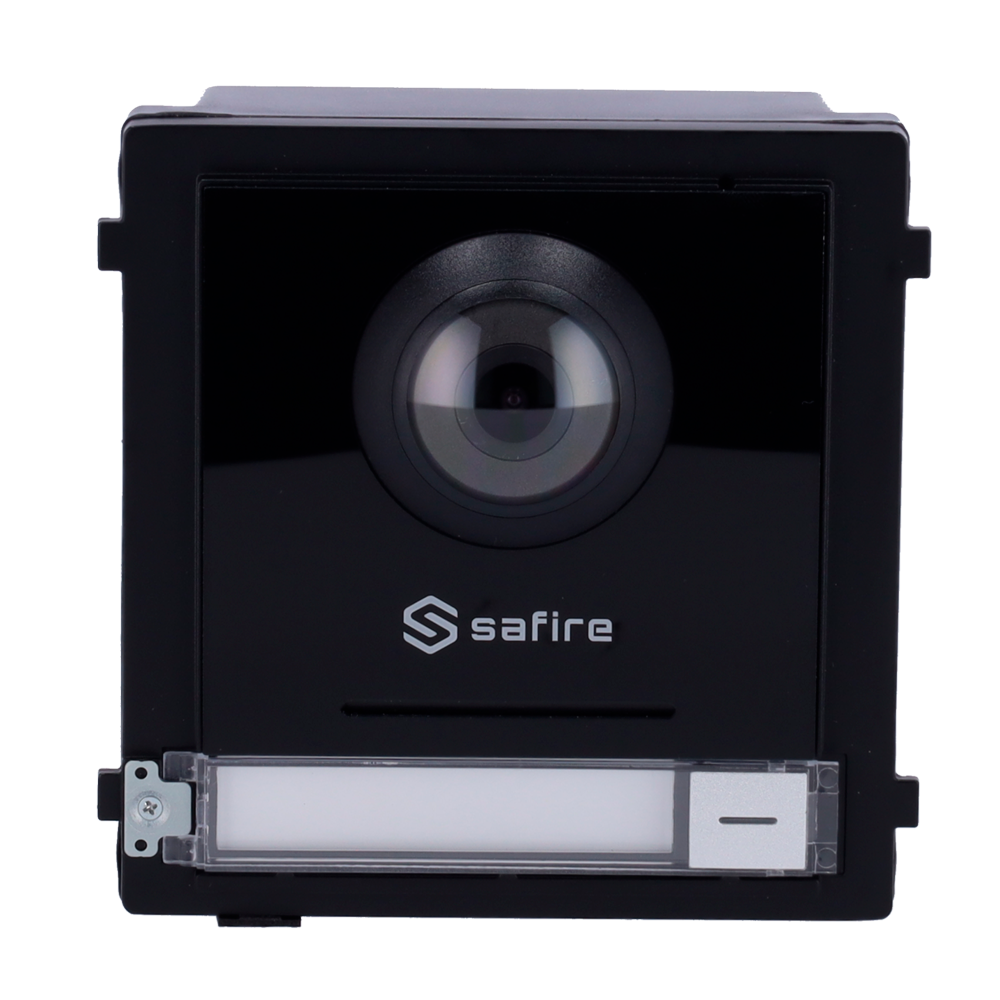

SF-VIMOD-CAM-IP-BF | |
| Brand | Safire |
| Operating system | LINUX OS |
| Image sensor | Low Illumination 2 Mpx IR |
| Image Functions | BLC / WDR / DNR |
| Viewing angle | H:180º, V:96º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |

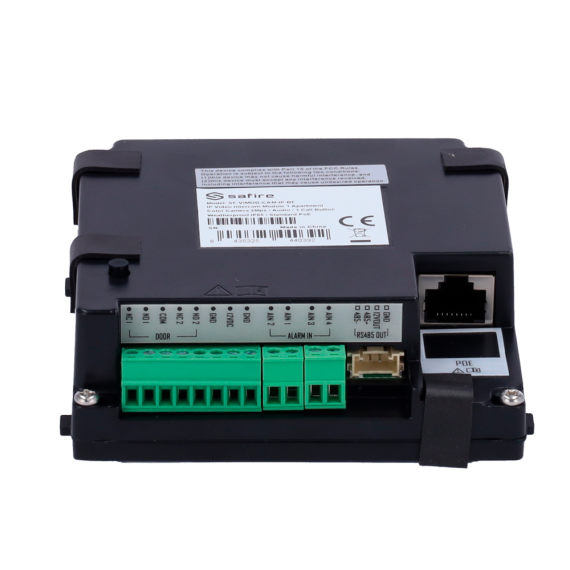

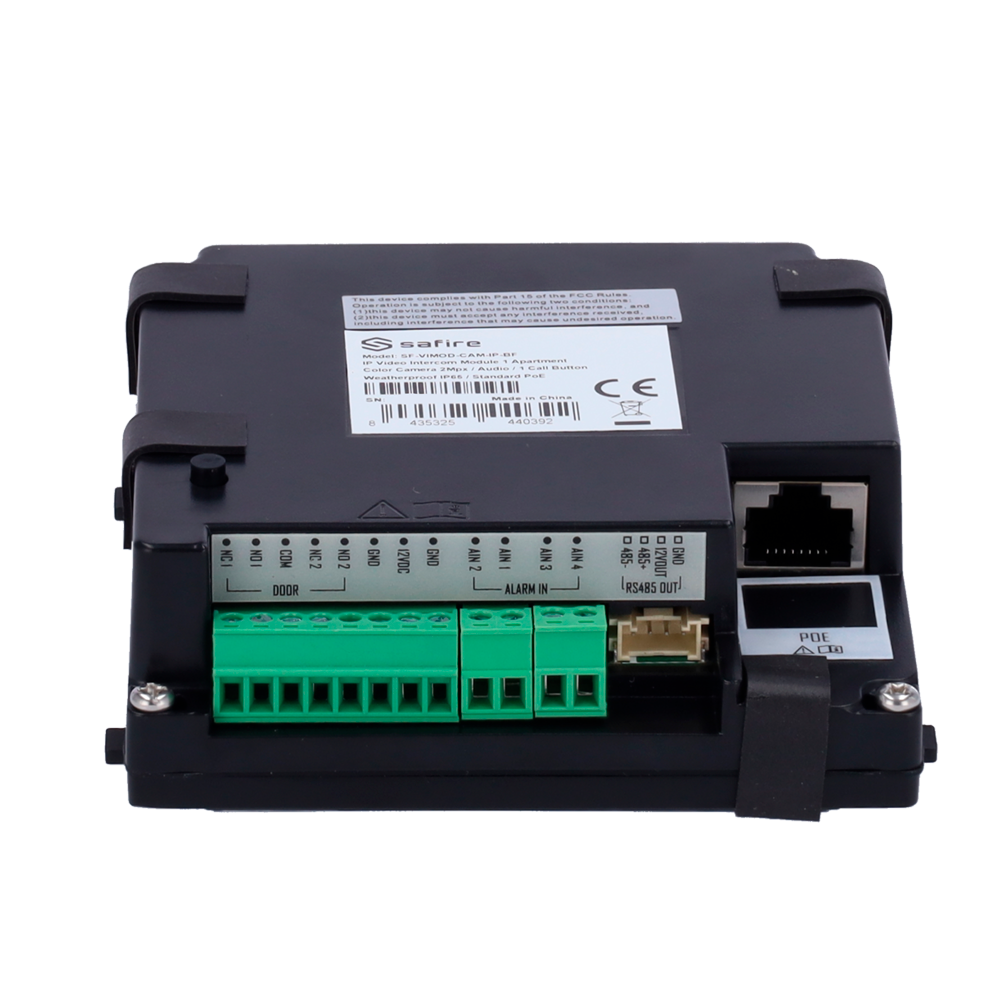

| Outputs | 2 relay / 1 module output / 12 V |
| Inputs | 4 inputs |
| Remote access | Safire Control Center-software Safire Connect mobile app |
| Network interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 |
| Modular | Compatible with Safire extension modules |
| Power | DC 12 V / 850 mA máx. / PoE (IEEE 802.3af) |
| Degree of protection | Suitable for exterior IP65 |
| Material | Plastic (video door entry system) and stainless steel (bracket) |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (H) x 99.8 (W) x 43.9 (D) mm |
| Weight | 360 g |

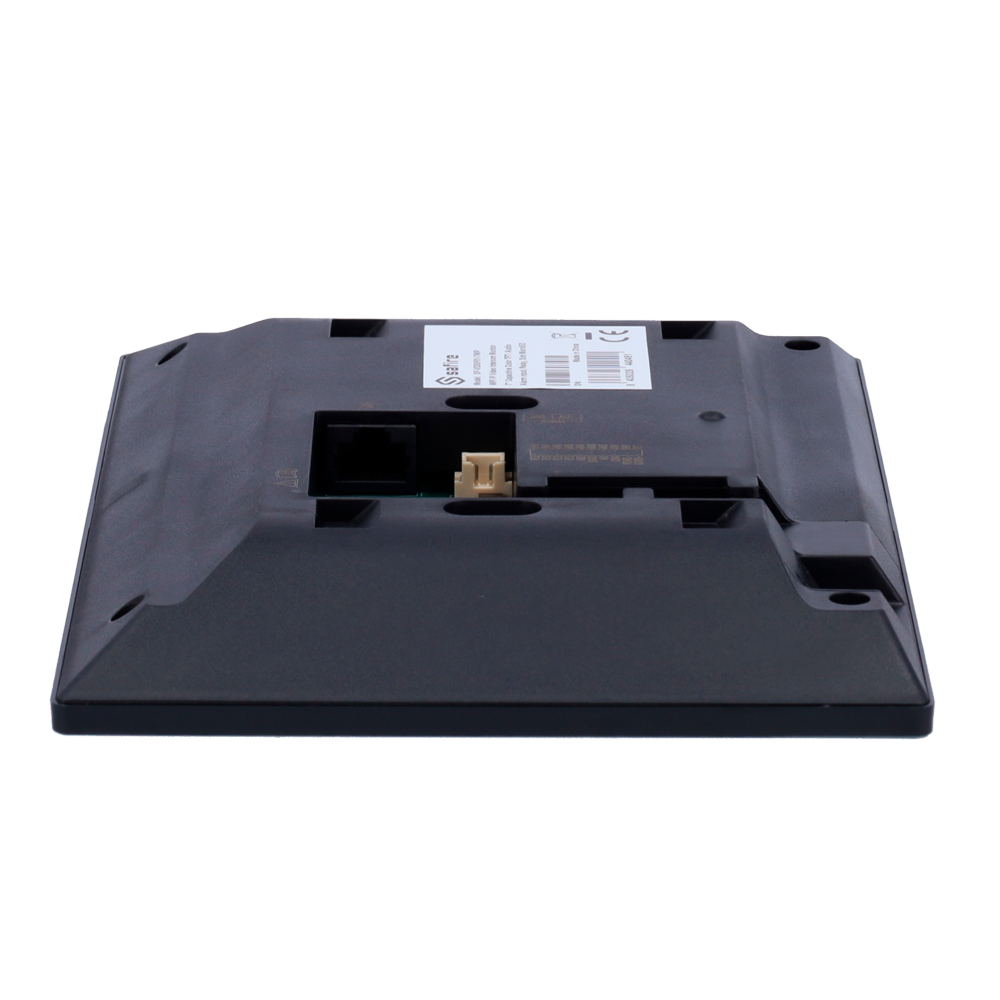

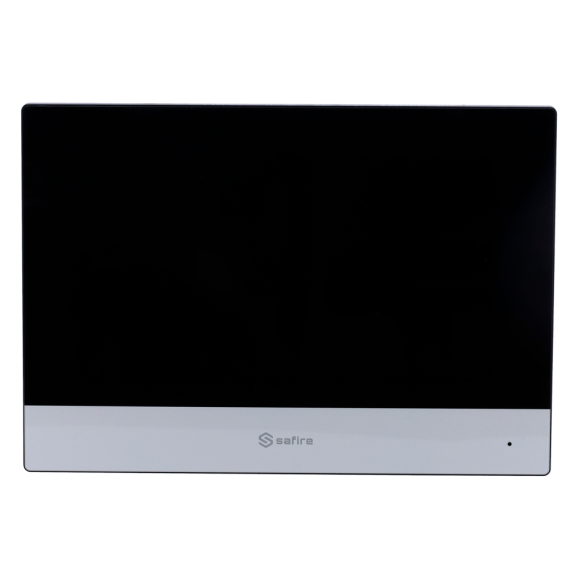

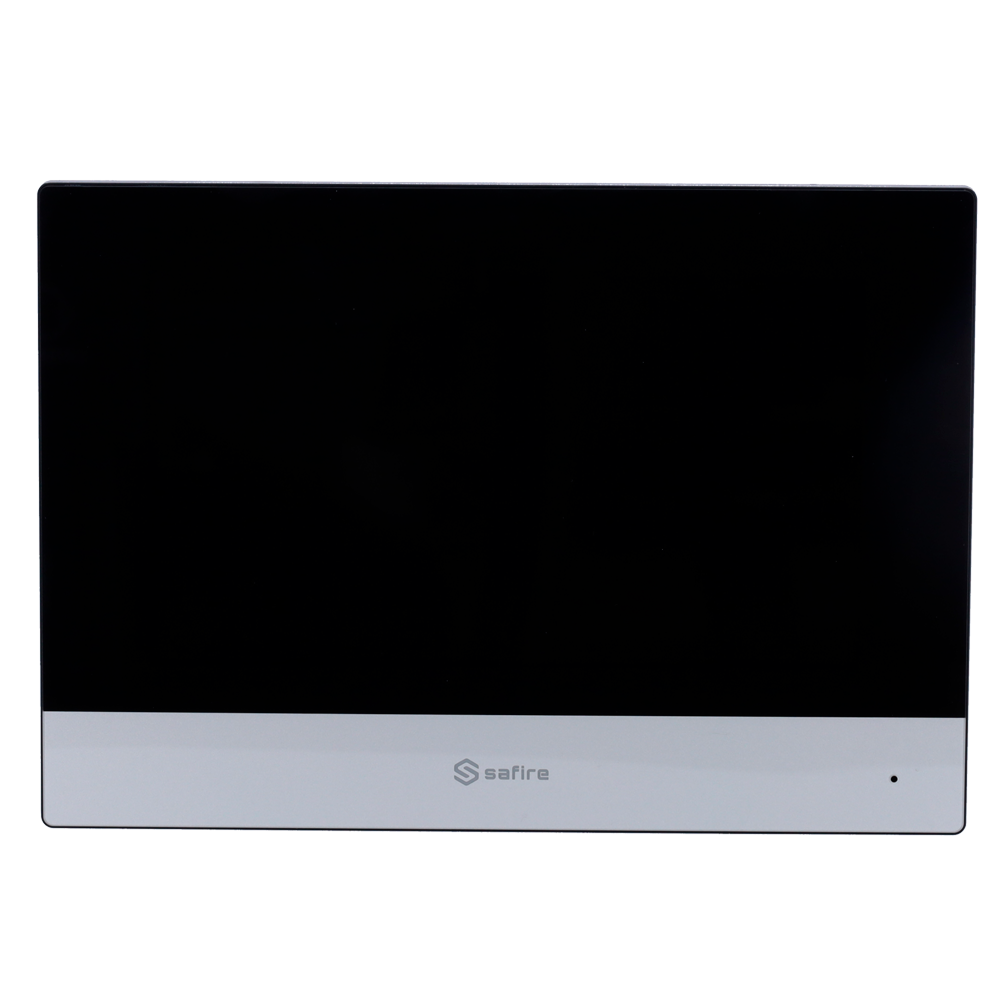

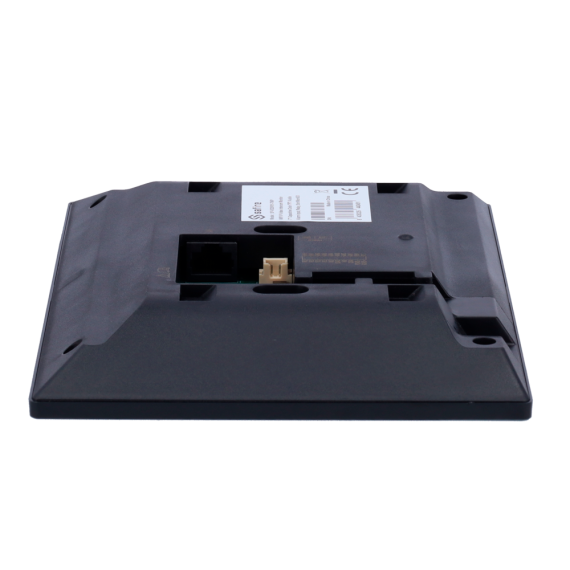

SF-VIDISP01-7WIP | |
| Brand | Safire |
| Operating system | LINUX OS |
| LCD | 7" LCD TFT 1024x600, capacitive |
| Operation mode | Tactile Buttons |
| Inputs | 8 configurable alarm inputs |
| Outputs | 2 relay outputs |
| Audio | Two-way audio with microphone and speaker with noise reduction |
| Remote access | Safire Control Center-software Safire Connect mobile app |
| Memory | MicroSD slot up to 32GB |
| Network interface | Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n (only for connection to app via P2P)) |
| Power | DC 12 V / 600 mA / standard PoE (IEEE802.3af) |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 200 (H) x 140 (W) x 15.1 (D) mm |
| Weight | 750 g |
