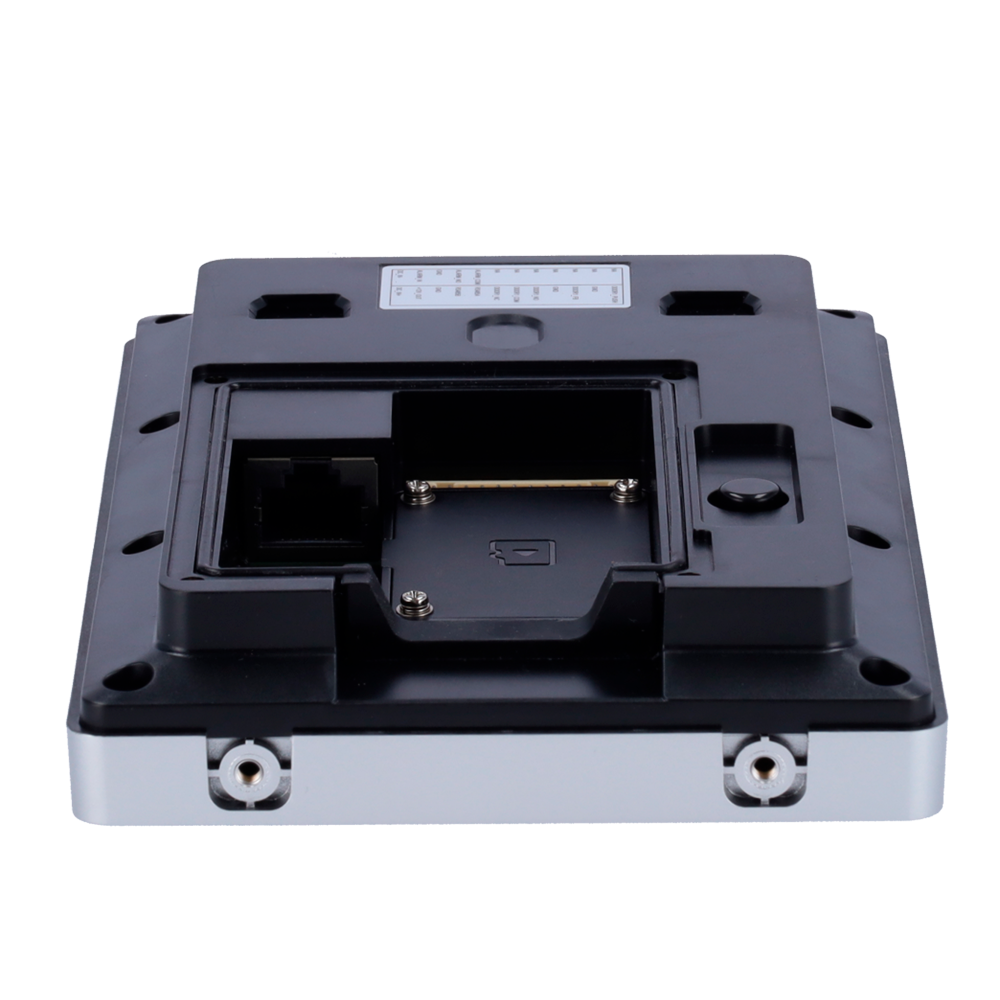

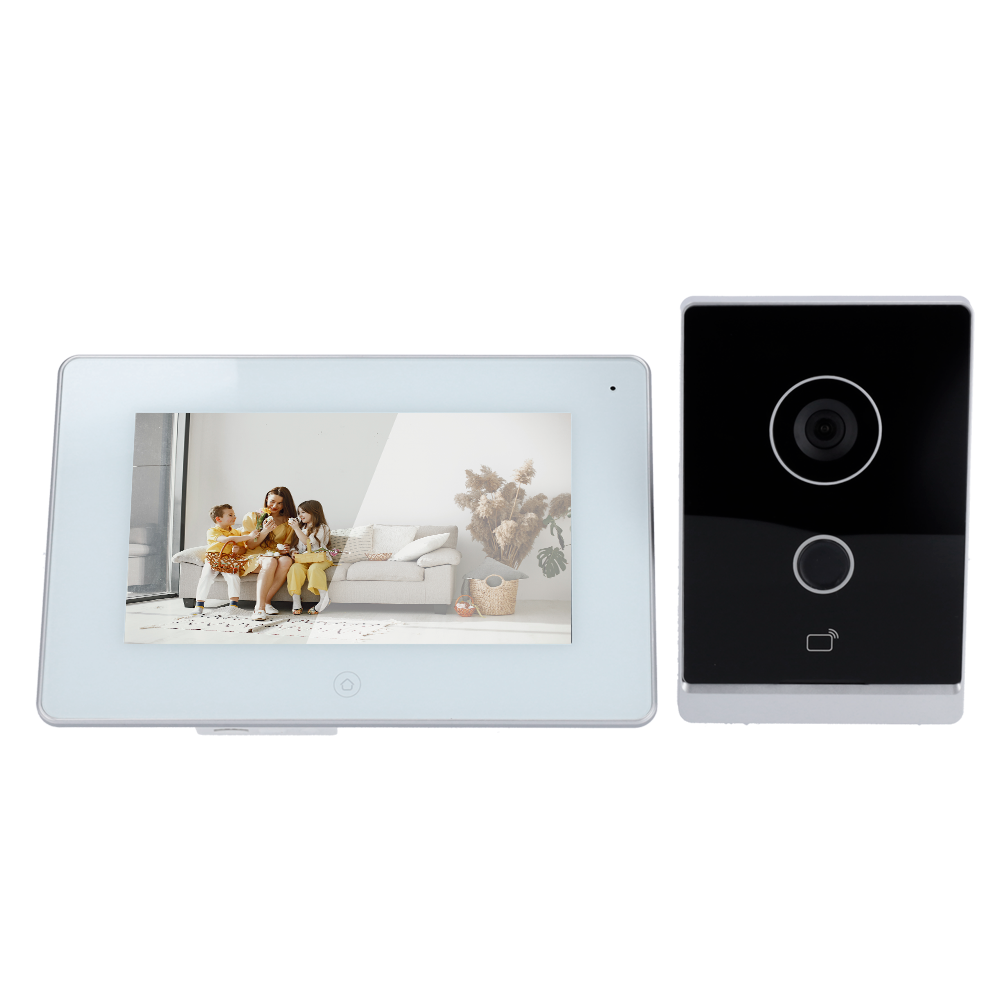

Panel | |
| Brand | X-Security |
| Model | XS-V2203E-IP |
| Image sensor | 1/2.8" 2 Megapixel CMOS Low Illumination HD WDR, 3D DNR, IR |
| Viewing angle | H: 125º, V: 72º, D: 142º |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Keypad | Mechanical call button |
| Access control | MF card (13.56 MHz) Capacity up to 10.000 cards |
| Memory | MicroSD card slot (up to 64 GB) Image capture and recording |
| Outputs | 1 for main lock, 1 for alarm output |
| Inputs | 1 of door status, 1 of pushbutton, 1 of alarm |
| Remote access | Software: SmartPSS Mobile App: DMSS (supports remote unlocking from app) |
| Network interface | Ethernet 10/100 BaseT / WiFi / SIP / RTSP |
| Power | DC 12 V / 1 A max. Standard PoE (IEEE802.3af) |
| Degree of protection | IP65 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 150 (H) x 100 (W) x 25 (D) mm |
| Weight | 490 g |
| Material | PC and acrylic |

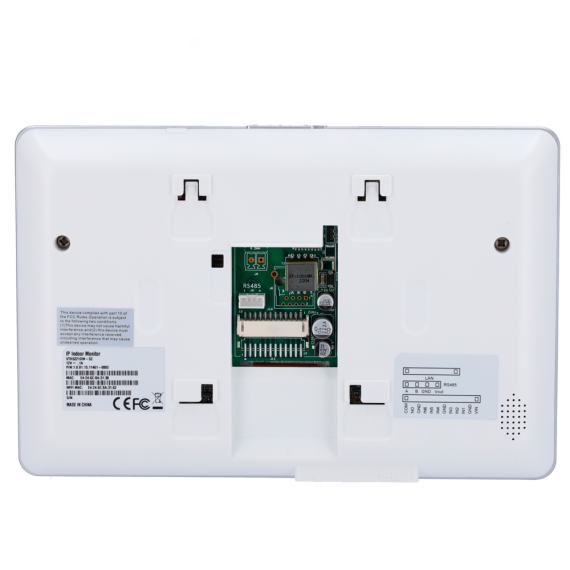

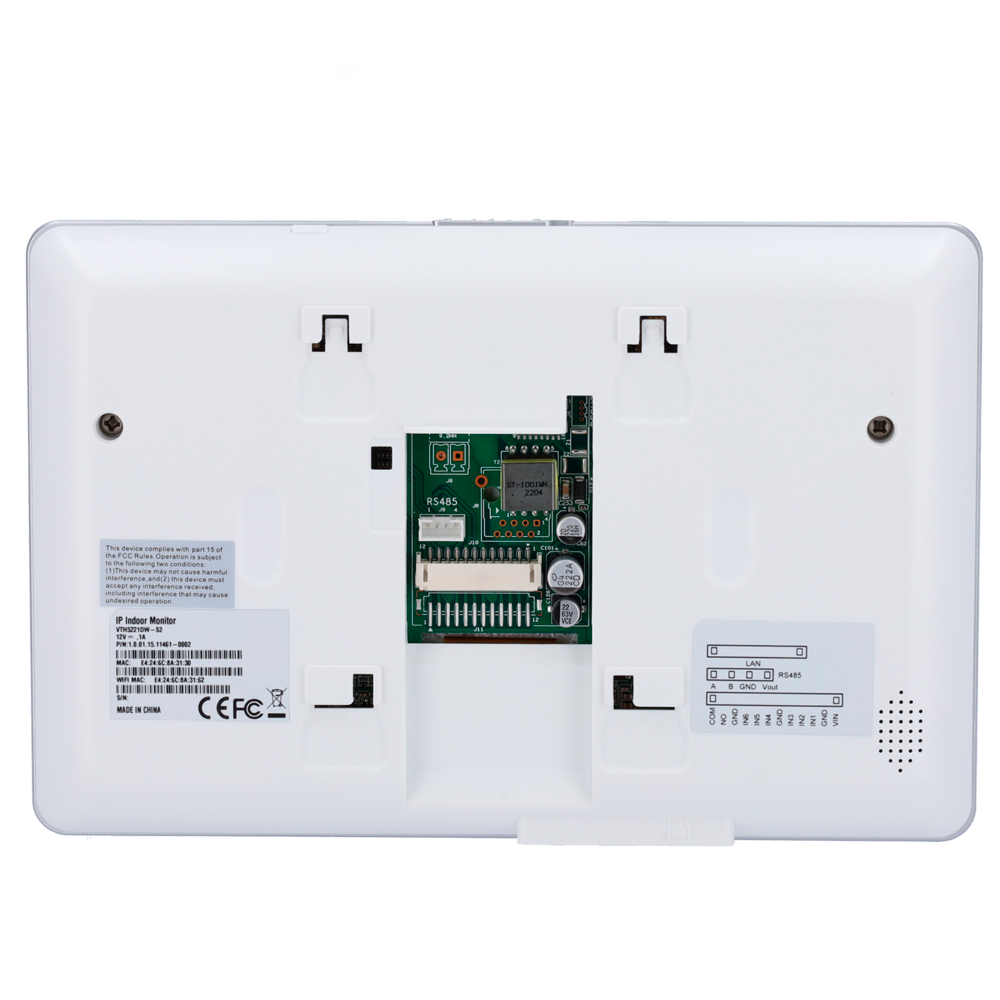

Monitor | |
| Brand | X-Security |
| Model | XS-V5221MC-WIP |
| Screen type | 7" touch-screen TFT |
| Screen resolution | 1024 x 600 |
| Memory | MicroSD card slot (up to 64 GB) Image capture and recording |
| Inputs | 6 configurable alarm inputs |
| Special functions | Do not disturb mode |
| Audio | Two-way audio with integrated microphone and loudspeaker Noise reduction and echo cancellation |
| Remote access | Software: SmartPSS Mobile App: DMSS |
| Connection | Ethernet 10/100 BaseT / WiFi / SIP / RTSP |
| Power | DC 12 V / 1 A max. Standard PoE (IEEE802.3af) |
| Temp. operation | -30º C ~ +55º C |
| Dimensions | 140 (H) x 215 (W) x 21 (D) mm |
| Weight | 690 g |
| Material | PC and ABS |
